VDJ200L-GMTEZW (2007)
Toyota Land Cruiser

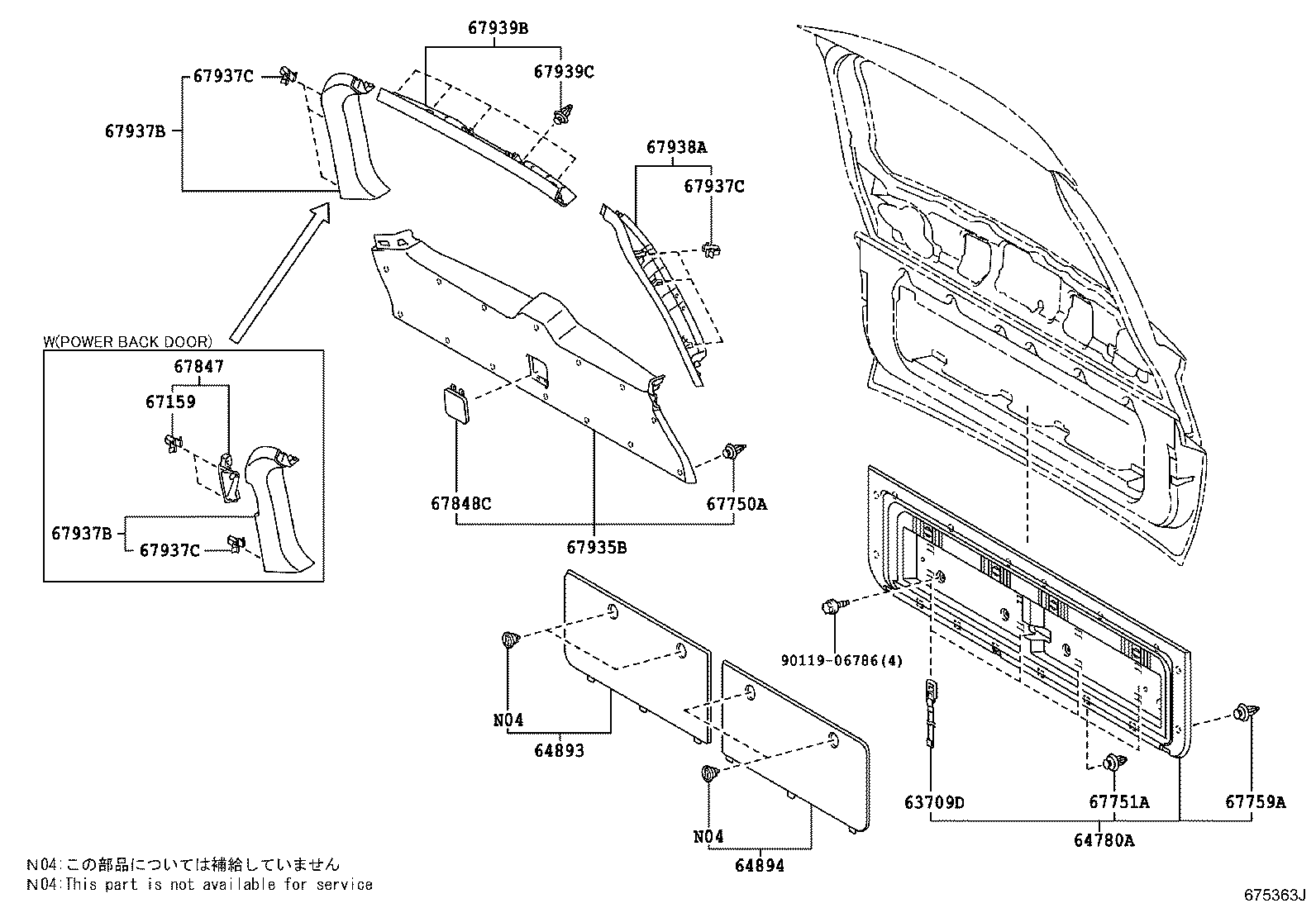

ILLUST NO. 2 OF 2(0709- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63709D - BAND SUB-ASSY, ROOM RACK | ||||
| 64279-60020 |
UZJ200,VDJ200 |
4 | ||
| 64279-60021 |
UZJ200,VDJ200 |
4 | ||
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-60320E2 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 64780-60320B4 |
UZJ200..RHD;UZJ200,VDJ200..05S MD.GRAY,TRIM1# |
1 | ||
| 64893 - COVER, BACK DOOR TRIM, UPPER, RH | ||||
| 64870-60020E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 64870-60020B0 |
UZJ200..RHD;UZJ200,VDJ200..05S MD.GRAY,TRIM1# |
1 | ||
| 64894 - COVER, BACK DOOR TRIM, UPPER, LH | ||||
| 64880-60020E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 64880-60020B0 |
UZJ200..RHD;UZJ200,VDJ200..05S MD.GRAY,TRIM1# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
UZJ200,VDJ200 |
14 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 67771-60030 |
UZJ200,VDJ200 |
6 | ||
| 67759A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10167 |
UZJ200,VDJ200 |
10 | ||
| 67848C - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67848-60050B0 |
UZJ200..RHD;UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 67848-60050E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 67935B - GARNISH, BACK DOOR | ||||
| 67935-60110B0 |
UZJ200..RHD;UZJ200,VDJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 67935-60110E0 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,SAND BEIGE,TRIM4# |
1 | ||
| 67935-60100B0 |
UZJ200..RHD;UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 67935-60110B0 |
UZJ200,VDJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),LT.GRAY,TRIM1# |
1 | ||
| 67935-60100E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 67935-60110E0 |
UZJ200..05S;VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),SAND BEIGE,TRIM4# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-60110B0 |
UZJ200..RHD;UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 67937-60110E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-60110B0 |
UZJ200..RHD;UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 67937-60110E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
UZJ200,VDJ200 |
6 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
UZJ200,VDJ200 |
6 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
UZJ200,VDJ200 |
6 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-60090B0 |
UZJ200..RHD;UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 67938-60090E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-60090B0 |
UZJ200..RHD;UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 67939-60090E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
UZJ200,VDJ200 |
5 | ||
| Common parts | ||||
| 90119-06786 | ||||

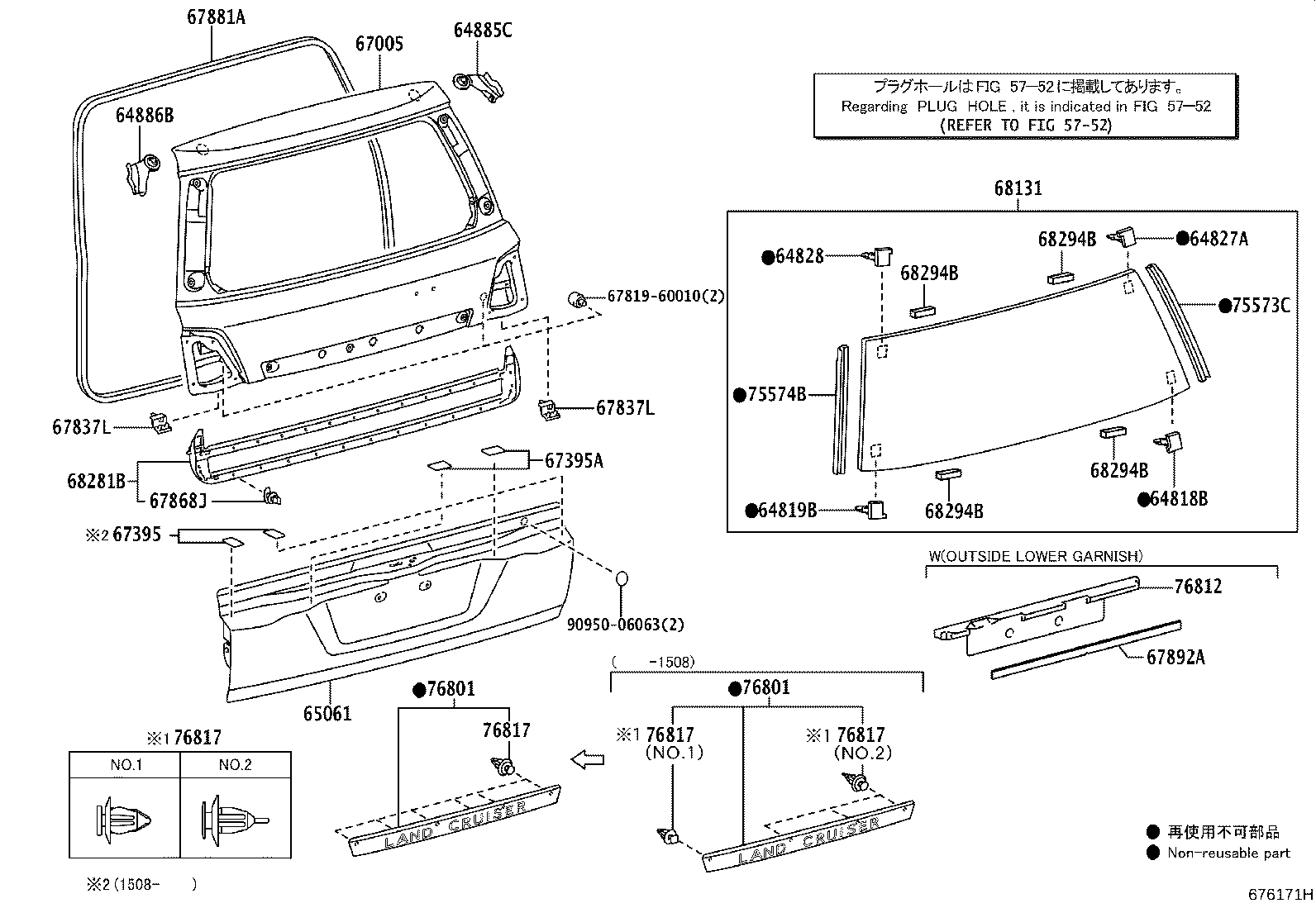

ILLUST NO. 1 OF 2(0709- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-60030 |
UZJ200,VDJ200 |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-60030 |
UZJ200,VDJ200 |
1 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-60040 |
UZJ200,VDJ200 |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-60040 |
UZJ200,VDJ200 |
1 | ||
| 64885C - CHANNEL, BACK DOOR GLASS, RH | ||||
| 64885-60010 |
UZJ200,VDJ200 |
1 | ||
| 64886B - CHANNEL, BACK DOOR GLASS, LH | ||||
| 64886-60010 |
UZJ200,VDJ200 |
1 | ||
| 65061 - PANEL SUB-ASSY, TAIL GATE | ||||
| 65061-60330 |
UZJ200,VDJ200 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-60D10 |
UZJ200,VDJ200 |
1 | ||
| 67005-60D50 |
UZJ200,VDJ200 EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH) |
1 | ||
| 67005-60D51 |
UZJ200,VDJ200..LHD BACK MONITOR-GUIDE |
1 | ||
| 67005-60D11 |
UZJ200,VDJ200 |
1 | ||
| 67005-60D51 |
UZJ200,VDJ200 EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH) |
1 | ||
| 67395A - PROTECTOR, BACK DOOR, LOWER | ||||
| 67395-60050 |
UZJ200,VDJ200 |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60050 |
UZJ200,VDJ200 |
2 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60050 |
UZJ200,VDJ200 |
2 | ||
| 67868J - RETAINER, DOOR WEATHERSTRIP | ||||
| 90467-04034 |
UZJ200,VDJ200 WHITE |
2 | ||
| 67867-12150 |
UZJ200,VDJ200 PINK |
29 | ||
| 67867-12150 |
UZJ200,VDJ200 PINK |
23 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-60120 |
UZJ200,VDJ200 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-60130 |
UZJ200,VDJ200..LHD *UVCT,T=3.5,GREEN,RUSSIA SPEC |
1 | ||
| 68105-60160 |
UZJ200,VDJ200 *TEM,T=3.5,DK.GREEN |
1 | ||
| 68105-60270 |
UZJ200,VDJ200 *EHT,T=3.1,DK.GRAY |
1 | ||
| 68105-60250 |
UZJ200,VDJ200..LHD *UVCEHT,T=3.1,GREEN,AZERBAIJAN,GEORGIA SPEC |
1 | ||
| 68105-60250 |
UZJ200,VDJ200..05S *UVCEHT,T=3.1,GREEN,RUSSIA SPEC |
1 | ||
| 68281B - WEATHERSTRIP, LIFT GATE | ||||
| 68281-60030 |
UZJ200,VDJ200 |
1 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
UZJ200,VDJ200 |
4 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
UZJ200,VDJ200 |
4 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
UZJ200,VDJ200 |
4 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
UZJ200,VDJ200 |
4 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-60070 |
UZJ200,VDJ200 |
1 | ||
| 75574B - MOULDING, BACK WINDOW, OUTSIDE LH | ||||
| 75574-60020 |
UZJ200,VDJ200 |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-60120 |
UZJ200,VDJ200 PLATED |
1 | ||
| 76801-60180 |
UZJ200,VDJ200..LHD PLATED,AZERBAIJAN,GEORGIA SPEC |
1 | ||
| 76801-60180 |
UZJ200,VDJ200..05S PLATED,RUSSIA SPEC |
1 | ||
| 76801-60121 |
UZJ200,VDJ200 PLATED |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-60120 |
UZJ200,VDJ200 PLATED |
1 | ||
| 76801-60180 |
UZJ200,VDJ200..LHD PLATED,AZERBAIJAN,GEORGIA SPEC |
1 | ||
| 76801-60180 |
UZJ200,VDJ200..05S PLATED,RUSSIA SPEC |
1 | ||
| 76801-60121 |
UZJ200,VDJ200 PLATED |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-68010 |
UZJ200,VDJ200 NO.1:REFER ILLUST. |
1 | ||
| 75868-60020 |
UZJ200,VDJ200 NO.2:REFER ILLUST. |
3 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-68010 |
UZJ200,VDJ200 NO.1:REFER ILLUST. |
1 | ||
| 75868-60020 |
UZJ200,VDJ200 NO.2:REFER ILLUST. |
3 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-68010 |
UZJ200,VDJ200 NO.1:REFER ILLUST. |
1 | ||
| 75868-60020 |
UZJ200,VDJ200 NO.2:REFER ILLUST. |
3 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-68010 |
UZJ200,VDJ200 NO.1:REFER ILLUST. |
1 | ||
| 75868-60020 |
UZJ200,VDJ200 NO.2:REFER ILLUST. |
3 | ||
| Common parts | ||||
| 67819-60010 | ||||
| 90950-06063 | ||||
| Linked diagrams | ||||
| 5752 | ||||
