VDJ200L-GMTEZW (2007)
Toyota Land Cruiser

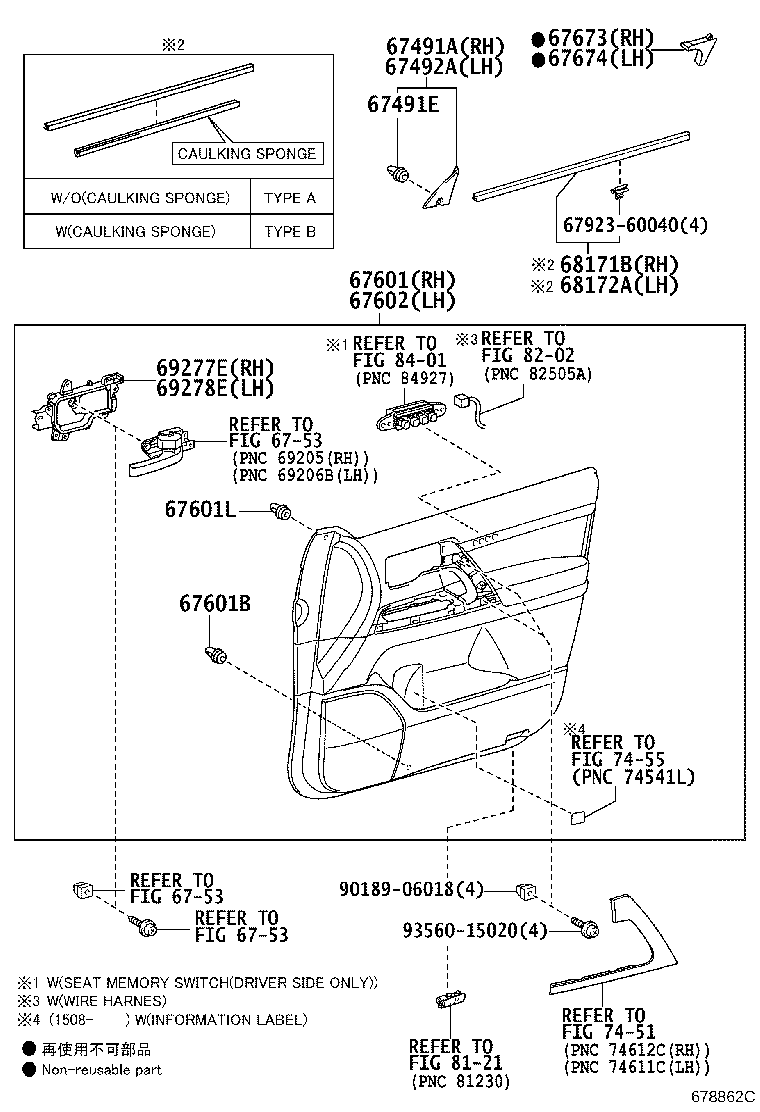

ILLUST NO. 2 OF 2(0709- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-60090 |
UZJ200,VDJ200 |
1 | ||
| 67491E - RETAINER, DOOR TRIM | ||||
| 90467-10161 |
UZJ200,VDJ200 |
2 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-60090 |
UZJ200,VDJ200 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-60C90C0 |
UZJ200,VDJ200 BLACK,TRIM1# |
1 | ||
| 67610-60D00C0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67610-60D00C0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67610-60D00E0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60D10C0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1# |
1 | ||
| 67610-60D10E0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60D20C0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67610-60D00E0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60C90E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67610-60D01E0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60D20E0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60D20C0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67610-60D01E0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60D20E0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60C91E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67610-60D01C0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67610-60D11C0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1# |
1 | ||
| 67610-60D01E0 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60D01C0 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67610-60D21E0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60D31C0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,BLACK,TRIM1# |
1 | ||
| 67610-60D21C0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67610-60D01C0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67610-60C91C0 |
UZJ200,VDJ200 BLACK,TRIM1# |
1 | ||
| 67610-60G60C0 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,BLACK,TRIM1# |
1 | ||
| 67610-60D11E0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60G60E0 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60D31E0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60D01C1 |
VDJ200..LHD BLACK,TRIM1# |
1 | ||
| 67610-60D01E1 |
VDJ200..LHD DK. BROWN,TRIM4# |
1 | ||
| 67610-60D21C1 |
VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67610-60D31C1 |
VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67610-60D21E1 |
VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,DK. BROWN,TRIM4# |
1 | ||
| 67610-60D31E1 |
VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),DK. BROWN,TRIM4# |
1 | ||
| 67610-60G60E1 |
VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),DK. BROWN,TRIM4# |
1 | ||
| 67610-60G60C1 |
VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
UZJ200,VDJ200 |
22 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 62217-13010 |
UZJ200,VDJ200 |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-60C70E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67620-60C80C0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67620-60C80C0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67620-60D20C0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67620-60D10E0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60C80E0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60C81C0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67620-60D20E0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60C81C0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67620-60C80E0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60C70C0 |
UZJ200,VDJ200 BLACK,TRIM1# |
1 | ||
| 67620-60D20E0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60D10C0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1# |
1 | ||
| 67620-60C81E0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60D20C0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67620-60C71E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67620-60C81E0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60D21E0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60D11E0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60C71C0 |
UZJ200,VDJ200 BLACK,TRIM1# |
1 | ||
| 67620-60D11C0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1# |
1 | ||
| 67620-60D21C0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67620-60C81E0 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60C81C0 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,BLACK,TRIM1# |
1 | ||
| 67620-60G60C0 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,BLACK,TRIM1# |
1 | ||
| 67620-60D31C0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,BLACK,TRIM1# |
1 | ||
| 67620-60D31E0 |
UZJ200,VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60C81E1 |
VDJ200..LHD DK. BROWN,TRIM4# |
1 | ||
| 67620-60D21C1 |
VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67620-60C81C1 |
VDJ200..LHD BLACK,TRIM1# |
1 | ||
| 67620-60D21E1 |
VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60G60E0 |
UZJ200,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 67620-60D31C1 |
VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67620-60G60C1 |
VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),BLACK/MD.GRAY,TRIM1# |
1 | ||
| 67620-60G60E1 |
VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),DK. BROWN,TRIM4# |
1 | ||
| 67620-60D31E1 |
VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),DK. BROWN,TRIM4# |
1 | ||
| 67673 - GARNISH, DOOR FRAME, LOWER RH | ||||
| 67673-60010 |
UZJ200,VDJ200 |
1 | ||
| 67674 - GARNISH, DOOR FRAME, LOWER LH | ||||
| 67674-60010 |
UZJ200,VDJ200 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-60070 |
UZJ200,VDJ200 TYPE A:REFER ILLUST. |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-60060 |
UZJ200,VDJ200 TYPE A:REFER ILLUST. |
1 | ||
| 69277E - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-60061C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 69277-60060C0 |
UZJ200,VDJ200 BLACK,TRIM1# |
1 | ||
| 69277-60061E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 69277-60060E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 69278E - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-60040E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 69278-60041C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 69278-60041E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 69278-60040C0 |
UZJ200,VDJ200 BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 67923-60040 | ||||
| 90189-06018 | ||||
| 93560-15020 | ||||
| Linked diagrams | ||||
| 6753 | ||||
| 7451 | ||||
| 7455 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0709- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-60630 |
UZJ200,VDJ200 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
UZJ200,VDJ200 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-60630 |
UZJ200,VDJ200 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-60350 |
UZJ200,VDJ200 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-60350 |
UZJ200,VDJ200 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-60100 |
UZJ200,VDJ200 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-60110 |
UZJ200,VDJ200 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-60160 |
UZJ200,VDJ200 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-60070 |
UZJ200,VDJ200 |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-60040 |
UZJ200,VDJ200 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-60010 |
UZJ200,VDJ200 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-60150 |
UZJ200,VDJ200 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-60150 |
UZJ200,VDJ200 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
UZJ200,VDJ200 |
18 | ||
| 67867-12150 |
UZJ200,VDJ200 |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
UZJ200,VDJ200 |
17 | ||
| 67867-12150 |
UZJ200,VDJ200 |
18 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-60010 |
UZJ200,VDJ200 |
1 | ||
| 67923E - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-24030 |
UZJ200,VDJ200 |
2 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-60010 |
UZJ200,VDJ200 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-60630 |
UZJ200,VDJ200..LHD *UVCL,T=4.7,GREEN,AZERBAIJAN,GEORGIA SPEC |
1 | ||
| 68101-60560 |
UZJ200,VDJ200 *UVCT,T=5.0,GREEN |
1 | ||
| 68101-60561 |
UZJ200,VDJ200 *UVCT,T=5.0,GREEN |
1 | ||
| 68101-60510 |
UZJ200,VDJ200..LHD *UVCT,T=4.7,GREEN,RUSSIA SPEC |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-60630 |
UZJ200,VDJ200..LHD *UVCL,T=4.7,GREEN,AZERBAIJAN,GEORGIA SPEC |
1 | ||
| 68101-60560 |
UZJ200,VDJ200 *UVCT,T=5.0,GREEN |
1 | ||
| 68101-60561 |
UZJ200,VDJ200 *UVCT,T=5.0,GREEN |
1 | ||
| 68101-60510 |
UZJ200,VDJ200..LHD *UVCT,T=4.7,GREEN,RUSSIA SPEC |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-60560 |
UZJ200,VDJ200 *UVCT,T=5.0,GREEN |
1 | ||
| 68102-60561 |
UZJ200,VDJ200 *UVCT,T=5.0,GREEN |
1 | ||
| 68102-60630 |
UZJ200,VDJ200..LHD *UVCL,T=4.7,GREEN,AZERBAIJAN,GEORGIA SPEC |
1 | ||
| 68102-60510 |
UZJ200,VDJ200..LHD *UVCT,T=4.7,GREEN,RUSSIA SPEC |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-60560 |
UZJ200,VDJ200 *UVCT,T=5.0,GREEN |
1 | ||
| 68102-60561 |
UZJ200,VDJ200 *UVCT,T=5.0,GREEN |
1 | ||
| 68102-60630 |
UZJ200,VDJ200..LHD *UVCL,T=4.7,GREEN,AZERBAIJAN,GEORGIA SPEC |
1 | ||
| 68102-60510 |
UZJ200,VDJ200..LHD *UVCT,T=4.7,GREEN,RUSSIA SPEC |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-60070 |
UZJ200,VDJ200 |
1 | ||
| 68151E - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-60060 |
UZJ200,VDJ200 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-60110 |
UZJ200,VDJ200 |
1 | ||
| 68610-60111 |
UZJ200,VDJ200 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-60100 |
UZJ200,VDJ200 |
1 | ||
| 68620-60101 |
UZJ200,VDJ200 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-60010 |
UZJ200,VDJ200 |
1 | ||
| 68622C - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-60010 |
UZJ200,VDJ200 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-60030 |
UZJ200,VDJ200 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-60030 |
UZJ200,VDJ200 |
1 | ||
| 75925B - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-60010 |
UZJ200,VDJ200 |
1 | ||
| 75926A - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-60010 |
UZJ200,VDJ200 |
1 | ||
| 75927B - TAPE, BLACK OUT, NO.4 RH | ||||
| 75927-60010 |
UZJ200,VDJ200 |
1 | ||
| 75928B - TAPE, BLACK OUT, NO.4 LH | ||||
| 75928-60010 |
UZJ200,VDJ200 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06775 | ||||
| 90119-06956 | ||||
| 90189-04200 | ||||
| 90189-05172 | ||||
| 90189-06227 | ||||
| 90467-05162C0 | ||||
| 90950-01506 | ||||
| 90950-01841 | ||||
| 90950-01964 | ||||
| 93560-54016 | ||||
| 93560-54025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 7552 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
