VDJ200L-GMTEZW (2007)
Toyota Land Cruiser

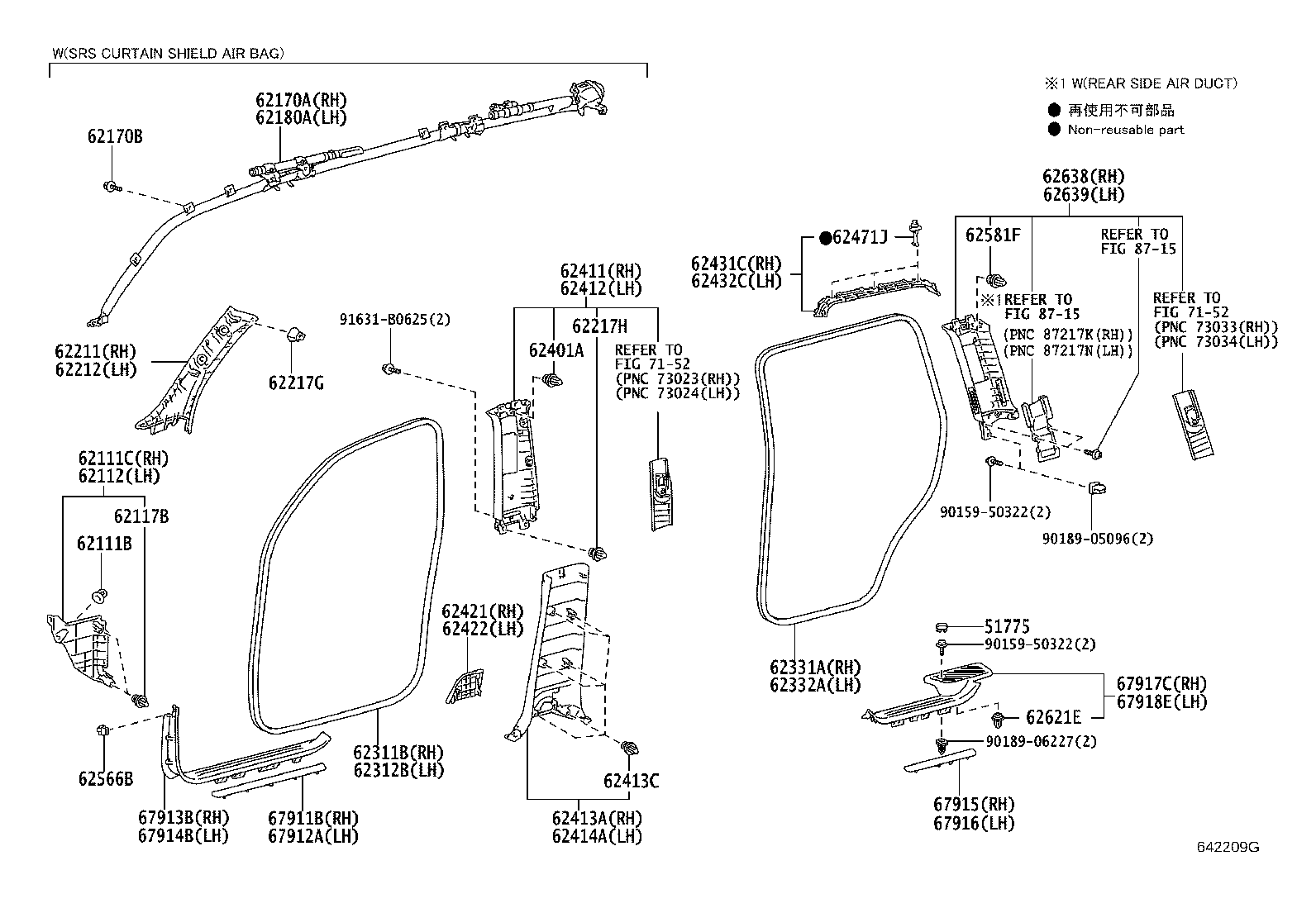

ILLUST NO. 1 OF 2(0709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51775 - COVER,REAR STEP | ||||
| 58372-60060C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
2 | ||
| 58372-60060E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06155 |
UZJ200,VDJ200 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-60150E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 62111-60150C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-60210E0 |
UZJ200,VDJ200..LHD DK. BROWN,TRIM4# |
1 | ||
| 62112-60210C0 |
UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-10167 |
UZJ200,VDJ200 |
4 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-60090 |
UZJ200,VDJ200..05S |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
UZJ200,VDJ200..05S |
20 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-60070 |
UZJ200,VDJ200..05S |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-60170E0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,SAND BEIGE,TRIM4# |
1 | ||
| 62210-60160B0 |
UZJ200..05S;VDJ200..LHD LT.GRAY,TRIM1# |
1 | ||
| 62210-60160E0 |
UZJ200..05S;VDJ200..LHD SAND BEIGE,TRIM4# |
1 | ||
| 62210-60170E0 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,SAND BEIGE,TRIM4# |
1 | ||
| 62210-60170B0 |
UZJ200..RHD;UZJ200,VDJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62210-60170B0 |
UZJ200..RHD;UZJ200,VDJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62210-60170B0 |
UZJ200..RHD;UZJ200,VDJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62210-60170E0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,SAND BEIGE,TRIM4# |
1 | ||
| 62210-60170E0 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,SAND BEIGE,TRIM4# |
1 | ||
| 62210-60170B0 |
UZJ200..RHD;UZJ200,VDJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62210-60170E0 |
UZJ200..05S;VDJ200..LHD SAND BEIGE,TRIM4# |
1 | ||
| 62210-60170B0 |
UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-60170B0 |
UZJ200..RHD;UZJ200,VDJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62220-60160B0 |
UZJ200..05S;VDJ200..LHD LT.GRAY,TRIM1# |
1 | ||
| 62220-60170E0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,SAND BEIGE,TRIM4# |
1 | ||
| 62220-60170E0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/LW 9SPEAKER,SAND BEIGE,TRIM4# |
1 | ||
| 62220-60160E0 |
UZJ200..05S;VDJ200..LHD SAND BEIGE,TRIM4# |
1 | ||
| 62220-60170B0 |
UZJ200..RHD;UZJ200,VDJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62220-60170E0 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,SAND BEIGE,TRIM4# |
1 | ||
| 62220-60170B0 |
UZJ200..RHD;UZJ200,VDJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62220-60170E0 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,SAND BEIGE,TRIM4# |
1 | ||
| 62220-60170B0 |
UZJ200..RHD;UZJ200,VDJ200..05S AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62220-60170E0 |
UZJ200..05S;VDJ200..LHD SAND BEIGE,TRIM4# |
1 | ||
| 62220-60170B0 |
UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-60020 |
UZJ200,VDJ200 |
2 | ||
| 62217-35010 |
UZJ200,VDJ200 |
2 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-10161 |
UZJ200,VDJ200 |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-60140 |
UZJ200,VDJ200 |
1 | ||
| 62311-60141 |
UZJ200,VDJ200 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-60140 |
UZJ200,VDJ200 |
1 | ||
| 62312-60141 |
UZJ200,VDJ200 |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-60081 |
UZJ200,VDJ200 |
1 | ||
| 62331-60080 |
UZJ200,VDJ200 |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-60080 |
UZJ200,VDJ200 |
1 | ||
| 62332-60081 |
UZJ200,VDJ200 |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10167 |
UZJ200,VDJ200 |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-60120E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 62410-60120B0 |
UZJ200..RHD;UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-60120E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 62420-60120B0 |
UZJ200..RHD;UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-60080C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62413-60080E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
UZJ200,VDJ200 |
12 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-60080C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62414-60080E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 62421 - COVER, CENTER PILLAR GARNISH, RH | ||||
| 62421-60030C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62421-60030E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 62422 - COVER, CENTER PILLAR GARNISH, LH | ||||
| 62422-60010E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 62422-60010C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62431C - GARNISH, ROOF SIDE RAIL, FRONT RH | ||||
| 62431-60040E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 62431-60040B0 |
UZJ200..RHD;UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 62432C - GARNISH, ROOF SIDE RAIL, FRONT LH | ||||
| 62432-60020E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 62432-60020B0 |
UZJ200..RHD;UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90950-08004 |
UZJ200,VDJ200 |
6 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-60010 |
UZJ200,VDJ200 |
2 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 90467-10188 |
UZJ200,VDJ200 |
2 | ||
| 62621E - CLIP | ||||
| 90467-10161 |
UZJ200,VDJ200 |
2 | ||
| 90467-09206 |
UZJ200,VDJ200 |
2 | ||
| 62638 - GARNISH, REAR QUARTER TRIM, FRONT RH | ||||
| 62638-60130E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 62638-60130B0 |
UZJ200,VDJ200 LT.GRAY,TRIM1# |
1 | ||
| 62638-60130B1 |
UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 62638-60130E1 |
UZJ200,VDJ200..05S SAND BEIGE,TRIM4# |
1 | ||
| 62639 - GARNISH, REAR QUARTER TRIM, FRONT LH | ||||
| 62639-60100E0 |
UZJ200,VDJ200 SAND BEIGE,TRIM4# |
1 | ||
| 62639-60100B0 |
UZJ200,VDJ200 LT.GRAY,TRIM1# |
1 | ||
| 62639-60100B1 |
UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 62639-60100E1 |
UZJ200,VDJ200..05S SAND BEIGE,TRIM4# |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-60030E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67911-60030C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-60030C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 67911-60030E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-60160C0 |
UZJ200,VDJ200 BLACK,TRIM1# |
1 | ||
| 67913-60161C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 67913-60160E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67913-60161E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-60151E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67914-60151C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 67914-60150C0 |
UZJ200,VDJ200 BLACK,TRIM1# |
1 | ||
| 67914-60150E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-60030C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 67915-60030E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67915-60030C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 67915-60030E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-60170E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 67917-60170C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-60160C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 67918-60160E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05096 | ||||
| 90189-06227 | ||||
| 91631-B0625 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8715 | ||||

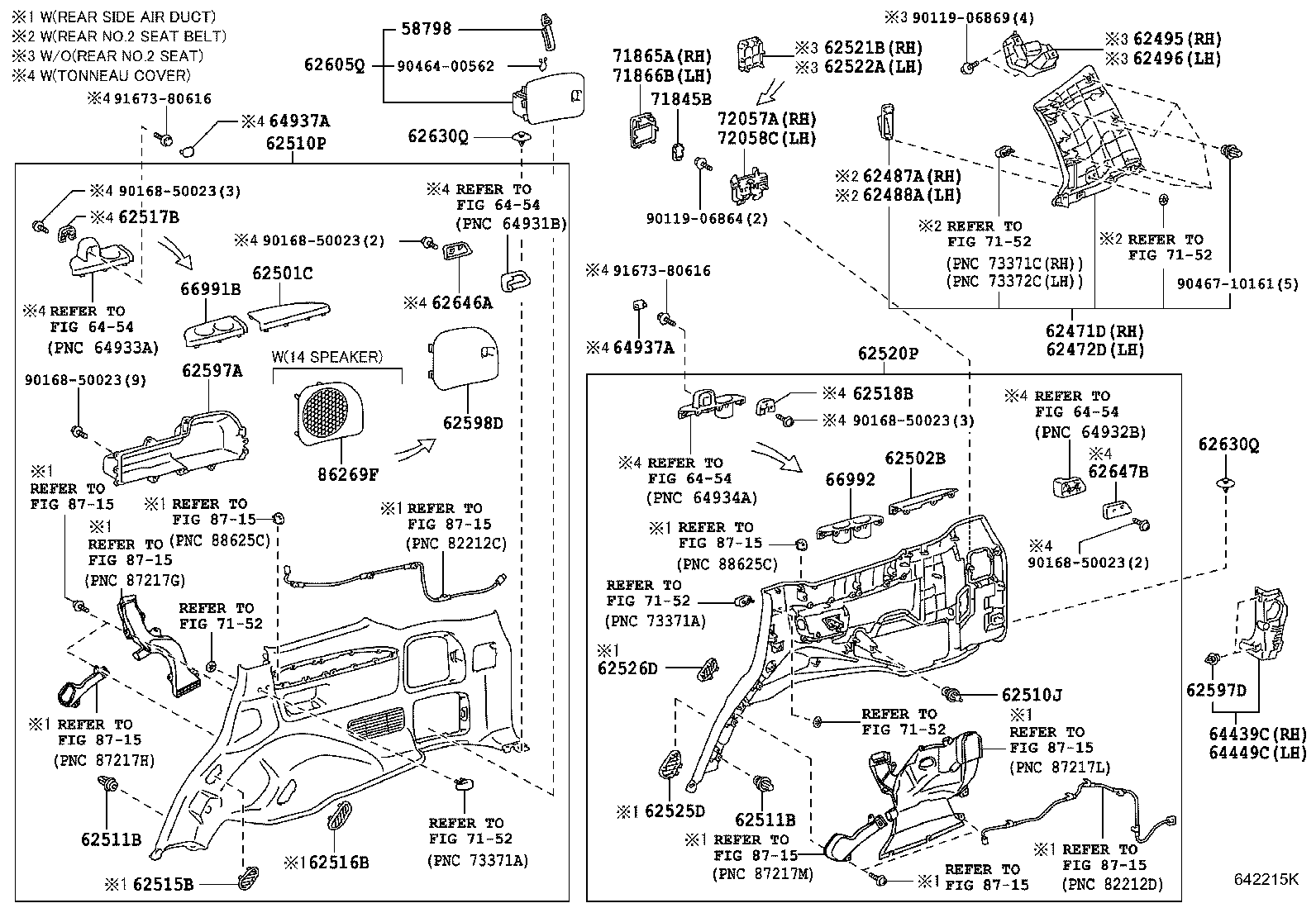

ILLUST NO. 2 OF 2(0709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58798 - BAND, JACK CLAMP,NO.2 | ||||
| 62585-60040 |
UZJ200,VDJ200 |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-60510E0 |
UZJ200,VDJ200..05S SAND BEIGE,TRIM4# |
1 | ||
| 62471-60510B0 |
UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-60380B0 |
UZJ200,VDJ200..05S LT.GRAY,TRIM1# |
1 | ||
| 62472-60380E0 |
UZJ200,VDJ200..05S SAND BEIGE,TRIM4# |
1 | ||
| 62495 - SPACER, ROOF SIDE INNER GARNISH, RH | ||||
| 62495-60030 |
UZJ200,VDJ200..05S |
1 | ||
| 62496 - SPACER, ROOF SIDE INNER GARNISH, LH | ||||
| 62496-60030 |
UZJ200,VDJ200..05S |
1 | ||
| 62501C - COVER SUB-ASSY, QUARTER TRIM, RH | ||||
| 74261-60110E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 74261-60110C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62502B - COVER SUB-ASSY, QUARTER TRIM, LH | ||||
| 74262-60090C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 74262-60090E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-33030 |
UZJ200,VDJ200 |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-60C40C0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH,BLACK,TRIM1# |
1 | ||
| 62510-60C30E0 |
UZJ200,VDJ200..05S DK. BROWN,TRIM4# |
1 | ||
| 62510-60C40E0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH,DK. BROWN,TRIM4# |
1 | ||
| 62510-60D50C0 |
UZJ200,VDJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,BLACK,TRIM1# |
1 | ||
| 62510-60D80C0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,BLACK,TRIM1# |
1 | ||
| 62510-60C30C0 |
UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62510-60D80E0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 62510-60D50E0 |
UZJ200,VDJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 62510-60C40E0 |
UZJ200,VDJ200..05S DK. BROWN,TRIM4# |
1 | ||
| 62510-60D80C0 |
UZJ200,VDJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),BLACK,TRIM1# |
1 | ||
| 62510-60D80E0 |
UZJ200,VDJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),DK. BROWN,TRIM4# |
1 | ||
| 62510-60C40C0 |
UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NATURAL |
10 | ||
| 90467-10161 |
UZJ200,VDJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),NATURAL |
10 | ||
| 90467-10167 |
UZJ200,VDJ200 BLUE |
2 | ||
| 90467-10161 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NATURAL |
10 | ||
| 90467-10161 |
UZJ200,VDJ200 NATURAL |
21 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NATURAL |
10 | ||
| 90467-10161 |
UZJ200,VDJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),NATURAL |
10 | ||
| 90467-10167 |
UZJ200,VDJ200 BLUE |
2 | ||
| 90467-10161 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,NATURAL |
10 | ||
| 90467-10161 |
UZJ200,VDJ200 NATURAL |
21 | ||
| 62517B - BASE, QUARTER TRIM, FRONT RH | ||||
| 62517-60010 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH |
1 | ||
| 62517-60010 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 62517-60010 |
UZJ200,VDJ200..05S |
1 | ||
| 62518B - BASE, QUARTER TRIM, FRONT LH | ||||
| 62518-60010 |
UZJ200,VDJ200..05S |
1 | ||
| 62518-60010 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH |
1 | ||
| 62518-60010 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-60A60E0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH,DK. BROWN,TRIM4# |
1 | ||
| 62520-60A50E0 |
UZJ200,VDJ200..05S DK. BROWN,TRIM4# |
1 | ||
| 62520-60B80C0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH,BLACK,TRIM1# |
1 | ||
| 62520-60B80E0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 62520-60B80C0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,BLACK,TRIM1# |
1 | ||
| 62520-60A50C0 |
UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62520-60A60C0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH,BLACK,TRIM1# |
1 | ||
| 62520-60C00E0 |
UZJ200,VDJ200..05S DK. BROWN,TRIM4# |
1 | ||
| 62520-60B80E0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH,DK. BROWN,TRIM4# |
1 | ||
| 62520-60B80C0 |
UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62520-60C00C0 |
UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62520-60B80E0 |
UZJ200,VDJ200..05S DK. BROWN,TRIM4# |
1 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62644-60030E0 |
UZJ200,VDJ200..05S DK. BROWN,TRIM4# |
1 | ||
| 62644-60030C0 |
UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62645-60020E0 |
UZJ200,VDJ200..05S DK. BROWN,TRIM4# |
1 | ||
| 62645-60020C0 |
UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62597A - BOX, SIDE TRIM | ||||
| 62597-60020C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62597-60020E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 62597D - CLIP | ||||
| 75498-60050 |
UZJ200,VDJ200 |
4 | ||
| 62598D - COVER, SIDE TRIM BOX | ||||
| 62598-60020C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62598-60020E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 62605Q - LID SUB-ASSY, QUARTER TRIM, RH | ||||
| 62605-60020E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 62605-60020C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
1 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 63399-26070C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
2 | ||
| 63399-26070E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
2 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 63399-26070C0 |
UZJ200..RHD;UZJ200,VDJ200..05S BLACK,TRIM1# |
2 | ||
| 63399-26070E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
2 | ||
| 62646A - BASE, QUARTER TRIM, REAR RH | ||||
| 62646-60010 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 62646-60010 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH |
1 | ||
| 62646-60010 |
UZJ200,VDJ200..05S |
1 | ||
| 62647B - BASE, QUARTER TRIM, REAR LH | ||||
| 62647-60010 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER |
1 | ||
| 62647-60010 |
UZJ200,VDJ200..05S |
1 | ||
| 62647-60010 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH |
1 | ||
| 64439C - COVER, LUGGAGE ROOM BOX SIDE, RH | ||||
| 64439-60011 |
UZJ200,VDJ200 |
1 | ||
| 64449C - COVER, LUGGAGE ROOM BOX SIDE, LH | ||||
| 64449-60011 |
UZJ200,VDJ200 |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60030C0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH,BLACK,TRIM1# |
2 | ||
| 64937-60030C0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,BLACK,TRIM1# |
2 | ||
| 64937-60030E0 |
UZJ200,VDJ200..05S DK. BROWN,TRIM4# |
2 | ||
| 64937-60030E0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH,DK. BROWN,TRIM4# |
2 | ||
| 64937-60030C0 |
UZJ200,VDJ200..05S BLACK,TRIM1# |
2 | ||
| 64937-60030E0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,DK. BROWN,TRIM4# |
2 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60030C0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH,BLACK,TRIM1# |
2 | ||
| 64937-60030C0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,BLACK,TRIM1# |
2 | ||
| 64937-60030E0 |
UZJ200,VDJ200..05S DK. BROWN,TRIM4# |
2 | ||
| 64937-60030E0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH,DK. BROWN,TRIM4# |
2 | ||
| 64937-60030C0 |
UZJ200,VDJ200..05S BLACK,TRIM1# |
2 | ||
| 64937-60030E0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,DK. BROWN,TRIM4# |
2 | ||
| 66991B - HOLDER, CUP, NO.1 | ||||
| 66991-60040C0 |
VDJ200;UZJ200..LHD BLACK,TRIM1# |
1 | ||
| 66991-60040E0 |
UZJ200,VDJ200..05S DK. BROWN,TRIM4# |
1 | ||
| 66992 - HOLDER, CUP, NO.2 | ||||
| 66992-60010C0 |
VDJ200;UZJ200..LHD BLACK,TRIM1# |
1 | ||
| 66992-60010E0 |
UZJ200,VDJ200..05S DK. BROWN,TRIM4# |
1 | ||
| 86269F - GRILLE, SPEAKER, RH | ||||
| 86269-60090C0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,BLACK,TRIM1# |
1 | ||
| 86269-60090C0 |
UZJ200,VDJ200 AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,BLACK,TRIM1# |
1 | ||
| 86269-60090C0 |
UZJ200..RHD;UZJ200,VDJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),BLACK,TRIM1# |
1 | ||
| 86269-60090E0 |
VDJ200;UZJ200..RHD;UZJ200..05S AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 86269-60090E0 |
UZJ200,VDJ200..05S TONNEAU COVER-WITH&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 86269-60090E0 |
VDJ200;UZJ200..RHD;UZJ200..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),DK. BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06864 | ||||
| 90119-06869 | ||||
| 90168-50023 | ||||
| 90464-00562 | ||||
| 90467-10161 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6454 | ||||
| 7152 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
