VDJ200L-GMTEZW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

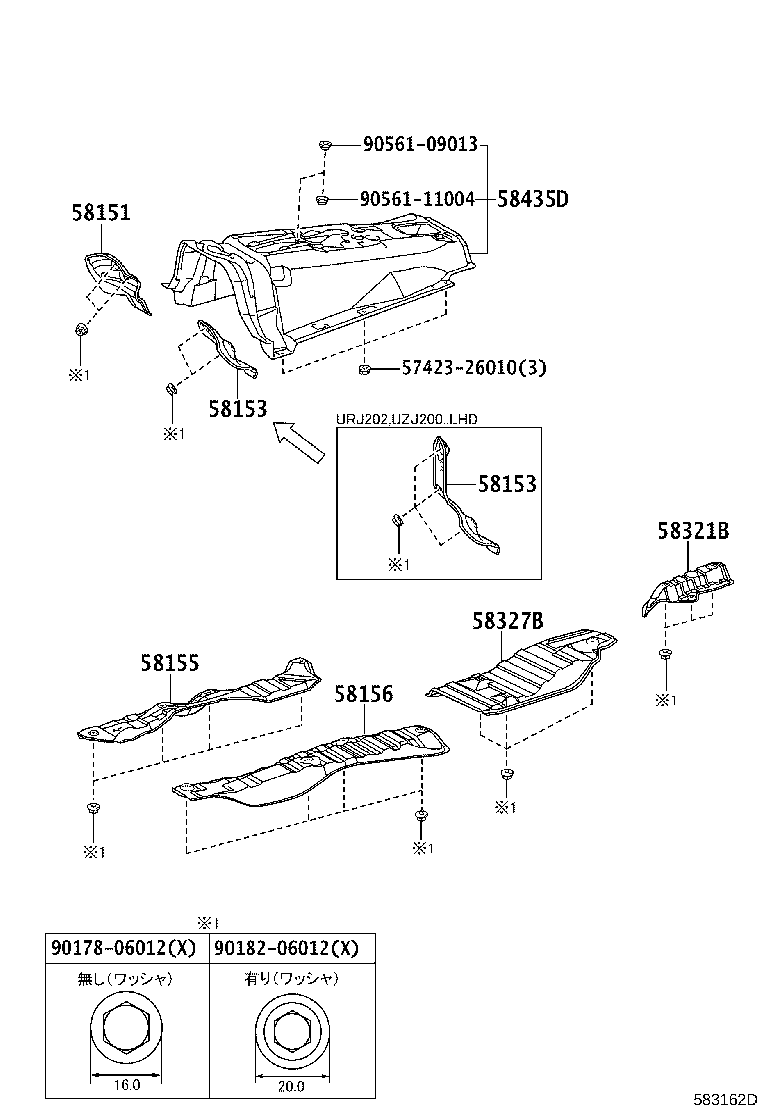

Click highlighted areas on diagram

diagram 5742326010 58151 58153 58153 58155 58156 58321B 58327B 58435D 9017806012 9018206012 9056109013 9056111004
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-60110

UZJ200,VDJ200

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-60090

VDJ200;UZJ200..RHD

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-60090

VDJ200;UZJ200..RHD

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-60060

UZJ200,VDJ200

 1
58155-60061

UZJ200,VDJ200

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-60021

UZJ200,VDJ200

 1
58156-60020

UZJ200,VDJ200

 1
58156-60022

UZJ200,VDJ200

 1
58156-60020

UZJ200,VDJ200

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-60060

UZJ200,VDJ200

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-60090

UZJ200,VDJ200

 1
58435D - SILENCER, FRONT FLOOR, CENTER
58563-60050

UZJ200,VDJ200

 1
Common parts
57423-26010
90178-06012
90182-06012
90561-09013
90561-11004
