VDJ200L-GMTEZW (2007)
Toyota Land Cruiser
Production
Sep 2007
-
Jan 2012
Engine
1VDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0709- )

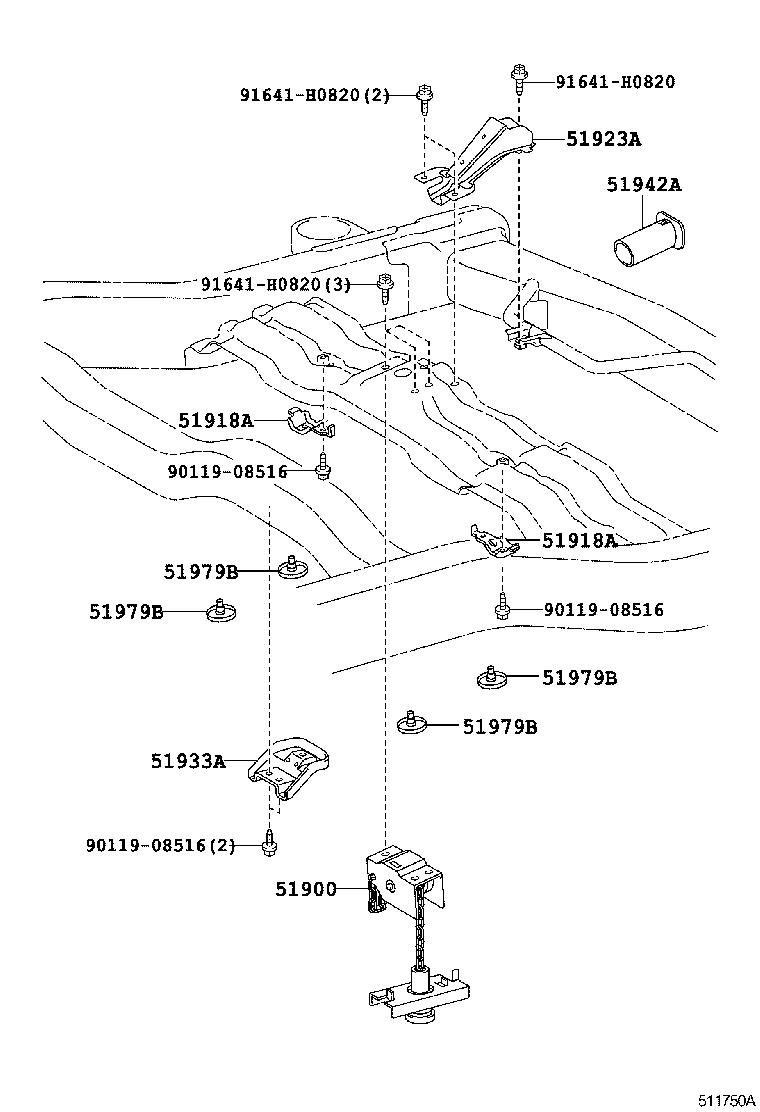

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-60320 |
UZJ200,VDJ200 |
1 | ||
| 51918A - STOPPER, SPARE WHEEL CARRIER | ||||
| 51907-60090 |
UZJ200,VDJ200..LHD TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED |
2 | ||
| 51918A - STOPPER, SPARE WHEEL CARRIER | ||||
| 51907-60090 |
UZJ200,VDJ200..LHD TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM CHROME PAINTED |
2 | ||
| 51923A - GUIDE, SPARE WHELL CARRIER HANDLE | ||||
| 51923-60030 |
UZJ200,VDJ200 |
1 | ||
| 51933A - STOPPER, SPARE WHEEL, NO.1 | ||||
| 51933-60170 |
UZJ200,VDJ200 |
1 | ||
| 51942A - HANDLE, SPARE WHEEL CARRIER BOLT | ||||
| 51942-60050 |
UZJ200,VDJ200 |
1 | ||
| 51979B - CUSHION, SPARE WHEEL CARRIER PROTECTOR | ||||
| 51979-60020 |
UZJ200,VDJ200 |
4 | ||
| 51979B - CUSHION, SPARE WHEEL CARRIER PROTECTOR | ||||
| 51979-60020 |
UZJ200,VDJ200 |
4 | ||
| 51979B - CUSHION, SPARE WHEEL CARRIER PROTECTOR | ||||
| 51979-60020 |
UZJ200,VDJ200 |
4 | ||
| 51979B - CUSHION, SPARE WHEEL CARRIER PROTECTOR | ||||
| 51979-60020 |
UZJ200,VDJ200 |
4 | ||
| Common parts | ||||
| 90119-08516 | ||||
| 91641-H0820 | ||||
