VDJ200L-GMTEZW (2007)
Toyota Land Cruiser

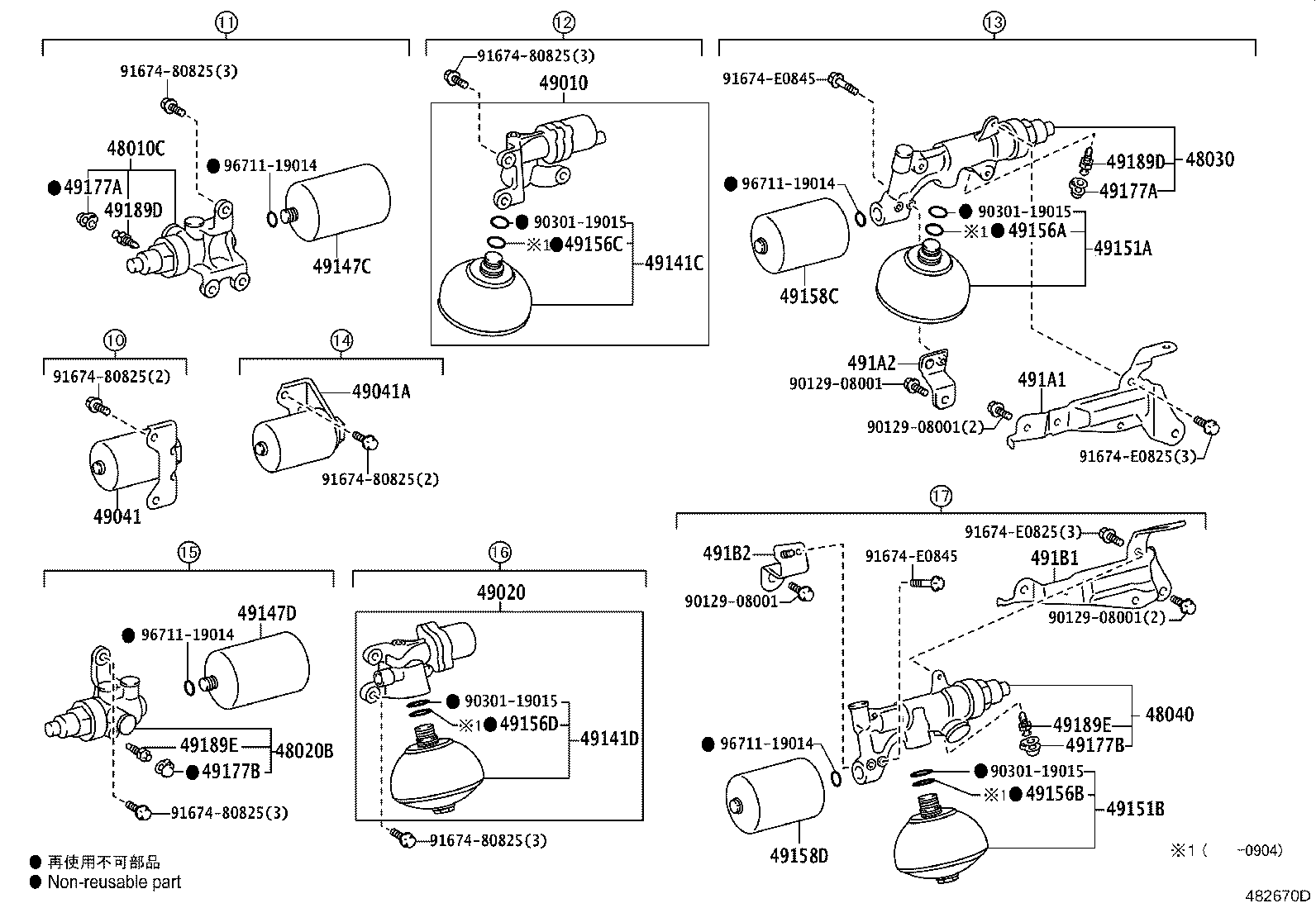

ILLUST NO. 2 OF 3(0709-1201)UZJ200 ; (0709- )VDJ200..VX ; (1201- )URJ202..LHD..VX ; (1508-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48010C - VALVE ASSY, FRONT SHOCK ABSORBER CONTROL, RH | ||||
| 48010-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48010-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48020B - VALVE ASSY, FRONT SHOCK ABSORBER CONTROL, LH | ||||
| 48020-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48020-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48030 - VALVE ASSY, REAR SHOCK ABSORBER CONTROL, RH | ||||
| 48030-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48030-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48040 - VALVE ASSY, REAR SHOCK ABSORBER CONTROL, LH | ||||
| 48040-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48040-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49010 - VALVE ASSY, FRONT SUSPENSION CONTROL, RH | ||||
| 490A0-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 490A0-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49020 - VALVE ASSY, FRONT SUSPENSION CONTROL, LH | ||||
| 490B0-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 490B0-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49041 - ACCUMULATOR SUB-ASSY, FRONT SUSPENSION CONTROL, RH NO.1 | ||||
| 49041-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49041-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49041A - ACCUMULATOR SUB-ASSY, FRONT SUSPENSION CONTROL, LH NO.1 | ||||
| 49041-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49041-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49141C - ACCUMULATOR, FRONT SUSPENSION CONTROL, RH | ||||
| 49141-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49141-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49141D - ACCUMULATOR, FRONT SUSPENSION CONTROL, LH | ||||
| 49141-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49141-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49147C - ACCUMULATOR, FRONT SUSPENSION CONTROL, NO.2 RH | ||||
| 49147-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49147-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49147D - ACCUMULATOR, FRONT SUSPENSION CONTROL, NO.2 LH | ||||
| 49147-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49147-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49151A - ACCUMULATOR, REAR SUSPENSION CONTROL, RH | ||||
| 49151-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49151-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49151B - ACCUMULATOR, REAR SUSPENSION CONTROL, LH | ||||
| 49151-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49151-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49156A - RING, SUSPENSION CONTROL BACK UP, NO.1 RH | ||||
| 49156-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49156-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49156B - RING, SUSPENSION CONTROL BACK UP, NO.1 LH | ||||
| 49156-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49156-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49156C - RING, SUSPENSION CONTROL BACK UP, NO.2 RH | ||||
| 49156-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49156-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49156D - RING, SUSPENSION CONTROL BACK UP, NO.2 LH | ||||
| 49156-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49156-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49158C - ACCUMULATOR, REAR SUSPENSION CONTROL, NO.3 RH | ||||
| 49158-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49158-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49158D - ACCUMULATOR, REAR SUSPENSION CONTROL, NO.3 LH | ||||
| 49158-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49158-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49177A - CAP, BLEEDER PLUG SUSPENSION CONTROL, RH | ||||
| 49177-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49177-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49177A - CAP, BLEEDER PLUG SUSPENSION CONTROL, RH | ||||
| 49177-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49177-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49177B - CAP, BLEEDER PLUG SUSPENSION CONTROL, LH | ||||
| 49177-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49177-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49177B - CAP, BLEEDER PLUG SUSPENSION CONTROL, LH | ||||
| 49177-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49177-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49189D - PLUG, BLEEDER, SUSPENSION CONTROL, RH | ||||
| 49189-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49189-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49189D - PLUG, BLEEDER, SUSPENSION CONTROL, RH | ||||
| 49189-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49189-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49189E - PLUG, BLEEDER, SUSPENSION CONTROL, LH | ||||
| 49189-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49189-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49189E - PLUG, BLEEDER, SUSPENSION CONTROL, LH | ||||
| 49189-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 49189-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 491A1 - BRACKET, REAR SUSPENSION CONTROL ACCUMULATOR, RH NO.1 | ||||
| 491A1-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 491A1-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 491A2 - BRACKET, REAR SUSPENSION CONTROL ACCUMULATOR, RH NO.2 | ||||
| 491A2-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 491A2-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 491B1 - BRACKET, REAR SUSPENSION CONTROL ACCUMULATOR, LH NO.2 | ||||
| 491B1-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 491B1-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 491B2 - BRACKET, REAR SUSPENSION CONTROL ACCUMULATOR, LH NO.2 | ||||
| 491B2-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 491B2-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| Common parts | ||||
| 90129-08001 | ||||
| 90301-19015 | ||||
| 91674-80825 | ||||
| 91674-E0825 | ||||
| 91674-E0845 | ||||
| 96711-19014 | ||||
ILLUST NO. 3 OF 3(0709-1201)UZJ200 ; (0709- )VDJ200..VX ; (1201- )URJ202..LHD..VX ; (1508-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44545C - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-63010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 44545-63010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 44545C - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-63010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 44545-63010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 48910A - PUMP & MOTOR ASSY, HEIGHT CONTROL | ||||
| 48910-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48910-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48912A - CUSHION, HEIGHT CONTROL BOLT, NO.1 | ||||
| 48912-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 48912-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 48912A - CUSHION, HEIGHT CONTROL BOLT, NO.1 | ||||
| 48912-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 48912-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 48912A - CUSHION, HEIGHT CONTROL BOLT, NO.1 | ||||
| 48912-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 48912-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 48912B - CUSHION, HEIGHT CONTROL BOLT, NO.2 | ||||
| 48912-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 48912-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 48912B - CUSHION, HEIGHT CONTROL BOLT, NO.2 | ||||
| 48912-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 48912-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
3 | ||
| 48930C - RESERVOIR ASSY, HEIGHT CONTROL | ||||
| 48930-60040 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48930-60040 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48931A - HOSE, HEIGHT CONTROL CAP TO RESERVOIR | ||||
| 48931-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48931-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48940 - VALVE ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48940-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48940-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48965D - CLAMP, HEIGHT CONTROL TUBE, NO.2 | ||||
| 48965-60200 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48965-60200 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48970 - BRACKET ASSY, HEIGHT CONTROL COMPRESSOR | ||||
| 48970-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48970-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48990A - HOSE ASSY, HEIGHT CONTROL | ||||
| 48990-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48990-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 489D0 - BRACKET ASSY, HEIGHT CONTROL CYLINDER | ||||
| 489D0-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 489D0-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 489D5 - INSULATOR, HEIGHT CONTROL UNIT | ||||
| 489D5-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 489D5-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49081 - CYLINDER SUB-ASSY, SUSPENSION CONTROL, CENTER | ||||
| 49081-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49081-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49130F - ACCUMULATOR ASSY, SUSPENSION CONTROL PUMP | ||||
| 49130-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49130-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| Common parts | ||||
| 90110-06009 | ||||
| 90179-06074 | ||||
| 90464-00345 | ||||
| 90466-07002 | ||||
| 90930-03097 | ||||
| 90930-03159 | ||||
| 91645-80825 | ||||
| 91671-80816 | ||||
| 91674-80818 | ||||
| 91674-80825 | ||||
| 94151-80800 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8202 | ||||

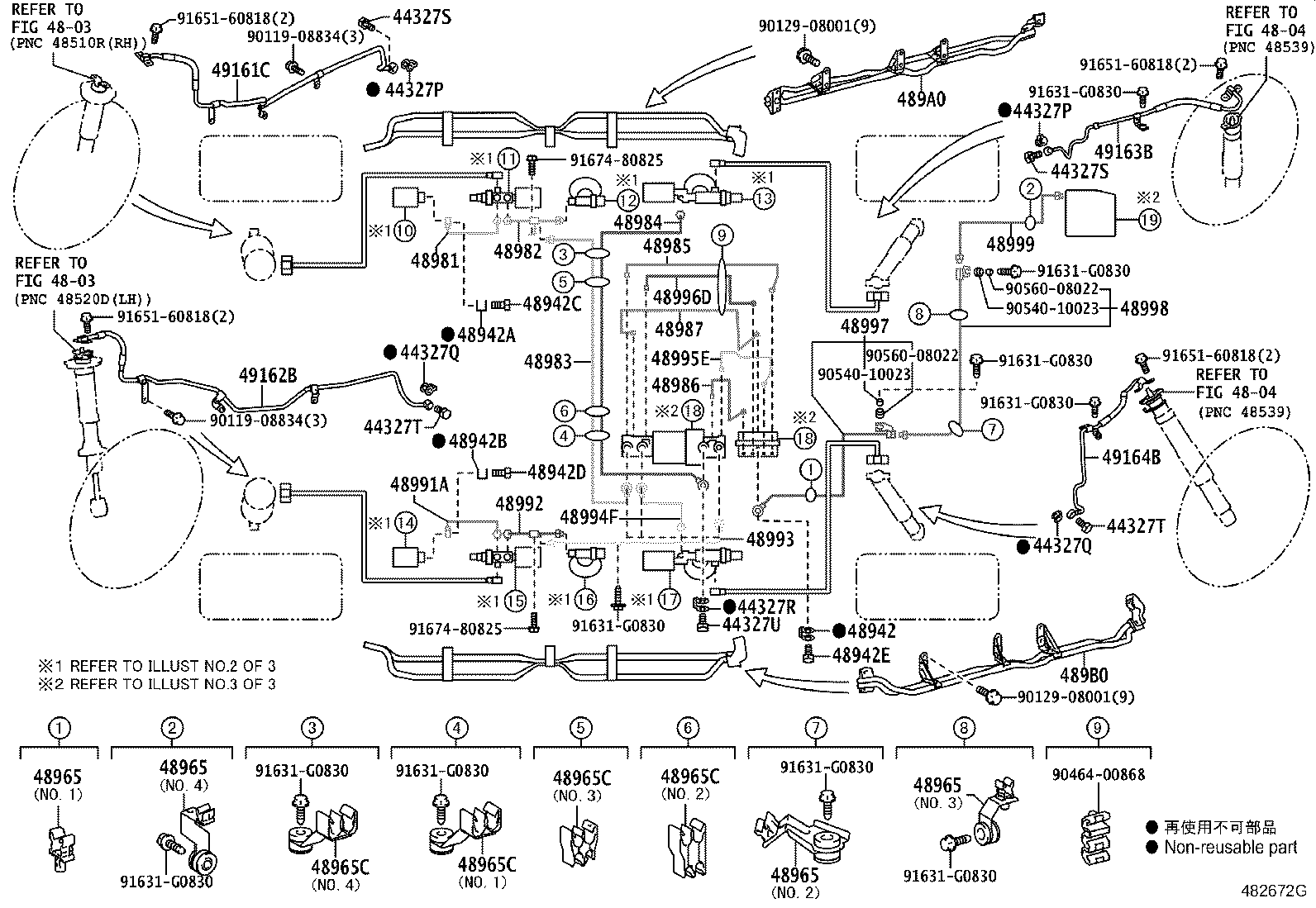

ILLUST NO. 1 OF 3(0709-1201)UZJ200 ; (0709- )VDJ200..VX ; (1201- )URJ202..LHD..VX ; (1508-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327P - GASKET, PRESSURE PORT, NO.1 RH | ||||
| 44327-30030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 44327-30030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 44327P - GASKET, PRESSURE PORT, NO.1 RH | ||||
| 44327-30030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 44327-30030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 44327Q - GASKET, PRESSURE PORT, NO.1 LH | ||||
| 44327-30030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 44327-30030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 44327Q - GASKET, PRESSURE PORT, NO.1 LH | ||||
| 44327-30030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 44327-30030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 44327R - GASKET, PRESSURE PORT, NO.2 | ||||
| 44327-30030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
4 | ||
| 44327-30030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
4 | ||
| 44327S - BOLT, UNION, NO.3 RH | ||||
| 96341-41603 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 96341-41603 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 44327S - BOLT, UNION, NO.3 RH | ||||
| 96341-41603 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 96341-41603 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 44327T - BOLT, UNION, NO.3 LH | ||||
| 96341-41603 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 96341-41603 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 44327T - BOLT, UNION, NO.3 LH | ||||
| 96341-41603 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 96341-41603 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 44327U - BOLT, UNION, NO.4 | ||||
| 96341-41603 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
4 | ||
| 96341-41603 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
4 | ||
| 48942 - GASKET, HEIGHT CONTROL UNION | ||||
| 48942-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48942-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48942A - GASKET, HEIGHT CONTROL UNION RH | ||||
| 48942-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48942-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48942B - GASKET, HEIGHT CONTROL UNION LH | ||||
| 48942-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48942-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48942C - BOLT, UNION, NO.1 RH | ||||
| 90401-14003 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 90401-14003 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48942D - BOLT, UNION, NO.1 LH | ||||
| 90401-14003 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 90401-14003 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48942E - BOLT, UNION, NO.2 | ||||
| 96341-11200 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 96341-11200 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48965 - CLAMP, HEIGHT CONTROL TUBE | ||||
| 48965-60190 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60190 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60180 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965-60180 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965-60100 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60100 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965 - CLAMP, HEIGHT CONTROL TUBE | ||||
| 48965-60190 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60190 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60180 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965-60180 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965-60100 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60100 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965 - CLAMP, HEIGHT CONTROL TUBE | ||||
| 48965-60190 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60190 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60180 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965-60180 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965-60100 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60100 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965 - CLAMP, HEIGHT CONTROL TUBE | ||||
| 48965-60190 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60190 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60180 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965-60180 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965-60100 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60100 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965C - CLAMP, HEIGHT CONTROL TUBE, NO.1 | ||||
| 48965-60130 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60130 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60140 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60140 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60120 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965-60120 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965-60150 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965-60150 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965C - CLAMP, HEIGHT CONTROL TUBE, NO.1 | ||||
| 48965-60130 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60130 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60140 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60140 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60120 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965-60120 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965-60150 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965-60150 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965C - CLAMP, HEIGHT CONTROL TUBE, NO.1 | ||||
| 48965-60130 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60130 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60140 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60140 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60120 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965-60120 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965-60150 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965-60150 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965C - CLAMP, HEIGHT CONTROL TUBE, NO.1 | ||||
| 48965-60130 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60130 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 48965-60140 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60140 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.3 |
1 | ||
| 48965-60120 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965-60120 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,NO.4 |
1 | ||
| 48965-60150 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48965-60150 |
VDJ200 ACTIVE HEIGHT CONTROL,NO.2 |
1 | ||
| 48981 - TUBE, HEIGHT CONTROL, NO.1 | ||||
| 48981-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48981-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48982 - TUBE, HEIGHT CONTROL, NO.2 | ||||
| 48982-60070 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48982-60070 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48983 - TUBE, HEIGHT CONTROL, NO.3 | ||||
| 48983-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48983-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48984 - TUBE, HEIGHT CONTROL, NO.4 | ||||
| 48984-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48984-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48985 - TUBE, HEIGHT CONTROL, NO.5 | ||||
| 48985-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48985-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48986 - TUBE, HEIGHT CONTROL, NO.6 | ||||
| 48986-60040 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48986-60040 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48987 - TUBE, HEIGHT CONTROL, NO.7 | ||||
| 48987-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48987-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48991A - TUBE, HEIGHT CONTROL, LH NO.1 | ||||
| 48991-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48991-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48992 - TUBE, HEIGHT CONTROL, LH NO.2 | ||||
| 48992-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48992-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48993 - TUBE, HEIGHT CONTROL, LH NO.3 | ||||
| 48993-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48993-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48994F - TUBE, HEIGHT CONTROL, LH NO.4 | ||||
| 48994-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48994-60030 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48995E - TUBE, HEIGHT CONTROL, LH NO.5 | ||||
| 48995-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48995-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48996D - TUBE, HEIGHT CONTROL, LH NO.6 | ||||
| 48996-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48996-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48997 - TUBE, HEIGHT CONTROL, REAR NO.4 | ||||
| 48997-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48997-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48998 - TUBE, HEIGHT CONTROL, REAR NO.5 | ||||
| 48998-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48998-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48999 - TUBE, HEIGHT CONTROL, REAR NO.6 | ||||
| 48999-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48999-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 489A0 - PROTECTOR ASSY, HEIGHT CONTROL UNIT, RH | ||||
| 489A0-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 489A0-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 489B0 - PROTECTOR ASSY, HEIGHT CONTROL UNIT, LH | ||||
| 489B0-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 489B0-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49161C - HOSE, SUSPENSION CONTROL PRESSURE, NO.1 | ||||
| 49161-60021 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49161-60021 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49161-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49161-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49162B - HOSE, SUSPENSION CONTROL PRESSURE, NO.2 | ||||
| 49162-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49162-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49162-60021 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49162-60021 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49163B - HOSE, SUSPENSION CONTROL PRESSURE, NO.3 | ||||
| 49163-60021 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49163-60021 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49163-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49163-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49164B - HOSE, SUSPENSION CONTROL PRESSURE, NO.4 | ||||
| 49164-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49164-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49164-60021 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 49164-60021 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| Common parts | ||||
| 90119-08834 | ||||
| 90129-08001 | ||||
| 90464-00868 | ||||
| 90540-10023 | ||||
| 90560-08022 | ||||
| 91631-G0830 | ||||
| 91651-60818 | ||||
| 91674-80825 | ||||
| Linked diagrams | ||||
| 4803 | ||||
| 4804 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
