VDJ200L-GMTEZW (2007)
Toyota Land Cruiser
(0709- )

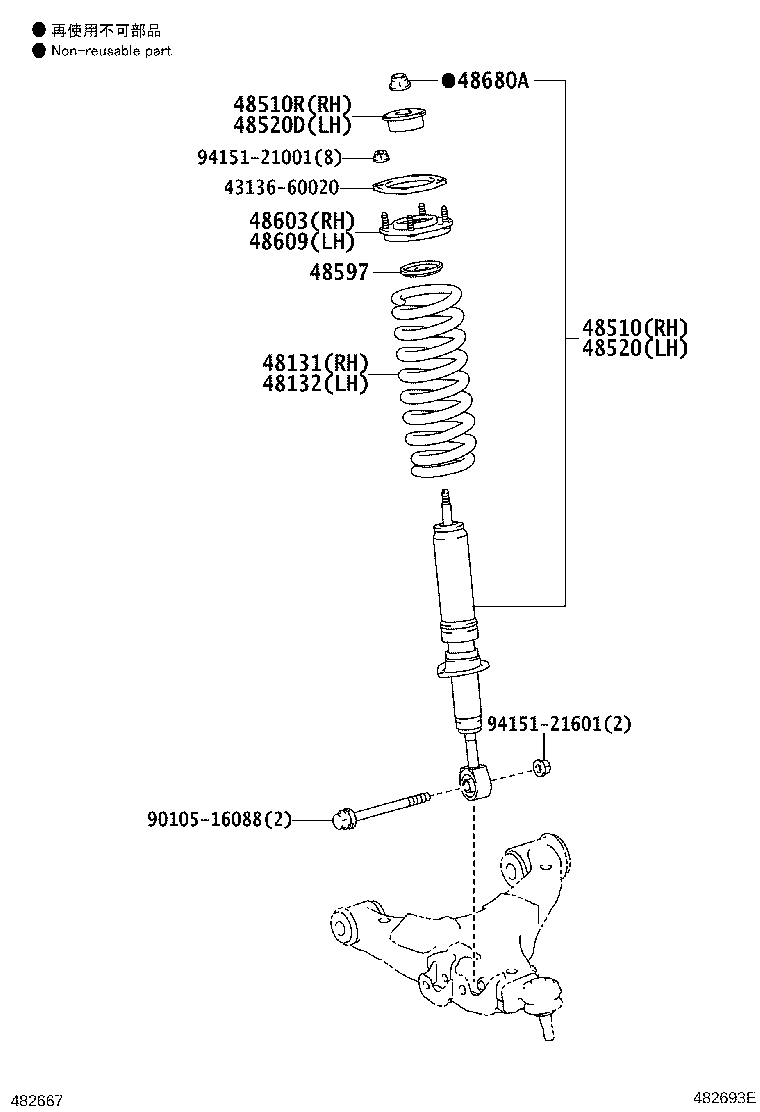

W(ACTIVE HEIGHT CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60E50 |
VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48131-60D60 |
VDJ200 |
1 | ||
| 48131-60E60 |
VDJ200 ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 48131-60E60 |
VDJ200 ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(*SERT & REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 48131-60E60 |
VDJ200..LHD ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60E50 |
VDJ200..LHD ACTIVE HEIGHT CONTROL&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 48131-60E60 |
VDJ200..LHD ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(*SERT & REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60E50 |
VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48131-60E60 |
VDJ200 ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 48131-60E60 |
VDJ200 ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(*SERT & REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 48131-60E50 |
VDJ200..LHD ACTIVE HEIGHT CONTROL&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 48131-60E60 |
VDJ200..LHD ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60D40 |
VDJ200 |
1 | ||
| 48131-60E60 |
VDJ200..LHD ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(*SERT & REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,RUSSIA SPEC |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,TURKEY SPEC |
1 | ||
| 48510-69355 |
UZJ200..LHD;VDJ200..05S MARK 48510-60160,ISRAEL SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,KAZAKHSTAN SPEC |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,ISRAEL SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,CROATIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,CROATIA SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,MECEDONIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,MECEDONIA SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,F.R.OF.YUGOSLAVIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
UZJ200..LHD;VDJ200..05S MARK 48510-60160,TURKEY SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,F.R.OF.YUGOSLAVIA SPEC |
1 | ||
| 48510-69405 |
VDJ200 MARK 48510-60180 |
1 | ||
| 48510-69355 |
UZJ200,VDJ200 MARK 48510-60160,ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,UKRAINE SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,UKRAINE SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,AZERBAIJAN,GEORGIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,AZERBAIJAN,GEORGIA SPEC |
1 | ||
| 48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH | ||||
| 90948-01096 |
UZJ200,VDJ200 |
1 | ||
| 90948-01097 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,TURKEY SPEC |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,RUSSIA SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,MECEDONIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,CROATIA SPEC |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,F.R.OF.YUGOSLAVIA SPEC |
1 | ||
| 48510-69355 |
UZJ200..LHD;VDJ200..05S MARK 48510-60160,TURKEY SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,CROATIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,MECEDONIA SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,F.R.OF.YUGOSLAVIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,ISRAEL SPEC |
1 | ||
| 48510-69355 |
UZJ200..LHD;VDJ200..05S MARK 48510-60160,ISRAEL SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69405 |
VDJ200 MARK 48510-60180 |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,KAZAKHSTAN SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200 MARK 48510-60160,ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,UKRAINE SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,AZERBAIJAN,GEORGIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,AZERBAIJAN,GEORGIA SPEC |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,UKRAINE SPEC |
1 | ||
| 48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH | ||||
| 90948-01096 |
UZJ200,VDJ200 |
1 | ||
| 90948-01097 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60120 |
UZJ200,VDJ200 |
2 | ||
| 48597-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-60070 |
UZJ200,VDJ200 |
1 | ||
| 48609-60080 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-60080 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48609-60070 |
UZJ200,VDJ200 |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94188-01401 |
UZJ200,VDJ200 |
2 | ||
| 94188-01601 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-60050 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48810-60060 |
UZJ200,VDJ200 |
1 | ||
| 48810-60051 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-60120 |
UZJ200,VDJ200 |
1 | ||
| 48811-60280 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48815B - BUSH, FRONT STABILIZER LOWER BRACKET, RH | ||||
| 48815-60260 |
UZJ200,VDJ200 |
1 | ||
| 48815-60270 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48815C - BUSH, FRONT STABILIZER LOWER BRACKET, LH | ||||
| 48815-60260 |
UZJ200,VDJ200 |
1 | ||
| 48815-60270 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60080 |
UZJ200,VDJ200 |
1 | ||
| 48820-60081 |
UZJ200,VDJ200 |
1 | ||
| 48820-60070 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48820-60071 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60170 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48824-60180 |
UZJ200,VDJ200 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-60180 |
UZJ200,VDJ200 |
1 | ||
| 48824-60170 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48849A - BUSH, FRONT STABILIZER LINK, RH | ||||
| 48849-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48849-60120 |
UZJ200,VDJ200 |
1 | ||
| 48849B - BUSH, FRONT STABILIZER LINK, LH | ||||
| 48849-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| Common parts | ||||
| 43136-60020 | ||||
| 90105-16088 | ||||
| 90119-14079 | ||||
| 91674-K1240 | ||||
| 94151-21001 | ||||
| 94151-21401 | ||||
| 94151-21601 | ||||
| Linked diagrams | ||||
| 4805 | ||||

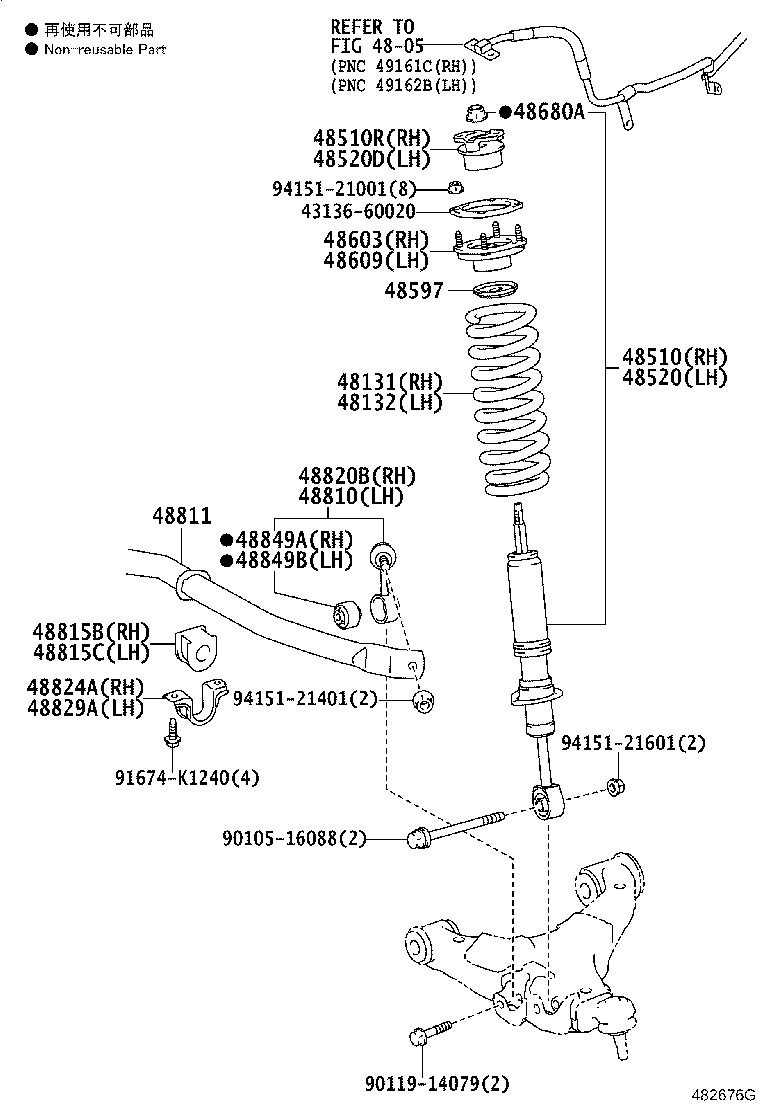

ILLUST NO. 1 OF 2(0709- )
KDSS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60E50 |
VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48131-60D60 |
VDJ200 |
1 | ||
| 48131-60E60 |
VDJ200 ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 48131-60E60 |
VDJ200 ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(*SERT & REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 48131-60E60 |
VDJ200..LHD ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60E50 |
VDJ200..LHD ACTIVE HEIGHT CONTROL&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 48131-60E60 |
VDJ200..LHD ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(*SERT & REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60E50 |
VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48131-60E60 |
VDJ200 ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 48131-60E60 |
VDJ200 ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(*SERT & REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/LW 9SPEAKER |
1 | ||
| 48131-60E50 |
VDJ200..LHD ACTIVE HEIGHT CONTROL&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 48131-60E60 |
VDJ200..LHD ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60D40 |
VDJ200 |
1 | ||
| 48131-60E60 |
VDJ200..LHD ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(*SERT & REMOTE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,RUSSIA SPEC |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,TURKEY SPEC |
1 | ||
| 48510-69355 |
UZJ200..LHD;VDJ200..05S MARK 48510-60160,ISRAEL SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,KAZAKHSTAN SPEC |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,ISRAEL SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,CROATIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,CROATIA SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,MECEDONIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,MECEDONIA SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,F.R.OF.YUGOSLAVIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
UZJ200..LHD;VDJ200..05S MARK 48510-60160,TURKEY SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,F.R.OF.YUGOSLAVIA SPEC |
1 | ||
| 48510-69405 |
VDJ200 MARK 48510-60180 |
1 | ||
| 48510-69355 |
UZJ200,VDJ200 MARK 48510-60160,ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,UKRAINE SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,UKRAINE SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,AZERBAIJAN,GEORGIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,AZERBAIJAN,GEORGIA SPEC |
1 | ||
| 48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH | ||||
| 90948-01096 |
UZJ200,VDJ200 |
1 | ||
| 90948-01097 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,TURKEY SPEC |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,RUSSIA SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,MECEDONIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,CROATIA SPEC |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,F.R.OF.YUGOSLAVIA SPEC |
1 | ||
| 48510-69355 |
UZJ200..LHD;VDJ200..05S MARK 48510-60160,TURKEY SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,CROATIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,MECEDONIA SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,F.R.OF.YUGOSLAVIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,ISRAEL SPEC |
1 | ||
| 48510-69355 |
UZJ200..LHD;VDJ200..05S MARK 48510-60160,ISRAEL SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69405 |
VDJ200 MARK 48510-60180 |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,KAZAKHSTAN SPEC |
1 | ||
| 48510-69355 |
UZJ200,VDJ200 MARK 48510-60160,ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,UKRAINE SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
UZJ200,VDJ200..LHD MARK 48510-60160,AZERBAIJAN,GEORGIA SPEC&ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,AZERBAIJAN,GEORGIA SPEC |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,UKRAINE SPEC |
1 | ||
| 48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH | ||||
| 90948-01096 |
UZJ200,VDJ200 |
1 | ||
| 90948-01097 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60120 |
UZJ200,VDJ200 |
2 | ||
| 48597-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-60070 |
UZJ200,VDJ200 |
1 | ||
| 48609-60080 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-60080 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48609-60070 |
UZJ200,VDJ200 |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94188-01401 |
UZJ200,VDJ200 |
2 | ||
| 94188-01601 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| Common parts | ||||
| 43136-60020 | ||||
| 90105-16088 | ||||
| 94151-21001 | ||||
| 94151-21601 | ||||
ILLUST NO. 2 OF 2(0709-1704)
KDSS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15703 - VALVE SUB-ASSY, OIL NOZZLE | ||||
| 15703-60010 |
2UZFE,1VDFTV..UZJ200,VDJ200 |
2 | ||
| 15703-60010 |
2UZFE,1VDFTV..UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 15703 - VALVE SUB-ASSY, OIL NOZZLE | ||||
| 15703-60010 |
2UZFE,1VDFTV..UZJ200,VDJ200 |
2 | ||
| 15703-60010 |
2UZFE,1VDFTV..UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 31478S - CAP, BLEEDER PLUG(FOR FRONT SUSPENSION CONTROL) | ||||
| 31478-20020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 31478-60020 |
UZJ200,VDJ200 |
2 | ||
| 31478-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 31478-20020 |
UZJ200,VDJ200 |
2 | ||
| 44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE | ||||
| 44327-30030 |
UZJ200,VDJ200 |
2 | ||
| 44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE | ||||
| 44327-30030 |
UZJ200,VDJ200 |
2 | ||
| 44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
UZJ200,VDJ200 |
2 | ||
| 44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
UZJ200,VDJ200 |
2 | ||
| 48801 - ADAPTER SUB-ASSY, STABILIZER CONTROL | ||||
| 48001-60020 |
UZJ200,VDJ200 |
2 | ||
| 48001-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 48801 - ADAPTER SUB-ASSY, STABILIZER CONTROL | ||||
| 48001-60020 |
UZJ200,VDJ200 |
2 | ||
| 48001-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-60050 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48810-60060 |
UZJ200,VDJ200 |
1 | ||
| 48810-60051 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-60120 |
UZJ200,VDJ200 |
1 | ||
| 48811-60280 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48815B - BUSH, FRONT STABILIZER LOWER BRACKET, RH | ||||
| 48815-60260 |
UZJ200,VDJ200 |
1 | ||
| 48815-60270 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48815C - BUSH, FRONT STABILIZER LOWER BRACKET, LH | ||||
| 48815-60260 |
UZJ200,VDJ200 |
1 | ||
| 48815-60270 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60080 |
UZJ200,VDJ200 |
1 | ||
| 48820-60081 |
UZJ200,VDJ200 |
1 | ||
| 48820-60070 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48820-60071 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60170 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48824-60180 |
UZJ200,VDJ200 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-60180 |
UZJ200,VDJ200 |
1 | ||
| 48824-60170 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48849A - BUSH, FRONT STABILIZER LINK, RH | ||||
| 48849-60110 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48849-60120 |
UZJ200,VDJ200 |
1 | ||
| 48867 - VALVE, STABILIZER CONTROL ADAPTER SHUTTER | ||||
| 48867-60010 |
UZJ200,VDJ200 |
2 | ||
| 48867-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 48867 - VALVE, STABILIZER CONTROL ADAPTER SHUTTER | ||||
| 48867-60010 |
UZJ200,VDJ200 |
2 | ||
| 48867-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 48867A - RING, O(FOR STABILIZER CONTROK ADAPTER SHUTTER VALVE) | ||||
| 96711-19007 |
UZJ200,VDJ200 |
2 | ||
| 96711-19007 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 48867A - RING, O(FOR STABILIZER CONTROK ADAPTER SHUTTER VALVE) | ||||
| 96711-19007 |
UZJ200,VDJ200 |
2 | ||
| 96711-19007 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 48876 - CYLINDER, FRONT STABILIZER CONTROL | ||||
| 48876-60020 |
UZJ200,VDJ200 |
1 | ||
| 48876-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 48890 - TUBE ASSY, FRONT STABILIZER CONTROL, NO.1 | ||||
| 48890-60020 |
UZJ200,VDJ200 |
1 | ||
| 48890-60022 |
UZJ200,VDJ200 |
1 | ||
| 48890-60021 |
UZJ200,VDJ200 |
1 | ||
| 48890A - TUBE ASSY, FRONT STABILIZER CONTROL, NO.2 | ||||
| 48890-60030 |
UZJ200,VDJ200 |
1 | ||
| 488A0 - ARM ASSY, STABILIZER CONTROL, FRONT | ||||
| 488A0-60010 |
UZJ200,VDJ200 |
1 | ||
| 488A5 - PROTECTOR, STABILIZER CONTROL TUBE | ||||
| 488A5-60010 |
UZJ200,VDJ200 |
1 | ||
| 49189A - PLUG, FRONT SUSPENSION CONTROL BLEEDER, NO.1 | ||||
| 49189-60020 |
UZJ200,VDJ200 |
2 | ||
| 49189-60020 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 88375G - CAP, SERVICE VALVE | ||||
| 88375-60010 |
UZJ200,VDJ200 |
2 | ||
| 88375-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| 88375G - CAP, SERVICE VALVE | ||||
| 88375-60010 |
UZJ200,VDJ200 |
2 | ||
| 88375-60010 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
2 | ||
| Common parts | ||||
| 90105-16089 | ||||
| 90119-14079 | ||||
| 90119-14134 | ||||
| 90119-16019 | ||||
| 90119-18007 | ||||
| 90178-18003 | ||||
| 90201-19013 | ||||
| 90410-06002 | ||||
| 91641-H0820 | ||||
| 91671-A0610 | ||||
| 91674-80828 | ||||
| 91674-K1240 | ||||
| 94151-21401 | ||||
| 94151-21601 | ||||
| Linked diagrams | ||||
| 4804 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
