VDJ200L-GMTEZW (2007)
Toyota Land Cruiser
Production
Sep 2007
-
Jan 2012
Engine
1VDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

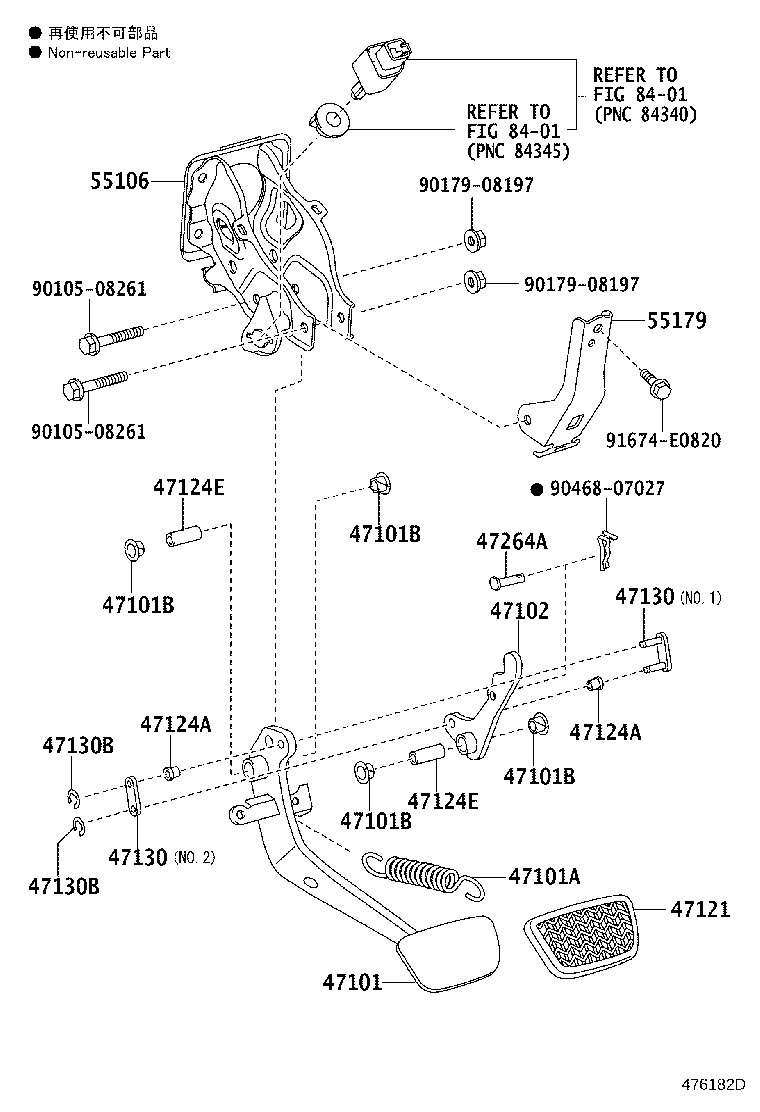

(0709-0912)LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-60490 |
UZJ200,VDJ200..LHD |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-20032 |
UZJ200,VDJ200 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
UZJ200,VDJ200 |
4 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
UZJ200,VDJ200 |
4 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
UZJ200,VDJ200 |
4 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
UZJ200,VDJ200 |
4 | ||
| 47102 - LEVER SUB-ASSY, BRAKE PEDAL | ||||
| 47102-60020 |
UZJ200,VDJ200..LHD |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-50020 |
UZJ200,VDJ200 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 47144-34010 |
UZJ200,VDJ200..LHD |
2 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 47144-34010 |
UZJ200,VDJ200..LHD |
2 | ||
| 47124E - COLLAR, BRAKE PEDAL SHAFT, NO.2 | ||||
| 90387-08160 |
UZJ200,VDJ200 |
2 | ||
| 47124E - COLLAR, BRAKE PEDAL SHAFT, NO.2 | ||||
| 90387-08160 |
UZJ200,VDJ200 |
2 | ||
| 47130 - LINK ASSY, BRAKE PEDAL | ||||
| 4710A-28010 |
UZJ200,VDJ200..LHD NO.1 |
1 | ||
| 47130-60021 |
UZJ200,VDJ200..LHD NO.2 |
1 | ||
| 47130 - LINK ASSY, BRAKE PEDAL | ||||
| 4710A-28010 |
UZJ200,VDJ200..LHD NO.1 |
1 | ||
| 47130-60021 |
UZJ200,VDJ200..LHD NO.2 |
1 | ||
| 47130B - RING E, BRAKE PEDAL LINK PIN | ||||
| 96160-00400 |
UZJ200,VDJ200 |
2 | ||
| 47130B - RING E, BRAKE PEDAL LINK PIN | ||||
| 96160-00400 |
UZJ200,VDJ200 |
2 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-06027 |
UZJ200,VDJ200 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-60150 |
UZJ200,VDJ200..LHD |
1 | ||
| 55179 - REINFORCEMENT, BRAKE PEDAL SUPPORT | ||||
| 55179-60020 |
UZJ200,VDJ200 |
1 | ||
| Common parts | ||||
| 90105-08261 | ||||
| 90179-08197 | ||||
| 90468-07027 | ||||
| 91674-E0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||

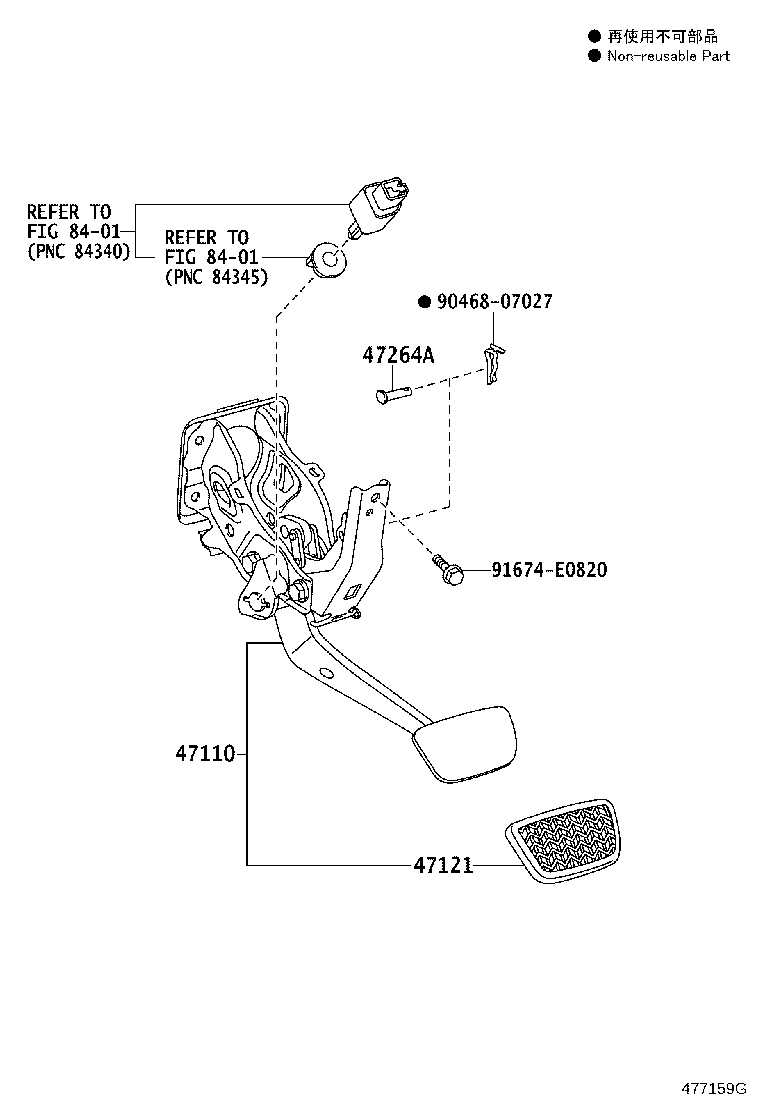

(0912- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-60271 |
UZJ200,VDJ200..LHD |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-50020 |
UZJ200,VDJ200 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-06027 |
UZJ200,VDJ200 |
1 | ||
| Common parts | ||||
| 90468-07027 | ||||
| 91674-E0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
