VDJ200L-GMTEZW (2007)
Toyota Land Cruiser

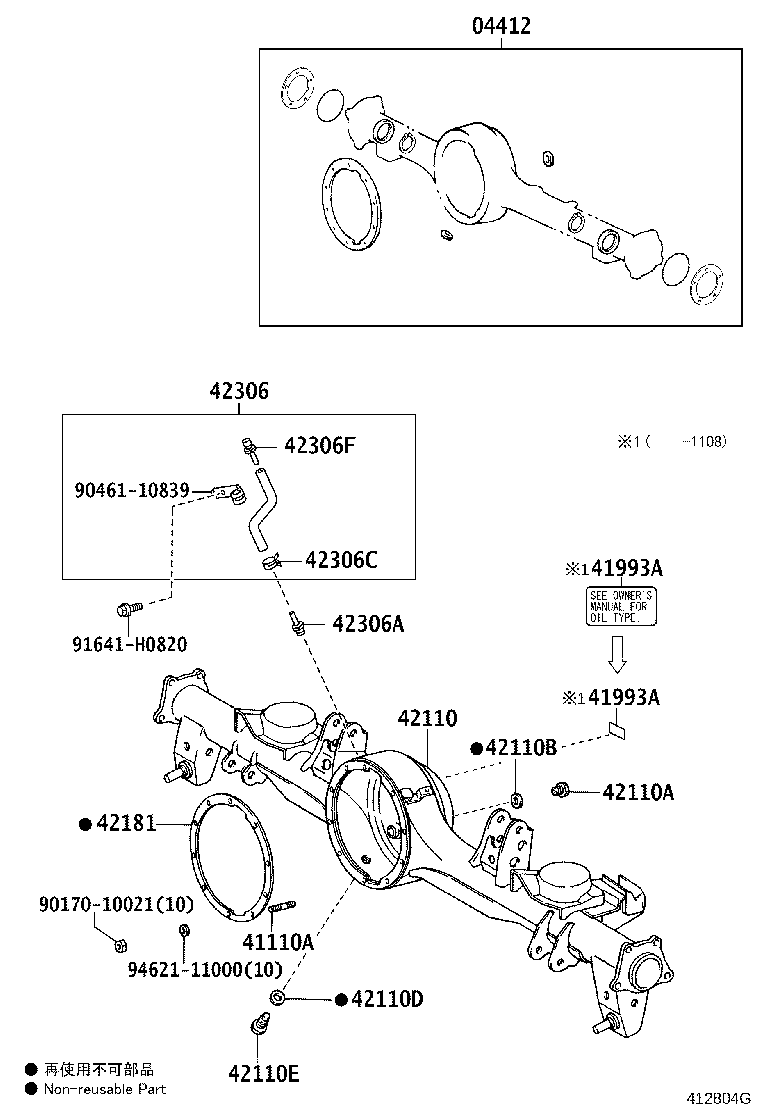

ILLUST NO. 2 OF 2(0709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-60390 |
UZJ200,VDJ200 |
1 | ||
| 04412-60450 |
UZJ200,VDJ200 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10074 |
UZJ200,VDJ200 S=16 & 12.5,L=40.5 |
8 | ||
| 90116-10075 |
UZJ200,VDJ200 S=18 & 12.5,L=53.5 |
2 | ||
| 41993A - LABEL, REAR DIFFERENTIAL OIL INFORMATION | ||||
| 41993-34010 |
UZJ200,VDJ200 |
1 | ||
| 41993A - LABEL, REAR DIFFERENTIAL OIL INFORMATION | ||||
| 41993-34010 |
UZJ200,VDJ200 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60A61 |
UZJ200,VDJ200 ACTIVE HEIGHT CONTROL |
1 | ||
| 42110-60A51 |
UZJ200,VDJ200 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
UZJ200,VDJ200 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
UZJ200,VDJ200 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
UZJ200,VDJ200 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18040 |
UZJ200,VDJ200 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60060 |
UZJ200,VDJ200 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60150 |
UZJ200,VDJ200 |
1 | ||
| 42306A - UNION (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-51052 |
UZJ200,VDJ200 |
1 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-51100 |
UZJ200,VDJ200 |
1 | ||
| 42306F - PLUG, BREATHER (FOR REAR AXLE) | ||||
| 90930-03097 |
UZJ200,VDJ200 |
1 | ||
| Common parts | ||||
| 90170-10021 | ||||
| 90461-10839 | ||||
| 91641-H0820 | ||||
| 94621-11000 | ||||

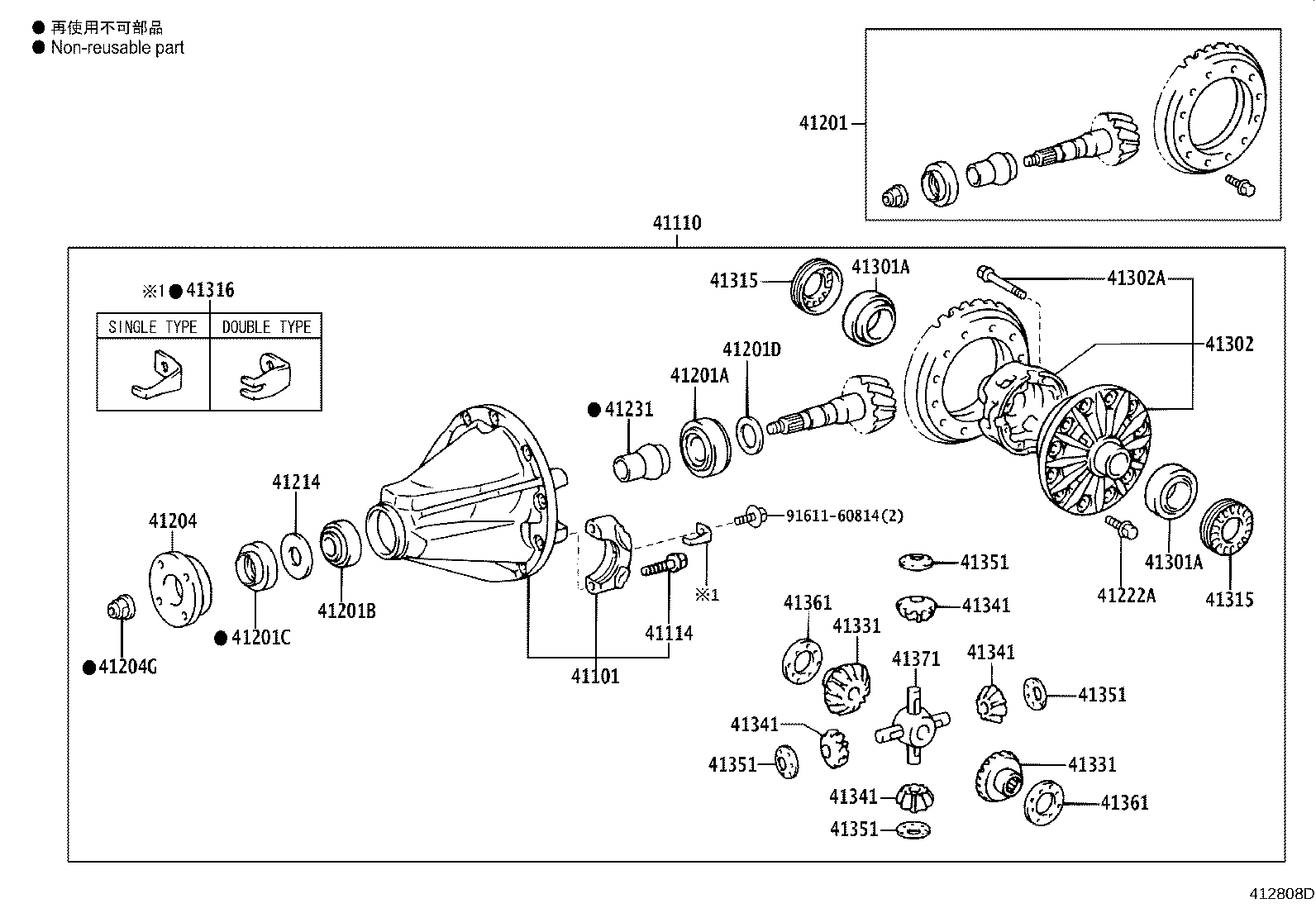

ILLUST NO. 1 OF 2(0709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60180 |
UZJ200,VDJ200 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60A10 |
VDJ200 *FGR=43:11=3.909 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-60020 |
UZJ200,VDJ200 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80496 |
VDJ200 *FGR=43:11=3.909 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40111 |
UZJ200,VDJ200 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-33006 |
UZJ200,VDJ200 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-45028 |
UZJ200,VDJ200 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-40007 |
UZJ200,VDJ200 T=1.10 |
1 | ||
| 90564-40004 |
UZJ200,VDJ200 T=1.05 |
1 | ||
| 90564-40006 |
UZJ200,VDJ200 T=1.075 |
1 | ||
| 90564-40010 |
UZJ200,VDJ200 T=1.175 |
1 | ||
| 90564-40008 |
UZJ200,VDJ200 T=1.125 |
1 | ||
| 90564-40012 |
UZJ200,VDJ200 T=1.225 |
1 | ||
| 90564-40018 |
UZJ200,VDJ200 T=1.375 |
1 | ||
| 90564-40014 |
UZJ200,VDJ200 T=1.275 |
1 | ||
| 90564-40013 |
UZJ200,VDJ200 T=1.25 |
1 | ||
| 90564-40015 |
UZJ200,VDJ200 T=1.30 |
1 | ||
| 90564-40009 |
UZJ200,VDJ200 T=1.15 |
1 | ||
| 90564-40022 |
UZJ200,VDJ200 T=1.475 |
1 | ||
| 90564-40016 |
UZJ200,VDJ200 T=1.325 |
1 | ||
| 90564-40020 |
UZJ200,VDJ200 T=1.425 |
1 | ||
| 90564-40011 |
UZJ200,VDJ200 T=1.20 |
1 | ||
| 90564-40023 |
UZJ200,VDJ200 T=1.50 |
1 | ||
| 90564-40024 |
UZJ200,VDJ200 T=1.525 |
1 | ||
| 90564-40017 |
UZJ200,VDJ200 T=1.35 |
1 | ||
| 90564-40019 |
UZJ200,VDJ200 T=1.40 |
1 | ||
| 90564-40025 |
UZJ200,VDJ200 T=1.55 |
1 | ||
| 90564-40021 |
UZJ200,VDJ200 T=1.45 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60060 |
UZJ200,VDJ200 |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-22029 |
UZJ200,VDJ200 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-60020 |
UZJ200,VDJ200 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90901-05002 |
UZJ200,VDJ200 |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60040 |
UZJ200,VDJ200 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50054 |
UZJ200,VDJ200 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50054 |
UZJ200,VDJ200 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60080 |
UZJ200,VDJ200 |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10021 |
UZJ200,VDJ200 |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
UZJ200,VDJ200 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
UZJ200,VDJ200 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
UZJ200,VDJ200 DOUBLE TYPE |
2 | ||
| 41316-30010 |
UZJ200,VDJ200 SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60060 |
UZJ200,VDJ200 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60060 |
UZJ200,VDJ200 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
UZJ200,VDJ200 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
UZJ200,VDJ200 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
UZJ200,VDJ200 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
UZJ200,VDJ200 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-60010 |
UZJ200,VDJ200 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-60010 |
UZJ200,VDJ200 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-60010 |
UZJ200,VDJ200 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-60010 |
UZJ200,VDJ200 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60830 |
UZJ200,VDJ200 T=1.600 |
2 | ||
| 41361-60A30 |
UZJ200,VDJ200 T=1.850 |
2 | ||
| 41361-60890 |
UZJ200,VDJ200 T=1.750 |
2 | ||
| 41361-60850 |
UZJ200,VDJ200 T=1.650 |
2 | ||
| 41361-60810 |
UZJ200,VDJ200 T=1.550 |
2 | ||
| 41361-60B10 |
UZJ200,VDJ200 T=2.050 |
2 | ||
| 41361-60A10 |
UZJ200,VDJ200 T=1.800 |
2 | ||
| 41361-60A70 |
UZJ200,VDJ200 T=1.950 |
2 | ||
| 41361-60B30 |
UZJ200,VDJ200 T=2.100 |
2 | ||
| 41361-60A50 |
UZJ200,VDJ200 T=1.900 |
2 | ||
| 41361-60870 |
UZJ200,VDJ200 T=1.700 |
2 | ||
| 41361-60A90 |
UZJ200,VDJ200 T=2.000 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60830 |
UZJ200,VDJ200 T=1.600 |
2 | ||
| 41361-60A30 |
UZJ200,VDJ200 T=1.850 |
2 | ||
| 41361-60890 |
UZJ200,VDJ200 T=1.750 |
2 | ||
| 41361-60850 |
UZJ200,VDJ200 T=1.650 |
2 | ||
| 41361-60810 |
UZJ200,VDJ200 T=1.550 |
2 | ||
| 41361-60B10 |
UZJ200,VDJ200 T=2.050 |
2 | ||
| 41361-60A10 |
UZJ200,VDJ200 T=1.800 |
2 | ||
| 41361-60A70 |
UZJ200,VDJ200 T=1.950 |
2 | ||
| 41361-60B30 |
UZJ200,VDJ200 T=2.100 |
2 | ||
| 41361-60A50 |
UZJ200,VDJ200 T=1.900 |
2 | ||
| 41361-60870 |
UZJ200,VDJ200 T=1.700 |
2 | ||
| 41361-60A90 |
UZJ200,VDJ200 T=2.000 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-60050 |
UZJ200,VDJ200 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
