VDJ200L-GMTEZW (2007)
Toyota Land Cruiser

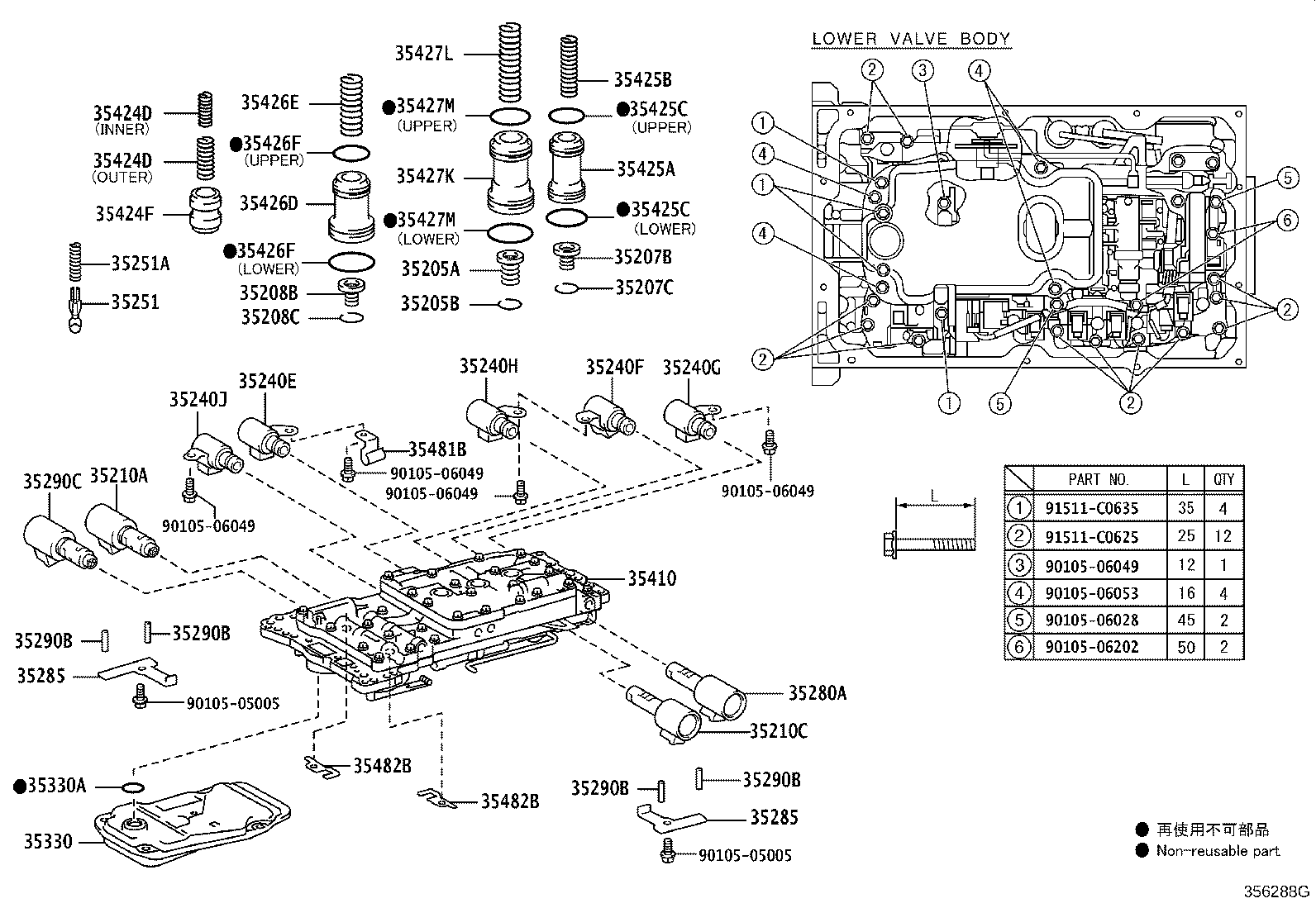

ILLUST NO. 1 OF 2(0709- )URJ202,VDJ200
AB60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35205A - SPRING SUB-ASSY, B-3 ACCUMULATOR | ||||
| 35205-60010 |
UZJ200,VDJ200 |
1 | ||
| 35205B - RING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
UZJ200,VDJ200 |
1 | ||
| 35207B - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35205-34020 |
VDJ200 |
1 | ||
| 35207C - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
UZJ200,VDJ200 |
1 | ||
| 35208B - SPRING SUB-ASSY, C-3 ACCUMULATOR | ||||
| 35208-22010 |
VDJ200 |
1 | ||
| 35208C - RING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
UZJ200,VDJ200 |
1 | ||
| 35210A - VALVE, SOLENOID(SL1) | ||||
| 35210-50010 |
UZJ200,VDJ200 |
1 | ||
| 35210C - VALVE, SOLENOID(SL2) | ||||
| 35210-50010 |
UZJ200,VDJ200 |
1 | ||
| 35240E - VALVE, SOLENOID(S1) | ||||
| 35240-50030 |
VDJ200 |
1 | ||
| 35240F - VALVE, SOLENOID(S2) | ||||
| 35240-50040 |
VDJ200 |
1 | ||
| 35240G - VALVE, SOLENOID(S3) | ||||
| 35240-50030 |
VDJ200 |
1 | ||
| 35240H - VALVE, SOLENOID(S4) | ||||
| 35240-50050 |
VDJ200 |
1 | ||
| 35240J - VALVE, SOLENOID(SR) | ||||
| 35240-50060 |
VDJ200 |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
UZJ200,VDJ200 |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
UZJ200,VDJ200 |
1 | ||
| 35280A - VALVE, SOLENOID(SLU) | ||||
| 35280-34010 |
VDJ200 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-50020 |
VDJ200 |
2 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-50020 |
VDJ200 |
2 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
UZJ200,VDJ200 |
4 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
UZJ200,VDJ200 |
4 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
UZJ200,VDJ200 |
4 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
UZJ200,VDJ200 |
4 | ||
| 35290C - VALVE, SOLENOID(SLT) | ||||
| 35290-34010 |
UZJ200,VDJ200 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-60060 |
VDJ200 |
1 | ||
| 35330A - RING, O (FOR OIL STRAINER) | ||||
| 90301-31014 |
UZJ200,VDJ200 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-60600 |
VDJ200 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-16181 |
VDJ200 INNER |
1 | ||
| 90501-24039 |
VDJ200 OUTER |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-16181 |
VDJ200 INNER |
1 | ||
| 90501-24039 |
VDJ200 OUTER |
1 | ||
| 35424F - VALVE, C-1 ACCUMULATOR | ||||
| 35424-60030 |
UZJ200,VDJ200 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-34010 |
VDJ200 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-20184 |
VDJ200 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
UZJ200,VDJ200 LOWER |
1 | ||
| 90301-20008 |
UZJ200,VDJ200 UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
UZJ200,VDJ200 LOWER |
1 | ||
| 90301-20008 |
UZJ200,VDJ200 UPPER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-50020 |
UZJ200,VDJ200 |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-26099 |
VDJ200 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
UZJ200,VDJ200 UPPER |
1 | ||
| 90301-34011 |
UZJ200,VDJ200 LOWER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
UZJ200,VDJ200 UPPER |
1 | ||
| 90301-34011 |
UZJ200,VDJ200 LOWER |
1 | ||
| 35427K - PISTON, B-3 ACCUMULATOR | ||||
| 35427-50020 |
UZJ200,VDJ200 |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-26098 |
VDJ200 |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
UZJ200,VDJ200 UPPER |
1 | ||
| 90301-34011 |
UZJ200,VDJ200 LOWER |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
UZJ200,VDJ200 UPPER |
1 | ||
| 90301-34011 |
UZJ200,VDJ200 LOWER |
1 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-34010 |
VDJ200 |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-60040 |
UZJ200,VDJ200 |
2 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-60040 |
UZJ200,VDJ200 |
2 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06028 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06202 | ||||
| 91511-C0625 | ||||
| 91511-C0635 | ||||
ILLUST NO. 2 OF 2(0709- )URJ202,VDJ200
AB60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-60660 |
VDJ200 |
1 | ||
| 82125K - WIRE, TRANSMISSION | ||||
| 82125-34030 |
VDJ200 |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
VDJ200 |
2 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
VDJ200 |
2 | ||
| Common parts | ||||
| 90301-06004 | ||||
| 91611-B0616 | ||||
