VDJ200L-GMTEZW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )URJ202,VDJ200

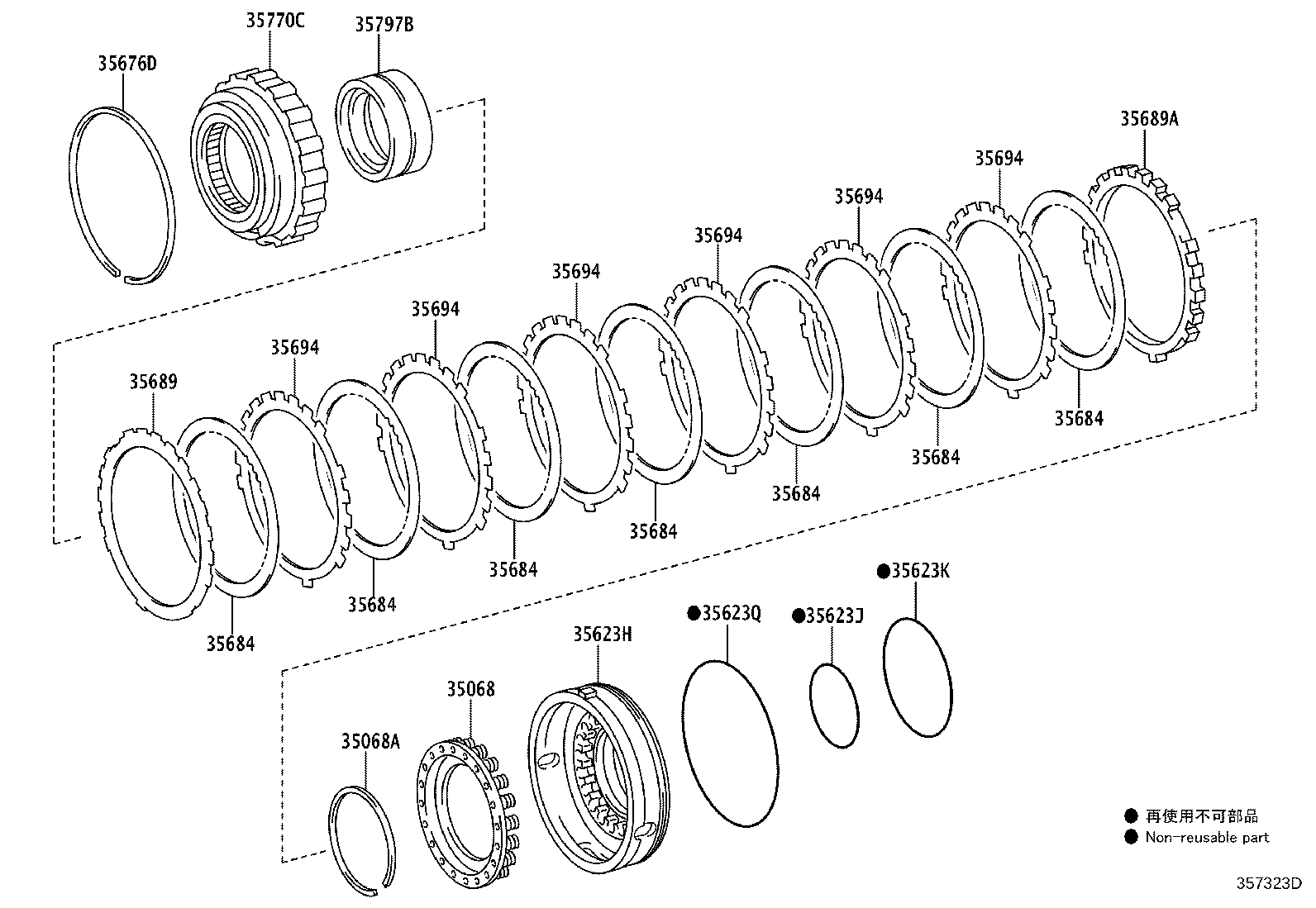

Click highlighted areas on diagram

AB60F

diagram 35068 35068A 35623H 35623J 35623K 35623Q 35676D 35684 35684 35684 35684 35684 35684 35684 35689 35689A 35694 35694 35694 35694 35694 35694 35770C 35797B
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-60020

VDJ200

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-61001

UZJ200,VDJ200

 1
35623H - PISTON, 1ST & REVERSE BRAKE
35623-34010

VDJ200

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-67006

VDJ200

 1
35623K - RING (FOR BRAKE PISTON OUTER)
90301-99118

VDJ200

 1
35623Q - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2)
90301-99090

VDJ200

 1
35676D - RING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)
90521-99130

VDJ200

 1
35684 - DISC, BRAKE, NO.4
35684-34020

VDJ200

 7
35684 - DISC, BRAKE, NO.4
35684-34020

VDJ200

 7
35684 - DISC, BRAKE, NO.4
35684-34020

VDJ200

 7
35684 - DISC, BRAKE, NO.4
35684-34020

VDJ200

 7
35684 - DISC, BRAKE, NO.4
35684-34020

VDJ200

 7
35684 - DISC, BRAKE, NO.4
35684-34020

VDJ200

 7
35684 - DISC, BRAKE, NO.4
35684-34020

VDJ200

 7
35689 - FLANGE, BRAKE, NO.4
35689-60200

VDJ200

MARK 0

 1
35689-60210

VDJ200

MARK 2

 1
35689-60240

VDJ200

MARK 8

 1
35689-60220

VDJ200

MARK 4

 1
35689-60250

VDJ200

MARK 10

 1
35689-60230

VDJ200

MARK 6

 1
35689A - FLANGE, BRAKE, NO.4
35689-60190

VDJ200

 1
35694 - PLATE, BRAKE, NO.4
35694-60020

VDJ200

 6
35694 - PLATE, BRAKE, NO.4
35694-60020

VDJ200

 6
35694 - PLATE, BRAKE, NO.4
35694-60020

VDJ200

 6
35694 - PLATE, BRAKE, NO.4
35694-60020

VDJ200

 6
35694 - PLATE, BRAKE, NO.4
35694-60020

VDJ200

 6
35694 - PLATE, BRAKE, NO.4
35694-60020

VDJ200

 6
35770C - CLUTCH ASSY, 1WAY NO.3
35770-60020

VDJ200

 1
35797B - RACE, 1 WAY CLUTCH, INNER
35797-34030

VDJ200

 1
