Toyota Land cruiser VDJ200 ALTERNATOR

VDJ200L-GMTEZW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012

Engine 1VDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0709- )1VDFTV

Click highlighted areas on diagram

12V 150A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-51020	1VDFTV..VDJ200 12V 150A,TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27060-51030	1VDFTV..VDJ200 12V 180A,COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27060-51030	1VDFTV..VDJ200 12V 180A	09/2007 - 01/2012	1
27039 - COVER, ALTERNATOR REAR END
27039-31390	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	04/2009 - 08/2010	1
27039-38140	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27039-26170	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 04/2009	1
27039-38140	1VDFTV..VDJ200	09/2007 - 01/2012	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-51050	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27310-51050	1VDFTV..VDJ200	09/2007 - 01/2012	1
27310-51030	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10226	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
90099-10226	1VDFTV..VDJ200	09/2007 - 01/2012	1
90099-10223	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27312 - PLATE, RETAINER
27312-42010	1VDFTV..VDJ200	09/2007 - 01/2012	1
27312-42010	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27312-72100	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27330 - ROTOR ASSY, ALTERNATOR
27330-38140	1VDFTV..VDJ200	05/2008 - 01/2012	1
27330-38140	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	05/2008 - 08/2010	1
27330-38130	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 05/2008	1
27330-58460	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27330-38130	1VDFTV..VDJ200	09/2007 - 05/2008	1
27360 - COIL ASSY, ALTERNATOR
27360-51040	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27360-51050	1VDFTV..VDJ200	09/2007 - 01/2012	1
27360-51050	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-27060	1VDFTV..VDJ200	09/2007 - 01/2012	1
27384 - WASHER
27384-50030	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27384-38130	1VDFTV..VDJ200	09/2007 - 01/2012	1
27384-38130	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27387 - INSULATOR, TERMINAL
27387-38130	1VDFTV..VDJ200	09/2007 - 01/2012	1
27387-38130	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27387-20130	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27411 - PULLEY, ALTERNATOR
27411-51030	1VDFTV..VDJ200	09/2007 - 01/2012	1
Common parts
90099-00197
90099-00268
90099-04539
90099-05171
90099-05284
90126-08021
90179-06158
91551-80850
91551-80880
94151-80800

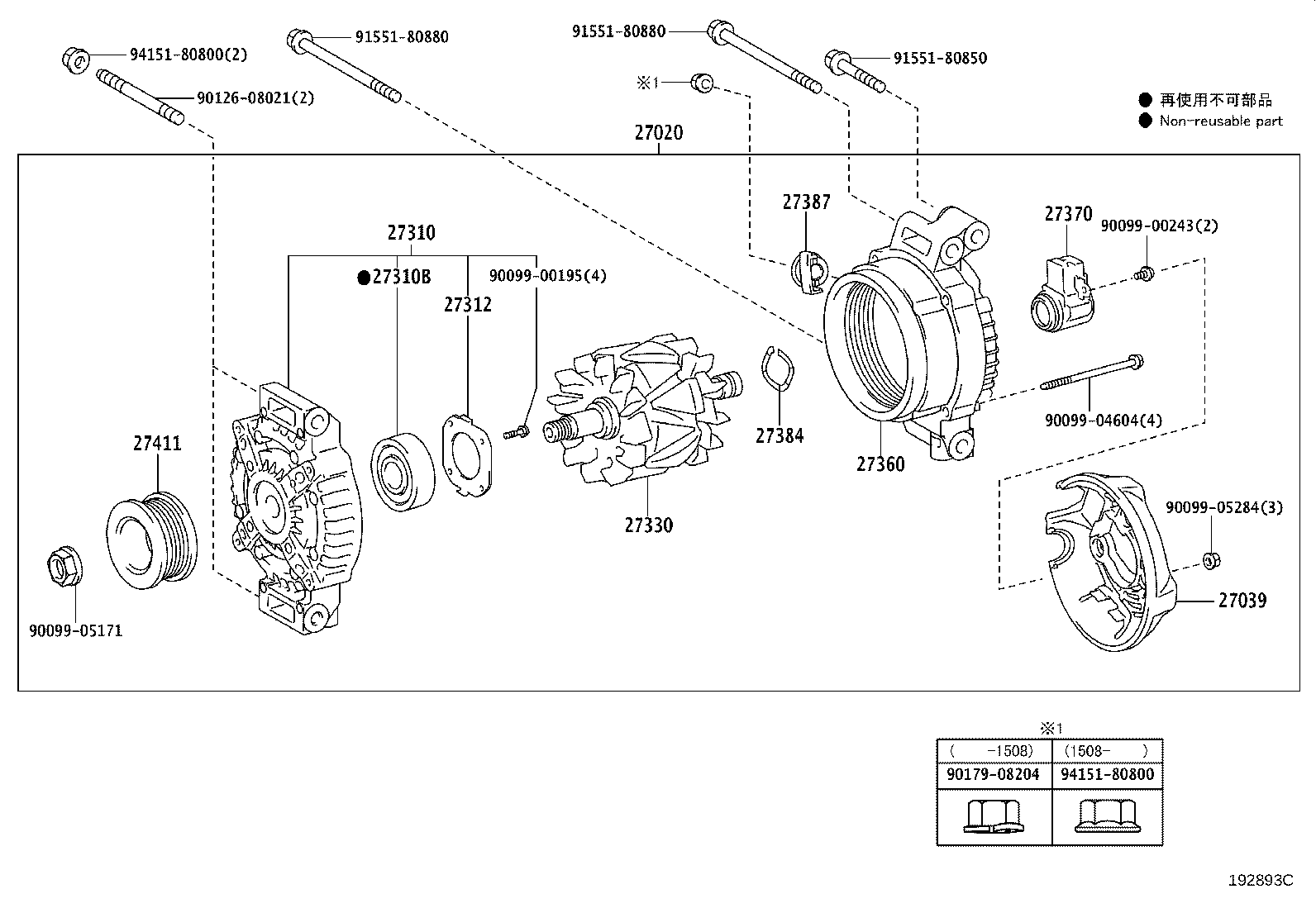

(0709- )1VDFTV

Click highlighted areas on diagram

12V 180A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-51020	1VDFTV..VDJ200 12V 150A,TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27060-51030	1VDFTV..VDJ200 12V 180A,COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27060-51030	1VDFTV..VDJ200 12V 180A	09/2007 - 01/2012	1
27039 - COVER, ALTERNATOR REAR END
27039-31390	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	04/2009 - 08/2010	1
27039-38140	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27039-26170	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 04/2009	1
27039-38140	1VDFTV..VDJ200	09/2007 - 01/2012	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-51050	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27310-51050	1VDFTV..VDJ200	09/2007 - 01/2012	1
27310-51030	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10226	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
90099-10226	1VDFTV..VDJ200	09/2007 - 01/2012	1
90099-10223	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27312 - PLATE, RETAINER
27312-42010	1VDFTV..VDJ200	09/2007 - 01/2012	1
27312-42010	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27312-72100	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27330 - ROTOR ASSY, ALTERNATOR
27330-38140	1VDFTV..VDJ200	05/2008 - 01/2012	1
27330-38140	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	05/2008 - 08/2010	1
27330-38130	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 05/2008	1
27330-58460	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27330-38130	1VDFTV..VDJ200	09/2007 - 05/2008	1
27360 - COIL ASSY, ALTERNATOR
27360-51040	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27360-51050	1VDFTV..VDJ200	09/2007 - 01/2012	1
27360-51050	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-27060	1VDFTV..VDJ200	09/2007 - 01/2012	1
27384 - WASHER
27384-50030	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27384-38130	1VDFTV..VDJ200	09/2007 - 01/2012	1
27384-38130	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27387 - INSULATOR, TERMINAL
27387-38130	1VDFTV..VDJ200	09/2007 - 01/2012	1
27387-38130	1VDFTV..VDJ200 COLD SPEC&TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27387-20130	1VDFTV..VDJ200 TOWING PACKAGE-WITHOUT	09/2007 - 08/2010	1
27411 - PULLEY, ALTERNATOR
27411-51030	1VDFTV..VDJ200	09/2007 - 01/2012	1
Common parts
90099-00195
90099-00243
90099-04604
90099-05171
90099-05284
90126-08021
90179-08204
91551-80850
91551-80880
94151-80800

VDJ200L-GMTEZW (2007)

(0709- )1VDFTV

(0709- )1VDFTV
