VDJ200L-GMTEZW (2012)
Toyota Land Cruiser

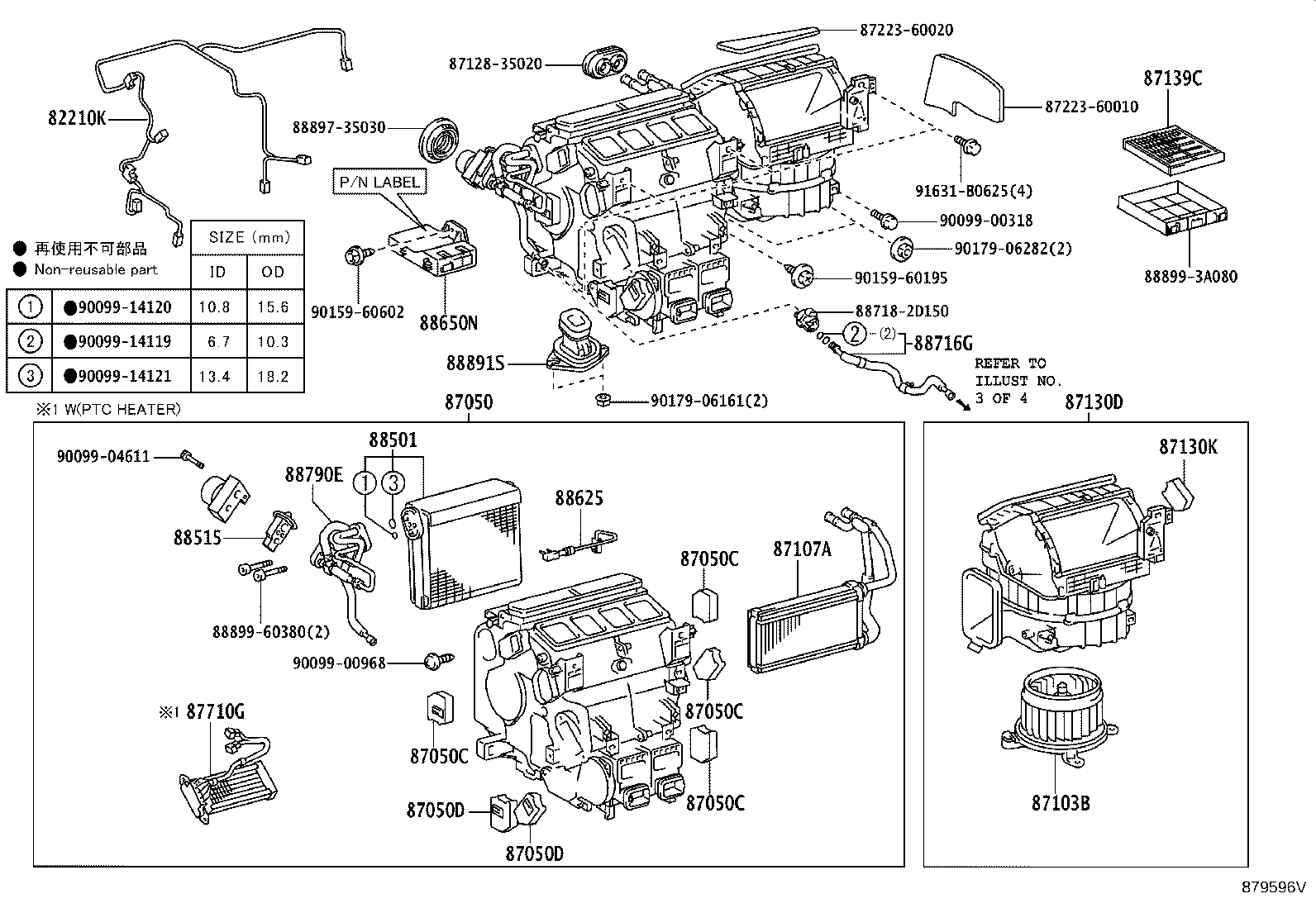

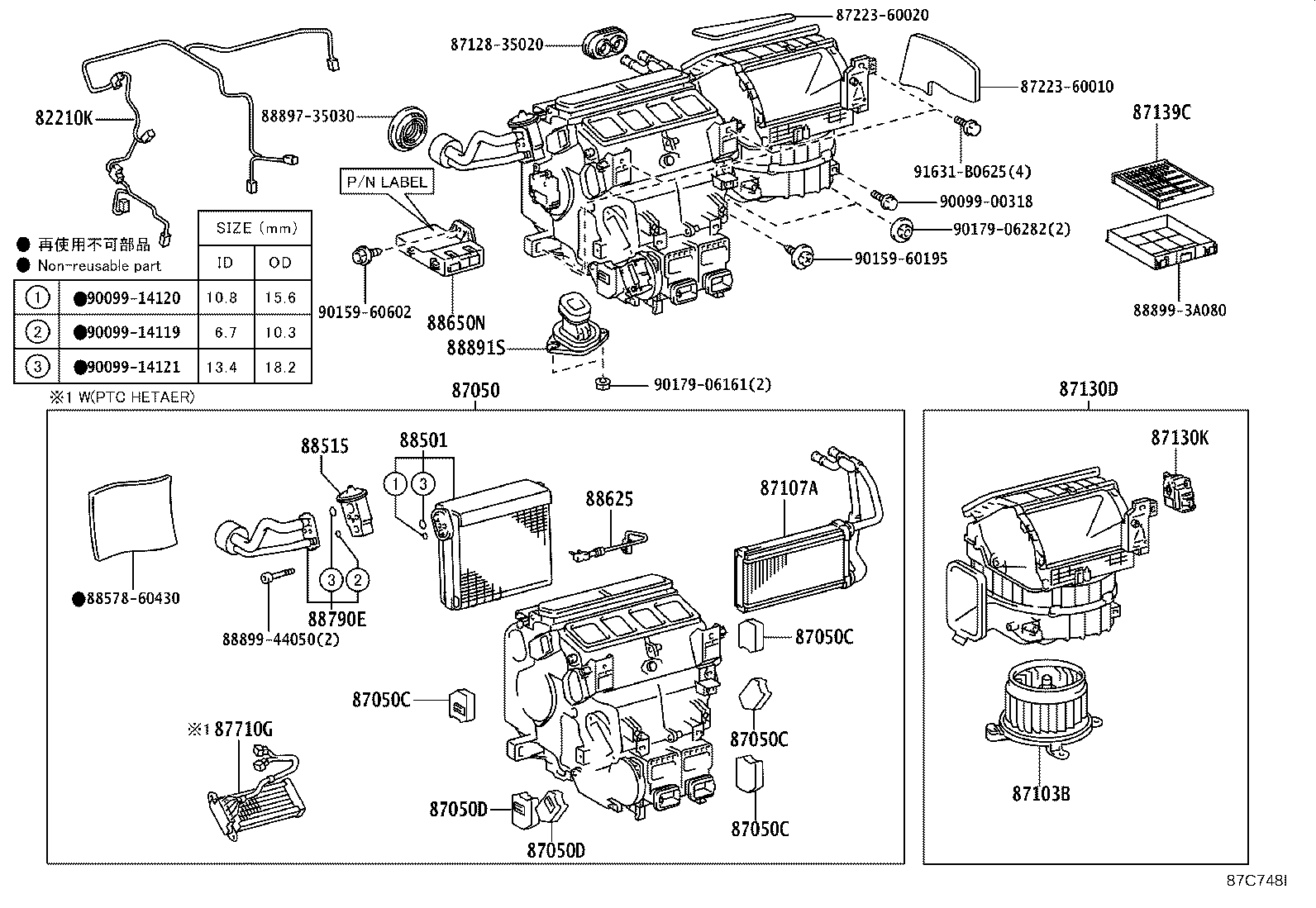

ILLUST NO. 1 OF 3(1201-1312)LHD
FRONT,W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60090 |
URJ202,VDJ200..05S |
1 | ||
| 82212-60091 |
URJ202,VDJ200..05S |
1 | ||
| 82212-60101 |
URJ202,VDJ200..05S AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60450 |
URJ202,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60460 |
URJ202,VDJ200..05S |
1 | ||
| 87050-60510 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60461 |
URJ202,VDJ200..05S |
1 | ||
| 87050-60520 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87050-60521 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87050-60451 |
URJ202,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60511 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60880 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60880 |
URJ202,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60860 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87050-60860 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87050-60870 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050-60870 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050-60890 |
URJ202,VDJ200..05S |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60270 |
URJ202,VDJ200 |
2 | ||
| 87106-60260 |
URJ202,VDJ200 |
2 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60270 |
URJ202,VDJ200 |
2 | ||
| 87106-60260 |
URJ202,VDJ200 |
2 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60480 |
URJ202,VDJ200..LHD |
1 | ||
| 87103-60481 |
URJ202,VDJ200..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60411 |
URJ202,VDJ200 |
1 | ||
| 87107-60410 |
URJ202,VDJ200 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60532 |
URJ202,VDJ200..LHD |
1 | ||
| 87130-60533 |
URJ202,VDJ200..LHD |
1 | ||
| 87130-60534 |
URJ202,VDJ200..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-50550 |
URJ202,VDJ200 |
1 | ||
| 87106-50390 |
URJ202,VDJ200 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
URJ202,VDJ200 POLLEN DEODORANT,*DPF |
1 | ||
| 87139-76010 |
URJ202,VDJ200 MICRO DUST FILTER, MICRO DUST FILTER |
1 | ||
| 87139-50060 |
URJ202,VDJ200 DEODORANT FILTER,DEODORANT FILTER |
1 | ||
| 87139-52040 |
URJ202,VDJ200 POLLEN FILTER,POLLEN FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-50020 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87710-50020 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87710-50020 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87710-50020 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60362 |
URJ202,VDJ200 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50190 |
VDJ200;URJ202..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-60020 |
URJ202,VDJ200 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60K30 |
URJ202,VDJ200..05S P/N LABEL=8865060K30 |
1 | ||
| 88650-60J90 |
VDJ200..05S COLD SPEC,P/N LABEL=8865060J90 |
1 | ||
| 88650-60F00 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060F00 |
1 | ||
| 88650-60J90 |
URJ202,VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J90 |
1 | ||
| 88650-60K20 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K20 |
1 | ||
| 88650-60K20 |
VDJ200..05S COLD SPEC&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K20 |
1 | ||
| 88650-60J90 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J90 |
1 | ||
| 88650-60J91 |
VDJ200..05S COLD SPEC,P/N LABEL=8865060J91 |
1 | ||
| 88650-60K20 |
VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K20 |
1 | ||
| 88650-60J91 |
URJ202,VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J91 |
1 | ||
| 88650-60J91 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J91 |
1 | ||
| 88650-60K31 |
URJ202,VDJ200..05S P/N LABEL=8865060K31 |
1 | ||
| 88650-60K21 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K21 |
1 | ||
| 88650-60K21 |
VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K21 |
1 | ||
| 88650-60K21 |
VDJ200..05S COLD SPEC&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K21 |
1 | ||
| 88650-60F01 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060F01 |
1 | ||
| 88650-60K32 |
URJ202,VDJ200..05S P/N LABEL=8865060K32 |
1 | ||
| 88650-60J92 |
VDJ200..05S COLD SPEC |
1 | ||
| 88650-60J92 |
VDJ200..05S COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60J92 |
VDJ200..05S WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60J92 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60J92 |
URJ202,VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60K22 |
VDJ200..05S COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60K22 |
VDJ200..05S COLD SPEC&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60K22 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60K22 |
VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60J22 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60K22 |
VDJ200..05S WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60J22 |
VDJ200..05S CZECHOSLOVAKIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S UKRAINE SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEATINDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S GERMANY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S POLAND OR HUNGARY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S AUSTRIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEATINDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S GERMANY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEATINDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S SWITZERLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S GERMANY SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S SLOVENIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SWITZERLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S GERMANY SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S CZECHOSLOVAKIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S POLAND OR HUNGARY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL& VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)& EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S UKRAINE SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AUSTRIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SLOVENIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S GERMANY SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SWITZERLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC& VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S GERMANY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)& EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S AUSTRIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIRCONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S GERMANY SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S POLAND OR HUNGARY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL& PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S CZECHOSLOVAKIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIRCONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J51 |
VDJ200..05S SWITZERLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J42 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J51 |
VDJ200..05S UKRAINE SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S CZECHOSLOVAKIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S AUSTRIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S POLAND OR HUNGARY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J42 |
VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S UKRAINE SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SLOVENIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J51 |
VDJ200..05S GERMANY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S SLOVENIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-6C180 |
URJ202,VDJ200..LHD WITH(COOL BOX) |
1 | ||
| 88716-6C180 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 88716-6C180 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88716-6C180 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER | ||||
| 88710-60A00 |
VDJ200;URJ202..LHD |
1 | ||
| 88710-60A10 |
VDJ200;URJ202..LHD WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-60090 |
URJ202,VDJ200 |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 87223-60010 | ||||
| 87223-60020 | ||||
| 88718-2D150 | ||||
| 88897-35030 | ||||
| 88899-3A080 | ||||
| 88899-60380 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04611 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60195 | ||||
| 90159-60602 | ||||
| 90179-06161 | ||||
| 90179-06282 | ||||
| 91631-B0625 | ||||
ILLUST NO. 1 OF 3(1201-1312)LHD
FRONT,W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60090 |
URJ202,VDJ200..05S |
1 | ||
| 82212-60091 |
URJ202,VDJ200..05S |
1 | ||
| 82212-60101 |
URJ202,VDJ200..05S AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60450 |
URJ202,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60460 |
URJ202,VDJ200..05S |
1 | ||
| 87050-60510 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60461 |
URJ202,VDJ200..05S |
1 | ||
| 87050-60520 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87050-60521 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87050-60451 |
URJ202,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60511 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60880 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60880 |
URJ202,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60860 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87050-60860 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87050-60870 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050-60870 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050-60890 |
URJ202,VDJ200..05S |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60270 |
URJ202,VDJ200 |
2 | ||
| 87106-60260 |
URJ202,VDJ200 |
2 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60270 |
URJ202,VDJ200 |
2 | ||
| 87106-60260 |
URJ202,VDJ200 |
2 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60480 |
URJ202,VDJ200..LHD |
1 | ||
| 87103-60481 |
URJ202,VDJ200..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60411 |
URJ202,VDJ200 |
1 | ||
| 87107-60410 |
URJ202,VDJ200 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60532 |
URJ202,VDJ200..LHD |
1 | ||
| 87130-60533 |
URJ202,VDJ200..LHD |
1 | ||
| 87130-60534 |
URJ202,VDJ200..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-50550 |
URJ202,VDJ200 |
1 | ||
| 87106-50390 |
URJ202,VDJ200 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
URJ202,VDJ200 POLLEN DEODORANT,*DPF |
1 | ||
| 87139-76010 |
URJ202,VDJ200 MICRO DUST FILTER, MICRO DUST FILTER |
1 | ||
| 87139-50060 |
URJ202,VDJ200 DEODORANT FILTER,DEODORANT FILTER |
1 | ||
| 87139-52040 |
URJ202,VDJ200 POLLEN FILTER,POLLEN FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-50020 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87710-50020 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87710-50020 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87710-50020 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60362 |
URJ202,VDJ200 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50190 |
VDJ200;URJ202..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-60020 |
URJ202,VDJ200 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60K30 |
URJ202,VDJ200..05S P/N LABEL=8865060K30 |
1 | ||
| 88650-60J90 |
VDJ200..05S COLD SPEC,P/N LABEL=8865060J90 |
1 | ||
| 88650-60F00 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060F00 |
1 | ||
| 88650-60J90 |
URJ202,VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J90 |
1 | ||
| 88650-60K20 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K20 |
1 | ||
| 88650-60K20 |
VDJ200..05S COLD SPEC&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K20 |
1 | ||
| 88650-60J90 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J90 |
1 | ||
| 88650-60J91 |
VDJ200..05S COLD SPEC,P/N LABEL=8865060J91 |
1 | ||
| 88650-60K20 |
VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K20 |
1 | ||
| 88650-60J91 |
URJ202,VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J91 |
1 | ||
| 88650-60J91 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J91 |
1 | ||
| 88650-60K31 |
URJ202,VDJ200..05S P/N LABEL=8865060K31 |
1 | ||
| 88650-60K21 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K21 |
1 | ||
| 88650-60K21 |
VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K21 |
1 | ||
| 88650-60K21 |
VDJ200..05S COLD SPEC&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K21 |
1 | ||
| 88650-60F01 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060F01 |
1 | ||
| 88650-60K32 |
URJ202,VDJ200..05S P/N LABEL=8865060K32 |
1 | ||
| 88650-60J92 |
VDJ200..05S COLD SPEC |
1 | ||
| 88650-60J92 |
VDJ200..05S COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60J92 |
VDJ200..05S WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60J92 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60J92 |
URJ202,VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60K22 |
VDJ200..05S COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60K22 |
VDJ200..05S COLD SPEC&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60K22 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60K22 |
VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60J22 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60K22 |
VDJ200..05S WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60J22 |
VDJ200..05S CZECHOSLOVAKIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S UKRAINE SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEATINDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S GERMANY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S POLAND OR HUNGARY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S AUSTRIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEATINDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S GERMANY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEATINDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S SWITZERLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S GERMANY SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S SLOVENIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SWITZERLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S GERMANY SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S CZECHOSLOVAKIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S POLAND OR HUNGARY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL& VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)& EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S UKRAINE SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AUSTRIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SLOVENIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S GERMANY SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SWITZERLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC& VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S GERMANY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)& EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S AUSTRIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIRCONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S GERMANY SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S POLAND OR HUNGARY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL& PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S CZECHOSLOVAKIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIRCONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J51 |
VDJ200..05S SWITZERLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J42 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J51 |
VDJ200..05S UKRAINE SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S CZECHOSLOVAKIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S AUSTRIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S POLAND OR HUNGARY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J42 |
VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S UKRAINE SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SLOVENIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J51 |
VDJ200..05S GERMANY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S SLOVENIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER | ||||
| 88710-60A00 |
VDJ200;URJ202..LHD |
1 | ||
| 88710-60A10 |
VDJ200;URJ202..LHD WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-60090 |
URJ202,VDJ200 |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 87223-60010 | ||||
| 87223-60020 | ||||
| 88578-60430 | ||||
| 88897-35030 | ||||
| 88899-3A080 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60195 | ||||
| 90159-60602 | ||||
| 90179-06161 | ||||
| 90179-06282 | ||||
| 91631-B0625 | ||||
ILLUST NO. 1 OF 3(1312- )LHD
FRONT,W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60090 |
URJ202,VDJ200..05S |
1 | ||
| 82212-60091 |
URJ202,VDJ200..05S |
1 | ||
| 82212-60101 |
URJ202,VDJ200..05S AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60450 |
URJ202,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60460 |
URJ202,VDJ200..05S |
1 | ||
| 87050-60510 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60461 |
URJ202,VDJ200..05S |
1 | ||
| 87050-60520 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87050-60521 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87050-60451 |
URJ202,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60511 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60880 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60880 |
URJ202,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60860 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87050-60860 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87050-60870 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050-60870 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050-60890 |
URJ202,VDJ200..05S |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60270 |
URJ202,VDJ200 |
2 | ||
| 87106-60260 |
URJ202,VDJ200 |
2 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60270 |
URJ202,VDJ200 |
2 | ||
| 87106-60260 |
URJ202,VDJ200 |
2 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-60340 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87106-60340 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87106-60340 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87106-60340 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60480 |
URJ202,VDJ200..LHD |
1 | ||
| 87103-60481 |
URJ202,VDJ200..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60411 |
URJ202,VDJ200 |
1 | ||
| 87107-60410 |
URJ202,VDJ200 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-60070 |
URJ202,VDJ200 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60532 |
URJ202,VDJ200..LHD |
1 | ||
| 87130-60533 |
URJ202,VDJ200..LHD |
1 | ||
| 87130-60534 |
URJ202,VDJ200..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-50550 |
URJ202,VDJ200 |
1 | ||
| 87106-50390 |
URJ202,VDJ200 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
URJ202,VDJ200 POLLEN DEODORANT,*DPF |
1 | ||
| 87139-76010 |
URJ202,VDJ200 MICRO DUST FILTER, MICRO DUST FILTER |
1 | ||
| 87139-50060 |
URJ202,VDJ200 DEODORANT FILTER,DEODORANT FILTER |
1 | ||
| 87139-52040 |
URJ202,VDJ200 POLLEN FILTER,POLLEN FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-50020 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87710-50020 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87710-50020 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87710-50020 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60362 |
URJ202,VDJ200 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50190 |
VDJ200;URJ202..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-60020 |
URJ202,VDJ200 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60K30 |
URJ202,VDJ200..05S P/N LABEL=8865060K30 |
1 | ||
| 88650-60J90 |
VDJ200..05S COLD SPEC,P/N LABEL=8865060J90 |
1 | ||
| 88650-60F00 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060F00 |
1 | ||
| 88650-60J90 |
URJ202,VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J90 |
1 | ||
| 88650-60K20 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K20 |
1 | ||
| 88650-60K20 |
VDJ200..05S COLD SPEC&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K20 |
1 | ||
| 88650-60J90 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J90 |
1 | ||
| 88650-60J91 |
VDJ200..05S COLD SPEC,P/N LABEL=8865060J91 |
1 | ||
| 88650-60K20 |
VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K20 |
1 | ||
| 88650-60J91 |
URJ202,VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J91 |
1 | ||
| 88650-60J91 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J91 |
1 | ||
| 88650-60K31 |
URJ202,VDJ200..05S P/N LABEL=8865060K31 |
1 | ||
| 88650-60K21 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K21 |
1 | ||
| 88650-60K21 |
VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K21 |
1 | ||
| 88650-60K21 |
VDJ200..05S COLD SPEC&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K21 |
1 | ||
| 88650-60F01 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060F01 |
1 | ||
| 88650-60K32 |
URJ202,VDJ200..05S P/N LABEL=8865060K32 |
1 | ||
| 88650-60J92 |
VDJ200..05S COLD SPEC |
1 | ||
| 88650-60J92 |
VDJ200..05S COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60J92 |
VDJ200..05S WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60J92 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60J92 |
URJ202,VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60K22 |
VDJ200..05S COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60K22 |
VDJ200..05S COLD SPEC&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60K22 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60K22 |
VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60J22 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60K22 |
VDJ200..05S WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60J22 |
VDJ200..05S CZECHOSLOVAKIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S UKRAINE SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEATINDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S GERMANY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S POLAND OR HUNGARY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S AUSTRIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEATINDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S GERMANY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEATINDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S SWITZERLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S GERMANY SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S SLOVENIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SWITZERLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S GERMANY SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S CZECHOSLOVAKIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S POLAND OR HUNGARY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL& VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)& EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S UKRAINE SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AUSTRIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SLOVENIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S GERMANY SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SWITZERLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC& VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S GERMANY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)& EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S AUSTRIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIRCONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S GERMANY SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S POLAND OR HUNGARY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL& PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S CZECHOSLOVAKIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIRCONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J51 |
VDJ200..05S SWITZERLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J42 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J51 |
VDJ200..05S UKRAINE SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S CZECHOSLOVAKIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S AUSTRIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S POLAND OR HUNGARY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J42 |
VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S UKRAINE SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SLOVENIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J51 |
VDJ200..05S GERMANY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S SLOVENIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER | ||||
| 88710-60A00 |
VDJ200;URJ202..LHD |
1 | ||
| 88710-60A10 |
VDJ200;URJ202..LHD WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-60090 |
URJ202,VDJ200 |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 88578-60430 | ||||
| 88897-35030 | ||||
| 88899-3A080 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60195 | ||||
| 90159-60602 | ||||
| 90178-06012 | ||||
| 90179-06161 | ||||
| 90179-06282 | ||||
| 91631-B0625 | ||||
ILLUST NO. 1 OF 3(1312- )LHD
FRONT,W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60090 |
URJ202,VDJ200..05S |
1 | ||
| 82212-60091 |
URJ202,VDJ200..05S |
1 | ||
| 82212-60101 |
URJ202,VDJ200..05S AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60450 |
URJ202,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60460 |
URJ202,VDJ200..05S |
1 | ||
| 87050-60510 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60461 |
URJ202,VDJ200..05S |
1 | ||
| 87050-60520 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87050-60521 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87050-60451 |
URJ202,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60511 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60880 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60880 |
URJ202,VDJ200..05S WITH(COOL BOX) |
1 | ||
| 87050-60860 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87050-60860 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87050-60870 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050-60870 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87050-60890 |
URJ202,VDJ200..05S |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50390 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
URJ202,VDJ200..05S |
4 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87106-50550 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
5 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60270 |
URJ202,VDJ200 |
2 | ||
| 87106-60260 |
URJ202,VDJ200 |
2 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60270 |
URJ202,VDJ200 |
2 | ||
| 87106-60260 |
URJ202,VDJ200 |
2 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-60340 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87106-60340 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87106-60340 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87106-60340 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60480 |
URJ202,VDJ200..LHD |
1 | ||
| 87103-60481 |
URJ202,VDJ200..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60411 |
URJ202,VDJ200 |
1 | ||
| 87107-60410 |
URJ202,VDJ200 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-60070 |
URJ202,VDJ200 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60532 |
URJ202,VDJ200..LHD |
1 | ||
| 87130-60533 |
URJ202,VDJ200..LHD |
1 | ||
| 87130-60534 |
URJ202,VDJ200..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-50550 |
URJ202,VDJ200 |
1 | ||
| 87106-50390 |
URJ202,VDJ200 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
URJ202,VDJ200 POLLEN DEODORANT,*DPF |
1 | ||
| 87139-76010 |
URJ202,VDJ200 MICRO DUST FILTER, MICRO DUST FILTER |
1 | ||
| 87139-50060 |
URJ202,VDJ200 DEODORANT FILTER,DEODORANT FILTER |
1 | ||
| 87139-52040 |
URJ202,VDJ200 POLLEN FILTER,POLLEN FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-50020 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87710-50020 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87710-50020 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87710-50020 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 87710-60060 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60362 |
URJ202,VDJ200 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-60020 |
URJ202,VDJ200 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60K30 |
URJ202,VDJ200..05S P/N LABEL=8865060K30 |
1 | ||
| 88650-60J90 |
VDJ200..05S COLD SPEC,P/N LABEL=8865060J90 |
1 | ||
| 88650-60F00 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060F00 |
1 | ||
| 88650-60J90 |
URJ202,VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J90 |
1 | ||
| 88650-60K20 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K20 |
1 | ||
| 88650-60K20 |
VDJ200..05S COLD SPEC&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K20 |
1 | ||
| 88650-60J90 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J90 |
1 | ||
| 88650-60J91 |
VDJ200..05S COLD SPEC,P/N LABEL=8865060J91 |
1 | ||
| 88650-60K20 |
VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K20 |
1 | ||
| 88650-60J91 |
URJ202,VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J91 |
1 | ||
| 88650-60J91 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR),P/N LABEL=8865060J91 |
1 | ||
| 88650-60K31 |
URJ202,VDJ200..05S P/N LABEL=8865060K31 |
1 | ||
| 88650-60K21 |
VDJ200..05S COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K21 |
1 | ||
| 88650-60K21 |
VDJ200..05S INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K21 |
1 | ||
| 88650-60K21 |
VDJ200..05S COLD SPEC&HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060K21 |
1 | ||
| 88650-60F01 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS,P/N LABEL=8865060F01 |
1 | ||
| 88650-60K32 |
URJ202,VDJ200..05S P/N LABEL=8865060K32 |
1 | ||
| 88650-60J92 |
VDJ200..05S COLD SPEC |
1 | ||
| 88650-60J92 |
VDJ200..05S COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60J92 |
VDJ200..05S WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60J92 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60J92 |
URJ202,VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 88650-60K22 |
VDJ200..05S COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60K22 |
VDJ200..05S COLD SPEC&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60K22 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60K22 |
VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60J22 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60K22 |
VDJ200..05S WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-FRONT DUAL CONTROL & PTC & VISCUS |
1 | ||
| 88650-60J22 |
VDJ200..05S CZECHOSLOVAKIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S UKRAINE SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEATINDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S GERMANY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S POLAND OR HUNGARY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S AUSTRIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEATINDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S GERMANY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEATINDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S SWITZERLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S GERMANY SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J22 |
VDJ200..05S SLOVENIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SWITZERLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S GERMANY SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S CZECHOSLOVAKIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S POLAND OR HUNGARY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL& VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)& EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S UKRAINE SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AUSTRIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S SLOVENIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S GERMANY SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SWITZERLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC& VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S GERMANY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)& EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S AUSTRIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J32 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIRCONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S RUSSIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S GERMANY SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S POLAND OR HUNGARY SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL& PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S CZECHOSLOVAKIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S CZECHOSLOVAKIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIRCONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J51 |
VDJ200..05S SWITZERLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J42 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J51 |
VDJ200..05S UKRAINE SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S CZECHOSLOVAKIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S AUSTRIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S POLAND OR HUNGARY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J42 |
VDJ200..05S RUSSIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SLOVENIA SPEC&COLD SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S UKRAINE SPEC&COLD SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J42 |
VDJ200..05S SLOVENIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL) |
1 | ||
| 88650-60J51 |
VDJ200..05S GERMANY SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S SLOVENIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88650-60J51 |
VDJ200..05S NORWAY,DENMARK,SWEDEN,FINLAND SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),P/N LABEL=8865060J51 |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-6C180 |
URJ202,VDJ200..LHD WITH(COOL BOX) |
1 | ||
| 88716-6C180 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 88716-6C180 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88716-6C180 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER | ||||
| 88710-60A00 |
VDJ200;URJ202..LHD |
1 | ||
| 88710-60A10 |
VDJ200;URJ202..LHD WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..05S HEATER-FRONT DUAL CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88710-60A10 |
VDJ200..05S HEATER-4SEAT INDEPENDENT CONTROL & VISCUS&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&WITH(COOL BOX) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-60090 |
URJ202,VDJ200 |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 88718-2D150 | ||||
| 88897-35030 | ||||
| 88899-3A080 | ||||
| 88899-60380 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04611 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60195 | ||||
| 90159-60602 | ||||
| 90178-06012 | ||||
| 90179-06161 | ||||
| 90179-06282 | ||||
| 91631-B0625 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
