VDJ200L-GMTEZW (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1201-1508)LHD

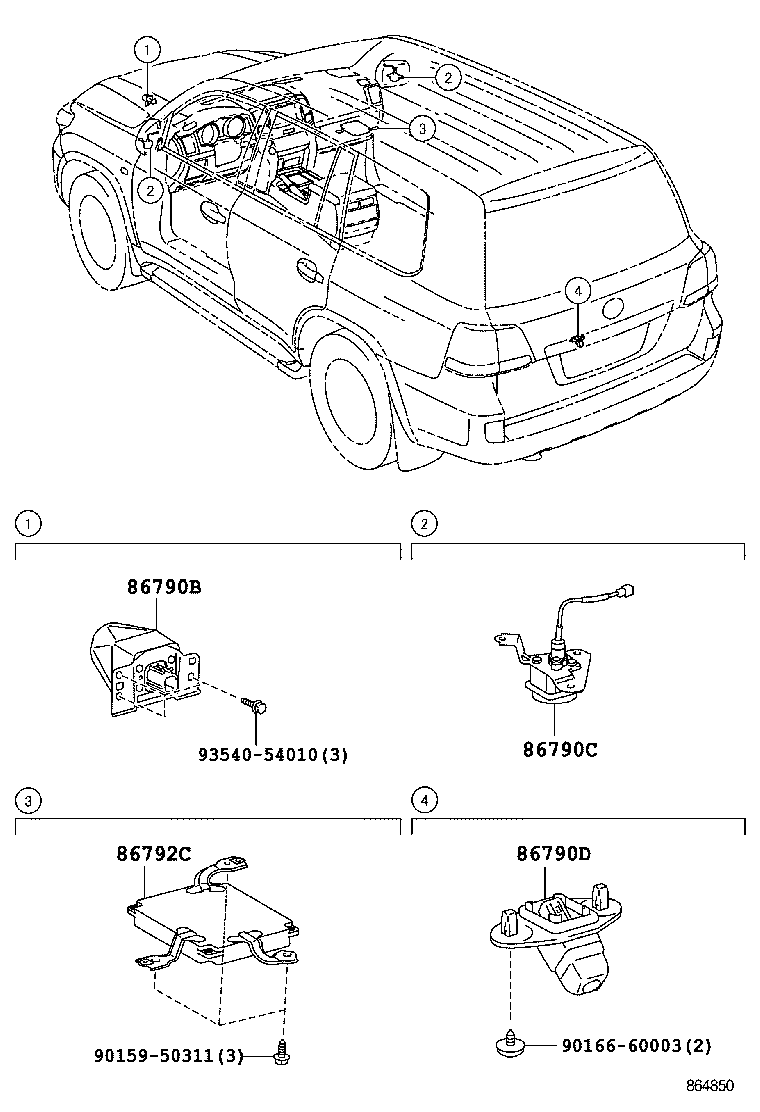

Click highlighted areas on diagram

diagram 86790B 86790C 86790D 86792C 9015950311 9016660003 9354054010
Part # Description Qty Price
86790B - CAMERA ASSY, TELEVISION, FR
86790-60200

URJ202,VDJ200

BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)

 1
86790C - CAMERA ASSY, TELEVISION, SIDE
86790-60150

URJ202,VDJ200

BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),LH

 1
86790-60160

URJ202,VDJ200

BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),RH

 1
86790D - CAMERA ASSY, TELEVISION, RR
86790-60082

URJ202,VDJ200

BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)

 1
86790-60081

URJ202,VDJ200

BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)

 1
86790-60082

URJ202,VDJ200

BACK MONITOR-WITH(GUIDE)

 1
86790-60081

URJ202,VDJ200

BACK MONITOR-WITH(GUIDE)

 1
86792C - COMPUTER, PARKING ASSIST
86792-60501

VDJ200..LHD;URJ202..LHD..08S

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)

 1
86792-60500

VDJ200..LHD;URJ202..LHD..08S

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)

 1
Common parts
90159-50311
90166-60003
93540-54010
