VDJ200L-GMTEZW (2012)
Toyota Land Cruiser

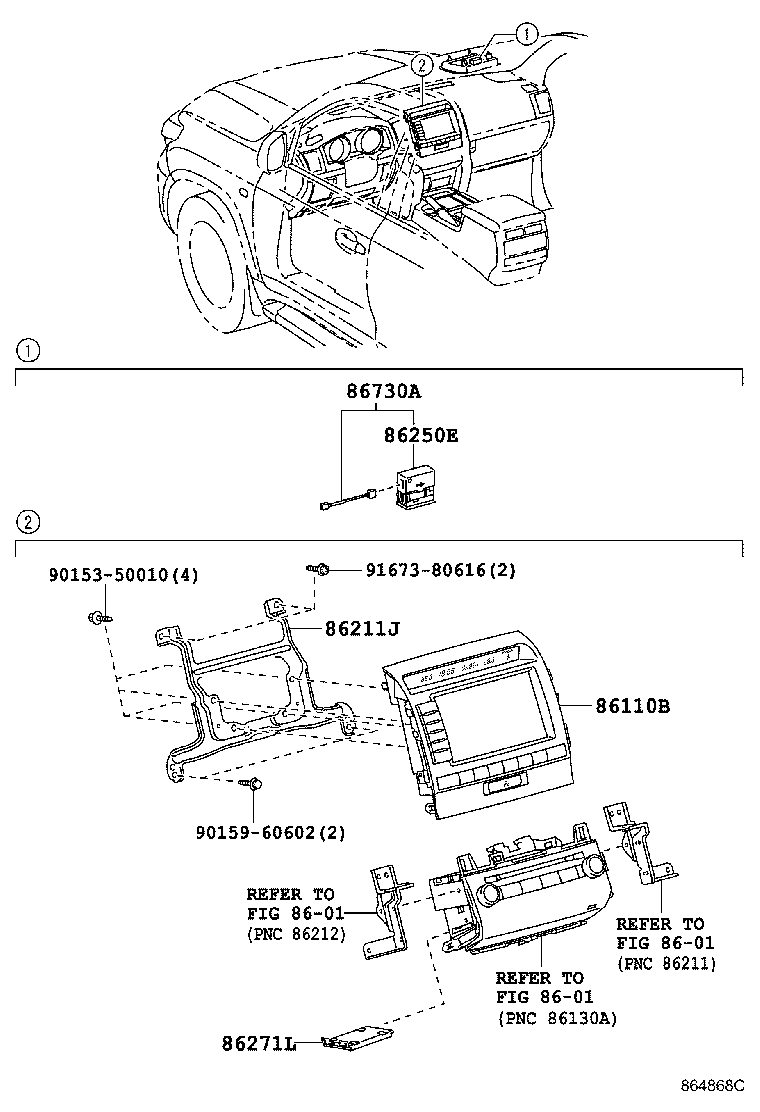

ILLUST NO. 1 OF 2(1201-1508)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-60120 |
URJ202,VDJ200..05S FUJITSU TEN,EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86110-60120 |
URJ202,VDJ200..05S FUJITSU TEN,AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86110-60110 |
URJ202,VDJ200..05S FUJITSU TEN,AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-60350 |
URJ202,VDJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-52030 |
URJ202..05S;VDJ200..LHD |
1 | ||
| 86250-52030 |
VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| 86271L - HARD DISC | ||||
| 86271-30711 |
URJ202..05S;VDJ200..LHD UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30711 |
URJ202..05S;VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30711 |
VDJ200;URJ202..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30712 |
URJ202..05S;VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30712 |
URJ202,VDJ200..05S RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30712 |
VDJ200;URJ202..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30712 |
URJ202..05S;VDJ200..LHD UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30713 |
VDJ200;URJ202..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30713 |
URJ202..05S;VDJ200..LHD UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30713 |
URJ202..05S;VDJ200..LHD RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30713 |
URJ202..05S;VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30714 |
URJ202..05S;VDJ200..LHD UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30714 |
URJ202..05S;VDJ200..LHD RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30714 |
VDJ200;URJ202..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30714 |
URJ202..05S;VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30715 |
URJ202..05S;VDJ200..LHD UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30715 |
VDJ200;URJ202..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30715 |
URJ202..05S;VDJ200..LHD RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30715 |
URJ202..05S;VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30716 |
URJ202..05S;VDJ200..LHD RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30717 |
URJ202..05S;VDJ200..LHD RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30716 |
URJ202..05S;VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30716 |
URJ202..05S;VDJ200..LHD UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30716 |
VDJ200;URJ202..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30717 |
URJ202..05S;VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30717 |
URJ202..05S;VDJ200..LHD UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30717 |
VDJ200;URJ202..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30718 |
URJ202..05S;VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30718 |
URJ202..05S;VDJ200..LHD UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30718 |
VDJ200;URJ202..05S EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86271-30718 |
URJ202..05S;VDJ200..LHD RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-48040 |
URJ202..05S;VDJ200..LHD |
1 | ||
| 86730-48040 |
VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-60602 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8601 | ||||

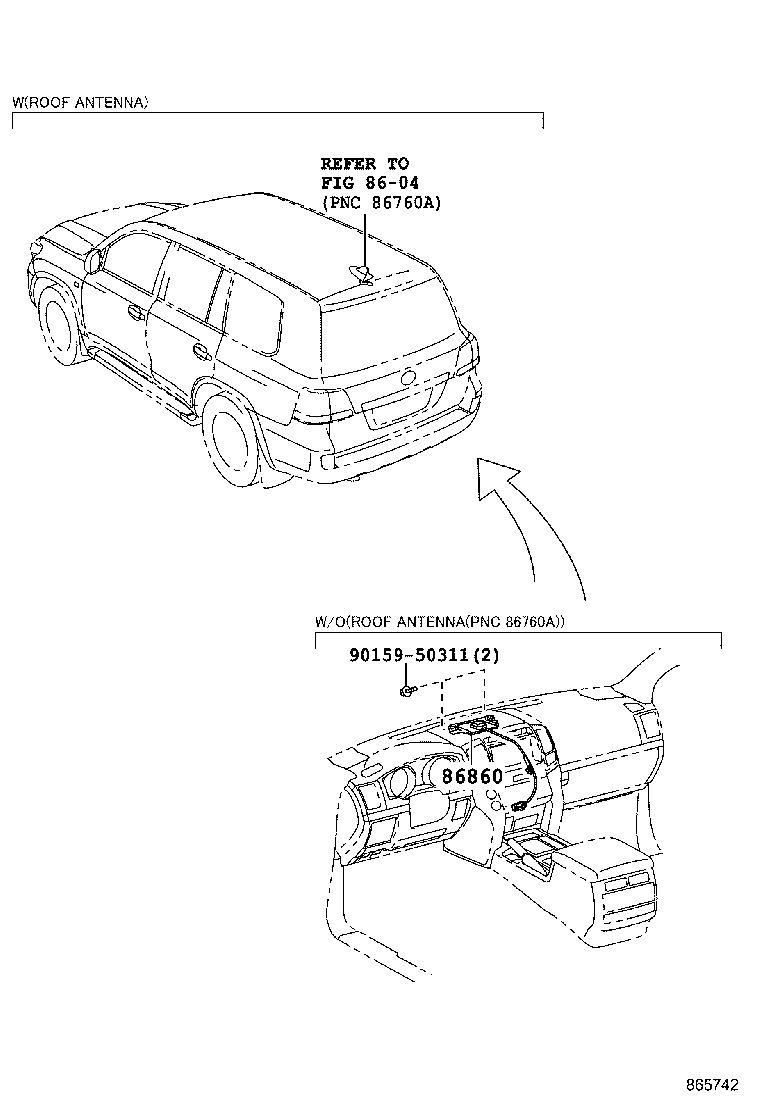

ILLUST NO. 2 OF 2(1201-1508)LHD
NAVIGATION ANTENNA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-60230 |
URJ202,VDJ200..LHD EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86860-60300 |
URJ202,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 86860-60230 |
URJ202,VDJ200..LHD AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| Linked diagrams | ||||
| 8604 | ||||
