VDJ200L-GMTEZW (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1201-1508)

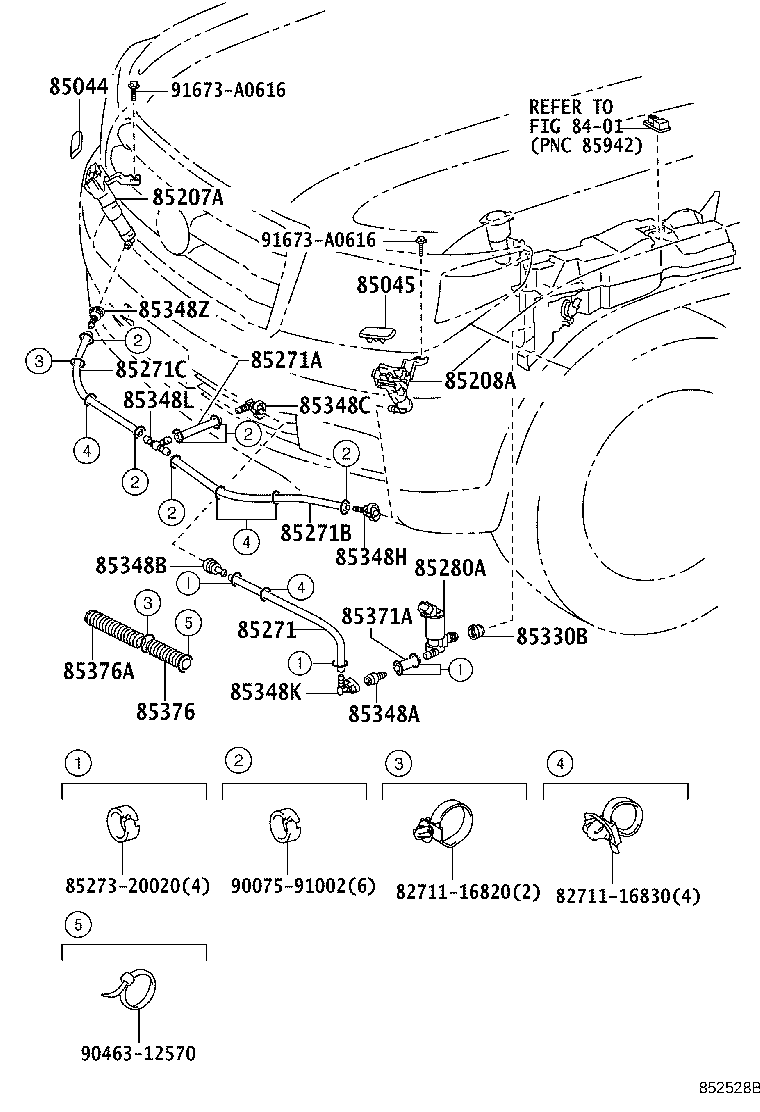

Click highlighted areas on diagram

diagram 8271116820 8271116830 8401 85044 85045 85207A 85208A 85271 85271A 85271B 85271C 8527320020 85280A 85330B 85348A 85348B 85348C 85348H 85348K 85348L 85348Z 85371A 85376 85376A 9007591002 9046312570 91673A0616 91673A0616
Part # Description Qty Price
85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85353-60050A0

URJ202,VDJ200

SUPER WHITE 2,040

 1
85353-60050J0

URJ202,VDJ200

LT.BLUE M.M.,8S1

 1
85353-60050A1

URJ202,VDJ200

WHITE PEARL CS.,070

 1
85353-60050E1

URJ202,VDJ200

BEIGE M.M.,4R3

 1
85353-60050G0

URJ202,VDJ200

GREEN M.M.,6V2

 1
85353-60050D0

URJ202,VDJ200

DK. RED M.M.,3Q3

 1
85353-60050B0

URJ202,VDJ200

SILVER ME.,1F7

 1
85353-60050B1

URJ202,VDJ200

GRAY ME.,1G3

 1
85353-60050C0

URJ202,VDJ200

BLACK,202

 1
85353-60050C1

URJ202,VDJ200

ATTITUDE BLACK MC.,218

 1
85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85354-60050E1

URJ202,VDJ200

BEIGE M.M.,4R3

 1
85354-60050J0

URJ202,VDJ200

LT.BLUE M.M.,8S1

 1
85354-60050D0

URJ202,VDJ200

DK. RED M.M.,3Q3

 1
85354-60050B1

URJ202,VDJ200

GRAY ME.,1G3

 1
85354-60050C0

URJ202,VDJ200

BLACK,202

 1
85354-60050A1

URJ202,VDJ200

WHITE PEARL CS.,070

 1
85354-60050B0

URJ202,VDJ200

SILVER ME.,1F7

 1
85354-60050A0

URJ202,VDJ200

SUPER WHITE 2,040

 1
85354-60050C1

URJ202,VDJ200

ATTITUDE BLACK MC.,218

 1
85354-60050G0

URJ202,VDJ200

GREEN M.M.,6V2

 1
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-60060

URJ202,VDJ200

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-60060

URJ202,VDJ200

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85375-12090

URJ202,VDJ200

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
90075-15066

URJ202,VDJ200

L=100

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85376-58130

URJ202,VDJ200

L=670

 1
85271C - HOSE, HEADLAMP CLEANER, NO.4
90075-15091

URJ202,VDJ200

L=900

 1
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-30040

URJ202,VDJ200

 1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
90099-32089

URJ202,VDJ200

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85279-33040

URJ202,VDJ200

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85357-42070

URJ202,VDJ200

 1
85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3
90075-17001

URJ202,VDJ200

 1
85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4
90075-17005

URJ202,VDJ200

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85279-48020

URJ202,VDJ200

 1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
90075-17003

URJ202,VDJ200

 1
85348Z - JOINT, HEADLAMP CLEANER HOSE, NO.5
90075-17005

URJ202,VDJ200

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85375-16020

URJ202,VDJ200

L=40

 1
85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85376-12480

URJ202,VDJ200

 1
85376A - PROTECTOR, HEADLAMP CLEANER HOSE, NO.2
85376-89124

URJ202,VDJ200

 1
Common parts
82711-16820
82711-16830
85273-20020
90075-91002
90463-12570
91673-A0616
Linked diagrams
8401
