VDJ200L-GMTEZW (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1201-1508)

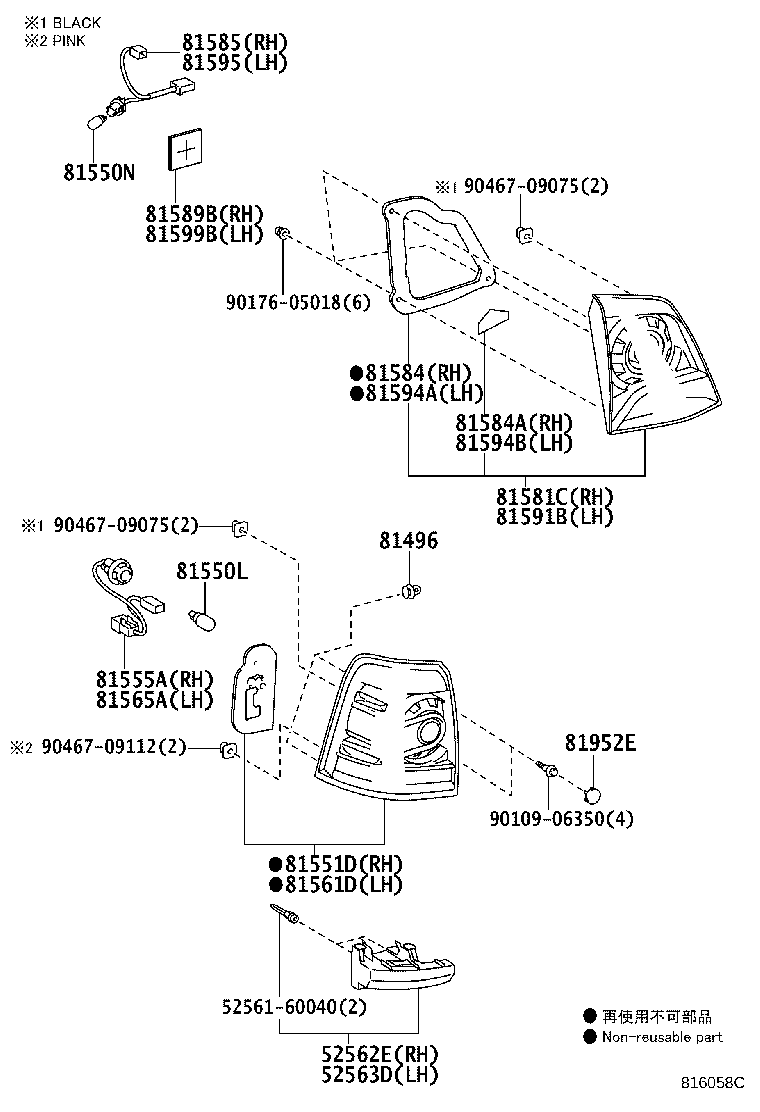

Click highlighted areas on diagram

diagram 5256160040 52562E 52563D 81496 81550L 81550N 81551D 81555A 81561D 81565A 81581C 81584 81584A 81585 81589B 81591B 81594A 81594B 81595 81599B 81952E 9010906350 9017605018 9046709075 9046709075 9046709112
Part # Description Qty Price
52562E - RETAINER, REAR BUMPER, UPPER RH
52562-60040

URJ202,VDJ200

 1
52563D - RETAINER, REAR BUMPER, UPPER LH
52563-60040

URJ202,VDJ200

 1
81496 - GUIDE, REAR COMBINATION LAMP
81496-28010

URJ202,VDJ200

 4
81550L - BULB, REAR TURN SIGNAL LAMP
90981-11059

URJ202,VDJ200

12V 16W

 2
81550N - BULB, BACK UP LAMP
90981-11059

URJ202,VDJ200

12V 16W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-60A80

URJ202,VDJ200

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-60A80

URJ202,VDJ200

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-60A60

URJ202,VDJ200

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-60A80

URJ202,VDJ200

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-60280

URJ202,VDJ200

 1
81584 - PACKING, REAR LAMP RH
81584-60180

URJ202,VDJ200

 1
81584A - GASKET, REAR LAMP RH
81584-60280

URJ202,VDJ200

 1
81585 - SOCKET & WIRE, REAR LAMP
81585-60280

URJ202,VDJ200

 1
81589B - COVER, REAR COMBINATION BACK, RH
81589-60280

URJ202,VDJ200

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-60310

URJ202,VDJ200

 1
81594A - GASKET, REAR LAMP LH
81594-60210

URJ202,VDJ200

 1
81594B - PACKING, REAR LAMP LH
81584-60280

URJ202,VDJ200

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-60280

URJ202,VDJ200

 1
81599B - COVER, REAR COMBINATION BACK, LH
81599-60310

URJ202,VDJ200

 1
81952E - COVER, REAR LAMP
81952-22010

URJ202,VDJ200

 4
Common parts
52561-60040
90109-06350
90176-05018
90467-09075
90467-09112
