VDJ200L-GMTEZW (2012)
Toyota Land Cruiser
(1201-1508)

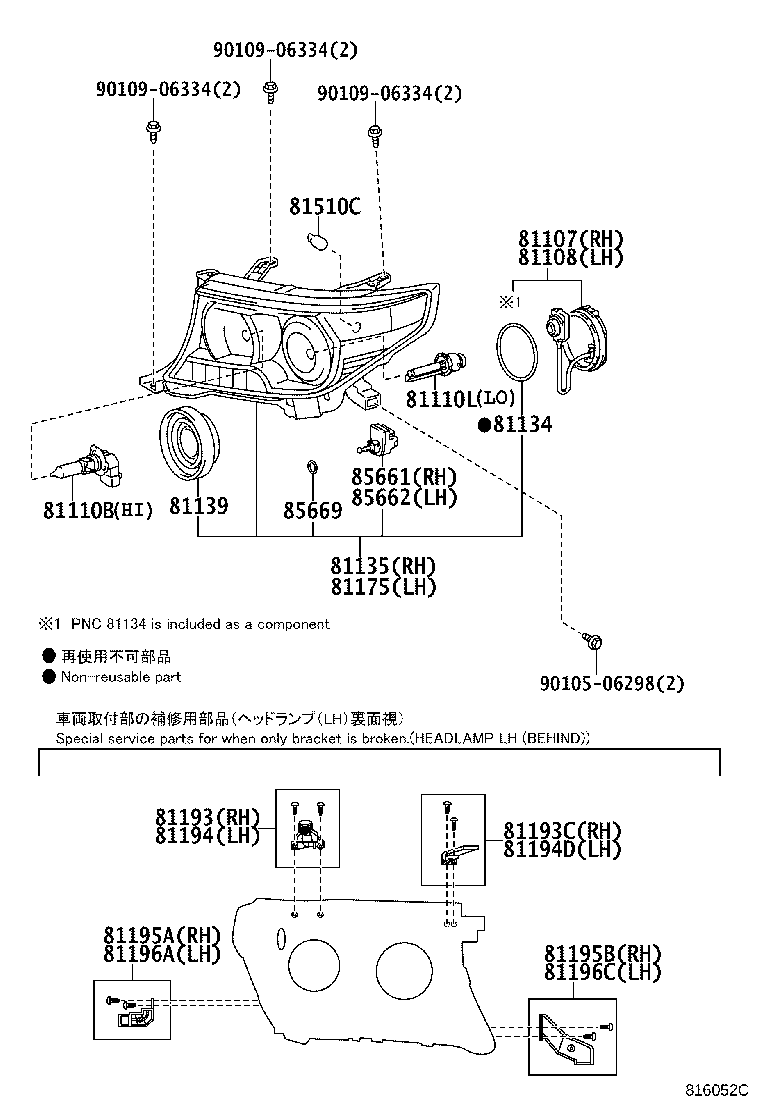

DISCHARGE HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-60F10 |
URJ202,VDJ200 |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-60F10 |
URJ202,VDJ200 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
URJ202,VDJ200 12V65W(SAE),60W(ECE) |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20024 |
URJ202,VDJ200 42V 35W |
2 | ||
| 90981-20024 |
URJ202,VDJ200 42V 35W |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23002 |
URJ202,VDJ200 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-60F30 |
URJ202,VDJ200..LHD |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
URJ202,VDJ200 |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-60F30 |
URJ202,VDJ200..LHD |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-60050 |
URJ202,VDJ200 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-60130 |
URJ202,VDJ200 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-60050 |
URJ202,VDJ200 |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-60130 |
URJ202,VDJ200 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-60050 |
URJ202,VDJ200 |
1 | ||
| 81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-60120 |
URJ202,VDJ200 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-60040 |
URJ202,VDJ200 |
1 | ||
| 81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-60110 |
URJ202,VDJ200 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-13043 |
URJ202,VDJ200 12V 21W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-28011 |
URJ202,VDJ200 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-28011 |
URJ202,VDJ200 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
URJ202,VDJ200 |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90109-06334 | ||||
(1201-1508)

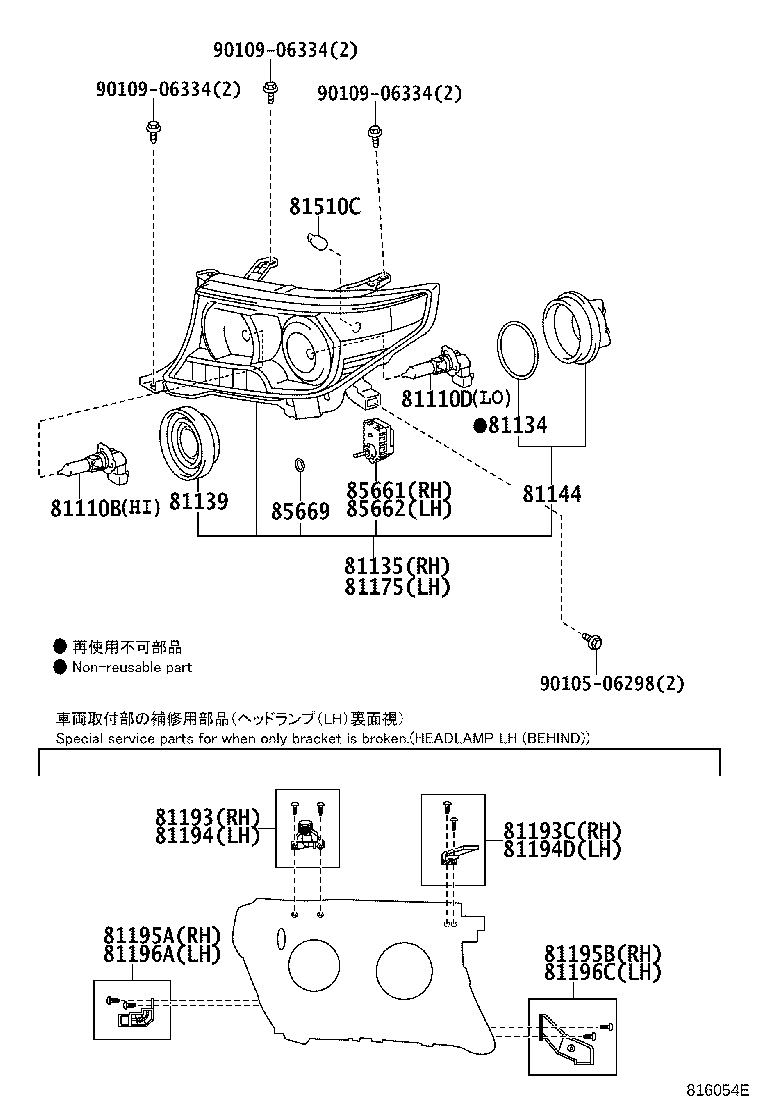

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
URJ202,VDJ200 12V65W(SAE),60W(ECE) |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23002 |
URJ202,VDJ200 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-60F30 |
URJ202,VDJ200..LHD |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
URJ202,VDJ200 |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-60F30 |
URJ202,VDJ200..LHD |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-60050 |
URJ202,VDJ200 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-60130 |
URJ202,VDJ200 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-60050 |
URJ202,VDJ200 |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-60130 |
URJ202,VDJ200 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-60050 |
URJ202,VDJ200 |
1 | ||
| 81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-60120 |
URJ202,VDJ200 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-60040 |
URJ202,VDJ200 |
1 | ||
| 81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-60110 |
URJ202,VDJ200 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-13043 |
URJ202,VDJ200 12V 21W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-28011 |
URJ202,VDJ200 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-28011 |
URJ202,VDJ200 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
URJ202,VDJ200 |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90109-06334 | ||||
