VDJ200L-GMTEZW (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0709-1508)

Click highlighted areas on diagram

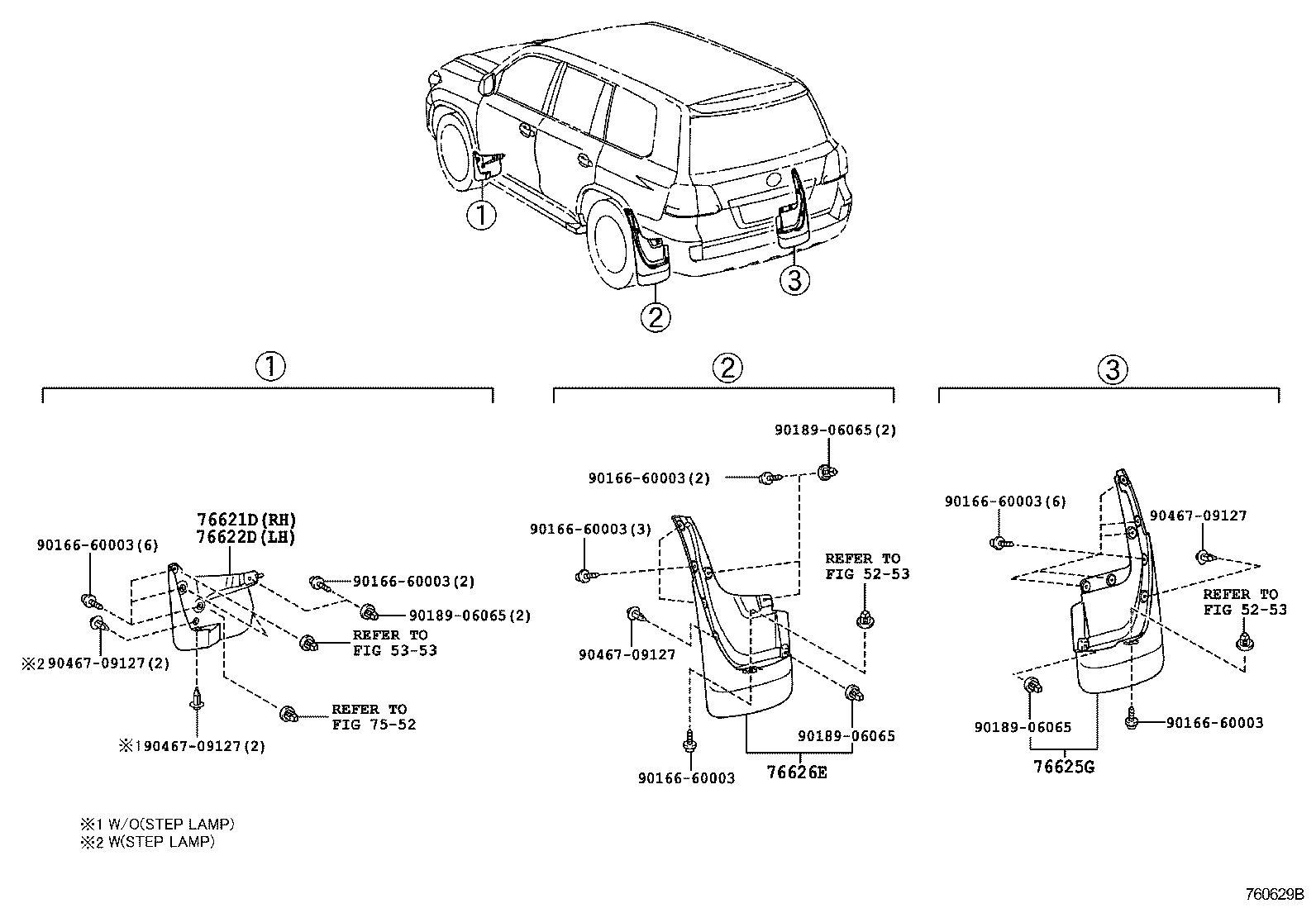

MUD GUARD

diagram 5253 5253 5353 7552 76621D 76622D 76625G 76626E 9016660003 9016660003 9016660003 9016660003 9016660003 9016660003 9016660003 9018906065 9018906065 9018906065 9018906065 9046709127 9046709127 9046709127 9046709127
Part # Description Qty Price
76621D - MUDGUARD, FRONT FENDER, RH
76621-60150

URJ202,VDJ200

 1
76621-60160

URJ202,VDJ200..LHD

SIDE STEP-WITH(STEP LAMP)

 1
76622D - MUDGUARD, FRONT FENDER, LH
76622-60130

URJ202,VDJ200..LHD

SIDE STEP-WITH(STEP LAMP)

 1
76622-60120

URJ202,VDJ200

 1
76625G - MUDGUARD, QUARTER PANEL, REAR RH
76625-60240

URJ202,VDJ200

 1
76626E - MUDGUARD, QUARTER PANEL, REAR LH
76626-60240

URJ202,VDJ200

 1
Common parts
90166-60003
90189-06065
90467-09127
Linked diagrams
5253
5353
7552
