VDJ200L-GMTEZW (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1508)LHD

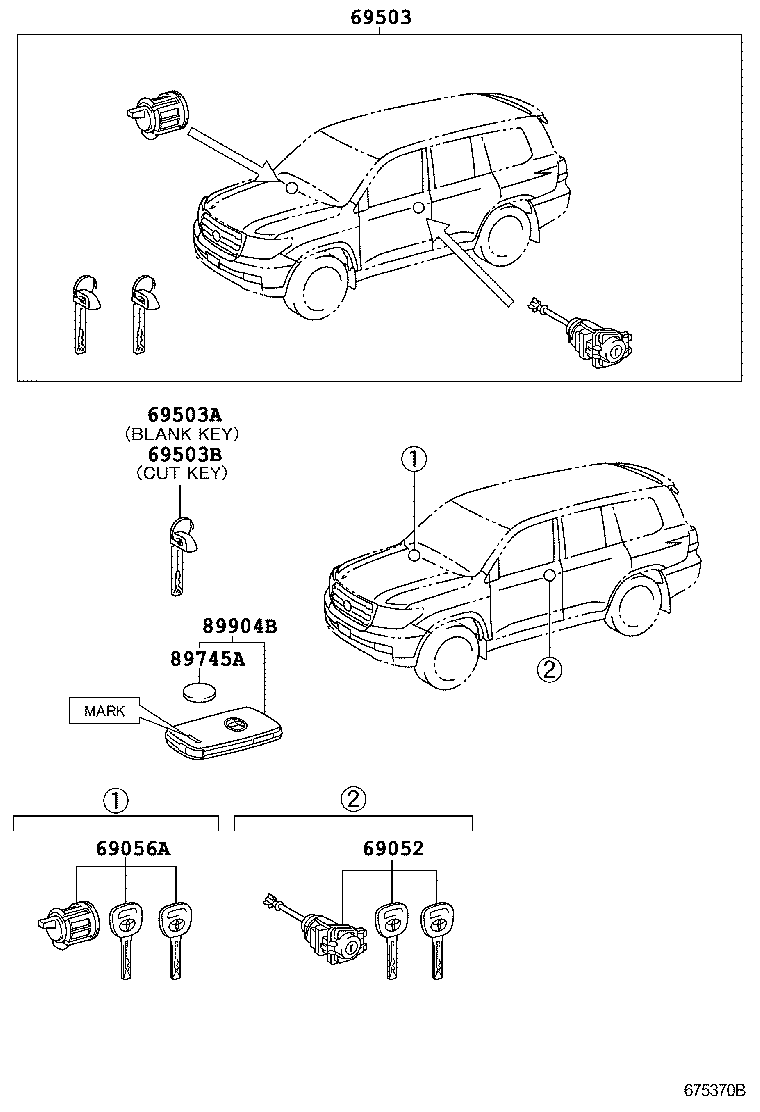

Click highlighted areas on diagram

diagram 69052 69056A 69503 69503A 69503B 89745A 89904B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-60252

URJ202,VDJ200..LHD

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-30240

URJ202,VDJ200

 1
69503 - CYLINDER SET, LOCK
69005-6C252

URJ202,VDJ200..LHD

 1
69503A - KEY, BLANK
69515-30320

URJ202,VDJ200

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-30310

URJ202,VDJ200

MASTER KEY,W(*68)

 2
89745A - BATTERY, TRANSMITTER
89745-52030

URJ202,VDJ200

CR1632

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-60A90

URJ202,VDJ200

TAILGATE DOOR EASY CLOSER-WITH

 2
89904-60782

URJ202,VDJ200

 2
89904-60A91

URJ202,VDJ200

TAILGATE DOOR EASY CLOSER-WITH

 2
89904-60781

URJ202,VDJ200

 2
