VDJ200L-GMTEZW (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1508)LHD

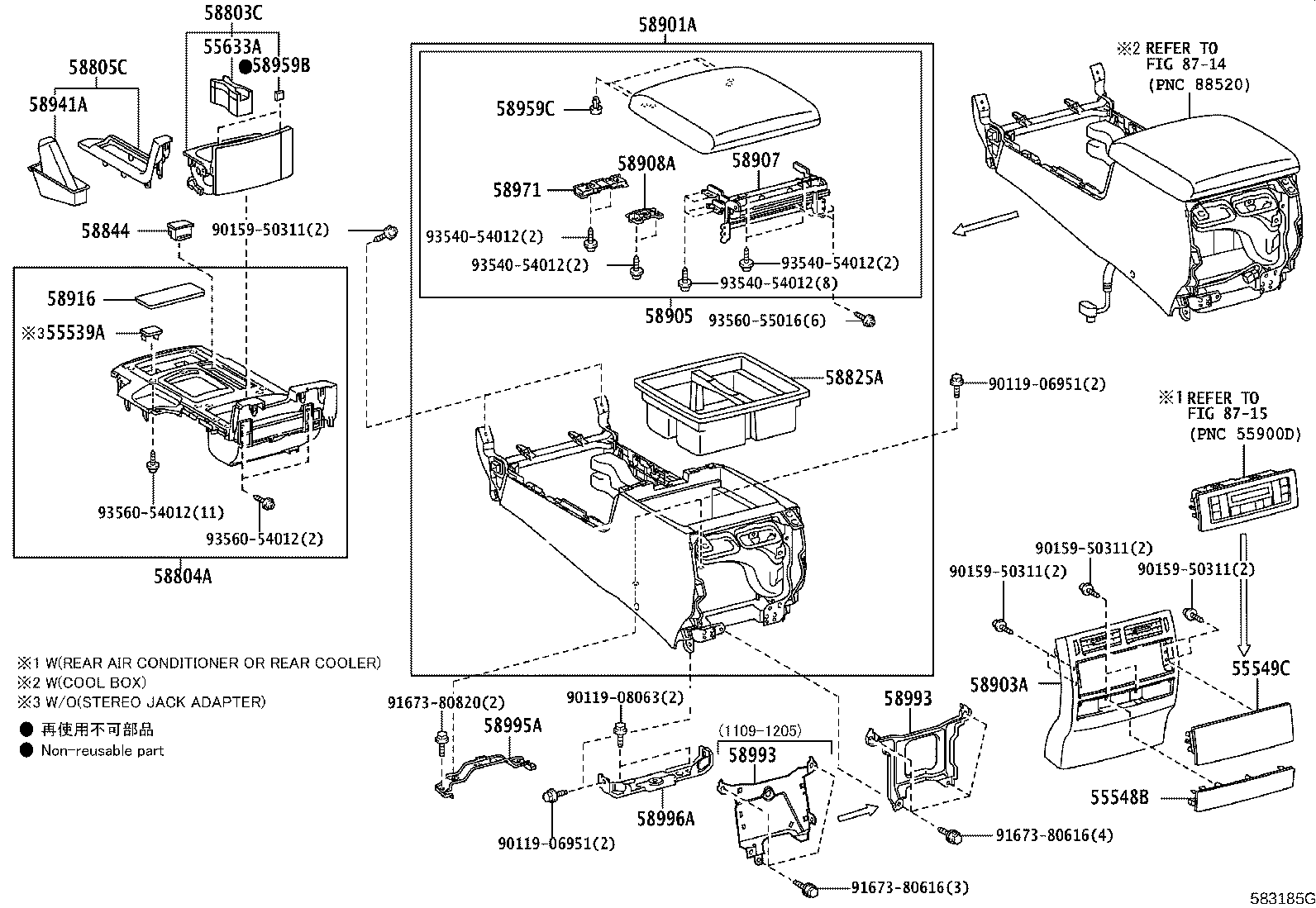

Click highlighted areas on diagram

diagram 55539A 55548B 55549C 55633A 58803C 58804A 58805C 58825A 58844 58901A 58903A 58905 58907 58908A 58916 58941A 58959B 58959C 58971 58993 58993 58995A 58996A 8714 8715 9011906951 9011906951 9011908063 9015950311 9015950311 9015950311 9015950311 9167380616 9167380616 9167380820 9354054012 9354054012 9354054012 9354054012 9356054012 9356054012 9356055016
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-52060C0

VDJ200..LHD

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER,BLACK

 1
55548B - COVER, INSTRUMENT PANEL HOLE
55548-60050C0

VDJ200

BLACK,TRIM1#,2#

 1
55548-60050A0

URJ202,VDJ200

SHELL,TRIM0#

 1
55549C - COVER, REAR COOLER SWITCH HOLE
55549-60040A0

URJ202,VDJ200..05S

SHELL,TRIM0#

 1
55549-60040C0

VDJ200..05S

BLACK,TRIM1#,2#

 1
55549-60040A0

URJ202,VDJ200..05S

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),SHELL,TRIM0#

 1
55549-60040C0

VDJ200..05S

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),BLACK,TRIM1#,2#

 1
55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
55633-60040

URJ202,VDJ200

 1
58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER
58803-60030C1

VDJ200..LHD

BLACK,TRIM1#,2#,W(WOOD GRAIN)

 1
58803-60030A1

URJ202,VDJ200..LHD

SHELL,TRIM0#,W(WOOD GRAIN)

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-60890A1

VDJ200..LHD

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER,SHELL,TRIM0#,W(WOOD GRAIN)

 1
58804-60A30C1

VDJ200..LHD

BLACK,TRIM1#,2#,W(WOOD GRAIN)

 1
58804-60A30A1

URJ202..05S;VDJ200..LHD

SHELL,TRIM0#,W(WOOD GRAIN)

 1
58804-60890C1

VDJ200..LHD

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER,BLACK,TRIM1#,W(WOOD GRAIN)

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-60050A0

URJ202,VDJ200..LHD

SHELL,TRIM0#,W(WOOD GRAIN)

 1
58805-60050C0

VDJ200..LHD

BLACK,TRIM1#,2#,W(WOOD GRAIN)

 1
58825A - POCKET, CONSOLE BOX
58806-60080

VDJ200;URJ202..LHD

 1
58844 - BEZEL, CONSOLE BOX
84656-60110

VDJ200..LHD

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-60730A1

VDJ200..LHD

SHELL,TRIM0#

 1
58901-60740A1

VDJ200..LHD

SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM0#

 1
58901-60740C1

VDJ200..LHD

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
58901-60731A1

VDJ200..LHD

SHELL,TRIM0#

 1
58901-60730C1

VDJ200..LHD

BLACK,TRIM1#

 1
58901-60741C1

VDJ200..LHD

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
58901-60741A1

VDJ200..LHD

SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM0#

 1
58901-60731C1

VDJ200..LHD

BLACK,TRIM1#

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-60350C0

VDJ200

BLACK,TRIM1#,2#

 1
58903-60350A0

URJ202,VDJ200

SHELL,TRIM0#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-60420A1

VDJ200..LHD

SHELL,TRIM0#

 1
58905-60430C2

VDJ200..LHD

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
58905-60430A2

VDJ200..LHD

SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM0#

 1
58905-60420C1

VDJ200..LHD

BLACK,TRIM1#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-60060

VDJ200;URJ202..LHD

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-60040

VDJ200;URJ202..LHD

 1
58916 - MAT, BOX BOTTOM
58916-60090

URJ202..05S;VDJ200..LHD

 1
58916-60080

VDJ200..LHD

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

 1
58941A - COVER, PARKING BRAKE HOLE
58809-60060A0

URJ202,VDJ200..LHD

SHELL,TRIM0#

 1
58809-60060C0

VDJ200..LHD

BLACK,TRIM1#,2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60030

URJ202,VDJ200

 2
58959C - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

VDJ200;URJ202..LHD

 4
58971 - LOCK, CONSOLE COMPARTMENT DOOR
58971-60060

VDJ200;URJ202..LHD

 1
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
86719-60310

URJ202,VDJ200

 1
58993-60090

URJ202,VDJ200

 1
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
86719-60310

URJ202,VDJ200

 1
58993-60090

URJ202,VDJ200

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-60070

URJ202,VDJ200

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-60080

URJ202,VDJ200

 1
Common parts
90119-06951
90119-08063
90159-50311
91673-80616
91673-80820
93540-54012
93560-54012
93560-55016
Linked diagrams
8714
8715
