VDJ200L-GMTEZW (2012)
Toyota Land Cruiser
Production
Jan 2012
-
Aug 2015
Engine
1VDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0709-1508)LHD

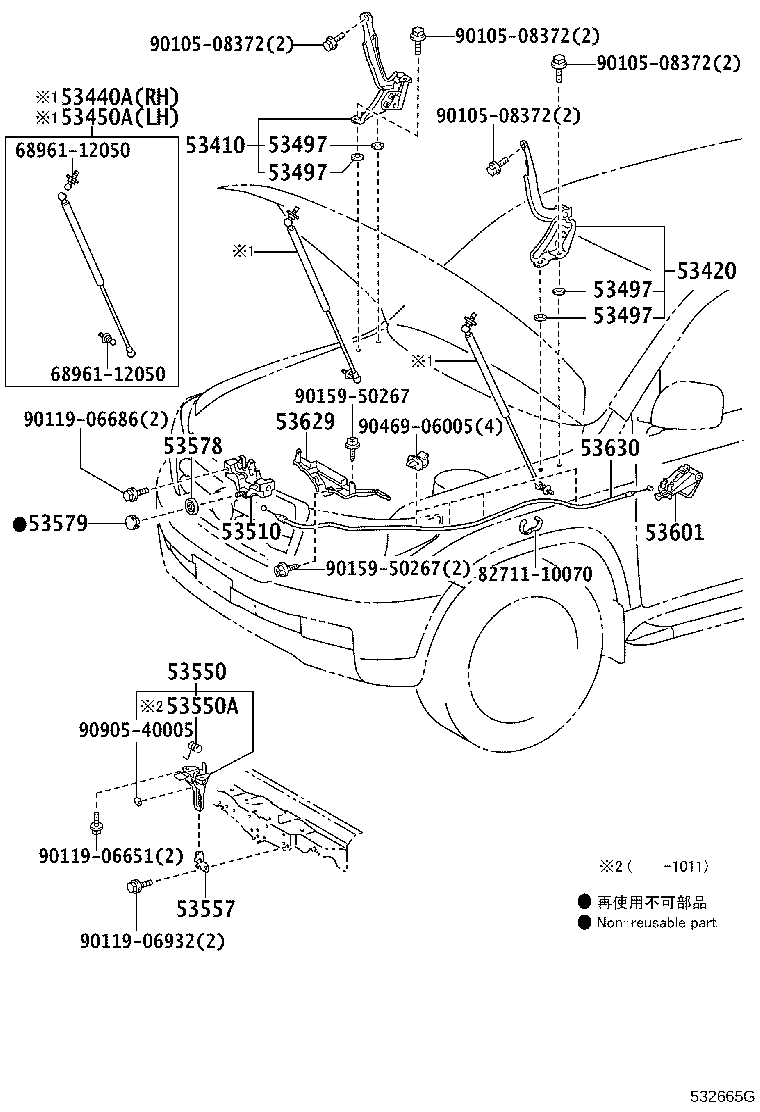

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-60060 |
URJ202,VDJ200 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-60050 |
URJ202,VDJ200 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-69105 |
VDJ200 |
1 | ||
| 53440-69135 |
VDJ200 |
1 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-69135 |
VDJ200 |
1 | ||
| 53450-69105 |
VDJ200 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
URJ202,VDJ200 T=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
URJ202,VDJ200 T=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
URJ202,VDJ200 T=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
URJ202,VDJ200 T=1.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-60270 |
URJ202,VDJ200..LHD |
1 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-60091 |
URJ202,VDJ200 |
1 | ||
| 53557 - CATCH, HOOD AUXILIARY HOOK | ||||
| 53557-60010 |
URJ202,VDJ200 |
1 | ||
| 53578 - NUT, HOOD LOCK | ||||
| 53578-50010 |
URJ202,VDJ200 |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
URJ202,VDJ200 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010A3 |
URJ202,VDJ200 SHELL,TRIM0# |
1 | ||
| 53601-52010C0 |
VDJ200 BLACK,TRIM1#,2# |
1 | ||
| 53629 - COVER, HOOD LOCK CONTROL CABLE | ||||
| 53629-60070 |
URJ202,VDJ200..LHD |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-60140 |
URJ202,VDJ200 |
1 | ||
| Common parts | ||||
| 68961-12050 | ||||
| 82711-10070 | ||||
| 90105-08372 | ||||
| 90119-06651 | ||||
| 90119-06686 | ||||
| 90119-06932 | ||||
| 90159-50267 | ||||
| 90469-06005 | ||||
| 90905-40005 | ||||
