VDJ200L-GMTEZW (2012)
Toyota Land Cruiser

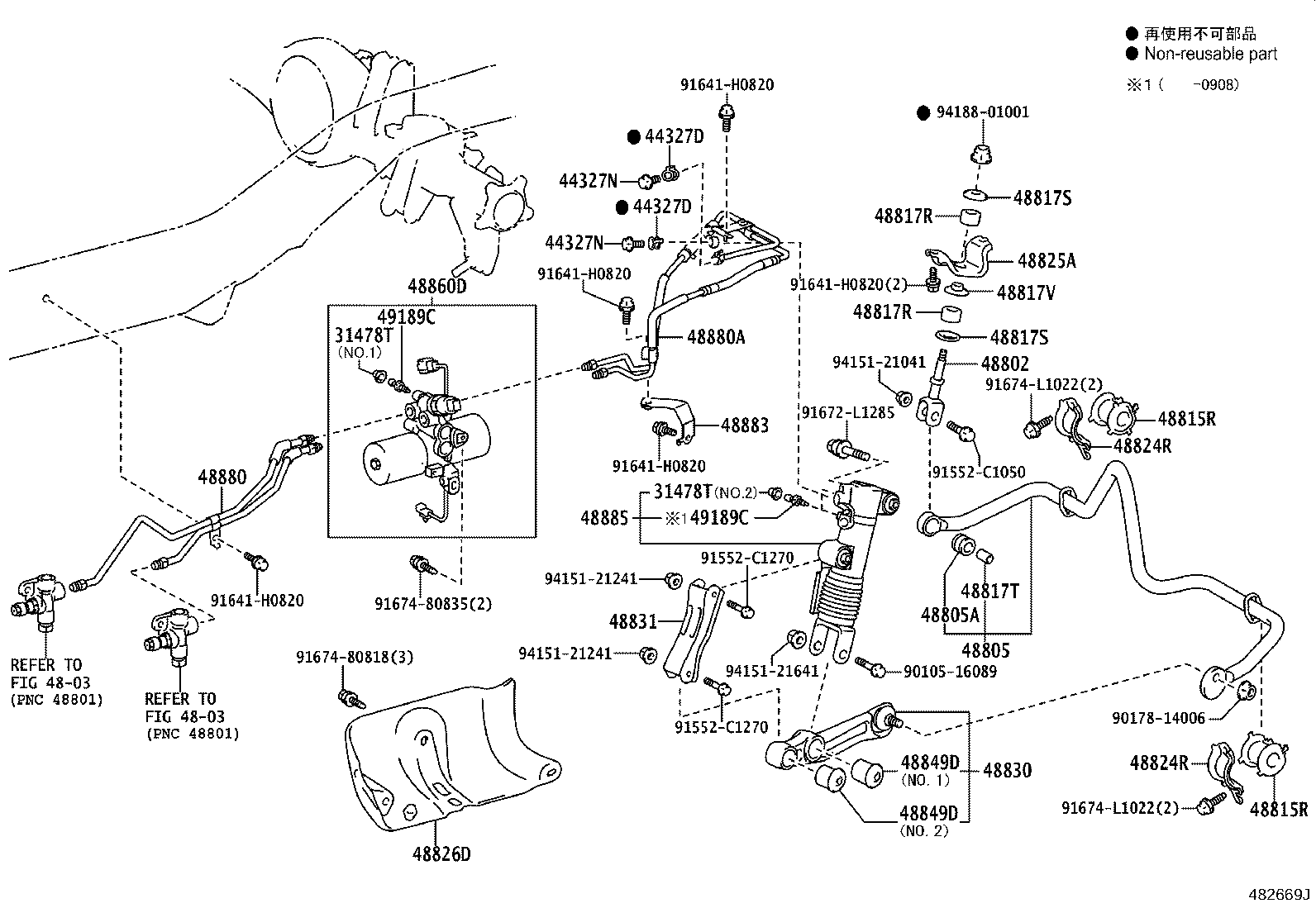

ILLUST NO. 2 OF 2(0709-1704)
KDSS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478T - CAP, BLEEDER PLUG(FOR REAR SUSPENSION CONTROL) | ||||
| 31478-20020 |
URJ202,VDJ200 NO.1 |
1 | ||
| 31478-20020 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 31478-60020 |
URJ202,VDJ200 NO.2 |
2 | ||
| 31478-60020 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL,NO.2 |
2 | ||
| 31478-20020 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK,NO.1 |
1 | ||
| 31478-60020 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK,NO.2 |
2 | ||
| 31478T - CAP, BLEEDER PLUG(FOR REAR SUSPENSION CONTROL) | ||||
| 31478-20020 |
URJ202,VDJ200 NO.1 |
1 | ||
| 31478-20020 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL,NO.1 |
1 | ||
| 31478-60020 |
URJ202,VDJ200 NO.2 |
2 | ||
| 31478-60020 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL,NO.2 |
2 | ||
| 31478-20020 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK,NO.1 |
1 | ||
| 31478-60020 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK,NO.2 |
2 | ||
| 44327D - GASKET, PRESSURE PORT(FOR REAR STABILIZER CONTROL TUBE) | ||||
| 44327-30030 |
URJ202,VDJ200 |
2 | ||
| 90430-16016 |
URJ202,VDJ200 |
2 | ||
| 44327D - GASKET, PRESSURE PORT(FOR REAR STABILIZER CONTROL TUBE) | ||||
| 44327-30030 |
URJ202,VDJ200 |
2 | ||
| 90430-16016 |
URJ202,VDJ200 |
2 | ||
| 44327N - BOLT, UNION(FOR REAR STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
URJ202,VDJ200 |
2 | ||
| 44327N - BOLT, UNION(FOR REAR STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
URJ202,VDJ200 |
2 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-60100 |
URJ202,VDJ200 |
1 | ||
| 48802-60110 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48802-60110 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-60110 |
URJ202,VDJ200 |
1 | ||
| 48805-60120 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48805-60120 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 48849-60010 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48849-60010 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 90385-13013 |
URJ202,VDJ200 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-60220 |
URJ202,VDJ200 |
2 | ||
| 48815-60240 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48815-60241 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48815-60221 |
URJ202,VDJ200 |
2 | ||
| 48815-60240 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48815-60241 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-60220 |
URJ202,VDJ200 |
2 | ||
| 48815-60240 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48815-60241 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48815-60221 |
URJ202,VDJ200 |
2 | ||
| 48815-60240 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48815-60241 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-60020 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 48817-60020 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 48817-60010 |
URJ202,VDJ200 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-60020 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 48817-60020 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 48817-60010 |
URJ202,VDJ200 |
2 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02200 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 90948-02200 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 90948-02201 |
URJ202,VDJ200 |
2 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02200 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 90948-02200 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 90948-02201 |
URJ202,VDJ200 |
2 | ||
| 48817T - COLLAR(FOR STABILIZER REAR BAR) | ||||
| 90387-10175 |
URJ202,VDJ200 |
1 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02197 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 90948-02197 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 90948-02202 |
URJ202,VDJ200 |
1 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-26230 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48824-60160 |
URJ202,VDJ200 |
2 | ||
| 48824-26230 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-26230 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48824-60160 |
URJ202,VDJ200 |
2 | ||
| 48824-26230 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48825A - BRACKET, REAR STABILIZER END | ||||
| 48825-60070 |
URJ202,VDJ200 |
1 | ||
| 48826D - PROTECTOR, STABILIZER CONTROL VALVE | ||||
| 48826-60021 |
URJ202,VDJ200 |
1 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-60050 |
URJ202,VDJ200 |
1 | ||
| 48831 - LINK, REAR STABILIZER, NO.2 | ||||
| 48831-60060 |
URJ202,VDJ200 |
1 | ||
| 48849D - BUSH, REAR STABILIZER LINK | ||||
| 48849-60050 |
URJ202,VDJ200 NO.1 |
1 | ||
| 48849-60090 |
URJ202,VDJ200 NO.2 |
1 | ||
| 48849D - BUSH, REAR STABILIZER LINK | ||||
| 48849-60050 |
URJ202,VDJ200 NO.1 |
1 | ||
| 48849-60090 |
URJ202,VDJ200 NO.2 |
1 | ||
| 48860D - HOUSING ASSY, STABILIZER CONTROL W/ACCUMULATOR | ||||
| 48006-60022 |
URJ202,VDJ200 |
1 | ||
| 48006-60022 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48006-60022 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48006-60023 |
URJ202,VDJ200 |
1 | ||
| 48006-60023 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48006-60023 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48880 - TUBE ASSY, REAR STABILIZER CONTROL, NO.1 | ||||
| 48880-60020 |
URJ202,VDJ200 |
1 | ||
| 48880A - TUBE ASSY, REAR STABILIZER CONTROL, NO.2 | ||||
| 48880-60031 |
URJ202,VDJ200 |
1 | ||
| 48883 - BRACKET, STABILIZER, CONTROL TUBE | ||||
| 48883-60010 |
URJ202,VDJ200 |
1 | ||
| 48885 - CYLINDER, REAR STABILIZER CONTROL | ||||
| 48886-60020 |
URJ202,VDJ200 |
1 | ||
| 48886-60020 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48886-60021 |
URJ202,VDJ200 |
1 | ||
| 48886-60021 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48886-60021 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48886-60020 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 49189C - PLUG, REAR SUSPENSION CONTROL BLEEDER | ||||
| 47547-20010 |
URJ202,VDJ200 |
1 | ||
| 47547-20010 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 47547-20010 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 49189C - PLUG, REAR SUSPENSION CONTROL BLEEDER | ||||
| 47547-20010 |
URJ202,VDJ200 |
1 | ||
| 47547-20010 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 47547-20010 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| Common parts | ||||
| 90105-16089 | ||||
| 90178-14006 | ||||
| 91552-C1050 | ||||
| 91552-C1270 | ||||
| 91641-H0820 | ||||
| 91672-L1285 | ||||
| 91674-80818 | ||||
| 91674-80835 | ||||
| 91674-L1022 | ||||
| 94151-21041 | ||||
| 94151-21241 | ||||
| 94151-21641 | ||||
| 94188-01001 | ||||
| Linked diagrams | ||||
| 4803 | ||||

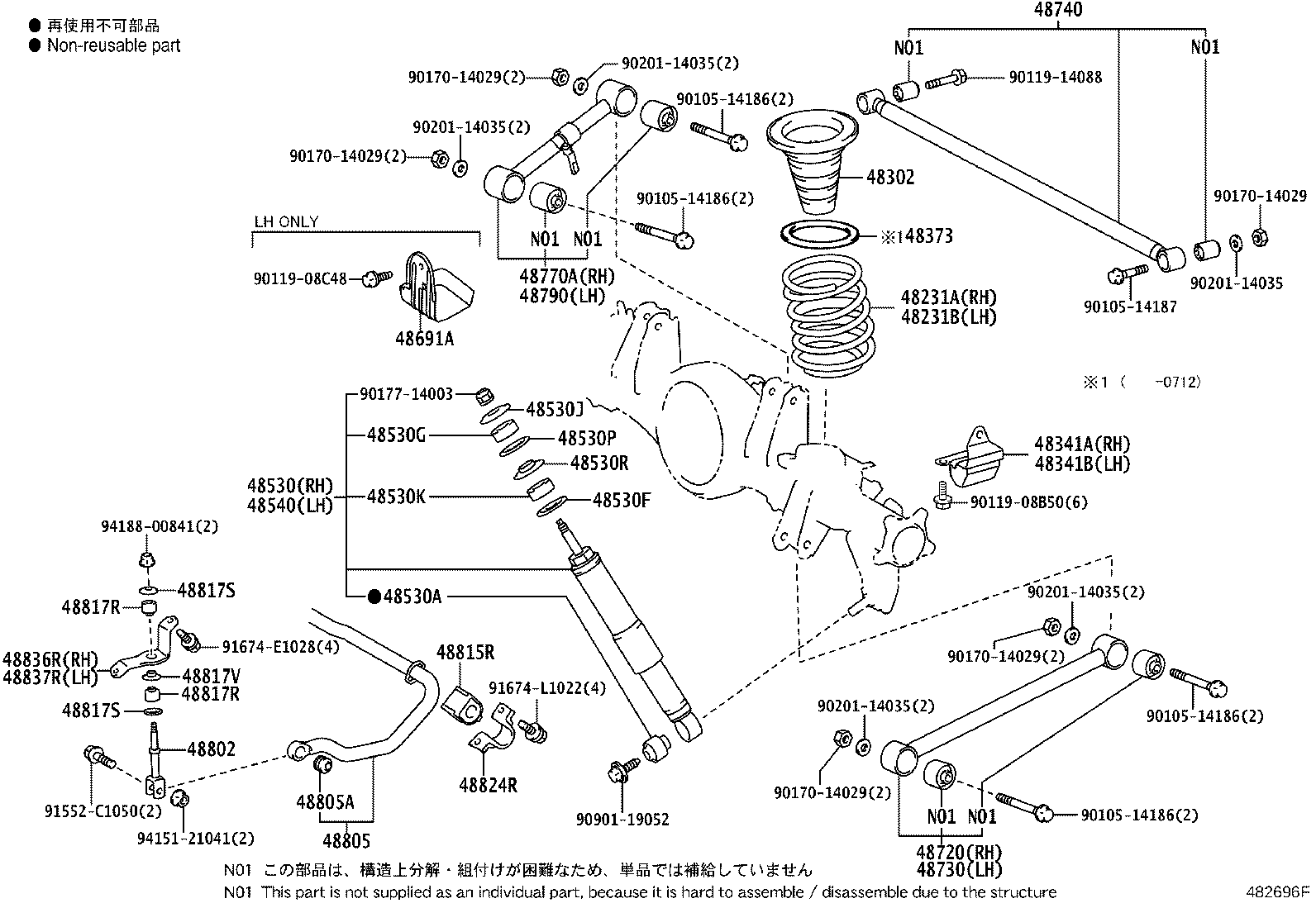

(1201- )VX
W/O(AHC) & W/O(KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-60A40 |
VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 48231-60D90 |
URJ202,VDJ200..05S SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48231-60A40 |
VDJ200..LHD UKRAINE SPEC |
1 | ||
| 48231-60D90 |
VDJ200..05S UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48231-60D90 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48231-60E30 |
URJ202,VDJ200 |
1 | ||
| 48231-60A40 |
VDJ200..05S RUSSIA SPEC |
1 | ||
| 48231-60E20 |
VDJ200..05S SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-60D80 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48231-60D80 |
URJ202,VDJ200..05S SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48231-60B40 |
VDJ200 |
1 | ||
| 48231-60D80 |
VDJ200..05S UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48231-60F50 |
VDJ200..05S SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT) |
1 | ||
| 48231-60F80 |
VDJ200..05S RUSSIA SPEC |
1 | ||
| 48231-60F80 |
VDJ200..05S UKRAINE SPEC |
1 | ||
| 48231-60F80 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-60090 |
URJ202,VDJ200 |
2 | ||
| 48302-60100 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48306-60221 |
URJ202,VDJ200 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48306-60221 |
URJ202,VDJ200 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,SWITZERLAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,NORWAY,DENMARK,SWEDEN,FINLAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,BELGIUM SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,GERMANY SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,CZECHOSLOVAKIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,POLAND OR HUNGARY SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,FRANCE SPEC OR SPAIN SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,ITALY OR NETHERLAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,AUSTRIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69425 |
URJ202,VDJ200..LHD MARK 48530-60180,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHTCONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,SLOVENIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69435 |
VDJ200 MARK 48530-60110 |
1 | ||
| 48530-69445 |
URJ202,VDJ200..LHD MARK 48530-60140,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 48530-69415 |
VDJ200..05S MARK 48530-60170,ICELAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69445 |
URJ202,VDJ200..05S MARK 48530-60140,RUSSIA SPEC |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19010 |
URJ202,VDJ200 |
2 | ||
| 48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR) | ||||
| 90948-02173 |
URJ202,VDJ200 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01064 |
URJ202,VDJ200 |
2 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02173 |
URJ202,VDJ200 |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01064 |
URJ202,VDJ200 |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02184 |
URJ202,VDJ200 |
2 | ||
| 48530R - RETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02170 |
URJ202,VDJ200 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,ITALY OR NETHERLAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,BELGIUM SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,NORWAY,DENMARK,SWEDEN,FINLAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,GERMANY SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,SWITZERLAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,SLOVENIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,FRANCE SPEC OR SPAIN SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,CZECHOSLOVAKIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,POLAND OR HUNGARY SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69425 |
URJ202,VDJ200..LHD MARK 48530-60180,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHTCONTROL |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69435 |
VDJ200 MARK 48530-60110 |
1 | ||
| 48530-69445 |
URJ202,VDJ200..LHD MARK 48530-60140,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 48530-69415 |
VDJ200..LHD MARK 48530-60170,AUSTRIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48530-69445 |
URJ202,VDJ200..05S MARK 48530-60140,RUSSIA SPEC |
1 | ||
| 48530-69415 |
VDJ200..05S MARK 48530-60170,ICELAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48691A - INSULATOR, UPPER ARM BUSH, HEAT | ||||
| 48691-60020 |
VDJ200 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-60070 |
URJ202,VDJ200 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-60070 |
URJ202,VDJ200 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-60150 |
URJ202,VDJ200 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48710-60121 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48710-60140 |
URJ202,VDJ200 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48710-60131 |
URJ202,VDJ200 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-60100 |
URJ202,VDJ200 |
1 | ||
| 48802-60110 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48802-60110 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-60110 |
URJ202,VDJ200 |
1 | ||
| 48805-60120 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48805-60120 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 48849-60010 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48849-60010 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 90385-13013 |
URJ202,VDJ200 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-60220 |
URJ202,VDJ200 |
2 | ||
| 48815-60240 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48815-60241 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48815-60221 |
URJ202,VDJ200 |
2 | ||
| 48815-60240 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48815-60241 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-60020 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 48817-60020 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 48817-60010 |
URJ202,VDJ200 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-60020 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 48817-60020 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 48817-60010 |
URJ202,VDJ200 |
2 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02200 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 90948-02200 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 90948-02201 |
URJ202,VDJ200 |
2 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02200 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
4 | ||
| 90948-02200 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
4 | ||
| 90948-02201 |
URJ202,VDJ200 |
2 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02197 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 90948-02197 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 90948-02202 |
URJ202,VDJ200 |
1 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-26230 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48824-60160 |
URJ202,VDJ200 |
2 | ||
| 48824-26230 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48836R - BRACKET, REAR STABILIZER END, RH | ||||
| 48836-60080 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48836-60080 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48837R - BRACKET, REAR STABILIZER END, LH | ||||
| 48837-60050 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48837-60050 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| Common parts | ||||
| 90105-14186 | ||||
| 90105-14187 | ||||
| 90119-08B50 | ||||
| 90119-08C48 | ||||
| 90119-14088 | ||||
| 90170-14029 | ||||
| 90177-14003 | ||||
| 90201-14035 | ||||
| 90901-19052 | ||||
| 91552-C1050 | ||||
| 91674-E1028 | ||||
| 91674-L1022 | ||||
| 94151-21041 | ||||
| 94188-00841 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
