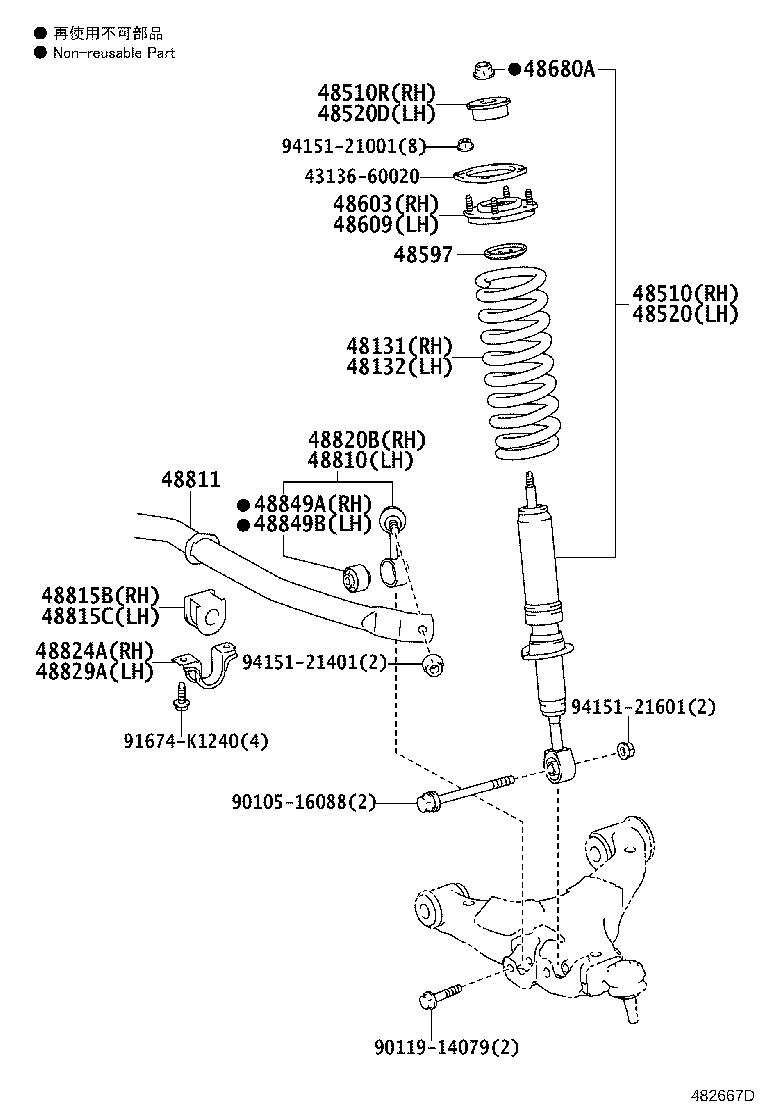

VDJ200L-GMTEZW (2012)
Toyota Land Cruiser
(1201- )
W/O(AHC) & W/O(KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60D60 |
VDJ200..LHD UKRAINE SPEC |
1 | ||
| 48131-60D60 |
VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 48131-60D60 |
VDJ200..05S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48131-60E51 |
VDJ200..05S UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 48131-60E51 |
VDJ200..LHD UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48131-60E51 |
VDJ200..05S UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60E51 |
VDJ200..05S UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60E51 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60E51 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 48131-60E51 |
VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48131-60E51 |
VDJ200..05S SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48131-60E51 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60E61 |
VDJ200..05S SUSPENSION-ACTIVE HEIGHT CONTROL&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60E61 |
VDJ200..05S SUSPENSION-ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 48131-60F00 |
VDJ200..LHD |
1 | ||
| 48131-60D60 |
VDJ200..05S RUSSIA SPEC |
1 | ||
| 48131-60E61 |
VDJ200..05S SUSPENSION-ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60D40 |
VDJ200..LHD UKRAINE SPEC |
1 | ||
| 48131-60D40 |
VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 48131-60D60 |
VDJ200..05S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48131-60E51 |
VDJ200..05S UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60E51 |
VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48131-60E51 |
VDJ200..LHD UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48131-60E51 |
VDJ200..05S SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48131-60E51 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60E51 |
VDJ200..05S UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 48131-60E51 |
VDJ200..05S UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60E51 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60E51 |
VDJ200..05S AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 48131-60E61 |
VDJ200..05S SUSPENSION-ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 48131-60E61 |
VDJ200..05S SUSPENSION-ACTIVE HEIGHT CONTROL&MOON ROOF-WITH(REMOTE CONTROL)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60E61 |
VDJ200..05S SUSPENSION-ACTIVE HEIGHT CONTROL&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH) |
1 | ||
| 48131-60D40 |
VDJ200..05S RUSSIA SPEC |
1 | ||
| 48131-60F10 |
VDJ200..LHD |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,CZECHOSLOVAKIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,BELGIUM SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,ITALY OR NETHERLAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,NORWAY,DENMARK,SWEDEN,FINLAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,GERMANY SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,FRANCE SPEC OR SPAIN SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,SWITZERLAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,AUSTRIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,POLAND OR HUNGARY SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,SLOVENIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
URJ202,VDJ200..LHD MARK 48510-60160,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHTCONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 48510-69405 |
VDJ200;URJ202..RHD MARK 48510-60180 |
1 | ||
| 48510-69355 |
VDJ200..05S MARK 48510-60160,ICELAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,RUSSIA SPEC |
1 | ||
| 48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH | ||||
| 90948-01096 |
URJ202,VDJ200 |
1 | ||
| 90948-01097 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,POLAND OR HUNGARY SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,SWITZERLAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,BELGIUM SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,ITALY OR NETHERLAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,NORWAY,DENMARK,SWEDEN,FINLAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,CZECHOSLOVAKIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,GERMANY SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,UKRAINE SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,AUSTRIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,FRANCE SPEC OR SPAIN SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69355 |
URJ202,VDJ200..LHD MARK 48510-60160,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&SUSPENSION-ACTIVE HEIGHTCONTROL |
1 | ||
| 48510-69355 |
VDJ200..LHD MARK 48510-60160,SLOVENIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69405 |
VDJ200;URJ202..RHD MARK 48510-60180 |
1 | ||
| 48510-69355 |
VDJ200..05S MARK 48510-60160,ICELAND SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48510-69365 |
VDJ200..LHD MARK 48510-60150,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 48510-69365 |
VDJ200..05S MARK 48510-60150,RUSSIA SPEC |
1 | ||
| 48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH | ||||
| 90948-01096 |
URJ202,VDJ200 |
1 | ||
| 90948-01097 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60120 |
URJ202,VDJ200 |
2 | ||
| 48597-60110 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-60070 |
URJ202,VDJ200 |
1 | ||
| 48609-60080 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-60070 |
URJ202,VDJ200 |
1 | ||
| 48609-60080 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94188-01601 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 94188-01401 |
URJ202,VDJ200 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-60051 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48810-60060 |
URJ202,VDJ200 |
1 | ||
| 48810-60051 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-60120 |
URJ202,VDJ200 |
1 | ||
| 48811-60290 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48811-60280 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48815B - BUSH, FRONT STABILIZER LOWER BRACKET, RH | ||||
| 48815-60270 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48815-60271 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48815-60250 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48815-60260 |
URJ202,VDJ200 |
1 | ||
| 48815C - BUSH, FRONT STABILIZER LOWER BRACKET, LH | ||||
| 48815-60250 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48815-60270 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48815-60260 |
URJ202,VDJ200 |
1 | ||
| 48815-60271 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60081 |
URJ202,VDJ200 |
1 | ||
| 48820-60071 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48820-60071 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48820-60082 |
URJ202,VDJ200 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60170 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48824-60180 |
URJ202,VDJ200 |
1 | ||
| 48824-60170 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-60170 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48824-60180 |
URJ202,VDJ200 |
1 | ||
| 48824-60170 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48849A - BUSH, FRONT STABILIZER LINK, RH | ||||
| 48849-60110 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48849-60110 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48849-60120 |
URJ202,VDJ200 |
1 | ||
| 48849B - BUSH, FRONT STABILIZER LINK, LH | ||||
| 48849-60110 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48849-60110 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| Common parts | ||||
| 43136-60020 | ||||
| 90105-16088 | ||||
| 90119-14079 | ||||
| 91674-K1240 | ||||
| 94151-21001 | ||||
| 94151-21401 | ||||
| 94151-21601 | ||||

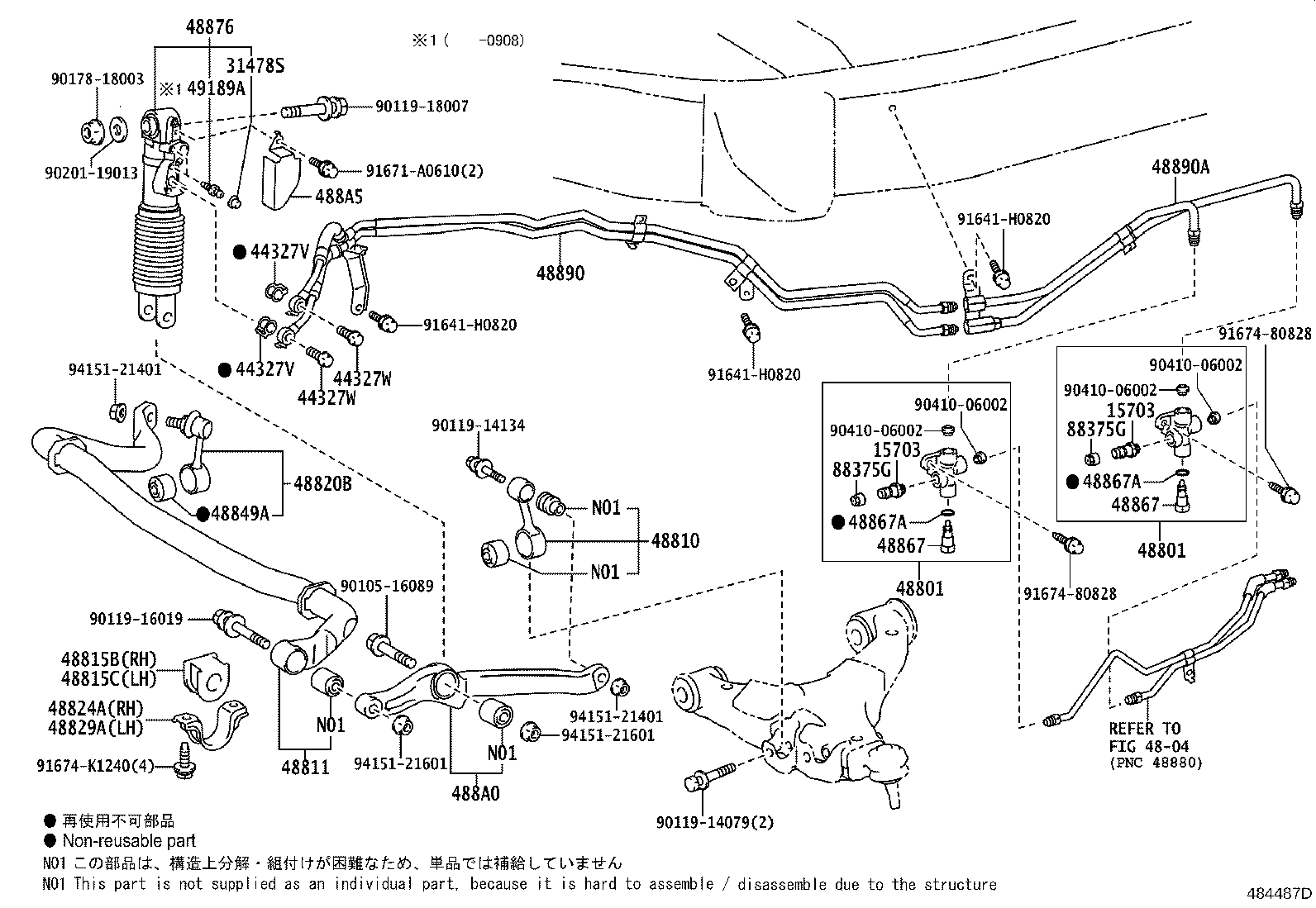

ILLUST NO. 2 OF 2(0709-1704)
KDSS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15703 - VALVE SUB-ASSY, OIL NOZZLE | ||||
| 15703-60010 |
1URFE,1VDFTV..URJ202,VDJ200 |
2 | ||
| 15703-60010 |
1VDFTV..VDJ200;1URFE..URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 15703-60010 |
1VDFTV..VDJ200;1URFE..URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 15703 - VALVE SUB-ASSY, OIL NOZZLE | ||||
| 15703-60010 |
1URFE,1VDFTV..URJ202,VDJ200 |
2 | ||
| 15703-60010 |
1VDFTV..VDJ200;1URFE..URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 15703-60010 |
1VDFTV..VDJ200;1URFE..URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 31478S - CAP, BLEEDER PLUG(FOR FRONT SUSPENSION CONTROL) | ||||
| 31478-60020 |
URJ202,VDJ200 |
2 | ||
| 31478-60020 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 31478-60020 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE | ||||
| 44327-30030 |
URJ202,VDJ200 |
2 | ||
| 90430-16016 |
URJ202,VDJ200 |
2 | ||
| 44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE | ||||
| 44327-30030 |
URJ202,VDJ200 |
2 | ||
| 90430-16016 |
URJ202,VDJ200 |
2 | ||
| 44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
URJ202,VDJ200 |
2 | ||
| 44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
URJ202,VDJ200 |
2 | ||
| 48801 - ADAPTER SUB-ASSY, STABILIZER CONTROL | ||||
| 48001-60020 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48001-60020 |
URJ202,VDJ200 |
2 | ||
| 48001-60020 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48801 - ADAPTER SUB-ASSY, STABILIZER CONTROL | ||||
| 48001-60020 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48001-60020 |
URJ202,VDJ200 |
2 | ||
| 48001-60020 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-60051 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48810-60060 |
URJ202,VDJ200 |
1 | ||
| 48810-60051 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-60120 |
URJ202,VDJ200 |
1 | ||
| 48811-60290 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48811-60280 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48815B - BUSH, FRONT STABILIZER LOWER BRACKET, RH | ||||
| 48815-60270 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48815-60271 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48815-60250 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48815-60260 |
URJ202,VDJ200 |
1 | ||
| 48815C - BUSH, FRONT STABILIZER LOWER BRACKET, LH | ||||
| 48815-60250 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48815-60270 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48815-60260 |
URJ202,VDJ200 |
1 | ||
| 48815-60271 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60081 |
URJ202,VDJ200 |
1 | ||
| 48820-60071 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48820-60071 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48820-60082 |
URJ202,VDJ200 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60170 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48824-60180 |
URJ202,VDJ200 |
1 | ||
| 48824-60170 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-60170 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48824-60180 |
URJ202,VDJ200 |
1 | ||
| 48824-60170 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48849A - BUSH, FRONT STABILIZER LINK, RH | ||||
| 48849-60110 |
URJ202,VDJ200..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48849-60110 |
VDJ200..LHD;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48849-60120 |
URJ202,VDJ200 |
1 | ||
| 48867 - VALVE, STABILIZER CONTROL ADAPTER SHUTTER | ||||
| 48867-60010 |
URJ202,VDJ200 |
2 | ||
| 48867-60010 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48867-60010 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48867 - VALVE, STABILIZER CONTROL ADAPTER SHUTTER | ||||
| 48867-60010 |
URJ202,VDJ200 |
2 | ||
| 48867-60010 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48867-60010 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 48867A - RING, O(FOR STABILIZER CONTROK ADAPTER SHUTTER VALVE) | ||||
| 96711-19007 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 96711-19007 |
URJ202,VDJ200 |
2 | ||
| 96711-19007 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48867A - RING, O(FOR STABILIZER CONTROK ADAPTER SHUTTER VALVE) | ||||
| 96711-19007 |
URJ202,VDJ200 |
2 | ||
| 96711-19007 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 96711-19007 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 48876 - CYLINDER, FRONT STABILIZER CONTROL | ||||
| 48876-60020 |
URJ202,VDJ200 |
1 | ||
| 48876-60020 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48876-60020 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48876-60021 |
URJ202,VDJ200 |
1 | ||
| 48876-60021 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
1 | ||
| 48876-60021 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
1 | ||
| 48890 - TUBE ASSY, FRONT STABILIZER CONTROL, NO.1 | ||||
| 48890-60022 |
URJ202,VDJ200 |
1 | ||
| 48890A - TUBE ASSY, FRONT STABILIZER CONTROL, NO.2 | ||||
| 48890-60030 |
URJ202,VDJ200 |
1 | ||
| 488A0 - ARM ASSY, STABILIZER CONTROL, FRONT | ||||
| 488A0-60010 |
URJ202,VDJ200 |
1 | ||
| 488A5 - PROTECTOR, STABILIZER CONTROL TUBE | ||||
| 488A5-60010 |
URJ202,VDJ200 |
1 | ||
| 88375G - CAP, SERVICE VALVE | ||||
| 88375-60010 |
URJ202,VDJ200 |
2 | ||
| 88375-60010 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 88375-60010 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| 88375G - CAP, SERVICE VALVE | ||||
| 88375-60010 |
URJ202,VDJ200 |
2 | ||
| 88375-60010 |
VDJ200;URJ202..LHD..08S SUSPENSION-FRONT=IRS, REAR=4LINK |
2 | ||
| 88375-60010 |
VDJ200;URJ202..LHD SUSPENSION-ACTIVE HEIGHT CONTROL |
2 | ||
| Common parts | ||||
| 90105-16089 | ||||
| 90119-14079 | ||||
| 90119-14134 | ||||
| 90119-16019 | ||||
| 90119-18007 | ||||
| 90178-18003 | ||||
| 90201-19013 | ||||
| 90410-06002 | ||||
| 91641-H0820 | ||||
| 91671-A0610 | ||||
| 91674-80828 | ||||
| 91674-K1240 | ||||
| 94151-21401 | ||||
| 94151-21601 | ||||
| Linked diagrams | ||||
| 4804 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
