VDJ200L-GMTEZW (2012)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(1201- )1VDFTV
EUROPE STEP5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23679A - SCREW, INJECTOR FOLLOW | ||||
| 23679-51010 |
1VDFTV..VDJ200 |
2 | ||
| 23679A - SCREW, INJECTOR FOLLOW | ||||
| 23679-51010 |
1VDFTV..VDJ200 |
2 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
2 | ||
| 23701-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
2 | ||
| 23701-51020 |
1VDFTV..VDJ200 |
2 | ||
| 23701-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
2 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
2 | ||
| 23701-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
2 | ||
| 23701-51020 |
1VDFTV..VDJ200 |
2 | ||
| 23701-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
2 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
2 | ||
| 23702-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
2 | ||
| 23702-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
2 | ||
| 23702-51020 |
1VDFTV..VDJ200 |
2 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
2 | ||
| 23702-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
2 | ||
| 23702-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
2 | ||
| 23702-51020 |
1VDFTV..VDJ200 |
2 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
2 | ||
| 23703-51020 |
1VDFTV..VDJ200 |
2 | ||
| 23703-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
2 | ||
| 23703-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
2 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
2 | ||
| 23703-51020 |
1VDFTV..VDJ200 |
2 | ||
| 23703-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
2 | ||
| 23703-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
2 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
2 | ||
| 23704-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
2 | ||
| 23704-51020 |
1VDFTV..VDJ200 |
2 | ||
| 23704-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
2 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
2 | ||
| 23704-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
2 | ||
| 23704-51020 |
1VDFTV..VDJ200 |
2 | ||
| 23704-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
2 | ||
| 23705 - PIPE SUB-ASSY, INJECTION, NO.5 | ||||
| 23705-51011 |
1VDFTV..VDJ200 |
1 | ||
| 23706 - PIPE SUB-ASSY, INJECTION, NO.6 | ||||
| 23706-51011 |
1VDFTV..VDJ200 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-51010 |
1VDFTV..VDJ200 |
2 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-51010 |
1VDFTV..VDJ200 |
2 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23742-58020 |
1VDFTV..VDJ200 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1VDFTV..VDJ200 |
5 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1VDFTV..VDJ200 |
5 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1VDFTV..VDJ200 |
5 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1VDFTV..VDJ200 |
5 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
1VDFTV..VDJ200 |
5 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-51010 |
1VDFTV..VDJ200 |
2 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-51010 |
1VDFTV..VDJ200 |
2 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23743-51010 |
1VDFTV..VDJ200 |
2 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23743-51010 |
1VDFTV..VDJ200 |
2 | ||
| 23744 - CLAMP, INJECTION PIPE, NO.4 | ||||
| 23744-51010 |
1VDFTV..VDJ200 |
2 | ||
| 23744 - CLAMP, INJECTION PIPE, NO.4 | ||||
| 23744-51010 |
1VDFTV..VDJ200 |
2 | ||
| 23763 - PIPE, NOZZLE LEAKAGE, NO.3 | ||||
| 23763-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 23763-51020 |
1VDFTV..VDJ200 |
1 | ||
| 23763-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 23763-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 23765 - PIPE, NOZZLE LEAKAGE, NO.5 | ||||
| 23765-51011 |
1VDFTV..VDJ200 |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-0W010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 23810-0W010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 23810-51020 |
1VDFTV..VDJ200 |
1 | ||
| 23810-0W011 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 23810-0W011 |
1VDFTV..VDJ200..LHD RUSSIA SPEC |
1 | ||
| 23810-0W010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 23810-0W011 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 23810-51021 |
1VDFTV..VDJ200 |
1 | ||
| 23812D - PIPE, FUEL, NO.2 | ||||
| 23812-51020 |
1VDFTV..VDJ200 |
1 | ||
| 23820A - RAIL ASSY, COMMON | ||||
| 23820-0W010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 23820-51020 |
1VDFTV..VDJ200 |
1 | ||
| 23820-0W010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 23820-0W010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| Common parts | ||||
| 90126-06026 | ||||
| 90430-10031 | ||||
| 90904-30008 | ||||
| 91551-80625 | ||||
| 91551-80835 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1701 | ||||

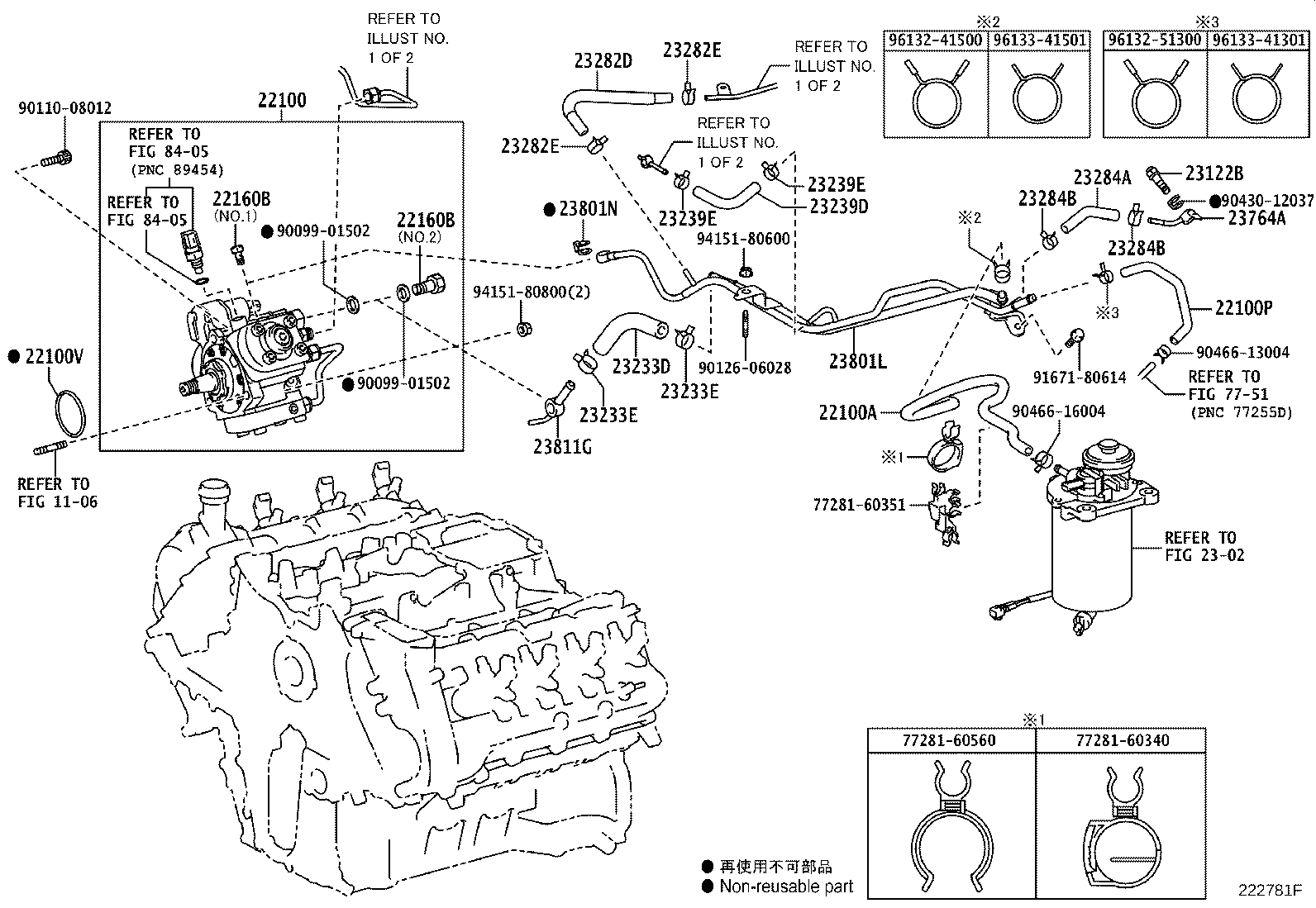

ILLUST NO. 2 OF 2(1201- )1VDFTV
EUROPE STEP5,W/O(FUEL HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-51042 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 22100-51042 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 22100-51042 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 22100-51070 |
1VDFTV..VDJ200 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-51050 |
1VDFTV..VDJ200 NO.1 |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD)&FUEL HEATER-WITHOUT |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD),NO.1 |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)&FUEL HEATER-WITHOUT |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 FUEL HEATER-WITHOUT |
1 | ||
| 23273-51051 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD),NO.2 |
1 | ||
| 23273-51051 |
1VDFTV..VDJ200 NO.2 |
1 | ||
| 23273-51051 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD),NO.2 |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD),NO.1 |
1 | ||
| 22100P - HOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE) | ||||
| 23273-51041 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD)&FUEL HEATER-WITHOUT,NO.1 |
1 | ||
| 23273-51041 |
1VDFTV..VDJ200 FUEL HEATER-WITHOUT |
1 | ||
| 23273-51041 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)&FUEL HEATER-WITHOUT,NO.1 |
1 | ||
| 23274-51030 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)&FUEL HEATER-WITHOUT,NO.2 |
1 | ||
| 23274-51030 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD)&FUEL HEATER-WITHOUT,NO.2 |
1 | ||
| 23274-51030 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 23274-51030 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 90301-49003 |
1VDFTV..VDJ200 |
1 | ||
| 22160B - SCREW | ||||
| 90099-18010 |
1VDFTV..VDJ200 NO.2 |
1 | ||
| 90099-18005 |
1VDFTV..VDJ200 NO.1 |
1 | ||
| 22160B - SCREW | ||||
| 90099-18005 |
1VDFTV..VDJ200 NO.1 |
1 | ||
| 90099-18010 |
1VDFTV..VDJ200 NO.2 |
1 | ||
| 23122B - VALVE, CHECK | ||||
| 23769-51010 |
1VDFTV..VDJ200 |
1 | ||
| 23233D - HOSE, FUEL PUMP | ||||
| 23233-51011 |
1VDFTV..VDJ200 |
1 | ||
| 23233E - CLIP, HOSE(FOR FUEL PUMP HOSE) | ||||
| 96132-41500 |
1VDFTV..VDJ200 |
2 | ||
| 96133-41501 |
1VDFTV..VDJ200 |
2 | ||
| 23233E - CLIP, HOSE(FOR FUEL PUMP HOSE) | ||||
| 96132-41500 |
1VDFTV..VDJ200 |
2 | ||
| 96133-41501 |
1VDFTV..VDJ200 |
2 | ||
| 23239D - HOSE, FUEL, NO.1 | ||||
| 23239-51030 |
1VDFTV..VDJ200 |
1 | ||
| 23239-51020 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 23239-51020 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 23239-51020 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 23239E - CLIP, FUEL HOSE, NO.1 | ||||
| 90467-11076 |
1VDFTV..VDJ200 |
2 | ||
| 23239E - CLIP, FUEL HOSE, NO.1 | ||||
| 90467-11076 |
1VDFTV..VDJ200 |
2 | ||
| 23282D - HOSE, FUEL, NO.4 | ||||
| 23282-51020 |
1VDFTV..VDJ200 |
1 | ||
| 23282E - CLIP(FOR FUEL HOSE NO.4) | ||||
| 90467-11076 |
1VDFTV..VDJ200 |
2 | ||
| 23282E - CLIP(FOR FUEL HOSE NO.4) | ||||
| 90467-11076 |
1VDFTV..VDJ200 |
2 | ||
| 23284A - HOSE, FUEL, NO.5 | ||||
| 23284-51020 |
1VDFTV..VDJ200 |
1 | ||
| 23284B - CLIP(FOR FUEL HOSE NO.5) | ||||
| 90467-11076 |
1VDFTV..VDJ200 |
2 | ||
| 23284B - CLIP(FOR FUEL HOSE NO.5) | ||||
| 90467-11076 |
1VDFTV..VDJ200 |
2 | ||
| 23764A - PIPE, NOZZLE LEAKAGE, NO.4 | ||||
| 23764-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 23764-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 23764-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 23764-51020 |
1VDFTV..VDJ200 |
1 | ||
| 23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-51020 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 23801-51020 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 23801-51030 |
1VDFTV..VDJ200 |
1 | ||
| 23801-51020 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 23801N - GASKET | ||||
| 90430-10031 |
1VDFTV..VDJ200 |
1 | ||
| 23811G - PIPE, FUEL, NO.1 | ||||
| 23811-51010 |
1VDFTV..VDJ200 |
1 | ||
| Common parts | ||||
| 77281-60340 | ||||
| 77281-60351 | ||||
| 77281-60560 | ||||
| 90099-01502 | ||||
| 90110-08012 | ||||
| 90126-06028 | ||||
| 90430-12037 | ||||
| 90466-13004 | ||||
| 90466-16004 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| 96133-41301 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2302 | ||||
| 7751 | ||||
| 8405 | ||||

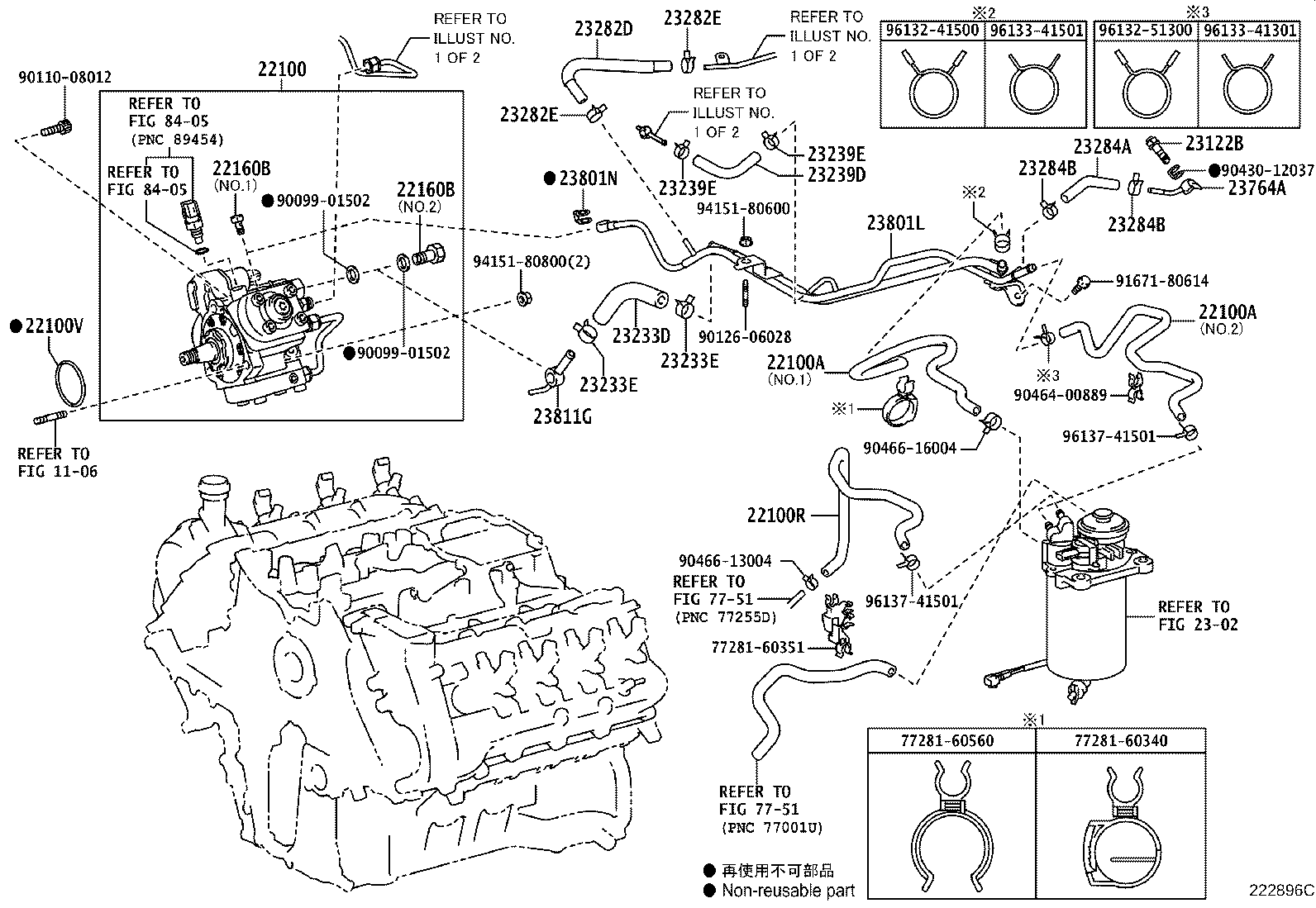

ILLUST NO. 2 OF 2(1201- )1VDFTV
EUROPE STEP5,W(FUEL HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-51042 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 22100-51042 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 22100-51042 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 22100-51070 |
1VDFTV..VDJ200 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-51050 |
1VDFTV..VDJ200 NO.1 |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD)&FUEL HEATER-WITHOUT |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD),NO.1 |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)&FUEL HEATER-WITHOUT |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 FUEL HEATER-WITHOUT |
1 | ||
| 23273-51051 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD),NO.2 |
1 | ||
| 23273-51051 |
1VDFTV..VDJ200 NO.2 |
1 | ||
| 23273-51051 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD),NO.2 |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD),NO.1 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-51050 |
1VDFTV..VDJ200 NO.1 |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD)&FUEL HEATER-WITHOUT |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD),NO.1 |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)&FUEL HEATER-WITHOUT |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 FUEL HEATER-WITHOUT |
1 | ||
| 23273-51051 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD),NO.2 |
1 | ||
| 23273-51051 |
1VDFTV..VDJ200 NO.2 |
1 | ||
| 23273-51051 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD),NO.2 |
1 | ||
| 23271-51050 |
1VDFTV..VDJ200 EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD),NO.1 |
1 | ||
| 22100R - HOSE, FUEL(FOR SEDIMENTER TO FILTER) | ||||
| 77259-60A21 |
1VDFTV..VDJ200 |
1 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 90301-49003 |
1VDFTV..VDJ200 |
1 | ||
| 22160B - SCREW | ||||
| 90099-18010 |
1VDFTV..VDJ200 NO.2 |
1 | ||
| 90099-18005 |
1VDFTV..VDJ200 NO.1 |
1 | ||
| 22160B - SCREW | ||||
| 90099-18010 |
1VDFTV..VDJ200 NO.2 |
1 | ||
| 90099-18005 |
1VDFTV..VDJ200 NO.1 |
1 | ||
| 23122B - VALVE, CHECK | ||||
| 23769-51010 |
1VDFTV..VDJ200 |
1 | ||
| 23233D - HOSE, FUEL PUMP | ||||
| 23233-51011 |
1VDFTV..VDJ200 |
1 | ||
| 23233E - CLIP, HOSE(FOR FUEL PUMP HOSE) | ||||
| 96132-41500 |
1VDFTV..VDJ200 |
2 | ||
| 96133-41501 |
1VDFTV..VDJ200 |
2 | ||
| 23233E - CLIP, HOSE(FOR FUEL PUMP HOSE) | ||||
| 96132-41500 |
1VDFTV..VDJ200 |
2 | ||
| 96133-41501 |
1VDFTV..VDJ200 |
2 | ||
| 23239D - HOSE, FUEL, NO.1 | ||||
| 23239-51030 |
1VDFTV..VDJ200 |
1 | ||
| 23239-51020 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 23239-51020 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 23239-51020 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 23239E - CLIP, FUEL HOSE, NO.1 | ||||
| 90467-11076 |
1VDFTV..VDJ200 |
2 | ||
| 23239E - CLIP, FUEL HOSE, NO.1 | ||||
| 90467-11076 |
1VDFTV..VDJ200 |
2 | ||
| 23282D - HOSE, FUEL, NO.4 | ||||
| 23282-51020 |
1VDFTV..VDJ200 |
1 | ||
| 23282E - CLIP(FOR FUEL HOSE NO.4) | ||||
| 90467-11076 |
1VDFTV..VDJ200 |
2 | ||
| 23282E - CLIP(FOR FUEL HOSE NO.4) | ||||
| 90467-11076 |
1VDFTV..VDJ200 |
2 | ||
| 23284A - HOSE, FUEL, NO.5 | ||||
| 23284-51020 |
1VDFTV..VDJ200 |
1 | ||
| 23284B - CLIP(FOR FUEL HOSE NO.5) | ||||
| 90467-11076 |
1VDFTV..VDJ200 |
2 | ||
| 23284B - CLIP(FOR FUEL HOSE NO.5) | ||||
| 90467-11076 |
1VDFTV..VDJ200 |
2 | ||
| 23764A - PIPE, NOZZLE LEAKAGE, NO.4 | ||||
| 23764-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 23764-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 23764-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 23764-51020 |
1VDFTV..VDJ200 |
1 | ||
| 23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-51020 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 23801-51020 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 23801-51030 |
1VDFTV..VDJ200 |
1 | ||
| 23801-51020 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 23801N - GASKET | ||||
| 90430-10031 |
1VDFTV..VDJ200 |
1 | ||
| 23811G - PIPE, FUEL, NO.1 | ||||
| 23811-51010 |
1VDFTV..VDJ200 |
1 | ||
| Common parts | ||||
| 77281-60340 | ||||
| 77281-60351 | ||||
| 77281-60560 | ||||
| 90099-01502 | ||||
| 90110-08012 | ||||
| 90126-06028 | ||||
| 90430-12037 | ||||
| 90464-00889 | ||||
| 90466-13004 | ||||
| 90466-16004 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| 96133-41301 | ||||
| 96133-41501 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2302 | ||||
| 7751 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
