VDJ200L-GMTEZW (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )1VDFTV

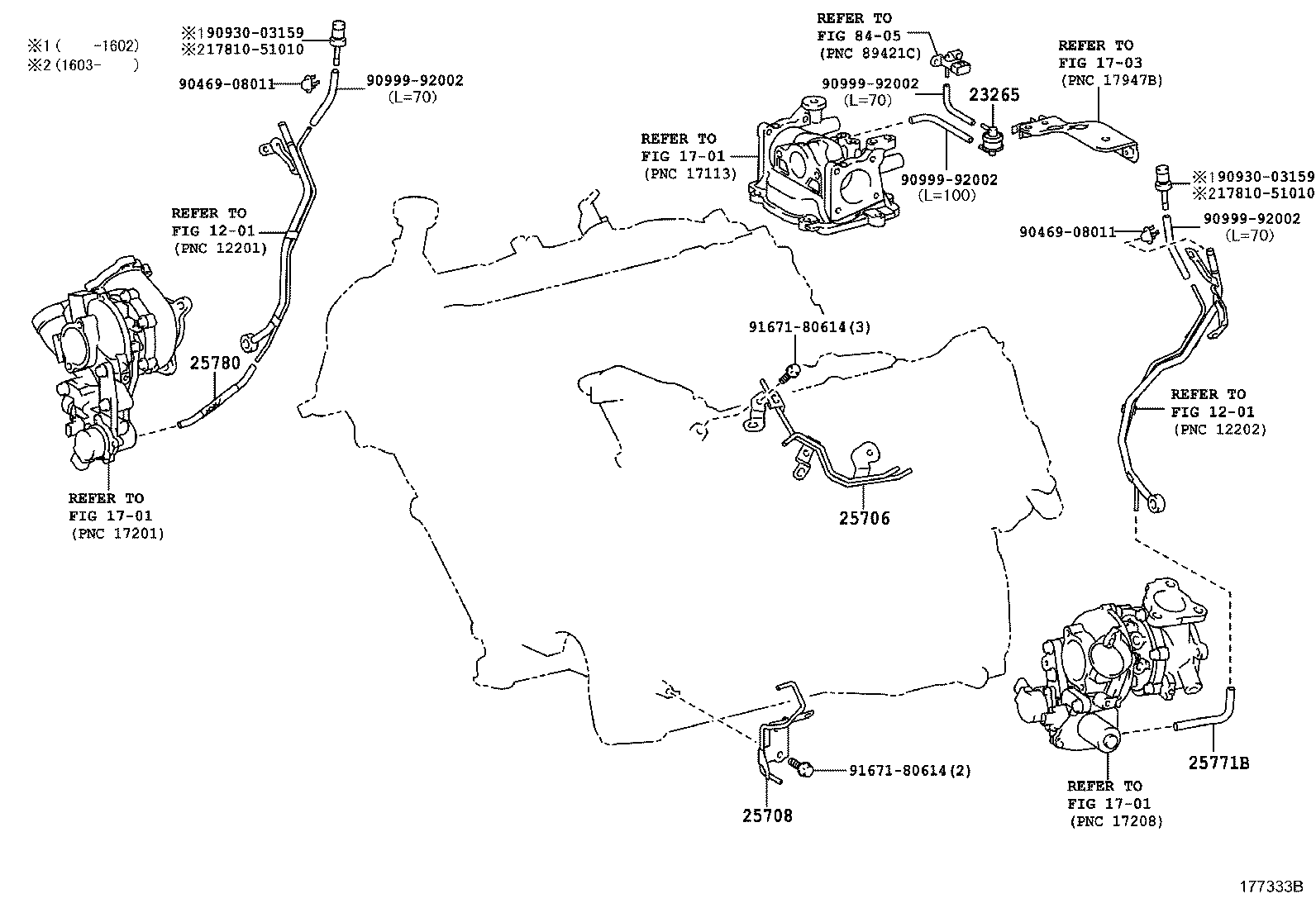

Click highlighted areas on diagram

W/O(VACUUM PUMP)

diagram 1201 1201 1701 1701 1701 1703 1781051010 1781051010 23265 25706 25708 25771B 25780 8405 9046908011 9046908011 9093003159 9093003159 9099992002 9099992002 9099992002 9099992002 9167180614 9167180614
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11036

1VDFTV..VDJ200

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-51010

1VDFTV..VDJ200

NO.1

 1
25736-51010

1VDFTV..VDJ200

NO.2

 1
25706-51010

1VDFTV..VDJ200

SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)

 1
25708 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3
25708-51020

1VDFTV..VDJ200

 1
25771B - HOSE, VACCUM TRANSMITTING, NO.2
25771-51010

1VDFTV..VDJ200

 1
25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25780-51010

1VDFTV..VDJ200

 1
Common parts
17810-51010
90469-08011
90930-03159
90999-92002
91671-80614
Linked diagrams
1201
1701
1703
8405
