VDJ200L-GMTEZW (2012)
Toyota Land Cruiser
(1201- )1VDFTV
EUROPE STEP5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341W - HOSE, AIR, NO.1 | ||||
| 17341-51030 |
1VDFTV..VDJ200 |
1 | ||
| 17342P - HOSE, AIR, NO.2 | ||||
| 17342-51020 |
1VDFTV..VDJ200 |
1 | ||
| 17343J - HOSE, AIR, NO.3 | ||||
| 17343-51030 |
1VDFTV..VDJ200 |
1 | ||
| 17344P - HOSE, AIR, NO.4(FOR EXHAUST PIPE) | ||||
| 17344-51030 |
1VDFTV..VDJ200 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-51010 |
1VDFTV..VDJ200..LHD *114=TOYOTA/X31/Y,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17410-51010 |
1VDFTV..VDJ200..LHD *114=TOYOTA/X31/Y,UKRAINE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17410-51040 |
1VDFTV..VDJ200..LHD UKRAINE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17410-51030 |
1VDFTV..VDJ200 *114=TOYOTA/ZC1/Y |
1 | ||
| 17410-51040 |
1VDFTV..VDJ200..LHD RUSSIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17410-51040 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17410-51010 |
1VDFTV..VDJ200..05S *114=TOYOTA/X31/Y,RUSSIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06066 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
2 | ||
| 17279-17030 |
1VDFTV..VDJ200 |
2 | ||
| 90917-06066 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
2 | ||
| 90917-06066 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06066 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
2 | ||
| 17279-17030 |
1VDFTV..VDJ200 |
2 | ||
| 90917-06066 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
2 | ||
| 90917-06066 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-51020 |
1VDFTV..VDJ200 |
1 | ||
| 17420-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17420-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17420-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06093 |
1URFE,1VDFTV..URJ202,VDJ200 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-51020 |
1VDFTV..VDJ200..LHD UKRAINE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17430-51010 |
1VDFTV..VDJ200 |
1 | ||
| 17430-51020 |
1VDFTV..VDJ200..05S RUSSIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-15017 |
1URFE,1VDFTV..URJ202,VDJ200 |
1 | ||
| 17444B - SPACER, EXHAUST PIPE | ||||
| 17444-78020 |
1VDFTV..VDJ200 |
2 | ||
| 17444B - SPACER, EXHAUST PIPE | ||||
| 17444-78020 |
1VDFTV..VDJ200 |
2 | ||
| 17450 - PIPE ASSY, EXHAUST, NO.5 | ||||
| 17450-51040 |
1VDFTV..VDJ200 |
1 | ||
| 17450B - PIPE ASSY, EXHAUST, FRONT NO.2 | ||||
| 17450-51010 |
1VDFTV..VDJ200..LHD *114=TOYOTA/X31/Y,UKRAINE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17450-51010 |
1VDFTV..VDJ200..05S *114=TOYOTA/X31/Y,RUSSIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17450-51030 |
1VDFTV..VDJ200 *114=TOYOTA/ZC2/Y |
1 | ||
| 17450-51010 |
1VDFTV..VDJ200..LHD *114=TOYOTA/X31/Y,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17450-51050 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17450-51050 |
1VDFTV..VDJ200..LHD UKRAINE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17450-51050 |
1VDFTV..VDJ200..LHD RUSSIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD) |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-28040 |
1VDFTV..VDJ200 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 90917-06078 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 90917-06078 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 90917-06078 |
1VDFTV..VDJ200 |
2 | ||
| 90917-06078 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 90917-06078 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 90917-06078 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 90917-06078 |
1VDFTV..VDJ200 |
2 | ||
| 90917-06078 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 17504A - CLAMP SUB-ASSY, EXHAUST PIPE | ||||
| 17504-30040 |
1VDFTV..VDJ200 |
2 | ||
| 17504A - CLAMP SUB-ASSY, EXHAUST PIPE | ||||
| 17504-30040 |
1VDFTV..VDJ200 |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-28010 |
1URFE,1VDFTV..URJ202,VDJ200 |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-28010 |
1URFE,1VDFTV..URJ202,VDJ200 |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-28010 |
1URFE,1VDFTV..URJ202,VDJ200 |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-28010 |
1URFE,1VDFTV..URJ202,VDJ200 |
4 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-31050 |
1URFE,1VDFTV..URJ202,VDJ200 |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78170 |
1VDFTV..VDJ200 |
2 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78170 |
1VDFTV..VDJ200 |
2 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-10388 | ||||
| 90119-08B02 | ||||
| 90126-10033 | ||||
| 90179-06007 | ||||
| 90179-10070 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 91553-80816 | ||||
| 91553-E1035 | ||||
| 96136-41501 | ||||

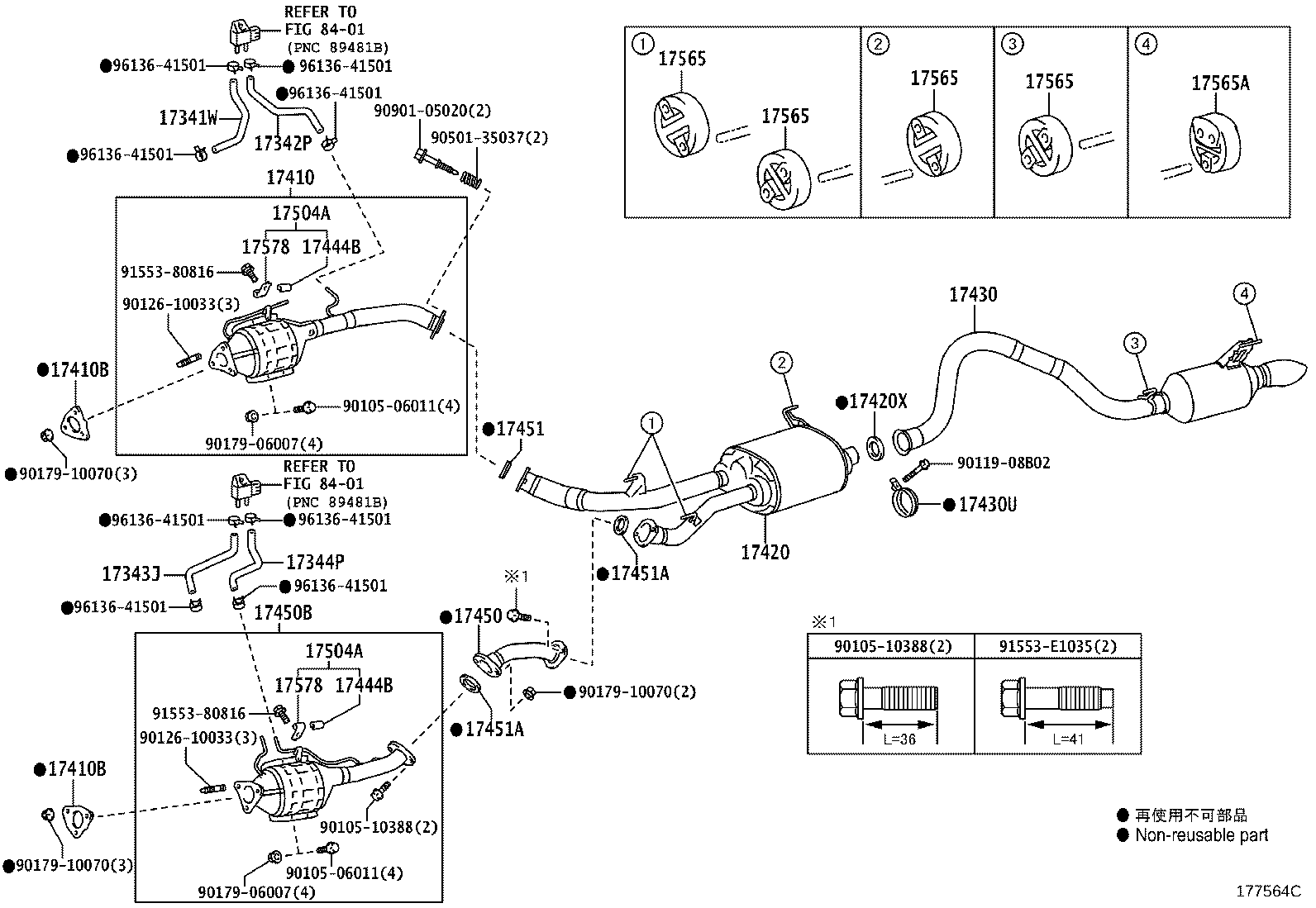

| Linked diagrams | ||||
| 8401 | ||||
