VDJ200L-GMTEZW (2012)
Toyota Land Cruiser

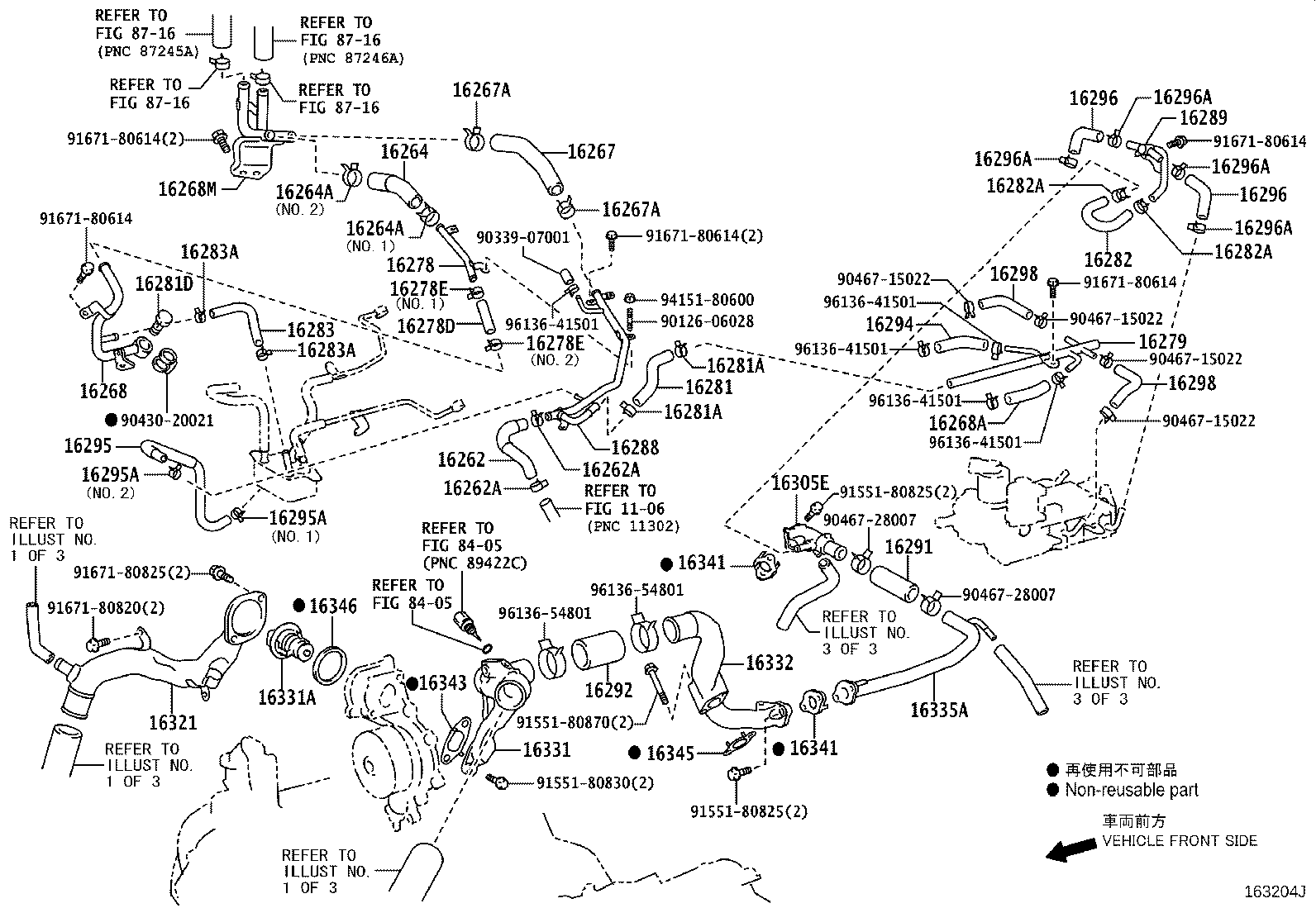

ILLUST NO. 2 OF 3(1201- )1VDFTV
W/O(VISCOUS HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16262 - HOSE, WATER INLET | ||||
| 16262-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1VDFTV..VDJ200 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1VDFTV..VDJ200 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-51030 |
1VDFTV..VDJ200..RHD;1VDFTV..VDJ200..05S HEATER-FRONT DUAL CONTROL |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-20011 |
1VDFTV..VDJ200..RHD;1VDFTV..VDJ200..05S HEATER-FRONT DUAL CONTROL,NO.1 |
1 | ||
| 96136-42501 |
1VDFTV..VDJ200..RHD;1VDFTV..VDJ200..05S HEATER-FRONT DUAL CONTROL,NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-20011 |
1VDFTV..VDJ200..RHD;1VDFTV..VDJ200..05S HEATER-FRONT DUAL CONTROL,NO.1 |
1 | ||
| 96136-42501 |
1VDFTV..VDJ200..RHD;1VDFTV..VDJ200..05S HEATER-FRONT DUAL CONTROL,NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99556-30145 |
1VDFTV..VDJ200..RHD;1VDFTV..VDJ200..05S *H,L=145,HEATER-FRONT DUAL CONTROL |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1VDFTV..VDJ200..RHD;1VDFTV..VDJ200..05S HEATER-FRONT DUAL CONTROL |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1VDFTV..VDJ200..RHD;1VDFTV..VDJ200..05S HEATER-FRONT DUAL CONTROL |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-51020 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 16268-51030 |
1VDFTV..VDJ200 |
1 | ||
| 16268-51020 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 16268-51020 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 99556-10090 |
1VDFTV..VDJ200 *H,L=90 |
1 | ||
| 99556-10090 |
1VDFTV..VDJ200..05S *H,L=90,COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 99556-10090 |
1VDFTV..VDJ200..LHD *H,L=90,UKRAINE SPEC |
1 | ||
| 99556-10090 |
1VDFTV..VDJ200..LHD *H,L=90,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 99556-10090 |
1VDFTV..VDJ200..05S *H,L=90,RUSSIA SPEC |
1 | ||
| 16268M - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-51020 |
1VDFTV..VDJ200..RHD;1VDFTV..VDJ200..05S HEATER-FRONT DUAL CONTROL |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16278D - HOSE, WATER BY-PASS | ||||
| 99556-20200 |
1VDFTV..VDJ200..LHD *H,L=90,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 99556-20200 |
1VDFTV..VDJ200..05S *H,L=90,RUSSIA SPEC |
1 | ||
| 99556-20200 |
1VDFTV..VDJ200 *H,L=90 |
1 | ||
| 99556-20200 |
1VDFTV..VDJ200..LHD *H,L=90,UKRAINE SPEC |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
1VDFTV..VDJ200 NO.2 |
1 | ||
| 90467-20011 |
1VDFTV..VDJ200 NO.1 |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
1VDFTV..VDJ200 NO.2 |
1 | ||
| 90467-20011 |
1VDFTV..VDJ200 NO.1 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16208-51030 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 16208-51020 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 16208-51020 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 16208-51020 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 16208-51030 |
1VDFTV..VDJ200 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16281-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
1VDFTV..VDJ200 |
2 | ||
| 96136-42101 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
1VDFTV..VDJ200 |
2 | ||
| 96136-42101 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 16281D - BOLT, UNION(FOR WATER BY-PASS PIPE UNION NO.2) | ||||
| 90401-20004 |
1VDFTV..VDJ200 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 16282-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 90467-15022 |
1VDFTV..VDJ200 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 90467-15022 |
1VDFTV..VDJ200 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 16283-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 16283-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96137-41501 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
2 | ||
| 96137-41501 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
2 | ||
| 96137-41501 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96137-41501 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
2 | ||
| 96137-41501 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
2 | ||
| 96137-41501 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-51020 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 16288-51020 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 16288-51040 |
1VDFTV..VDJ200 |
1 | ||
| 16288-51020 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16289-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16292 - JOINT, WATER HOSE, NO.2 | ||||
| 16292-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16294 - HOSE, WATER BY-PASS, NO.11 | ||||
| 16294-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16294-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-51010 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 16295-51010 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 16295-51010 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC,NO.2 |
1 | ||
| 96137-41501 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC,NO.1 |
1 | ||
| 96136-41501 |
1VDFTV..VDJ200..05S RUSSIA SPEC,NO.2 |
1 | ||
| 96136-41501 |
1VDFTV..VDJ200..LHD UKRAINE SPEC,NO.2 |
1 | ||
| 96137-41501 |
1VDFTV..VDJ200..05S RUSSIA SPEC,NO.1 |
1 | ||
| 96137-41501 |
1VDFTV..VDJ200..LHD UKRAINE SPEC,NO.1 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC,NO.2 |
1 | ||
| 96137-41501 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC,NO.1 |
1 | ||
| 96136-41501 |
1VDFTV..VDJ200..05S RUSSIA SPEC,NO.2 |
1 | ||
| 96136-41501 |
1VDFTV..VDJ200..LHD UKRAINE SPEC,NO.2 |
1 | ||
| 96137-41501 |
1VDFTV..VDJ200..05S RUSSIA SPEC,NO.1 |
1 | ||
| 96137-41501 |
1VDFTV..VDJ200..LHD UKRAINE SPEC,NO.1 |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 16296-51010 |
1VDFTV..VDJ200 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 16296-51010 |
1VDFTV..VDJ200 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 |
1VDFTV..VDJ200 |
4 | ||
| 90467-15022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
4 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 |
1VDFTV..VDJ200 |
4 | ||
| 90467-15022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
4 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 |
1VDFTV..VDJ200 |
4 | ||
| 90467-15022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
4 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 |
1VDFTV..VDJ200 |
4 | ||
| 90467-15022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
4 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16298-51010 |
1VDFTV..VDJ200 |
2 | ||
| 16298-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16298-51010 |
1VDFTV..VDJ200 |
2 | ||
| 16298-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 16305E - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-51020 |
1VDFTV..VDJ200 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-51020 |
1VDFTV..VDJ200 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-51020 |
1VDFTV..VDJ200 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1VDFTV..VDJ200 *WAX 76-90 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16335A - HOSE, WATER OUTLET | ||||
| 16335-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-51020 |
1VDFTV..VDJ200 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-51020 |
1VDFTV..VDJ200 |
2 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1VDFTV..VDJ200 |
1 | ||
| Common parts | ||||
| 90126-06028 | ||||
| 90339-07001 | ||||
| 90430-20021 | ||||
| 90467-15022 | ||||
| 90467-28007 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 91551-80870 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| 94151-80600 | ||||
| 96136-41501 | ||||
| 96136-54801 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8405 | ||||
| 8716 | ||||

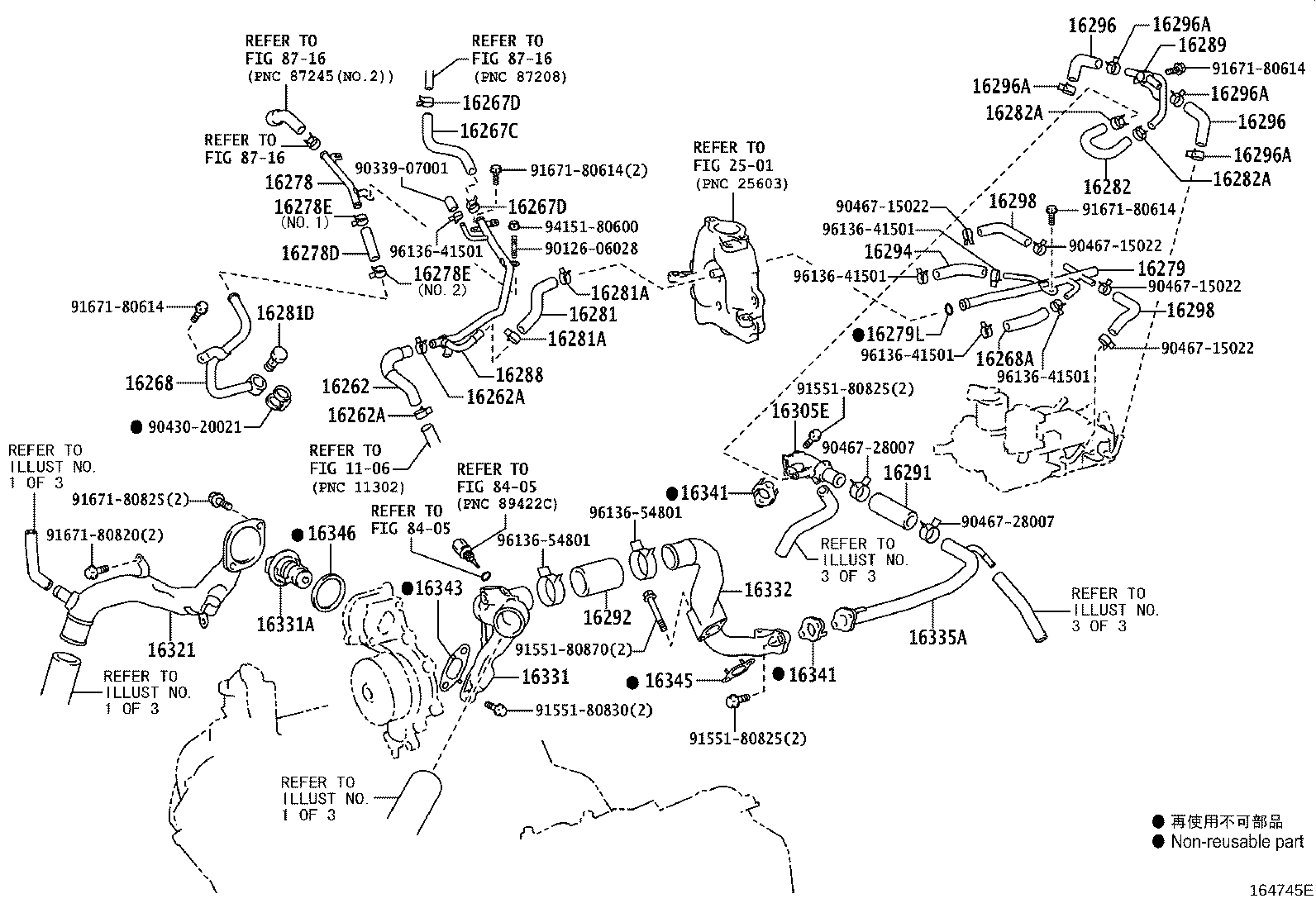

ILLUST NO. 2 OF 3(1201- )1VDFTV
W(VISCOUS HEATER) EUROPE STEP5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16262 - HOSE, WATER INLET | ||||
| 16262-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1VDFTV..VDJ200 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1VDFTV..VDJ200 |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 99556-30145 |
1VDFTV..VDJ200..RHD;1VDFTV..VDJ200..05S HEATER-FRONT DUAL CONTROL |
1 | ||
| 99556-30145 |
1VDFTV..VDJ200 |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
1VDFTV..VDJ200 |
2 | ||
| 96136-42501 |
1VDFTV..VDJ200..RHD;1VDFTV..VDJ200..05S HEATER-FRONT DUAL CONTROL |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
1VDFTV..VDJ200 |
2 | ||
| 96136-42501 |
1VDFTV..VDJ200..RHD;1VDFTV..VDJ200..05S HEATER-FRONT DUAL CONTROL |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-51020 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 16268-51030 |
1VDFTV..VDJ200 |
1 | ||
| 16268-51020 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 16268-51020 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 99556-10090 |
1VDFTV..VDJ200 *H,L=90 |
1 | ||
| 99556-10090 |
1VDFTV..VDJ200..05S *H,L=90,COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 99556-10090 |
1VDFTV..VDJ200..LHD *H,L=90,UKRAINE SPEC |
1 | ||
| 99556-10090 |
1VDFTV..VDJ200..LHD *H,L=90,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 99556-10090 |
1VDFTV..VDJ200..05S *H,L=90,RUSSIA SPEC |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16278D - HOSE, WATER BY-PASS | ||||
| 99556-20200 |
1VDFTV..VDJ200..LHD *H,L=90,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 99556-20200 |
1VDFTV..VDJ200..05S *H,L=90,RUSSIA SPEC |
1 | ||
| 99556-20200 |
1VDFTV..VDJ200 *H,L=90 |
1 | ||
| 99556-20200 |
1VDFTV..VDJ200..LHD *H,L=90,UKRAINE SPEC |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
1VDFTV..VDJ200 NO.2 |
1 | ||
| 90467-20011 |
1VDFTV..VDJ200 NO.1 |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
1VDFTV..VDJ200 NO.2 |
1 | ||
| 90467-20011 |
1VDFTV..VDJ200 NO.1 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16208-51030 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 16208-51020 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 16208-51020 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 16208-51020 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 16208-51030 |
1VDFTV..VDJ200 |
1 | ||
| 16279L - RING, O(FOR WATER BY-PASS PIPE NO.3) | ||||
| 90301-13022 |
1VDFTV..VDJ200 |
1 | ||
| 90301-13022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16281-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
1VDFTV..VDJ200 |
2 | ||
| 96136-42101 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
1VDFTV..VDJ200 |
2 | ||
| 96136-42101 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 16281D - BOLT, UNION(FOR WATER BY-PASS PIPE UNION NO.2) | ||||
| 90401-20004 |
1VDFTV..VDJ200 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 16282-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 90467-15022 |
1VDFTV..VDJ200 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 90467-15022 |
1VDFTV..VDJ200 |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-51020 |
1VDFTV..VDJ200..LHD UKRAINE SPEC |
1 | ||
| 16288-51020 |
1VDFTV..VDJ200..LHD AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC |
1 | ||
| 16288-51040 |
1VDFTV..VDJ200 |
1 | ||
| 16288-51020 |
1VDFTV..VDJ200..05S RUSSIA SPEC |
1 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16289-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16292 - JOINT, WATER HOSE, NO.2 | ||||
| 16292-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16294 - HOSE, WATER BY-PASS, NO.11 | ||||
| 16294-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16294-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 16296-51010 |
1VDFTV..VDJ200 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 16296-51010 |
1VDFTV..VDJ200 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 |
1VDFTV..VDJ200 |
4 | ||
| 90467-15022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
4 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 |
1VDFTV..VDJ200 |
4 | ||
| 90467-15022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
4 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 |
1VDFTV..VDJ200 |
4 | ||
| 90467-15022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
4 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 |
1VDFTV..VDJ200 |
4 | ||
| 90467-15022 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
4 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16298-51010 |
1VDFTV..VDJ200 |
2 | ||
| 16298-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16298-51010 |
1VDFTV..VDJ200 |
2 | ||
| 16298-51010 |
1VDFTV..VDJ200..05S COMOROS ISLANDS & IVORY COAST SPEC |
2 | ||
| 16305E - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-51020 |
1VDFTV..VDJ200 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-51020 |
1VDFTV..VDJ200 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-51020 |
1VDFTV..VDJ200 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1VDFTV..VDJ200 *WAX 76-90 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16335A - HOSE, WATER OUTLET | ||||
| 16335-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-51020 |
1VDFTV..VDJ200 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-51020 |
1VDFTV..VDJ200 |
2 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-51010 |
1VDFTV..VDJ200 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1VDFTV..VDJ200 |
1 | ||
| Common parts | ||||
| 90126-06028 | ||||
| 90339-07001 | ||||
| 90430-20021 | ||||
| 90467-15022 | ||||
| 90467-28007 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 91551-80870 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| 94151-80600 | ||||
| 96136-41501 | ||||
| 96136-54801 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2501 | ||||
| 8405 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
