VDJ200L-GMTEZW (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1VDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1202- )1VDFTV

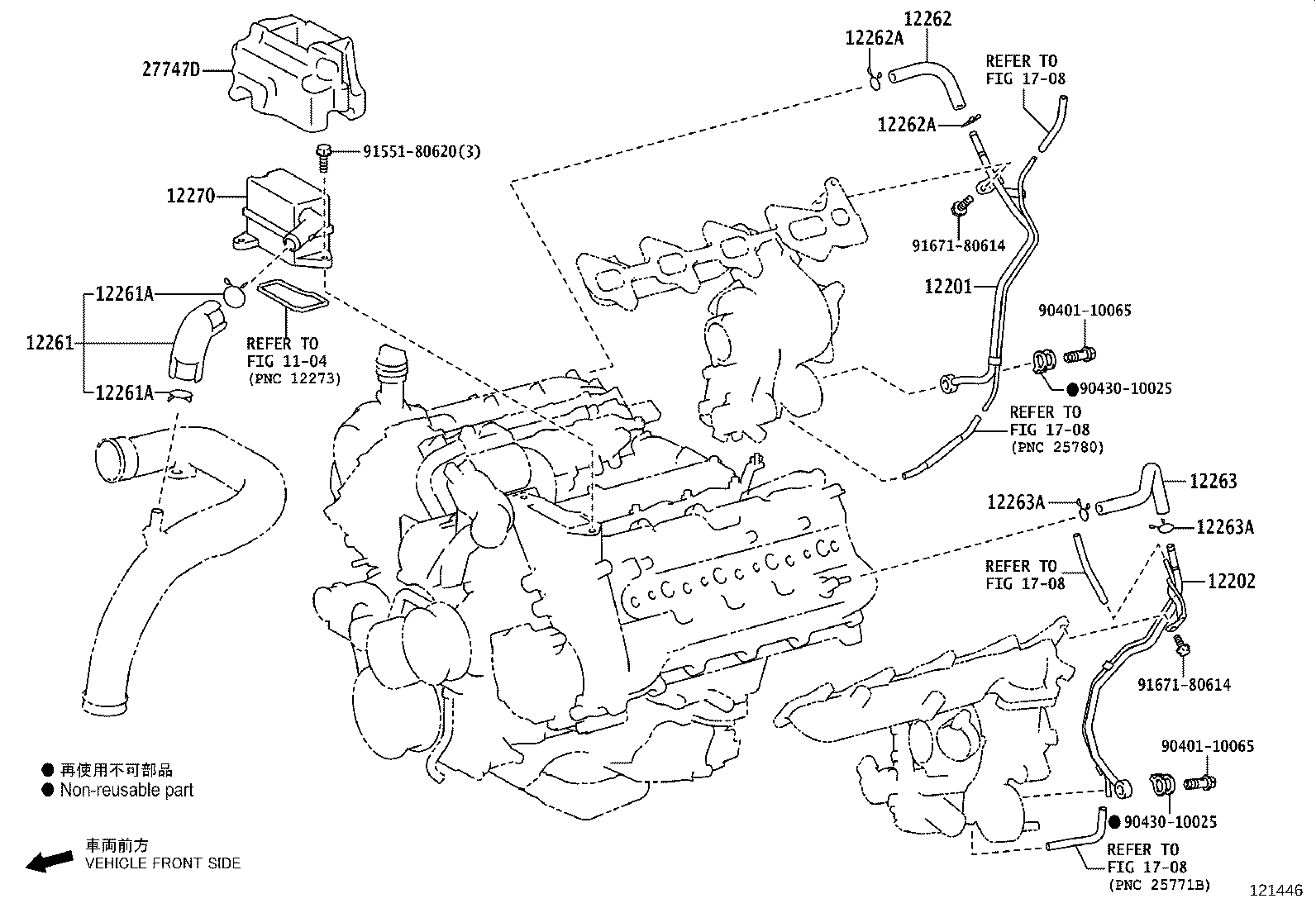

Click highlighted areas on diagram

EUROPE STEP5

diagram 1104 12201 12202 12261 12261A 12261A 12262 12262A 12262A 12263 12263A 12263A 12270 1708 1708 1708 1708 27747D 9040110065 9040110065 9043010025 9043010025 9155180620 9167180614 9167180614
Part # Description Qty Price
12201 - TUBE SUB-ASSY, VENTILATION
12201-51031

1VDFTV..VDJ200

 1
12202 - TUBE SUB-ASSY, VENTILATION, NO.2
12202-51010

1VDFTV..VDJ200

 1
12202-51020

1VDFTV..VDJ200..LHD

UKRAINE SPEC

 1
12202-51020

1VDFTV..VDJ200..05S

RUSSIA SPEC

 1
12202-51020

1VDFTV..VDJ200..LHD

AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC

 1
12261 - HOSE, VENTILATION
12261-51031

1VDFTV..VDJ200

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1VDFTV..VDJ200

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1VDFTV..VDJ200

 2
12262 - HOSE, VENTILATION, NO.2
12262-51030

1VDFTV..VDJ200

 1
12262-51021

1VDFTV..VDJ200..LHD

AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC

 1
12262-51021

1VDFTV..VDJ200..LHD

UKRAINE SPEC

 1
12262-51021

1VDFTV..VDJ200..05S

RUSSIA SPEC

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-12058

1VDFTV..VDJ200

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-12058

1VDFTV..VDJ200

 2
12263 - HOSE, VENTILATION, NO.3
12263-51030

1VDFTV..VDJ200..LHD

UKRAINE SPEC

 1
12263-51040

1VDFTV..VDJ200

 1
12263-51030

1VDFTV..VDJ200..05S

RUSSIA SPEC

 1
12263-51030

1VDFTV..VDJ200..LHD

AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-12058

1VDFTV..VDJ200

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-12058

1VDFTV..VDJ200

 2
12270 - SEPARATOR ASSY, OIL
12270-51010

1VDFTV..VDJ200

 1
Common parts
90401-10065
90430-10025
91551-80620
91671-80614
Linked diagrams
1104
1708
