UZJ200R-GNAEKW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1201)

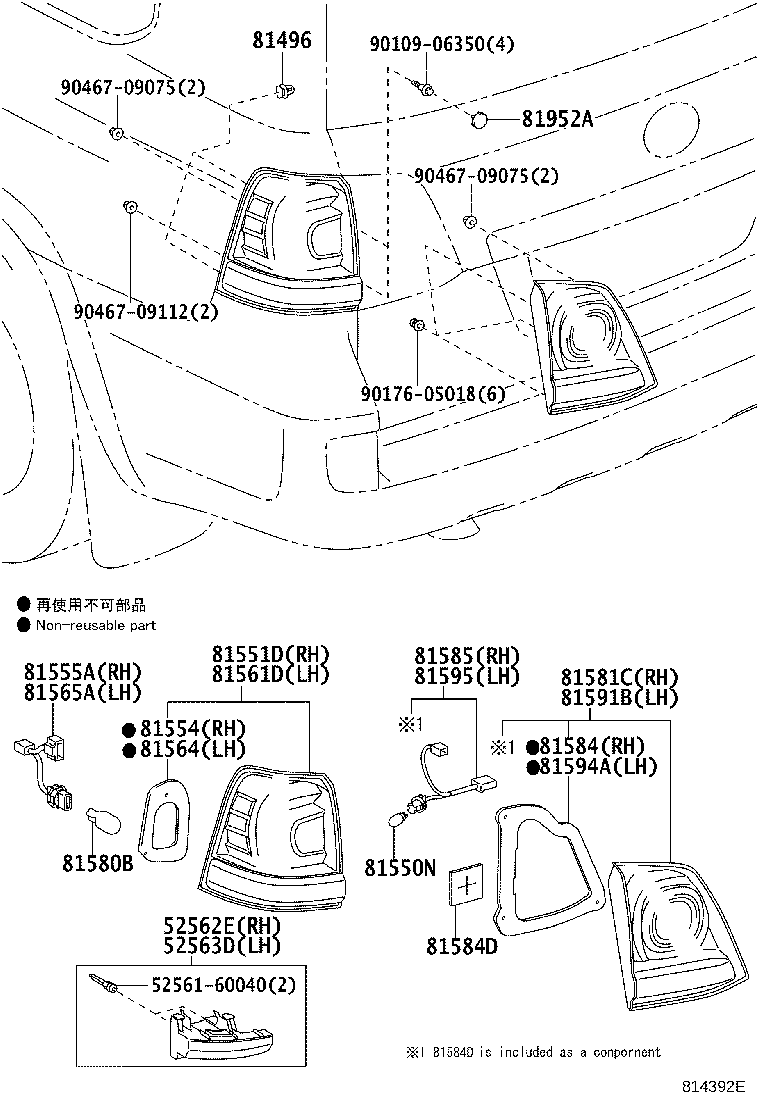

Click highlighted areas on diagram

diagram 5256160040 52562E 52563D 81496 81550N 81551D 81554 81555A 81561D 81564 81565A 81580B 81581C 81584 81584D 81585 81591B 81594A 81595 81952A 9010906350 9017605018 9046709075 9046709075 9046709112
Part # Description Qty Price
52562E - RETAINER, REAR BUMPER, UPPER RH
52562-60040

UZJ200,VDJ200

 1
52563D - RETAINER, REAR BUMPER, UPPER LH
52563-60040

UZJ200,VDJ200

 1
81496 - GUIDE, REAR COMBINATION LAMP
81496-28010

UZJ200,VDJ200

 4
81550N - BULB, BACK UP LAMP
90981-11059

UZJ200,VDJ200

12V 16W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-60820

UZJ200,VDJ200

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-60820

UZJ200,VDJ200

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-60820

UZJ200,VDJ200

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-60750

UZJ200,VDJ200

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-60750

UZJ200,VDJ200

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-60820

UZJ200,VDJ200

 1
81580B - BULB (FOR REAR LAMP)
90981-15021

UZJ200,VDJ200

12V 21W,AMBER

 2
81581C - LENS AND BODY, REAR LAMP, RH
81581-60180

UZJ200,VDJ200

 1
81584 - PACKING, REAR LAMP RH
81584-60180

UZJ200,VDJ200

 1
81584D - GASKET, REAR LAMP
81584-60190

UZJ200,VDJ200

 1
81585 - SOCKET & WIRE, REAR LAMP
81585-60180

UZJ200,VDJ200

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-60210

UZJ200,VDJ200

 1
81594A - GASKET, REAR LAMP LH
81594-60210

UZJ200,VDJ200

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-60180

UZJ200,VDJ200

 1
81952A - COVER, REAR LAMP, RH
81952-22010

UZJ200,VDJ200

 4
Common parts
52561-60040
90109-06350
90176-05018
90467-09075
90467-09112
