UZJ200R-GNAEKW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

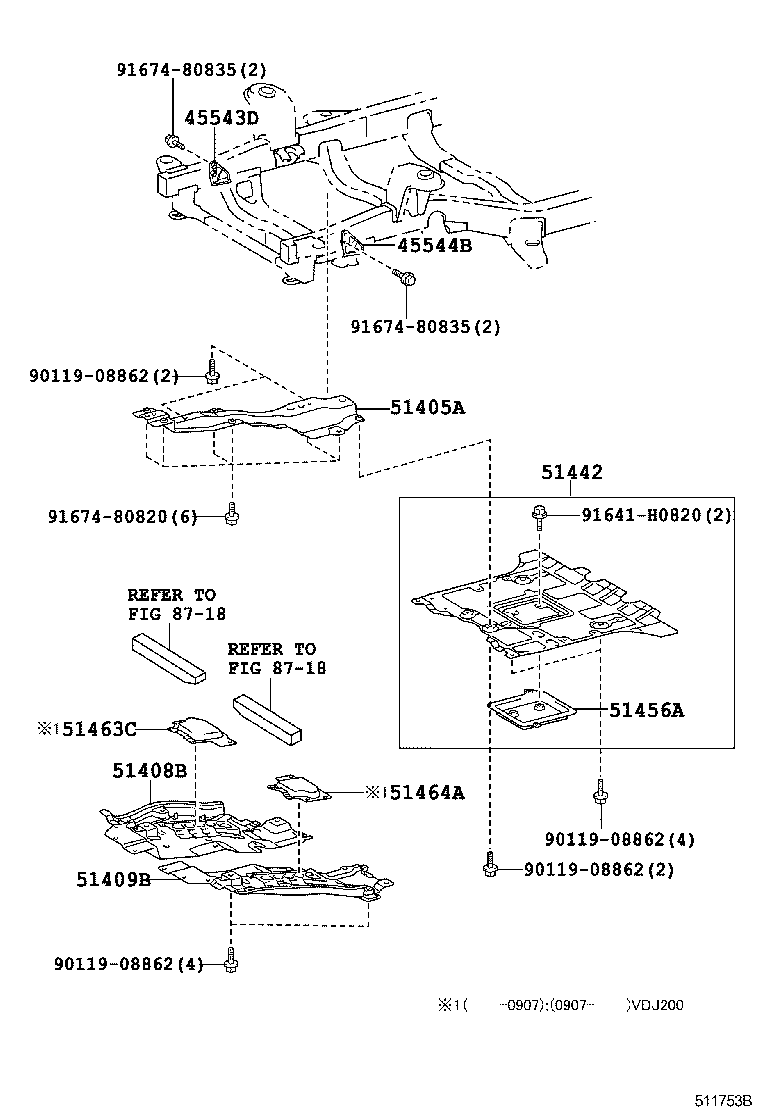

Click highlighted areas on diagram

diagram 45543D 45544B 51405A 51408B 51409B 51442 51456A 51463C 51464A 8718 8718 9011908862 9011908862 9011908862 9011908862 91641H0820 9167480820 9167480835 9167480835
Part # Description Qty Price
45543D - PROTECTOR, STEERING RACK BOOT, RH
45543-60020

UZJ200,VDJ200

 1
45544B - PROTECTOR, STEERING RACK BOOT, LH
45544-60020

UZJ200,VDJ200

 1
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-60200

UZJ200,VDJ200

 1
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
51408-60030

UZJ200

 1
51408-60050

UZJ200

 1
51409B - COVER SUB-ASSY, ENGINE UNDER, LH
51409-60050

UZJ200

 1
51409-60030

UZJ200

 1
51442 - COVER, ENGINE UNDER, NO.2
51420-60100

UZJ200

 1
51420-60080

UZJ200

 1
51456A - SEAL, ENGINE UNDER COVER, REAR
51456-60080

UZJ200

 1
51463C - SILENCER, ENGINE UNDER COVER, RH
51477-60010

UZJ200

 1
51464A - SILENCER, ENGINE UNDER COVER, LH
51478-60040

UZJ200

 1
Common parts
90119-08862
91641-H0820
91674-80820
91674-80835
Linked diagrams
8718
