UZJ200R-GNAEKW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1201)2UZFE

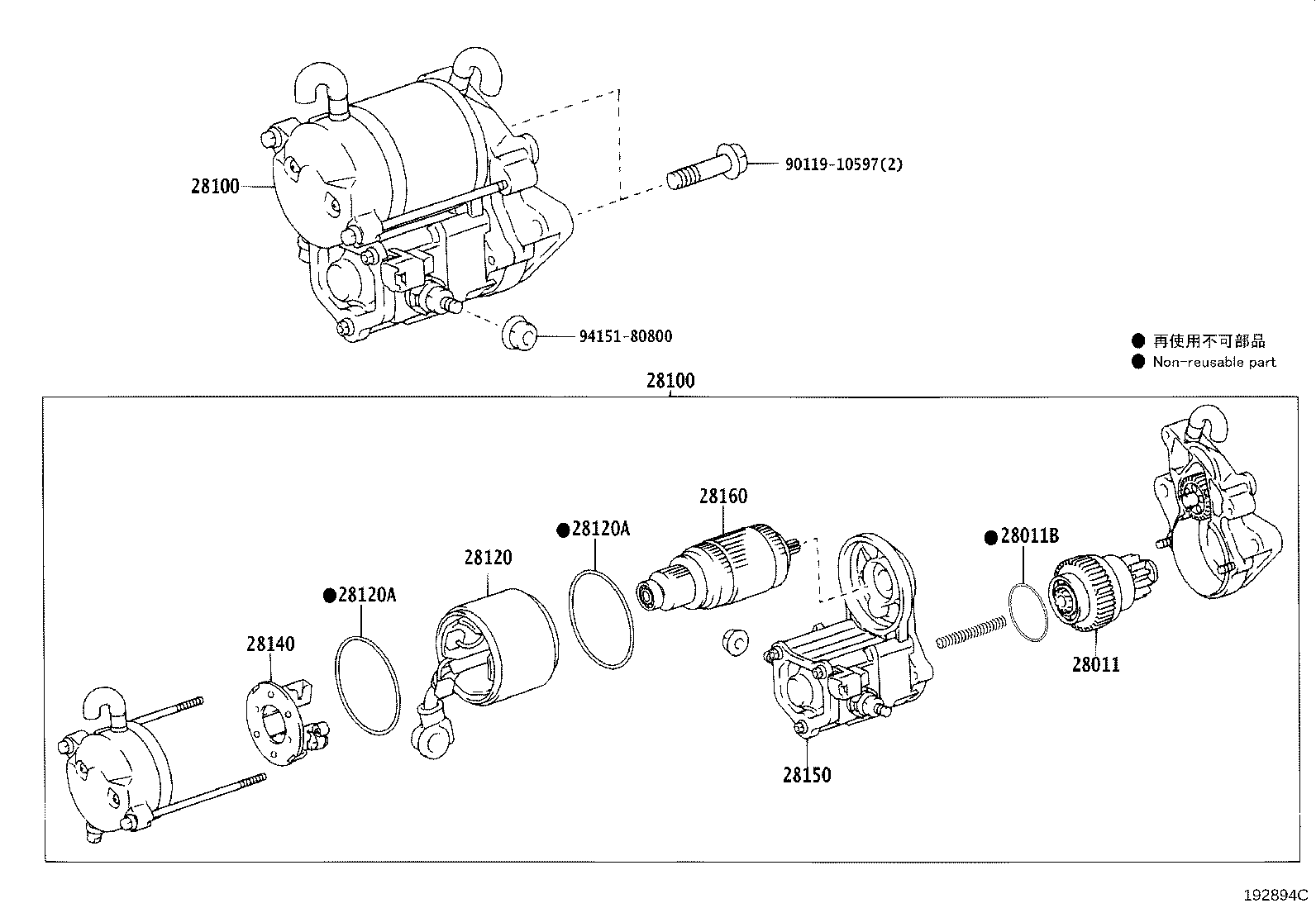

Click highlighted areas on diagram

12V 2.0KW

diagram 28011 28011B 28100 28100 28120 28120A 28120A 28140 28150 28160 9011910597 9415180800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-50100

2UZFE..UZJ200

 1
28011B - RING, O(FOR STARTER CLUTCH)
96711-24040

2UZFE..UZJ200

 1
28100 - STARTER ASSY
28100-50101

2UZFE..UZJ200

12V 2.0KW

 1
28100 - STARTER ASSY
28100-50101

2UZFE..UZJ200

12V 2.0KW

 1
28120 - YOKE ASSY, STARTER
28120-50070

2UZFE..UZJ200

 1
28120A - RING, O(FOR STARTER YOKE)
90099-14064

2UZFE..UZJ200

 2
28120A - RING, O(FOR STARTER YOKE)
90099-14064

2UZFE..UZJ200

 2
28140 - HOLDER ASSY, STARTER BRUSH
28140-54380

2UZFE..UZJ200

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-50110

2UZFE..UZJ200

 1
28160 - ARMATURE ASSY, STARTER
28160-75120

2UZFE..UZJ200

 1
Common parts
90119-10597
94151-80800
