UZJ200R-GNAEKW (2007)
Toyota Land Cruiser

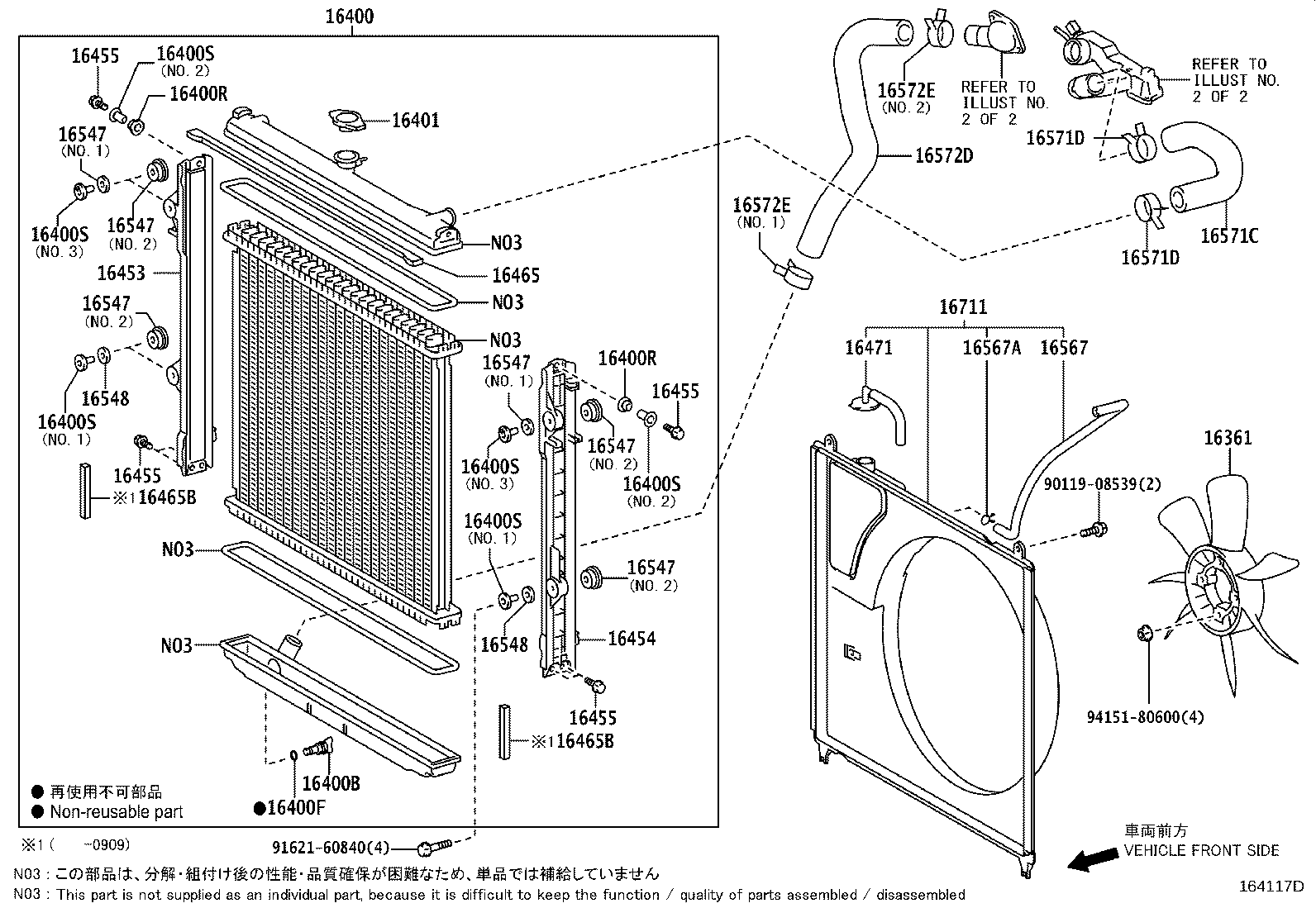

ILLUST NO. 1 OF 2(0709-1201)2UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-50110 |
2UZFE..UZJ200 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-50380 |
2UZFE..UZJ200 |
1 | ||
| 16400-50410 |
2UZFE..UZJ200 |
1 | ||
| 16400-50381 |
2UZFE..UZJ200 |
1 | ||
| 16400-50381 |
2UZFE..UZJ200..RHD SOUTH AFRICA SPEC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
2UZFE..UZJ200 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
2UZFE..UZJ200 |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-50370 |
2UZFE..UZJ200 |
2 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-50370 |
2UZFE..UZJ200 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-50370 |
2UZFE..UZJ200 NO.2 |
2 | ||
| 16445-31570 |
2UZFE..UZJ200 NO.1 |
2 | ||
| 16445-50380 |
2UZFE..UZJ200 NO.3 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-50370 |
2UZFE..UZJ200 NO.2 |
2 | ||
| 16445-31570 |
2UZFE..UZJ200 NO.1 |
2 | ||
| 16445-50380 |
2UZFE..UZJ200 NO.3 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-50370 |
2UZFE..UZJ200 NO.2 |
2 | ||
| 16445-31570 |
2UZFE..UZJ200 NO.1 |
2 | ||
| 16445-50380 |
2UZFE..UZJ200 NO.3 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-50370 |
2UZFE..UZJ200 NO.2 |
2 | ||
| 16445-31570 |
2UZFE..UZJ200 NO.1 |
2 | ||
| 16445-50380 |
2UZFE..UZJ200 NO.3 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-50370 |
2UZFE..UZJ200 NO.2 |
2 | ||
| 16445-31570 |
2UZFE..UZJ200 NO.1 |
2 | ||
| 16445-50380 |
2UZFE..UZJ200 NO.3 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-50370 |
2UZFE..UZJ200 NO.2 |
2 | ||
| 16445-31570 |
2UZFE..UZJ200 NO.1 |
2 | ||
| 16445-50380 |
2UZFE..UZJ200 NO.3 |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-50370 |
2UZFE..UZJ200 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-50370 |
2UZFE..UZJ200 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-50370 |
2UZFE..UZJ200 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-50370 |
2UZFE..UZJ200 |
6 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-50370 |
2UZFE..UZJ200 |
6 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-50370 |
2UZFE..UZJ200 |
6 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-50370 |
2UZFE..UZJ200 |
6 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-50370 |
2UZFE..UZJ200 |
1 | ||
| 16465B - PACKING, RADIATOR, NO.2 | ||||
| 16466-50370 |
2UZFE..UZJ200 |
2 | ||
| 16465B - PACKING, RADIATOR, NO.2 | ||||
| 16466-50370 |
2UZFE..UZJ200 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-50080 |
2UZFE..UZJ200 |
1 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-50380 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 16547-50381 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 16547-50370 |
2UZFE..UZJ200 NO.1 |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-50380 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 16547-50381 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 16547-50370 |
2UZFE..UZJ200 NO.1 |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-50380 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 16547-50381 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 16547-50370 |
2UZFE..UZJ200 NO.1 |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-50380 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 16547-50381 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 16547-50370 |
2UZFE..UZJ200 NO.1 |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-50380 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 16547-50381 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 16547-50370 |
2UZFE..UZJ200 NO.1 |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-50380 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 16547-50381 |
2UZFE..UZJ200 NO.2 |
4 | ||
| 16547-50370 |
2UZFE..UZJ200 NO.1 |
2 | ||
| 16548 - BUSH, RADIATOR SUPPORT, NO.2 | ||||
| 16548-50370 |
2UZFE..UZJ200 |
2 | ||
| 16548 - BUSH, RADIATOR SUPPORT, NO.2 | ||||
| 16548-50370 |
2UZFE..UZJ200 |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16477-50220 |
2UZFE..UZJ200 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-11001 |
2UZFE..UZJ200 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-50240 |
2UZFE..UZJ200 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
2UZFE..UZJ200 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
2UZFE..UZJ200 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-50220 |
2UZFE..UZJ200 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
2UZFE..UZJ200 NO.1 |
1 | ||
| 96136-54801 |
2UZFE..UZJ200 NO.2 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
2UZFE..UZJ200 NO.1 |
1 | ||
| 96136-54801 |
2UZFE..UZJ200 NO.2 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-50220 |
2UZFE..UZJ200 |
1 | ||
| Common parts | ||||
| 90119-08539 | ||||
| 91621-60840 | ||||
| 94151-80600 | ||||

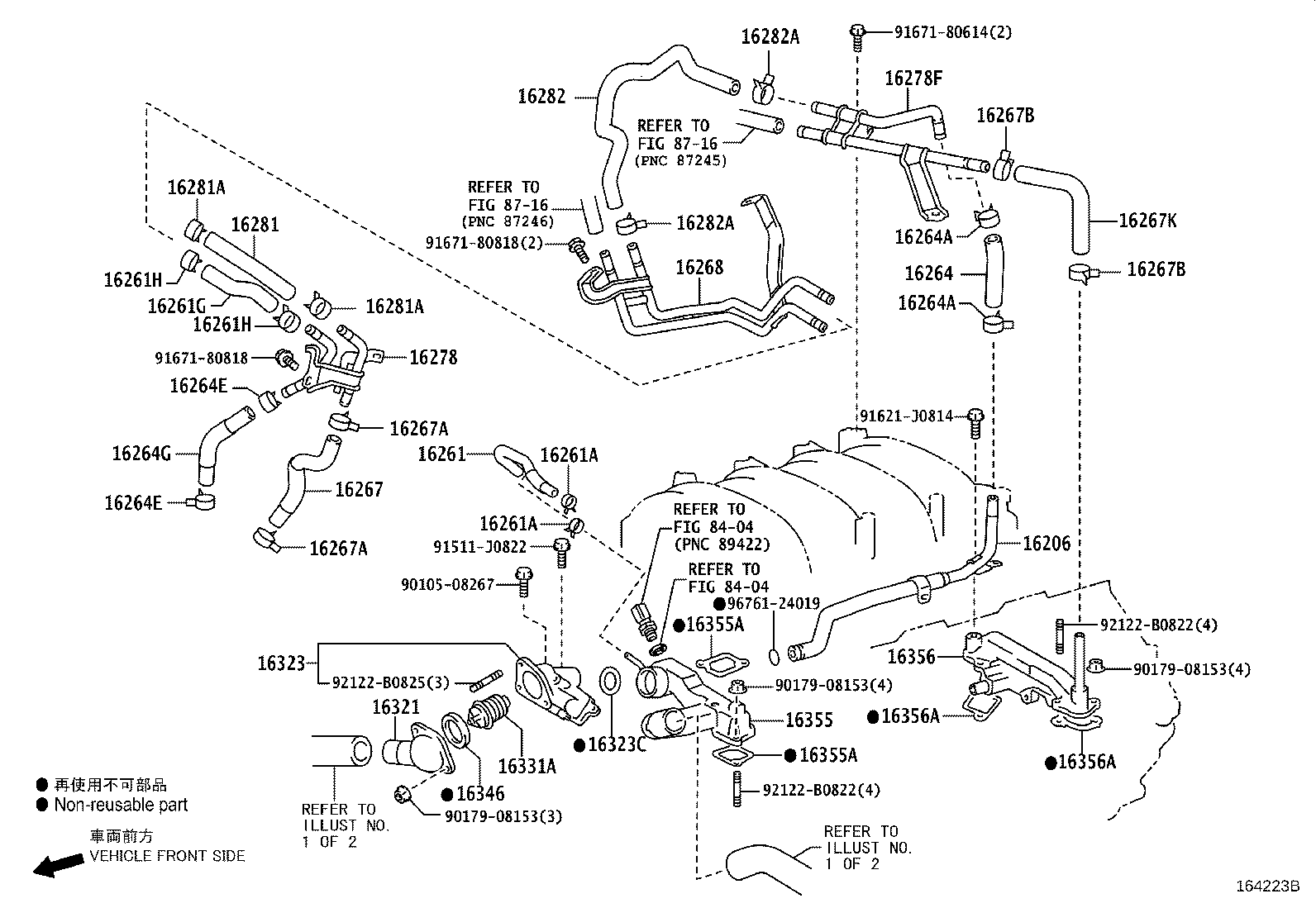

ILLUST NO. 2 OF 2(0709-1201)2UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-50170 |
2UZFE..UZJ200 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-50140 |
2UZFE..UZJ200 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
2UZFE..UZJ200 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
2UZFE..UZJ200 |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-50150 |
2UZFE..UZJ200 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-50080 |
2UZFE..UZJ200 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-50090 |
2UZFE..UZJ200 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-50050 |
2UZFE..UZJ200 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-50040 |
2UZFE..UZJ200 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-50130 |
2UZFE..UZJ200 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-50060 |
2UZFE..UZJ200 |
1 | ||
| 16278F - HOSE, WATER BY-PASS, NO.2 | ||||
| 16278-50070 |
2UZFE..UZJ200 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-50040 |
2UZFE..UZJ200 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-50110 |
2UZFE..UZJ200 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
2UZFE..UZJ200 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-50020 |
2UZFE..UZJ200 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-50110 |
2UZFE..UZJ200 |
1 | ||
| 16323C - RING, O(FOR WATER INLET HOUSING) | ||||
| 96761-35035 |
2UZFE..UZJ200 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03138 |
2UZFE..UZJ200 *WAX 82-95 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-50010 |
2UZFE..UZJ200 |
1 | ||
| 16355 - JOINT, WATER BY-PASS, FRONT | ||||
| 16355-50110 |
2UZFE..UZJ200 |
1 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50020 |
2UZFE..UZJ200 |
2 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50020 |
2UZFE..UZJ200 |
2 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-50130 |
2UZFE..UZJ200 |
1 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50020 |
2UZFE..UZJ200 |
2 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50020 |
2UZFE..UZJ200 |
2 | ||
| Common parts | ||||
| 90105-08267 | ||||
| 90179-08153 | ||||
| 91511-J0822 | ||||
| 91621-J0814 | ||||
| 91671-80614 | ||||
| 91671-80818 | ||||
| 92122-B0822 | ||||
| 92122-B0825 | ||||
| 96761-24019 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8716 | ||||
