UZJ200L-GNAEKW (2007)
Toyota Land Cruiser
Production
Sep 2007
-
Jan 2012
Engine
2UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0709-1508)URJ202,UZJ200..LHD

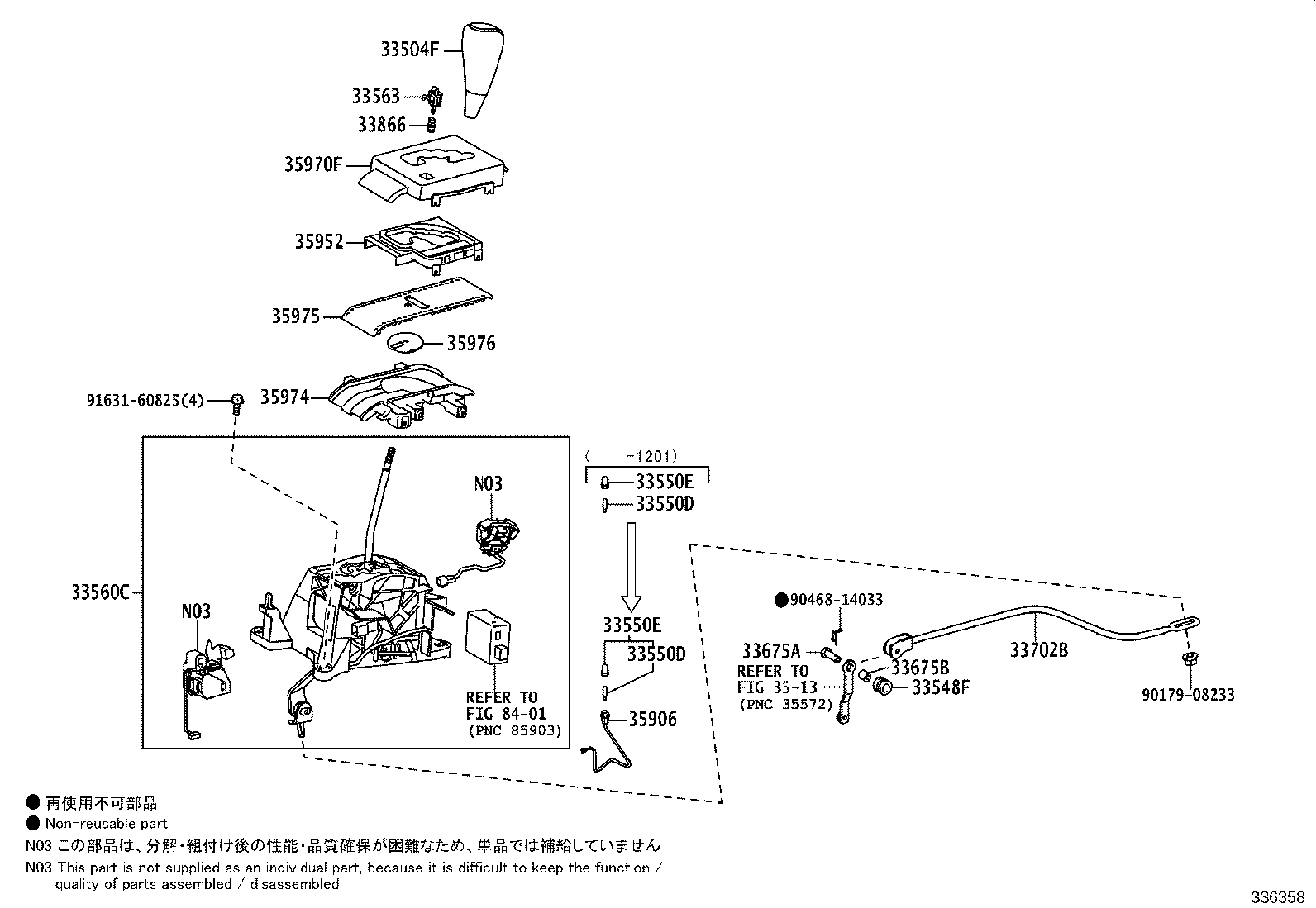

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-60230C0 |
VDJ200..08S;UZJ200..LHD..08S BLACK,TRIM1#,2# |
1 | ||
| 33504-60240E0 |
UZJ200,VDJ200 SHIFT LEVER & KNOB-WOOD & LEATHER,DK. BROWN,TRIM4# |
1 | ||
| 33504-60230E0 |
UZJ200,VDJ200 DK. BROWN,TRIM4# |
1 | ||
| 33504-60240C0 |
VDJ200..08S;UZJ200..LHD..08S SHIFT LEVER & KNOB-WOOD & LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-60060 |
UZJ200,VDJ200 |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
UZJ200,VDJ200 12V 1.2W W/O SOCKET |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
UZJ200,VDJ200 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
UZJ200,VDJ200 |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
UZJ200,VDJ200 |
1 | ||
| 33560C - LEVER ASSY, SHIFT, LOWER | ||||
| 33560-60090 |
UZJ200..LHD |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-60120 |
UZJ200,VDJ200..LHD |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08054 |
UZJ200,VDJ200 |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
UZJ200,VDJ200 |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-60080 |
UZJ200 |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-42020 |
UZJ200,VDJ200 |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-21020 |
UZJ200,VDJ200 |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-60010 |
UZJ200,VDJ200..LHD |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35970-60060 |
UZJ200,VDJ200..LHD |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-60120 |
UZJ200,VDJ200..LHD |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-60110 |
UZJ200,VDJ200 |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-60040 |
UZJ200,VDJ200 |
1 | ||
| Common parts | ||||
| 90179-08233 | ||||
| 90468-14033 | ||||
| 91631-60825 | ||||
| Linked diagrams | ||||
| 3513 | ||||
| 8401 | ||||
