UZJ200L-GMAEKW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )

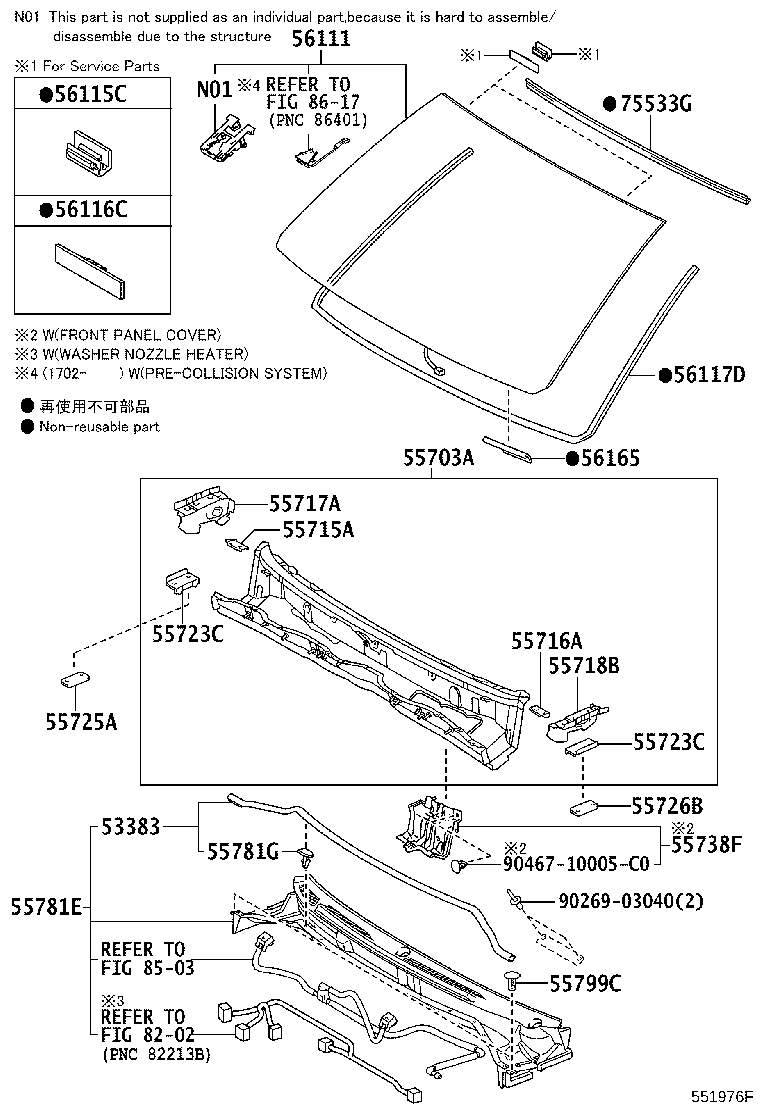

Click highlighted areas on diagram

diagram 53383 55703A 55715A 55716A 55717A 55718B 55723C 55723C 55725A 55726B 55738F 55781E 55781G 55799C 56111 56115C 56116C 56117D 56165 75533G 8202 8503 8617 9026903040 9046710005C0
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-60070

UZJ200,VDJ200

 1
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-60290

UZJ200,VDJ200..LHD

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-60040

UZJ200,VDJ200

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-60040

UZJ200,VDJ200

 1
55717A - PANEL, COWL TOP SIDE, INNER RH
55717-60050

UZJ200,VDJ200

 1
55718B - PANEL, COWL TOP SIDE, INNER LH
55718-60060

UZJ200,VDJ200

 1
55723C - REINFORCEMENT, COWL TOP SIDE, RH
55723-60020

UZJ200,VDJ200

 2
55723C - REINFORCEMENT, COWL TOP SIDE, RH
55723-60020

UZJ200,VDJ200

 2
55725A - REINFORCEMENT, HOOD HINGE MOUNTING, RH
55725-60040

UZJ200,VDJ200

 1
55726B - REINFORCEMENT, HOOD HINGE MOUNTING, LH
55725-60040

UZJ200,VDJ200

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-60100

UZJ200..LHD

COLD SPEC

 1
55708-60090

UZJ200,VDJ200..LHD

 1
55708-60091

UZJ200,VDJ200..LHD

 1
55708-60101

UZJ200..LHD

COLD SPEC

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-08108

UZJ200,VDJ200

 10
55799C - CLIP, COWL TOP VENTILATOR LOUVER
55799-60020

UZJ200,VDJ200

 2
56111 - GLASS, WINDSHIELD
56101-60905

UZJ200..LHD

*LAM,T=5.36,GREEN

 1
56101-60908

UZJ200..LHD

*EHL,T=5.36,GREEN,COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)

 1
56101-60907

UZJ200..LHD

*EHL,T=5.36,GREEN,COLD SPEC

 1
56101-60908

UZJ200..LHD

*EHL,T=5.36,GREEN,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)

 1
56115C - STOPPER, WINDSHIELD GLASS
56115-30100

UZJ200,VDJ200

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

UZJ200,VDJ200

 2
56117D - DAM, WINDSHIELD GLASS ADHESIVE
56117-60100

UZJ200,VDJ200

L=2914

 1
56117-60100

UZJ200..LHD

L=2914,COLD SPEC

 1
56117-60100

UZJ200..LHD

L=2914,COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)

 1
56117-60100

UZJ200,VDJ200..LHD

L=2914,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)

 1
56165 - COVER, FRONT WINDOW INNER MOULDING, LH
56165-60010

UZJ200,VDJ200

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75531-60050

UZJ200,VDJ200

 1
Common parts
90269-03040
90467-10005C0
Linked diagrams
8202
8503
8617
