UZJ200L-GMAEKW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )LHD

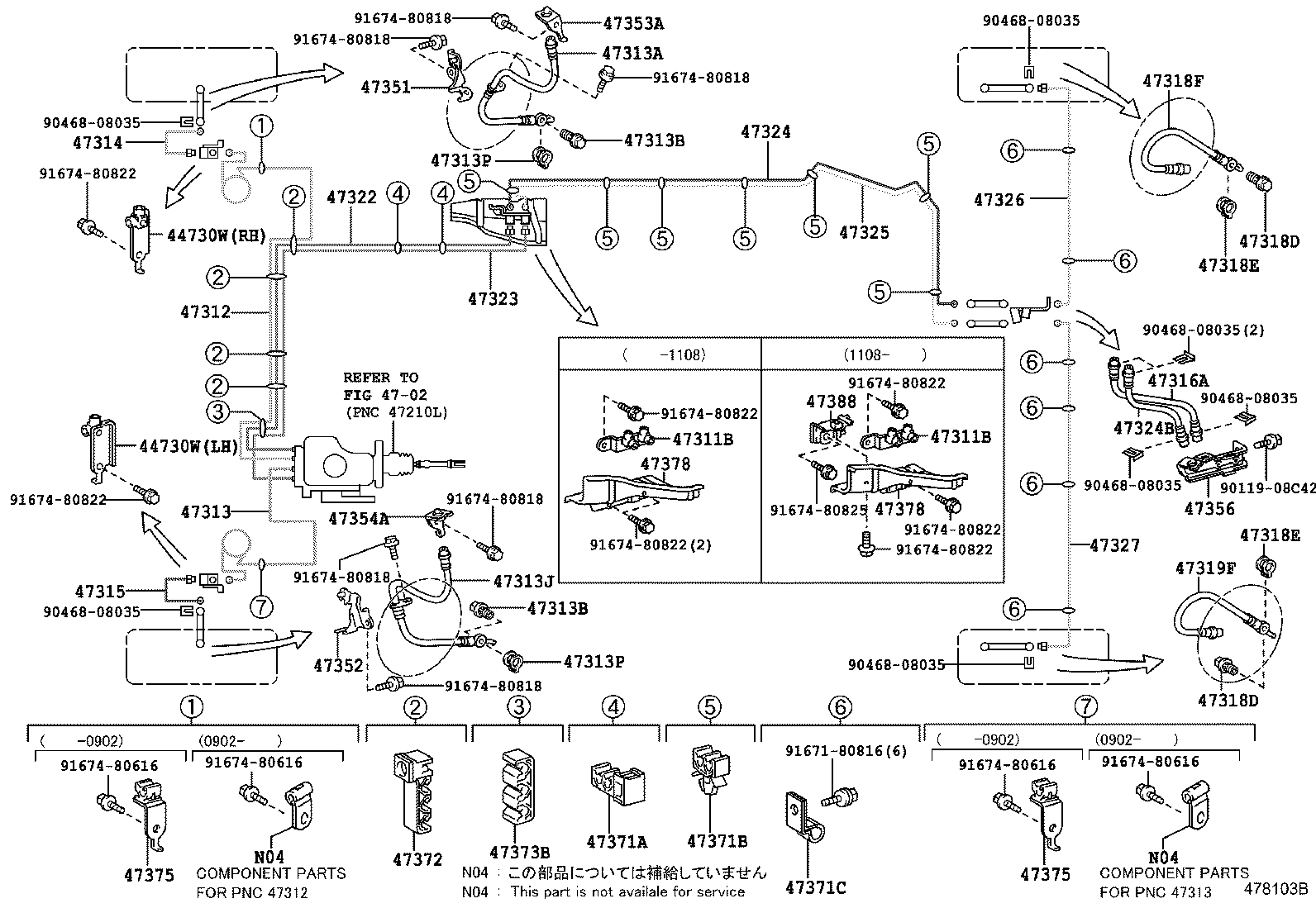

Click highlighted areas on diagram

diagram 44730W 44730W 4702 47311B 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47315 47316A 47318D 47318D 47318E 47318E 47318F 47319F 47322 47323 47324 47324B 47325 47326 47327 47351 47352 47353A 47354A 47356 47371A 47371B 47371C 47372 47373B 47375 47375 47378 47378 47388 9011908C42 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180816 9167480616 9167480616 9167480616 9167480616 9167480818 9167480818 9167480818 9167480818 9167480818 9167480818 9167480822 9167480822 9167480822 9167480822 9167480822 9167480822 9167480822 9167480825
Part # Description Qty Price
44730W - WAY, 2(FOR FRONT BRAKE TUBE)
90412-10267

UZJ200,VDJ200

LH

 1
90412-10266

UZJ200,VDJ200

RH

 1
44730W - WAY, 2(FOR FRONT BRAKE TUBE)
90412-10267

UZJ200,VDJ200

LH

 1
90412-10266

UZJ200,VDJ200

RH

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10276

UZJ200,VDJ200

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10276

UZJ200,VDJ200

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-60A51

UZJ200,VDJ200..LHD

 1
47312-60A50

UZJ200,VDJ200..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60440

UZJ200,VDJ200..LHD

 1
47313-60441

UZJ200,VDJ200..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F42

UZJ200,VDJ200

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

UZJ200,VDJ200

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

UZJ200,VDJ200

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02F43

UZJ200,VDJ200

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

UZJ200,VDJ200

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

UZJ200,VDJ200

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-60290

UZJ200,VDJ200

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-60530

UZJ200,VDJ200

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F40

UZJ200,VDJ200

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

UZJ200,VDJ200

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

UZJ200,VDJ200

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

UZJ200,VDJ200

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

UZJ200,VDJ200

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02F37

UZJ200,VDJ200

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02F37

UZJ200,VDJ200

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-60A60

UZJ200,VDJ200..LHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-60820

UZJ200,VDJ200..LHD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-60370

UZJ200,VDJ200

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
90947-02F41

UZJ200,VDJ200

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-60330

UZJ200,VDJ200

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-60350

UZJ200,VDJ200

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-60201

UZJ200,VDJ200

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-60290

UZJ200,VDJ200

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-60180

UZJ200,VDJ200

 1
47353A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.2
47353-60140

UZJ200,VDJ200

 1
47354A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.2
47353-60140

UZJ200,VDJ200

 1
47356 - BRACKET, FLEXIBLE HOSE, NO.6
47356-60020

UZJ200,VDJ200

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D60

UZJ200,VDJ200

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90469-07022

UZJ200,VDJ200

 7
47371C - CLAMP, BRAKE TUBE, NO.7
90461-08639

UZJ200,VDJ200

 6
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D61

UZJ200,VDJ200..LHD

 4
47373B - CLAMP, BRAKE TUBE, NO.3
90464-00909

UZJ200,VDJ200..LHD

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-04049

UZJ200,VDJ200..LHD

 2
47375 - CLAMP, BRAKE TUBE, NO.5
90949-04049

UZJ200,VDJ200..LHD

 2
47378 - PROTECTOR, BRAKE TUBE
47378-60080

UZJ200,VDJ200

 1
47378-60050

UZJ200,VDJ200

 1
47378 - PROTECTOR, BRAKE TUBE
47378-60080

UZJ200,VDJ200

 1
47378-60050

UZJ200,VDJ200

 1
47388 - PROTECTOR, BRAKE TUBE, LOWER
47388-60010

UZJ200,VDJ200

 1
Common parts
90119-08C42
90468-08035
91671-80816
91674-80616
91674-80818
91674-80822
91674-80825
Linked diagrams
4702
