Toyota Land cruiser UZJ200 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
EU
LAND CRUISER
UZJ200L-GMAEKW (2007)
4501 - STEERING COLUMN & SHAFT

UZJ200L-GMAEKW (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012

Engine 2UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0709- )

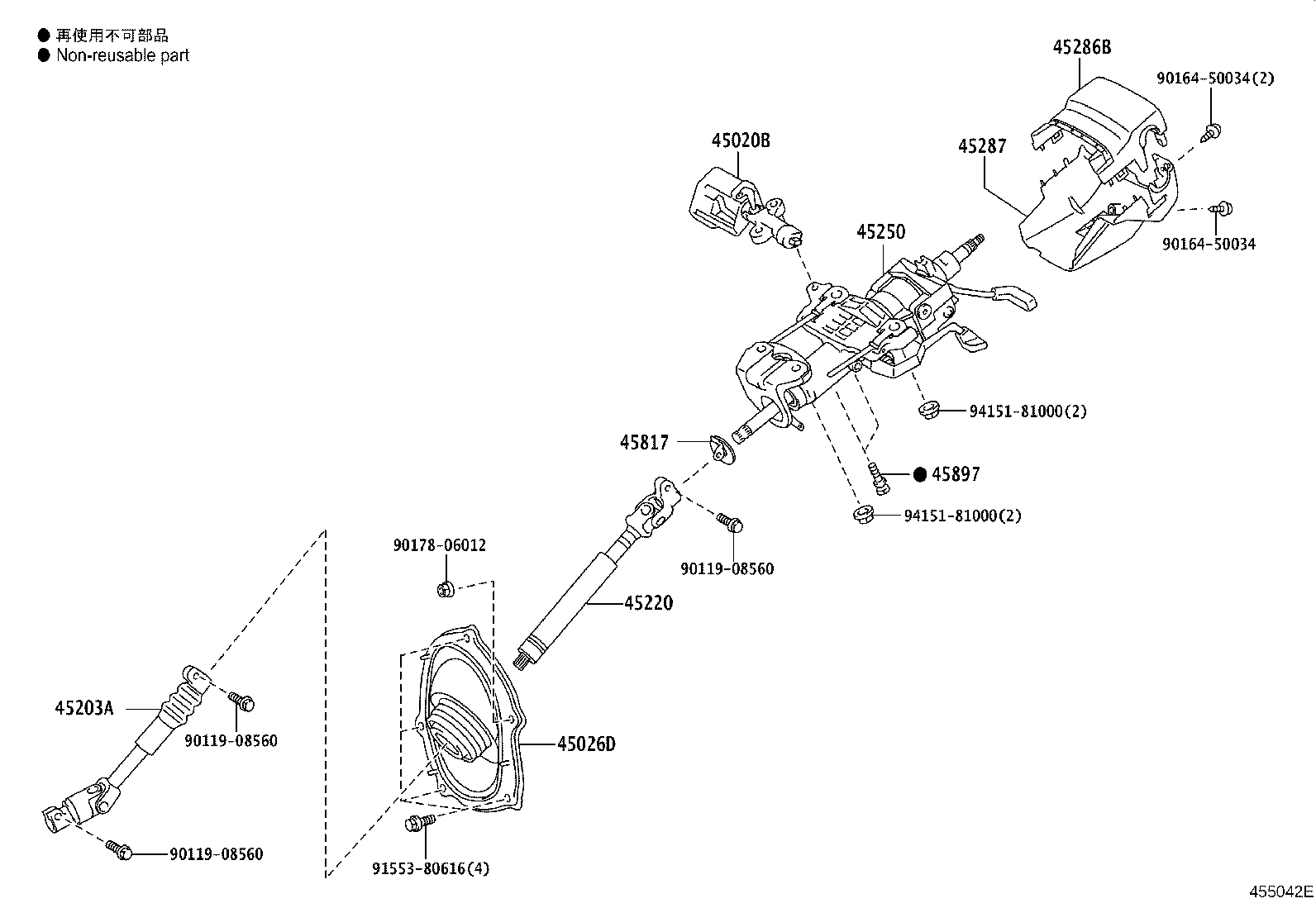

Click highlighted areas on diagram

MANUAL TILT & TELESCOPIC

Part #	Description	Period	Qty
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-30A60	UZJ200,VDJ200	09/2007 - 01/2012	1
45026D - COVER SUB-ASSY, STEERING COLUMN HOLE
45025-60190	UZJ200,VDJ200..LHD ACTIVE HEIGHT CONTROL	09/2007 - 01/2012	1
45025-60170	UZJ200,VDJ200..LHD	09/2007 - 01/2012	1
45203A - SHAFT, STEERING INTERMEDIATE, NO.2
45203-60140	UZJ200,VDJ200..LHD	09/2007 - 09/2011	1
45203-60141	UZJ200,VDJ200..LHD	09/2011 - 01/2012	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-60230	UZJ200,VDJ200..LHD	09/2007 - 09/2011	1
45240-60100	UZJ200,VDJ200..LHD ACTIVE HEIGHT CONTROL	09/2007 - 01/2012	1
45220-60231	UZJ200,VDJ200..LHD	09/2011 - 01/2012	1
45250 - COLUMN ASSY, STEERING
45810-60090	UZJ200;VDJ200..RHD ACTIVE HEIGHT CONTROL&FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER)	09/2007 - 08/2010	1
45810-60080	UZJ200;VDJ200..RHD FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER)	09/2007 - 08/2010	1
45810-60080	UZJ200;VDJ200..RHD	08/2010 - 07/2011	1
45250-60A10	UZJ200;VDJ200..RHD	09/2007 - 08/2010	1
45810-60090	UZJ200 ACTIVE HEIGHT CONTROL	08/2010 - 07/2011	1
45810-60090	UZJ200;VDJ200..LHD ACTIVE HEIGHT CONTROL	09/2007 - 05/2009	1
45810-60081	UZJ200;VDJ200..RHD	07/2011 - 01/2012	1
45810-60091	UZJ200;VDJ200..RHD ACTIVE HEIGHT CONTROL	07/2011 - 01/2012	1
45286B - COVER, STEERING COLUMN, UPR
45286-60480E0	UZJ200,VDJ200 ACTIVE HEIGHT CONTROL&FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),DK. BROWN,TRIM4#	09/2007 - 05/2009	1
45286-60480E0	UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,DK. BROWN,TRIM4#	09/2007 - 05/2009	1
45286-60480C0	UZJ200..RHD;UZJ200..05S FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),BLACK,TRIM1#	09/2007 - 08/2010	1
45286-60480C0	UZJ200..RHD;UZJ200,VDJ200..05S ACTIVE HEIGHT CONTROL&FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),BLACK,TRIM1#	09/2007 - 05/2009	1
45286-60480C0	UZJ200..RHD;UZJ200,VDJ200..05S ACTIVE HEIGHT CONTROL,BLACK,TRIM1#	09/2007 - 05/2009	1
45286-60480C0	UZJ200..RHD;UZJ200..05S BLACK,TRIM1#	08/2010 - 01/2012	1
45286-60490E0	UZJ200;VDJ200..RHD DK. BROWN,TRIM4#	09/2007 - 08/2010	1
45286-60490C0	UZJ200;VDJ200..RHD BLACK,TRIM1#	09/2007 - 08/2010	1
45286-60480E0	UZJ200;VDJ200..RHD FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),DK. BROWN,TRIM4#	09/2007 - 08/2010	1
45286-60480E0	UZJ200;VDJ200..RHD DK. BROWN,TRIM4#	08/2010 - 01/2012	1
45287 - COVER, STEERING COLUMN, LWR
45287-60500C0	UZJ200,VDJ200 FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),BLACK,TRIM1#	09/2007 - 05/2010	1
45287-60500C0	UZJ200,VDJ200 ACTIVE HEIGHT CONTROL&FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),BLACK,TRIM1#	09/2007 - 05/2009	1
45287-60500E0	UZJ200,VDJ200 FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),DK. BROWN,TRIM4#	09/2007 - 05/2010	1
45287-60500C0	UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,BLACK,TRIM1#	09/2007 - 05/2009	1
45287-60500E0	UZJ200,VDJ200 ACTIVE HEIGHT CONTROL&FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),DK. BROWN,TRIM4#	09/2007 - 05/2009	1
45287-60500E0	UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,DK. BROWN,TRIM4#	09/2007 - 05/2009	1
45287-60501C0	UZJ200..RHD;UZJ200..05S FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),BLACK,TRIM1#	06/2010 - 08/2010	1
45287-60501C0	UZJ200..RHD;UZJ200..05S BLACK,TRIM1#	08/2010 - 01/2012	1
45287-60501E0	UZJ200;VDJ200..RHD DK. BROWN,TRIM4#	08/2010 - 01/2012	1
45287-60501E0	UZJ200;VDJ200..RHD FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),DK. BROWN,TRIM4#	06/2010 - 08/2010	1
45287-60510C0	UZJ200;VDJ200..RHD BLACK,TRIM1#	09/2007 - 08/2010	1
45287-60510E0	UZJ200;VDJ200..RHD DK. BROWN,TRIM4#	09/2007 - 08/2010	1
45817 - STOPPER, STEERING SHAFT THRUST
45817-60020	UZJ200,VDJ200	09/2007 - 01/2012	1
45897 - BOLT, STEERING LOCK SET
45897-12020	UZJ200,VDJ200	09/2007 - 01/2012	2
Common parts
90119-08560
90164-50034
90178-06012
91553-80616
94151-81000

(0709- )

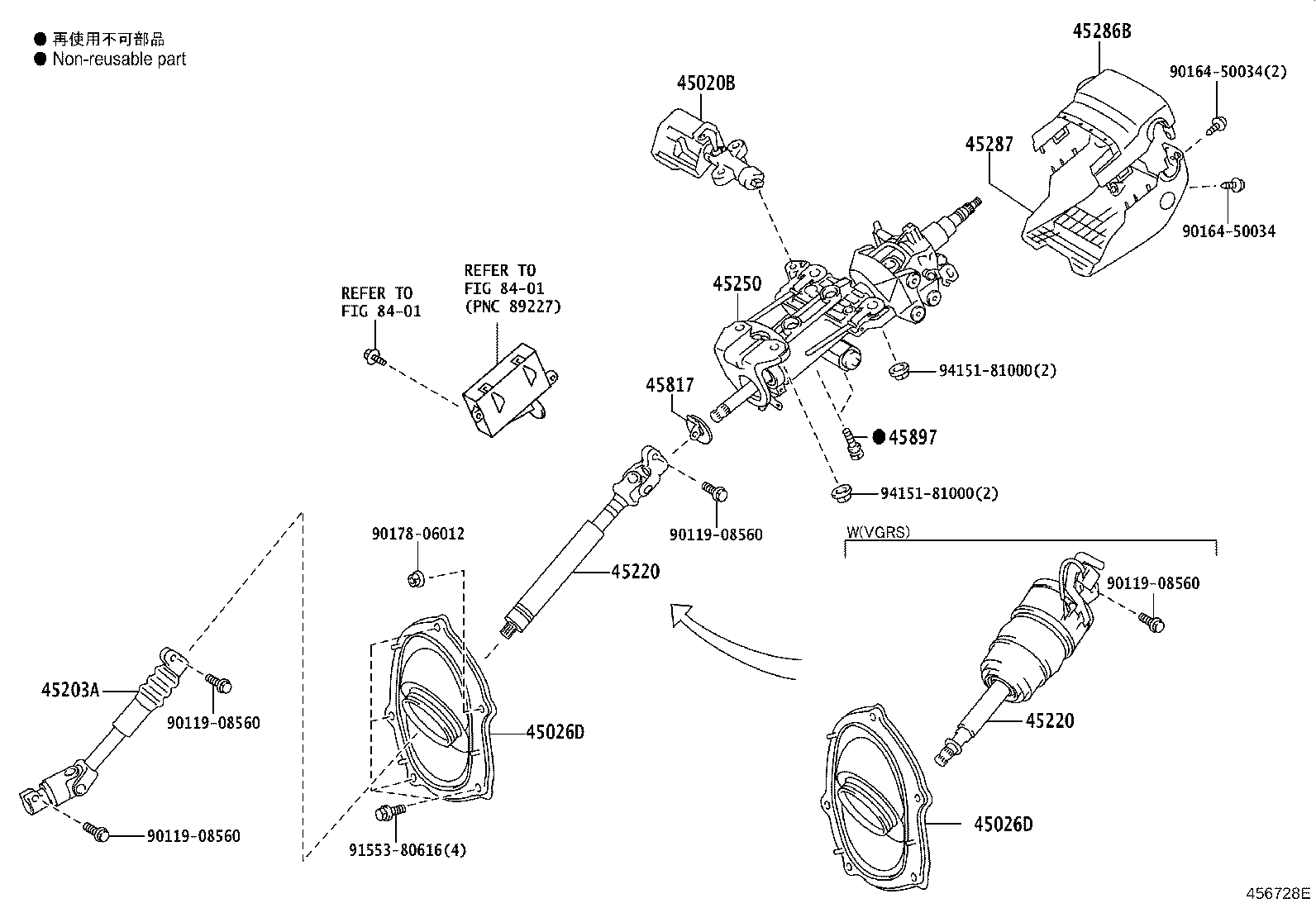

Click highlighted areas on diagram

ELECTRIC TILT & TELESCOPIC

Part #	Description	Period	Qty
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-30A60	UZJ200,VDJ200	09/2007 - 01/2012	1
45026D - COVER SUB-ASSY, STEERING COLUMN HOLE
45025-60190	UZJ200,VDJ200..LHD ACTIVE HEIGHT CONTROL	09/2007 - 01/2012	1
45025-60170	UZJ200,VDJ200..LHD	09/2007 - 01/2012	1
45026D - COVER SUB-ASSY, STEERING COLUMN HOLE
45025-60190	UZJ200,VDJ200..LHD ACTIVE HEIGHT CONTROL	09/2007 - 01/2012	1
45025-60170	UZJ200,VDJ200..LHD	09/2007 - 01/2012	1
45203A - SHAFT, STEERING INTERMEDIATE, NO.2
45203-60140	UZJ200,VDJ200..LHD	09/2007 - 09/2011	1
45203-60141	UZJ200,VDJ200..LHD	09/2011 - 01/2012	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-60230	UZJ200,VDJ200..LHD	09/2007 - 09/2011	1
45240-60100	UZJ200,VDJ200..LHD ACTIVE HEIGHT CONTROL	09/2007 - 01/2012	1
45220-60231	UZJ200,VDJ200..LHD	09/2011 - 01/2012	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-60230	UZJ200,VDJ200..LHD	09/2007 - 09/2011	1
45240-60100	UZJ200,VDJ200..LHD ACTIVE HEIGHT CONTROL	09/2007 - 01/2012	1
45220-60231	UZJ200,VDJ200..LHD	09/2011 - 01/2012	1
45250 - COLUMN ASSY, STEERING
45810-60090	UZJ200;VDJ200..RHD ACTIVE HEIGHT CONTROL&FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER)	09/2007 - 08/2010	1
45810-60080	UZJ200;VDJ200..RHD FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER)	09/2007 - 08/2010	1
45810-60080	UZJ200;VDJ200..RHD	08/2010 - 07/2011	1
45250-60A10	UZJ200;VDJ200..RHD	09/2007 - 08/2010	1
45810-60090	UZJ200 ACTIVE HEIGHT CONTROL	08/2010 - 07/2011	1
45810-60090	UZJ200;VDJ200..LHD ACTIVE HEIGHT CONTROL	09/2007 - 05/2009	1
45810-60081	UZJ200;VDJ200..RHD	07/2011 - 01/2012	1
45810-60091	UZJ200;VDJ200..RHD ACTIVE HEIGHT CONTROL	07/2011 - 01/2012	1
45286B - COVER, STEERING COLUMN, UPR
45286-60480E0	UZJ200,VDJ200 ACTIVE HEIGHT CONTROL&FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),DK. BROWN,TRIM4#	09/2007 - 05/2009	1
45286-60480E0	UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,DK. BROWN,TRIM4#	09/2007 - 05/2009	1
45286-60480C0	UZJ200..RHD;UZJ200..05S FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),BLACK,TRIM1#	09/2007 - 08/2010	1
45286-60480C0	UZJ200..RHD;UZJ200,VDJ200..05S ACTIVE HEIGHT CONTROL&FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),BLACK,TRIM1#	09/2007 - 05/2009	1
45286-60480C0	UZJ200..RHD;UZJ200,VDJ200..05S ACTIVE HEIGHT CONTROL,BLACK,TRIM1#	09/2007 - 05/2009	1
45286-60480C0	UZJ200..RHD;UZJ200..05S BLACK,TRIM1#	08/2010 - 01/2012	1
45286-60490E0	UZJ200;VDJ200..RHD DK. BROWN,TRIM4#	09/2007 - 08/2010	1
45286-60490C0	UZJ200;VDJ200..RHD BLACK,TRIM1#	09/2007 - 08/2010	1
45286-60480E0	UZJ200;VDJ200..RHD FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),DK. BROWN,TRIM4#	09/2007 - 08/2010	1
45286-60480E0	UZJ200;VDJ200..RHD DK. BROWN,TRIM4#	08/2010 - 01/2012	1
45287 - COVER, STEERING COLUMN, LWR
45287-60500C0	UZJ200,VDJ200 FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),BLACK,TRIM1#	09/2007 - 05/2010	1
45287-60500C0	UZJ200,VDJ200 ACTIVE HEIGHT CONTROL&FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),BLACK,TRIM1#	09/2007 - 05/2009	1
45287-60500E0	UZJ200,VDJ200 FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),DK. BROWN,TRIM4#	09/2007 - 05/2010	1
45287-60500C0	UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,BLACK,TRIM1#	09/2007 - 05/2009	1
45287-60500E0	UZJ200,VDJ200 ACTIVE HEIGHT CONTROL&FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),DK. BROWN,TRIM4#	09/2007 - 05/2009	1
45287-60500E0	UZJ200,VDJ200 ACTIVE HEIGHT CONTROL,DK. BROWN,TRIM4#	09/2007 - 05/2009	1
45287-60501C0	UZJ200..RHD;UZJ200..05S FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),BLACK,TRIM1#	06/2010 - 08/2010	1
45287-60501C0	UZJ200..RHD;UZJ200..05S BLACK,TRIM1#	08/2010 - 01/2012	1
45287-60501E0	UZJ200;VDJ200..RHD DK. BROWN,TRIM4#	08/2010 - 01/2012	1
45287-60501E0	UZJ200;VDJ200..RHD FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),DK. BROWN,TRIM4#	06/2010 - 08/2010	1
45287-60510C0	UZJ200;VDJ200..RHD BLACK,TRIM1#	09/2007 - 08/2010	1
45287-60510E0	UZJ200;VDJ200..RHD DK. BROWN,TRIM4#	09/2007 - 08/2010	1
45817 - STOPPER, STEERING SHAFT THRUST
45817-60020	UZJ200,VDJ200	09/2007 - 01/2012	1
45897 - BOLT, STEERING LOCK SET
45897-12020	UZJ200,VDJ200	09/2007 - 01/2012	2
Common parts
90119-08560
90164-50034
90178-06012
91553-80616
94151-81000
