URJ202R-GNTEKW (2012)
Toyota Land Cruiser

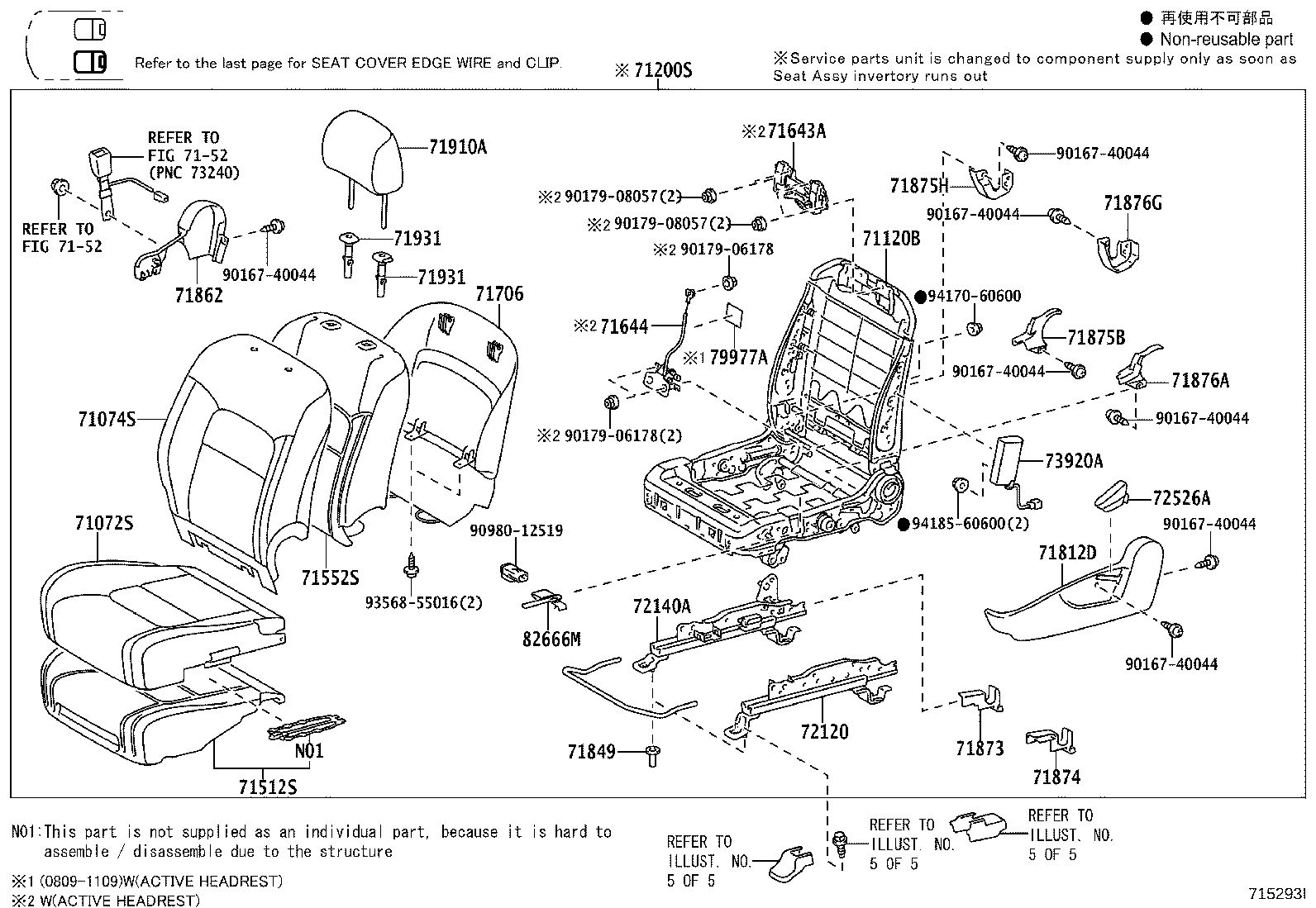

ILLUST NO. 1 OF 5(0709-1508)RHD
PASSENGER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60F00C1 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 71072-60F00A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71072-60F01A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71072-60F01C1 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-60E00A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71074-60E00C1 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-60760 |
URJ202,VDJ200..RHD |
1 | ||
| 71120-60761 |
URJ202,VDJ200..RHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60390 |
URJ202,VDJ200..RHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60170 |
URJ202;VDJ200..RHD |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
URJ202,VDJ200..RHD |
2 | ||
| 71643-12011 |
URJ202,VDJ200..RHD |
1 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
URJ202,VDJ200..RHD |
1 | ||
| 71644-12030 |
URJ202,VDJ200..RHD |
2 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-60130A1 |
URJ202,VDJ200 SHELL,TRIM0# |
1 | ||
| 71706-60130C0 |
URJ202,VDJ200 BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28360A0 |
URJ202,VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71812-28360C0 |
URJ202..RHD BLACK,TRIM2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
URJ202,VDJ200 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100A2 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71862-60100C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-30020 |
URJ202;VDJ200..RHD |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
URJ202;VDJ200..RHD |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-60170A3 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71876-60170C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
URJ202;VDJ200..RHD |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60150A4 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71876-60150C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60140 |
URJ202;VDJ200..RHD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60A30C0 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
2 | ||
| 71910-60A30A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020A2 |
URJ202,VDJ200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-44020C0 |
URJ202;VDJ200..RHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010A3 |
URJ202,VDJ200 W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-48010C0 |
URJ202;VDJ200..RHD W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020A2 |
URJ202,VDJ200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-44020C0 |
URJ202;VDJ200..RHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010A3 |
URJ202,VDJ200 W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-48010C0 |
URJ202;VDJ200..RHD W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-60020 |
URJ202,VDJ200 |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-58030 |
URJ202,VDJ200 |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90980-12519 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 5(0709-1508)RHD
DRIVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-60F50A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71071-60F50C1 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 71071-60F51A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71071-60F51C1 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-60D90A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71073-60D90C1 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-60600 |
URJ202,VDJ200..RHD |
1 | ||
| 71110-60601 |
URJ202,VDJ200..RHD |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60580 |
URJ202,VDJ200..RHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60170 |
URJ202;VDJ200..RHD |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
URJ202,VDJ200..RHD |
2 | ||
| 71643-12011 |
URJ202,VDJ200..RHD |
1 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
URJ202,VDJ200..RHD |
1 | ||
| 71644-12030 |
URJ202,VDJ200..RHD |
2 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-60340A1 |
URJ202,VDJ200 SHELL,TRIM0# |
1 | ||
| 71705-60340C0 |
URJ202,VDJ200 BLACK,TRIM2# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42100C0 |
URJ202..RHD BLACK,TRIM2# |
1 | ||
| 71811-42100A1 |
URJ202,VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
URJ202,VDJ200 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60110C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71861-60110A2 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-30020 |
URJ202;VDJ200..RHD |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
URJ202;VDJ200..RHD |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58030A3 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71875-58030C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58050 |
URJ202;VDJ200..RHD |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60150A2 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71875-60150C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58050 |
URJ202;VDJ200..RHD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60A30A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
2 | ||
| 71910-60A30C0 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020A2 |
URJ202,VDJ200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-44020C0 |
URJ202;VDJ200..RHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010A3 |
URJ202,VDJ200 W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-48010C0 |
URJ202;VDJ200..RHD W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020A2 |
URJ202,VDJ200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-44020C0 |
URJ202;VDJ200..RHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010A3 |
URJ202,VDJ200 W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-48010C0 |
URJ202;VDJ200..RHD W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30260 |
URJ202,VDJ200..RHD |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-60020 |
URJ202,VDJ200 |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90389-10041 | ||||
| 93269-14008 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

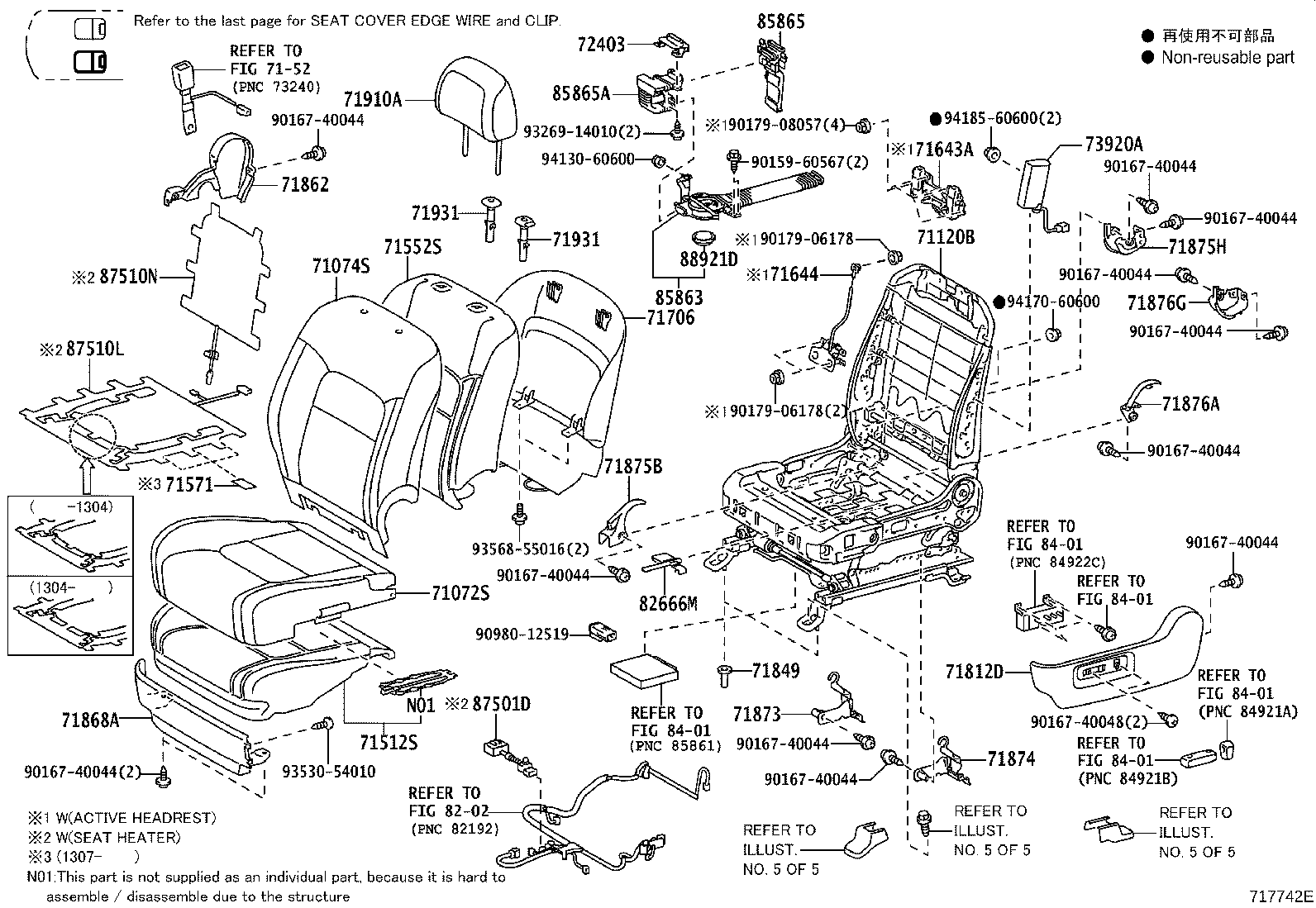

ILLUST NO. 1 OF 5(1201-1508)RHD
PASSENGER W(SEAT AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60F00C1 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 71072-60F00A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71072-60F01A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71072-60F01C1 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-60E00A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71074-60E00C1 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-60760 |
URJ202,VDJ200..RHD |
1 | ||
| 71120-60761 |
URJ202,VDJ200..RHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60390 |
URJ202,VDJ200..RHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60170 |
URJ202;VDJ200..RHD |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-60050 |
URJ202;VDJ200..RHD |
6 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
URJ202,VDJ200..RHD |
2 | ||
| 71643-12011 |
URJ202,VDJ200..RHD |
1 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
URJ202,VDJ200..RHD |
1 | ||
| 71644-12030 |
URJ202,VDJ200..RHD |
2 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-60130A1 |
URJ202,VDJ200 SHELL,TRIM0# |
1 | ||
| 71706-60130C0 |
URJ202,VDJ200 BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28360A0 |
URJ202,VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71812-28360C0 |
URJ202..RHD BLACK,TRIM2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
URJ202,VDJ200 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100A2 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71862-60100C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-60040A2 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71868-60040C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-30020 |
URJ202;VDJ200..RHD |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
URJ202;VDJ200..RHD |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-60170A3 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71876-60170C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
URJ202;VDJ200..RHD |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60150A4 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71876-60150C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60140 |
URJ202;VDJ200..RHD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60A30A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
2 | ||
| 71910-60A30C0 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020A2 |
URJ202,VDJ200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-44020C0 |
URJ202;VDJ200..RHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010A3 |
URJ202,VDJ200 W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-48010C0 |
URJ202;VDJ200..RHD W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020A2 |
URJ202,VDJ200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-44020C0 |
URJ202;VDJ200..RHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010A3 |
URJ202,VDJ200 W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-48010C0 |
URJ202;VDJ200..RHD W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-60020 |
URJ202,VDJ200 |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-58030 |
URJ202,VDJ200 |
1 | ||
| 85863 - BLOWER, SEAT CLIMATE CONTROL, LH | ||||
| 85863-60010 |
URJ202;VDJ200..RHD |
1 | ||
| 85865 - CONTROLLER, SEAT CLIMATE CONTROL,LH | ||||
| 85865-60030 |
URJ202;VDJ200..RHD |
1 | ||
| 85865A - CONTROLLER, SEAT CLIMATE CONTROL, LH | ||||
| 85865-60040 |
URJ202;VDJ200..RHD |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-60611 |
URJ202;VDJ200..RHD |
1 | ||
| 87510-60610 |
URJ202;VDJ200..RHD |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-60590 |
URJ202;VDJ200..RHD |
1 | ||
| 88921D - FILTER, AIR, NO.1 | ||||
| 88921-60010 |
URJ202;VDJ200..RHD |
2 | ||
| Common parts | ||||
| 90159-60567 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90980-12519 | ||||
| 93269-14010 | ||||
| 93530-54010 | ||||
| 93568-55016 | ||||
| 94130-60600 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
ILLUST NO. 1 OF 5(1201-1508)RHD
DRIVER W(SEAT AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-60F50A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71071-60F50C1 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 71071-60F51A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71071-60F51C1 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-60D90A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71073-60D90C1 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-60600 |
URJ202,VDJ200..RHD |
1 | ||
| 71110-60601 |
URJ202,VDJ200..RHD |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60580 |
URJ202,VDJ200..RHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60170 |
URJ202;VDJ200..RHD |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-60050 |
URJ202;VDJ200..RHD |
6 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
URJ202,VDJ200..RHD |
2 | ||
| 71643-12011 |
URJ202,VDJ200..RHD |
1 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
URJ202,VDJ200..RHD |
1 | ||
| 71644-12030 |
URJ202,VDJ200..RHD |
2 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-60340A1 |
URJ202,VDJ200 SHELL,TRIM0# |
1 | ||
| 71705-60340C0 |
URJ202,VDJ200 BLACK,TRIM2# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42100C0 |
URJ202..RHD BLACK,TRIM2# |
1 | ||
| 71811-42100A1 |
URJ202,VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
URJ202,VDJ200 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60110C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71861-60110A2 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-60040A2 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71867-60040C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-30020 |
URJ202;VDJ200..RHD |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
URJ202;VDJ200..RHD |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58030A3 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71875-58030C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58050 |
URJ202;VDJ200..RHD |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60150A2 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 71875-60150C0 |
URJ202 BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58050 |
URJ202;VDJ200..RHD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60A30A1 |
URJ202;VDJ200..RHD SHELL,TRIM0# |
2 | ||
| 71910-60A30C0 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020A2 |
URJ202,VDJ200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-44020C0 |
URJ202;VDJ200..RHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010A3 |
URJ202,VDJ200 W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-48010C0 |
URJ202;VDJ200..RHD W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020A2 |
URJ202,VDJ200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-44020C0 |
URJ202;VDJ200..RHD W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-48010A3 |
URJ202,VDJ200 W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-48010C0 |
URJ202;VDJ200..RHD W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30260 |
URJ202,VDJ200..RHD |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-60020 |
URJ202,VDJ200 |
1 | ||
| 85862 - BLOWER, SEAT CLIMATE CONTROL, RH | ||||
| 85862-60010 |
URJ202;VDJ200..RHD |
1 | ||
| 85864 - CONTROLLER, SEAT CLIMATE CONTROL,RH | ||||
| 85864-60030 |
URJ202;VDJ200..RHD |
1 | ||
| 85864A - CONTROLLER, SEAT CLIMATE CONTROL, RH | ||||
| 85864-60040 |
URJ202;VDJ200..RHD |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-60601 |
URJ202;VDJ200..RHD |
1 | ||
| 87510-60600 |
URJ202;VDJ200..RHD |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-60590 |
URJ202;VDJ200..RHD |
1 | ||
| 88921D - FILTER, AIR, NO.1 | ||||
| 88921-60010 |
URJ202;VDJ200..RHD |
2 | ||
| Common parts | ||||
| 90159-60567 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90389-10041 | ||||
| 93269-14010 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94130-60600 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

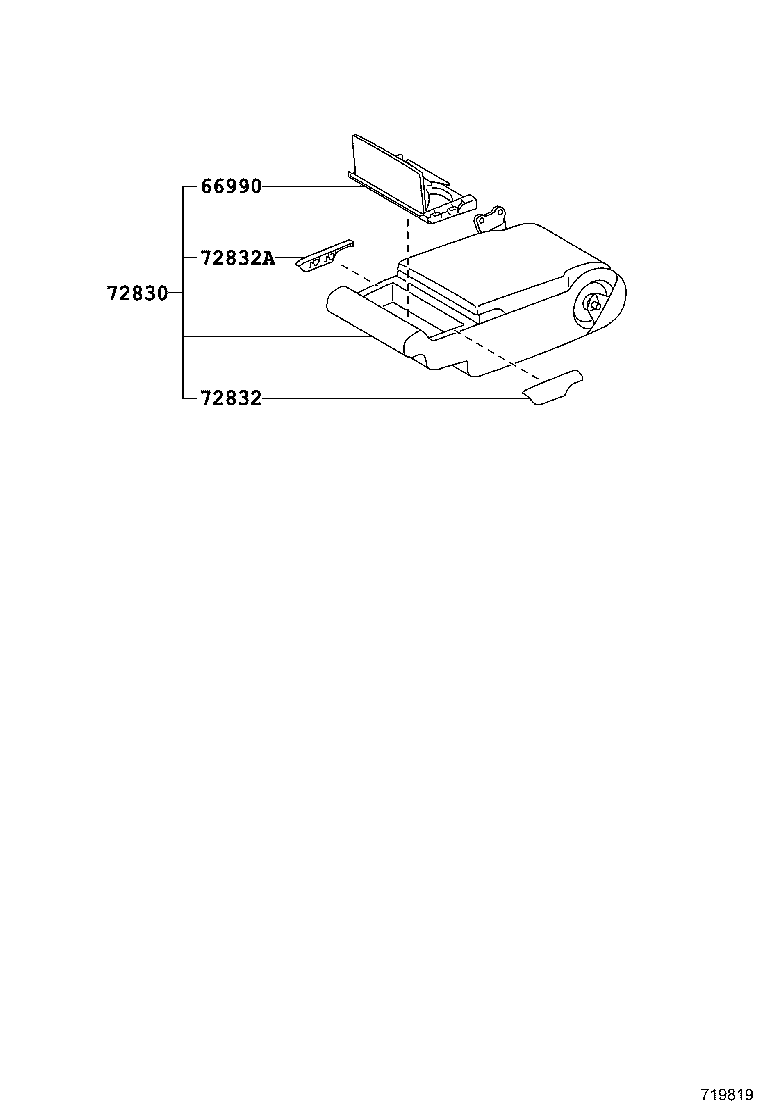

ILLUST NO. 3 OF 5(0709-1508)RHD
CENTER ARMREST(REAR NO.1 SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66990-60020A1 |
URJ202,VDJ200 SHELL,TRIM0# |
1 | ||
| 66990-60020C0 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-60270A3 |
URJ202,VDJ200..RHD SHELL,TRIM0# |
1 | ||
| 72830-60270C5 |
URJ202,VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 72832 - PLATE, REAR SEAT ARMREST | ||||
| 72831-60060A1 |
URJ202,VDJ200 SHELL,TRIM0# |
1 | ||
| 72831-60060C0 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
| 72832A - PLATE, NO.1 SEAT ARMREST | ||||
| 72832-60030A1 |
URJ202,VDJ200 SHELL,TRIM0# |
1 | ||
| 72832-60030C0 |
URJ202;VDJ200..RHD BLACK,TRIM2# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
