URJ202L-GNTEKW (2015)
Toyota Land Cruiser
Production
Aug 2015
-
Sep 9999
Engine
1URFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1508- )URJ202

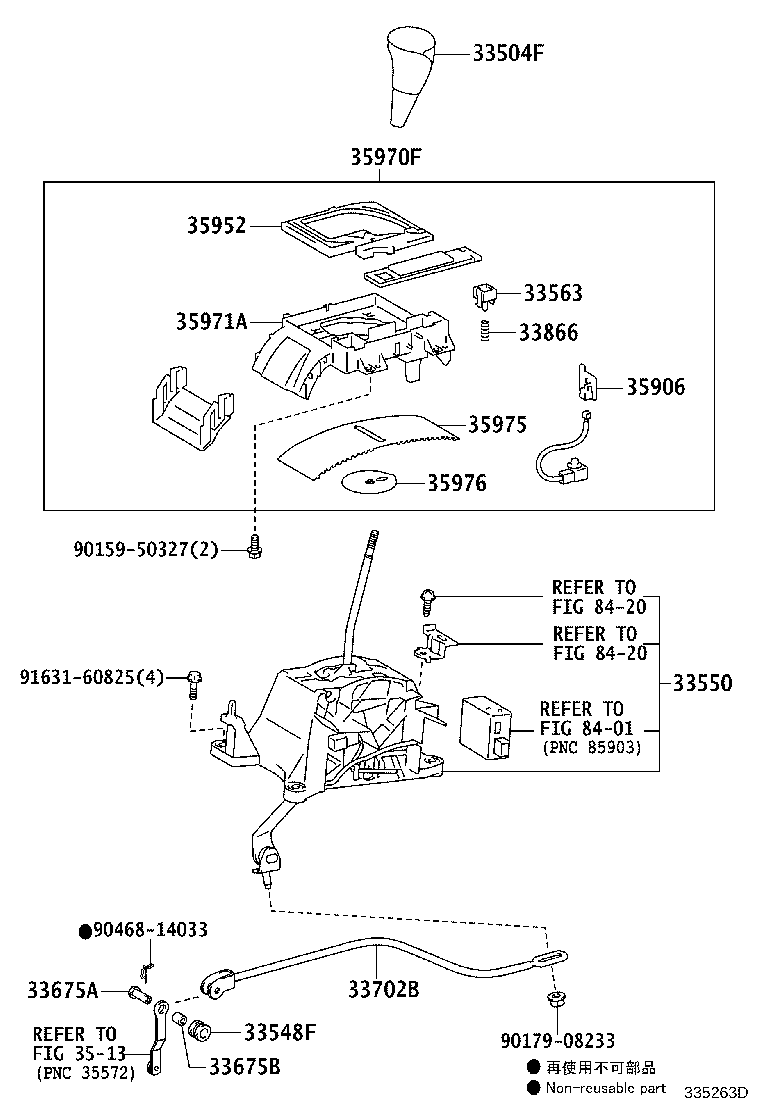

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-60450C0 |
URJ202..08S..VX BLACK,TRIM2#,42,46 |
1 | ||
| 33504-60450E0 |
VDJ200..RHD..VX;URJ202,VDJ200..LHD ORCHID BROWN,TRIM0#,47 |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-60060 |
URJ202,VDJ200 |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-60B90 |
URJ202 |
1 | ||
| 33550-60B91 |
URJ202 |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-60210 |
URJ202,VDJ200 |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08054 |
URJ202,VDJ200 |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
URJ202,VDJ200 |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-60110 |
URJ202 |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-33010 |
URJ202,VDJ200 |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-30220 |
URJ202,VDJ200 |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-60050 |
URJ202,VDJ200..LHD |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35970-60260 |
URJ202,VDJ200..LHD |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-60220 |
URJ202,VDJ200..LHD |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-60130 |
URJ202,VDJ200 |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-60060 |
URJ202,VDJ200 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90179-08233 | ||||
| 90468-14033 | ||||
| 91631-60825 | ||||
| Linked diagrams | ||||
| 3513 | ||||
| 8401 | ||||
| 8420 | ||||
