URJ202L-GMTEKW (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )URJ202..LHD

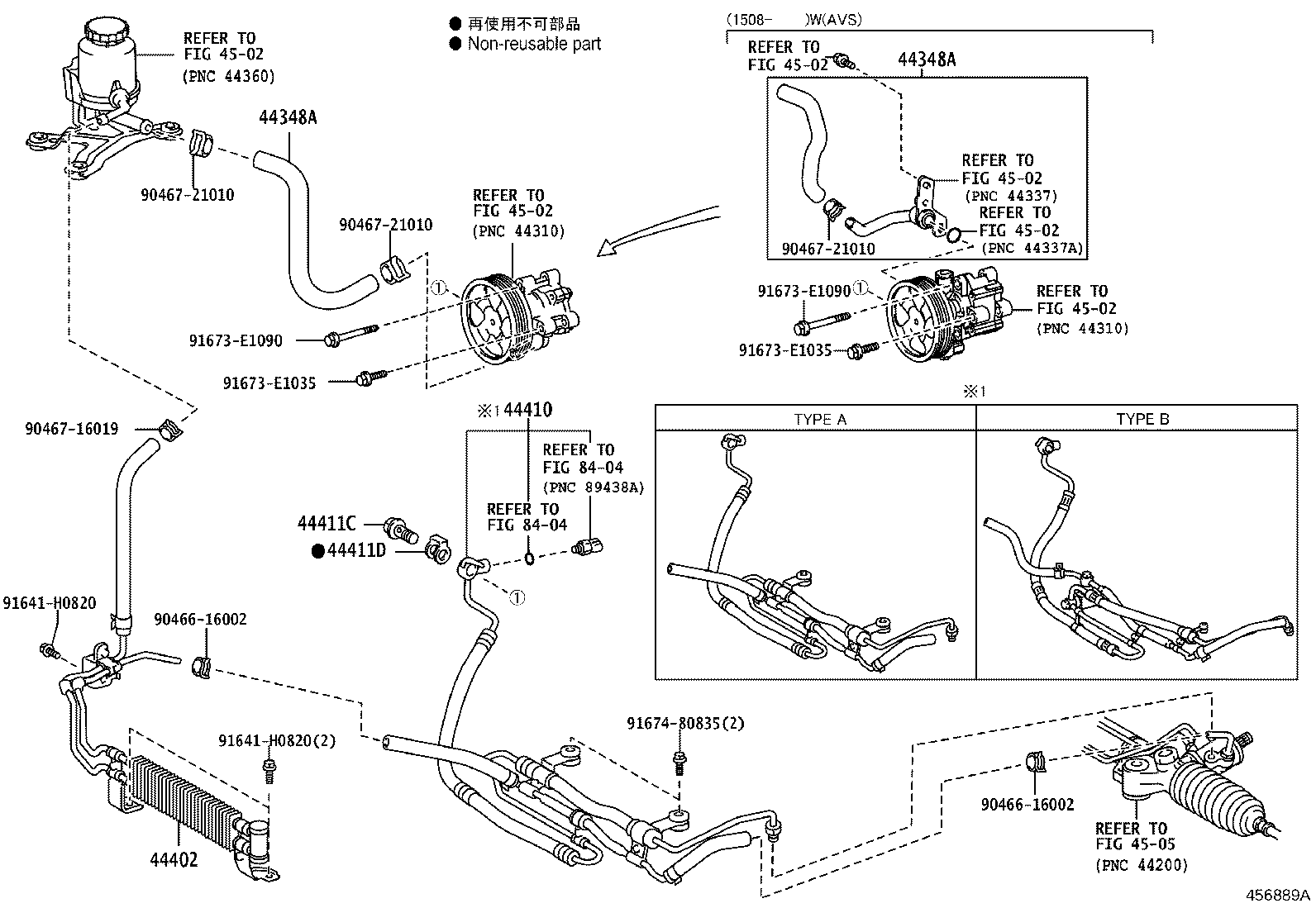

Click highlighted areas on diagram

diagram 44348A 44348A 44402 44410 44411C 44411D 4502 4502 4502 4502 4502 4502 4505 8404 8404 9046616002 9046616002 9046716019 9046721010 9046721010 9046721010 91641H0820 91641H0820 91673E1035 91673E1035 91673E1090 91673E1090 9167480835
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60410

URJ202

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60410

URJ202

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-60031

URJ202..05S

RUSSIA SPEC&AIR CLEANER-WITH(PRE CLEANER)

 1
44402-60051

URJ202..LHD

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-60710

URJ202..LHD

TYPE A:REFER ILLUST.

 1
44410-60740

URJ202..05S

RUSSIA SPEC&AIR CLEANER-WITH(PRE CLEANER),TYPE B:REFER ILLUST.

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034

URJ202,VDJ200

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30040

URJ202,VDJ200

 1
Common parts
90466-16002
90467-16019
90467-21010
91641-H0820
91673-E1035
91673-E1090
91674-80835
Linked diagrams
4502
4505
8404
