TRJ150L-GKTEKX (2017)
Toyota Land Cruiser
(1708- )

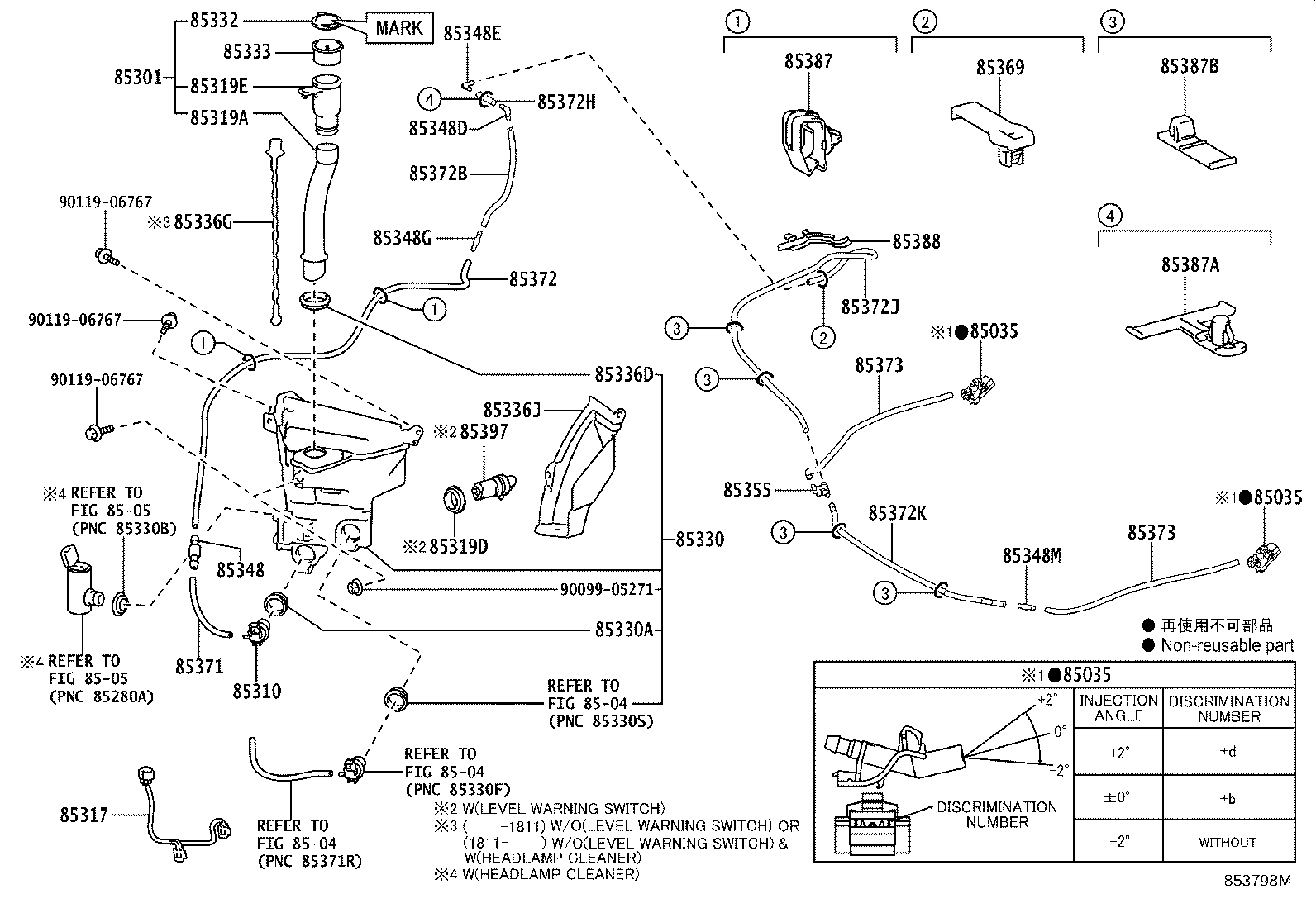

W/O(NOZZLE HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 ANGLE -2 |
2 | ||
| 85381-30240 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 ANGLE +2 |
2 | ||
| 85381-30220 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 ANGLE 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 ANGLE -2 |
2 | ||
| 85381-30240 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 ANGLE +2 |
2 | ||
| 85381-30220 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 ANGLE 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 ANGLE -2 |
2 | ||
| 85381-30240 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 ANGLE +2 |
2 | ||
| 85381-30220 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 ANGLE 0 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-60110 |
GDJ15#,GRJ150,TRJ150 MARK=E13:REF.ILLUST |
1 | ||
| 85301-60091 |
GDJ15#,GRJ150,KDJ150,TRJ150 MARK=E11:REF.ILLUST |
1 | ||
| 85301-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-71010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85317 - WIRING ASSY, WASHER | ||||
| 85317-60400 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| 85319E - INLET WASHER | ||||
| 85318-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-35340 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| 85355-60300 |
GDJ150,GRJ150,TRJ150..RUS HEADLAMP CLEANER-WITH |
1 | ||
| 85355-60360 |
GDJ150,GRJ150,TRJ150..RUS HEADLAMP CLEANER-WITH |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85316-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 MARK=E11:REF.ILLUST |
1 | ||
| 85316-60110 |
GDJ15#,GRJ150,TRJ150 MARK=E13:REF.ILLUST |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-60050 |
GDJ150,GRJ150,TRJ150..RUS HEADLAMP CLEANER-WITH |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-42190 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 85336-60390 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-10260 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85369 - CLAMP | ||||
| 82711-60640 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=160 |
1 | ||
| 90099-33080 |
GDJ150..6F;KDJ150..LHD;GDJ150..LHD..6FC;GDJ155,GRJ150,TRJ150 *H,L=160,HEADLAMP CLEANER-WITH |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=1130 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=90 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=40 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=930 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=470 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=300 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=300 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-35520 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85371-60070 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 85387-22540 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
4 | ||
| 85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER) | ||||
| 85387-60B30 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-52100 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| Common parts | ||||
| 90099-05271 | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8505 | ||||

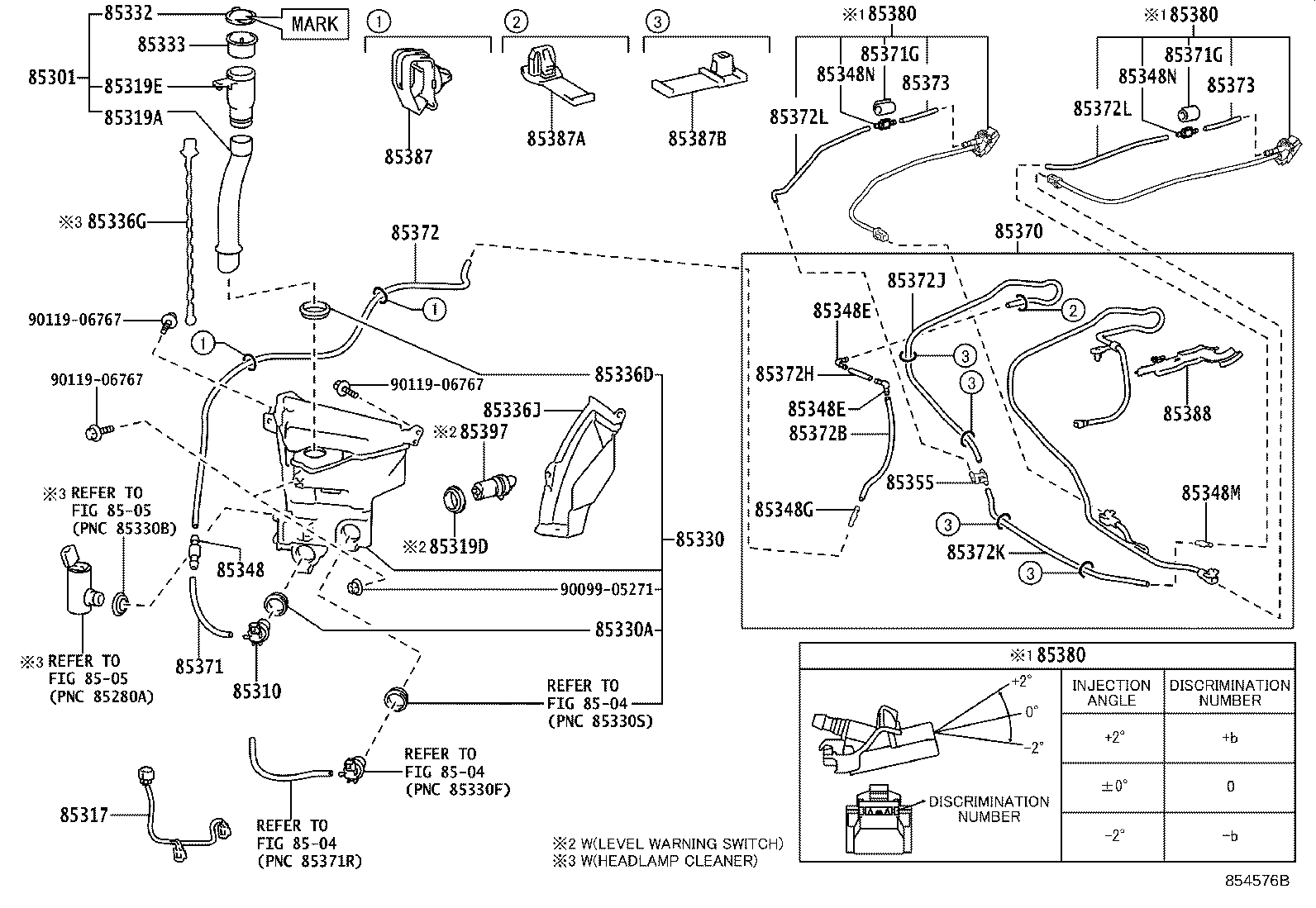

(1708-2103)
W(NOZZLE HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-60110 |
GDJ15#,GRJ150,TRJ150 MARK=E13:REF.ILLUST |
1 | ||
| 85301-60091 |
GDJ15#,GRJ150,KDJ150,TRJ150 MARK=E11:REF.ILLUST |
1 | ||
| 85301-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-71010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85317 - WIRING ASSY, WASHER | ||||
| 85317-60400 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| 85319E - INLET WASHER | ||||
| 85318-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-35340 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| 85355-60300 |
GDJ150,GRJ150,TRJ150..RUS HEADLAMP CLEANER-WITH |
1 | ||
| 85355-60360 |
GDJ150,GRJ150,TRJ150..RUS HEADLAMP CLEANER-WITH |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85316-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 MARK=E11:REF.ILLUST |
1 | ||
| 85316-60110 |
GDJ15#,GRJ150,TRJ150 MARK=E13:REF.ILLUST |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-60050 |
GDJ150,GRJ150,TRJ150..RUS HEADLAMP CLEANER-WITH |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-42190 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 85336-60390 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-10260 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=160 |
1 | ||
| 90099-33080 |
GDJ150..6F;KDJ150..LHD;GDJ150..LHD..6FC;GDJ155,GRJ150,TRJ150 *H,L=160,HEADLAMP CLEANER-WITH |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=1130 |
1 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-35520 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-52100 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| Common parts | ||||
| 90099-05271 | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8505 | ||||

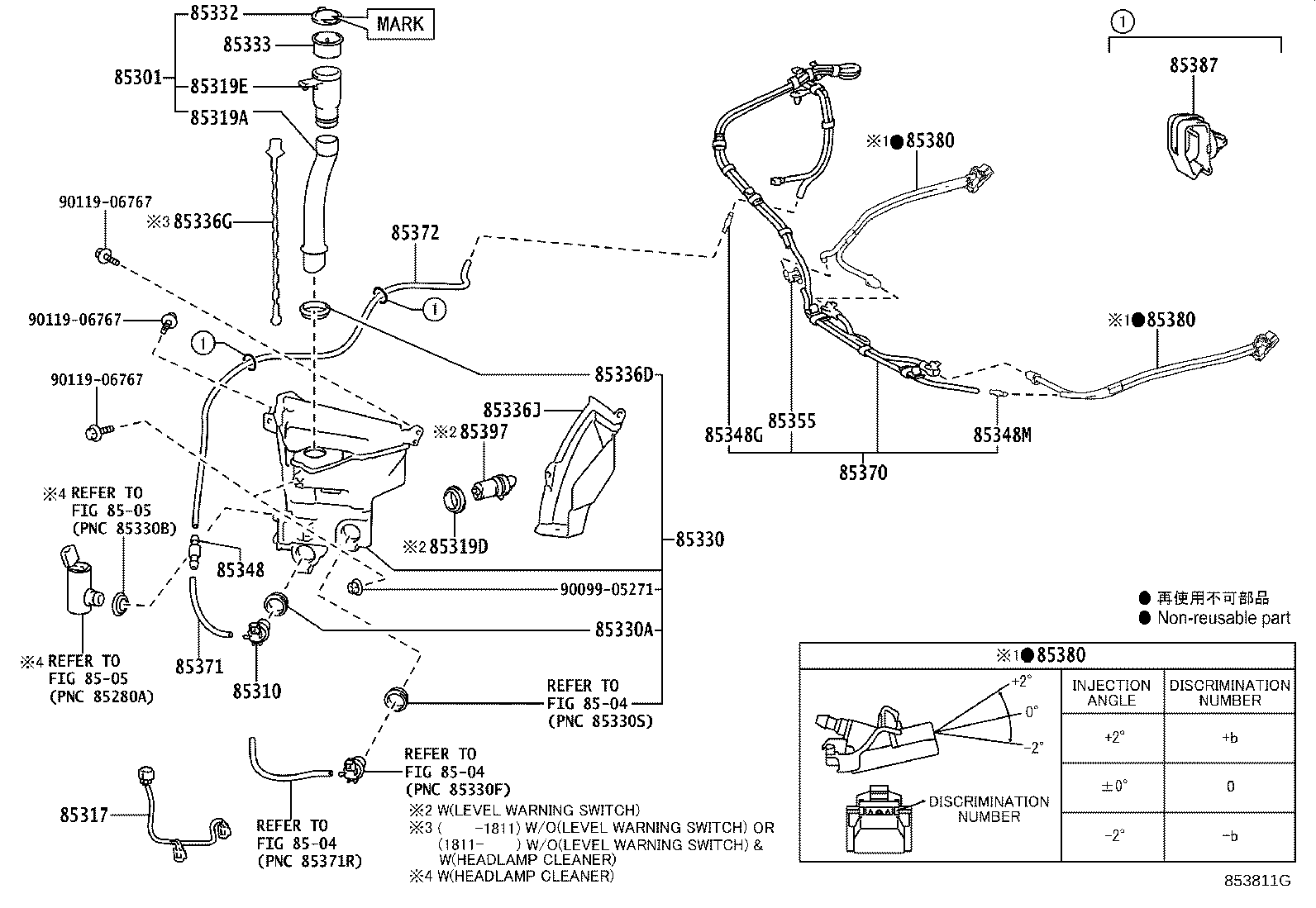

(2103- )
W(NOZZLE HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-60110 |
GDJ15#,GRJ150,TRJ150 MARK=E13:REF.ILLUST |
1 | ||
| 85301-60091 |
GDJ15#,GRJ150,KDJ150,TRJ150 MARK=E11:REF.ILLUST |
1 | ||
| 85301-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-71010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85317 - WIRING ASSY, WASHER | ||||
| 85317-60400 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| 85319E - INLET WASHER | ||||
| 85318-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-35340 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| 85355-60300 |
GDJ150,GRJ150,TRJ150..RUS HEADLAMP CLEANER-WITH |
1 | ||
| 85355-60360 |
GDJ150,GRJ150,TRJ150..RUS HEADLAMP CLEANER-WITH |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85316-60090 |
GDJ15#,GRJ150,KDJ150,TRJ150 MARK=E11:REF.ILLUST |
1 | ||
| 85316-60110 |
GDJ15#,GRJ150,TRJ150 MARK=E13:REF.ILLUST |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-60050 |
GDJ150,GRJ150,TRJ150..RUS HEADLAMP CLEANER-WITH |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-42190 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 85336-60390 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-10260 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=160 |
1 | ||
| 90099-33080 |
GDJ150..6F;KDJ150..LHD;GDJ150..LHD..6FC;GDJ155,GRJ150,TRJ150 *H,L=160,HEADLAMP CLEANER-WITH |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=1130 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=90 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=40 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=930 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=470 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=300 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GDJ15#,GRJ150,KDJ150,TRJ150 *H,L=300 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-35520 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85371-60070 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 85387-22540 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
4 | ||
| 85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER) | ||||
| 85387-60B30 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-52100 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| Common parts | ||||
| 90099-05271 | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
