TRJ150L-GKTEKX (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

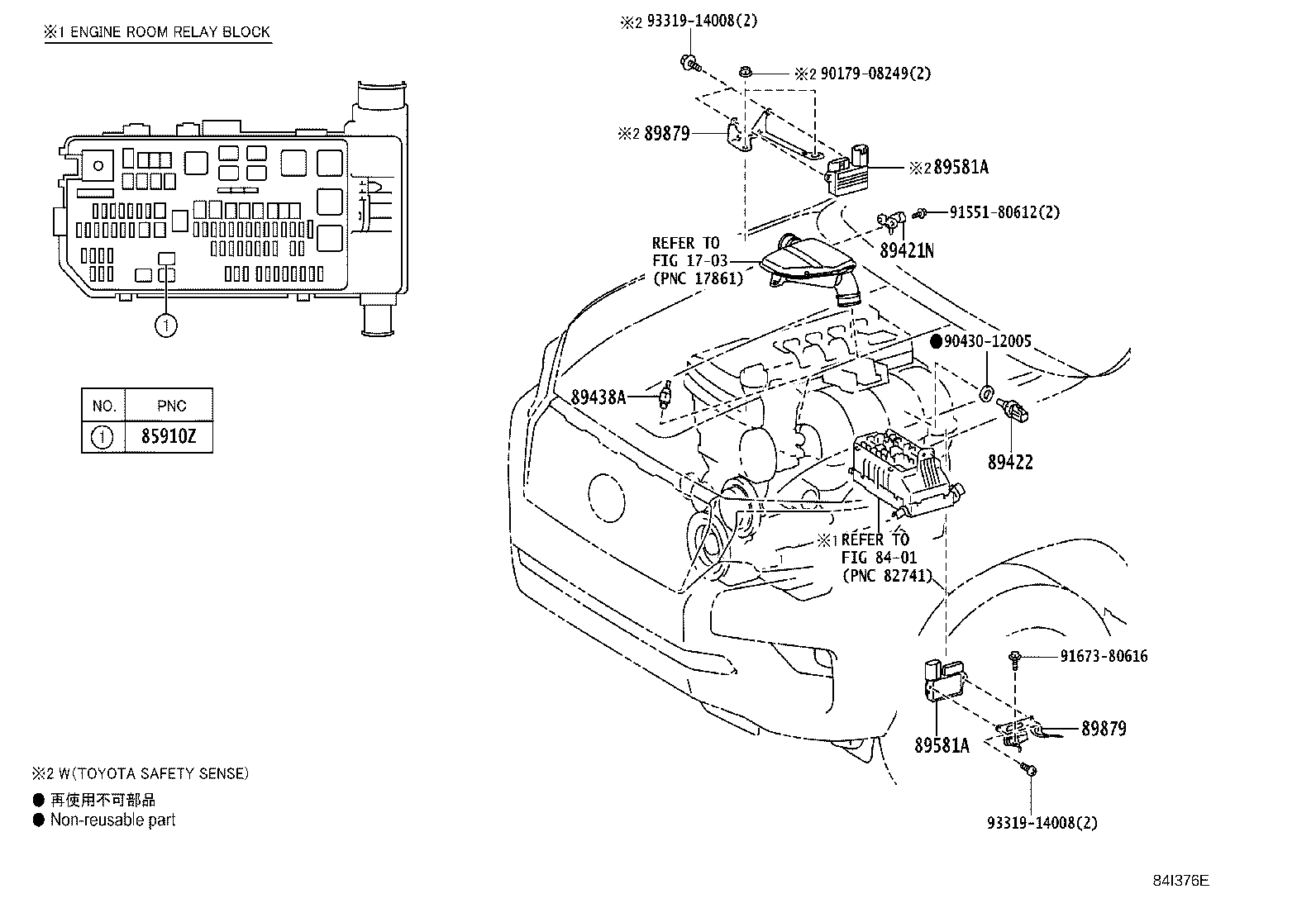

ILLUST NO. 1 OF 2(1708- )TRJ150

Click highlighted areas on diagram

diagram 1703 8401 85910Z 89421N 89422 89438A 89581A 89581A 89879 89879 9017908249 9043012005 9155180612 9167380616 9331914008 9331914008
Part # Description Qty Price
85910Z - RELAY, INJECTION (FOR EFI)
90987-02027

TRJ150

 1
89421N - SENSOR, AIR PRESSURE
89421-35050

TRJ150

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

GRJ150,TRJ150

 1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-71010

TRJ150

 1
89581A - DRIVER, AIR INJECTION CONTROL
89581-60010

GRJ150,TRJ150

 1
89581A - DRIVER, AIR INJECTION CONTROL
89581-60010

GRJ150,TRJ150

 1
89879 - BRACKET, INJECTOR DRIVER
89589-60051

TRJ150

 1
89589-60080

TRJ150..6FC

TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL)

 1
89879 - BRACKET, INJECTOR DRIVER
89589-60051

TRJ150

 1
89589-60080

TRJ150..6FC

TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL)

 1
Common parts
90179-08249
90430-12005
91551-80612
91673-80616
93319-14008
Linked diagrams
1703
8401

ILLUST NO. 2 OF 2(1708- )TRJ150

Click highlighted areas on diagram

COWL

diagram 89661 89667 89668 9167380616 9331915010 9331915010 9415080600
Part # Description Qty Price
89661 - COMPUTER, ENGINE CONTROL
89666-60L10

TRJ150..6FC

DENSO

 1
89666-60E10

TRJ150..6FC

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-60290

TRJ150

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-60300

TRJ150

 1
Common parts
91673-80616
93319-15010
94150-80600
