TRJ150L-GKTEKX (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )

Click highlighted areas on diagram

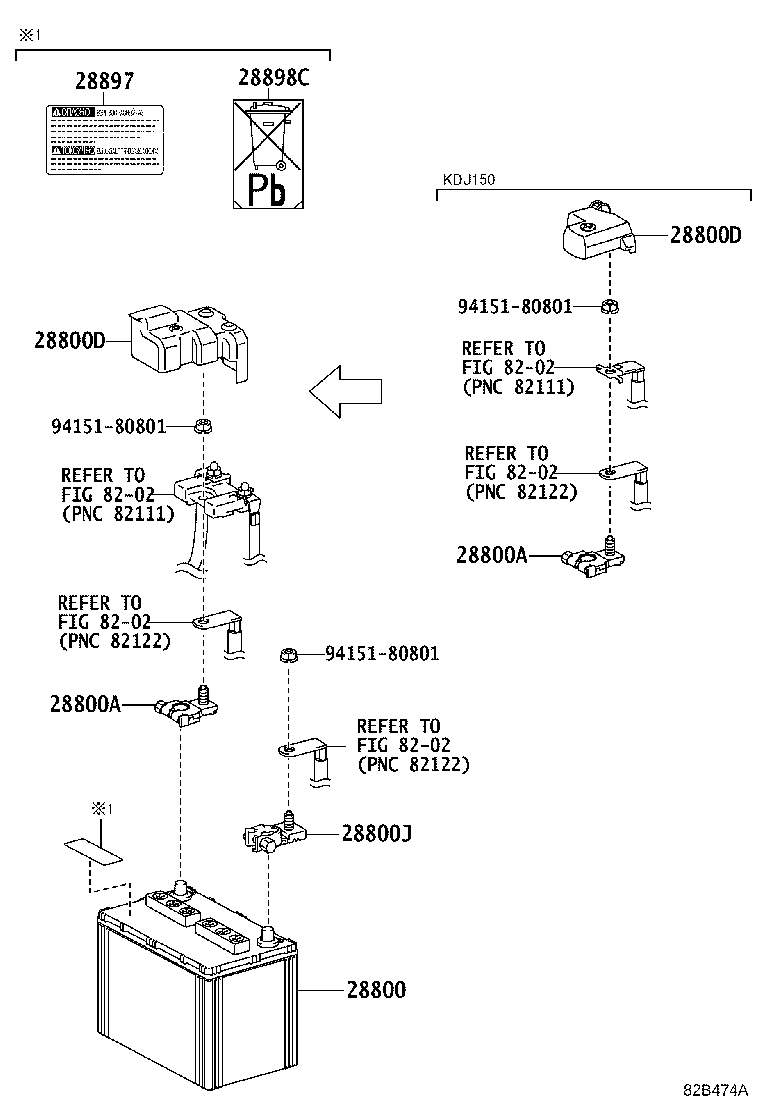

1-BATTERY

diagram 28800 28800A 28800A 28800D 28800D 28800J 28897 28898C 8202 8202 8202 8202 8202 9415180801 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-54020

1GRFE,2TRFE..GRJ150,TRJ150

80D26L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05069

1G#,1KDFTV,2TRFE..GDJ15#,GRJ150,KDJ150,TRJ150

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05069

1G#,1KDFTV,2TRFE..GDJ15#,GRJ150,KDJ150,TRJ150

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82621-60070

1G#,2TRFE..GDJ15#,GRJ150,TRJ150

 1
82621-60041

1G#,2TRFE..GDJ15#,GRJ150,TRJ150

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82621-60070

1G#,2TRFE..GDJ15#,GRJ150,TRJ150

 1
82621-60041

1G#,2TRFE..GDJ15#,GRJ150,TRJ150

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059

1GDFTV..GDJ150..RUS;1GRFE,2TRFE..GRJ150,TRJ150;1GDFTV,1KDFTV..GDJ15#,KDJ150..5FC,6F

 1
28897 - PLATE, BATTERY CAUTION
28897-31040

1GRFE,2TRFE..GRJ150,TRJ150..RUS

 1
28897-38070

1GRFE,2TRFE..GRJ150,TRJ150..RUS

 1
Common parts
94151-80801
Linked diagrams
8202

(1708- )

Click highlighted areas on diagram

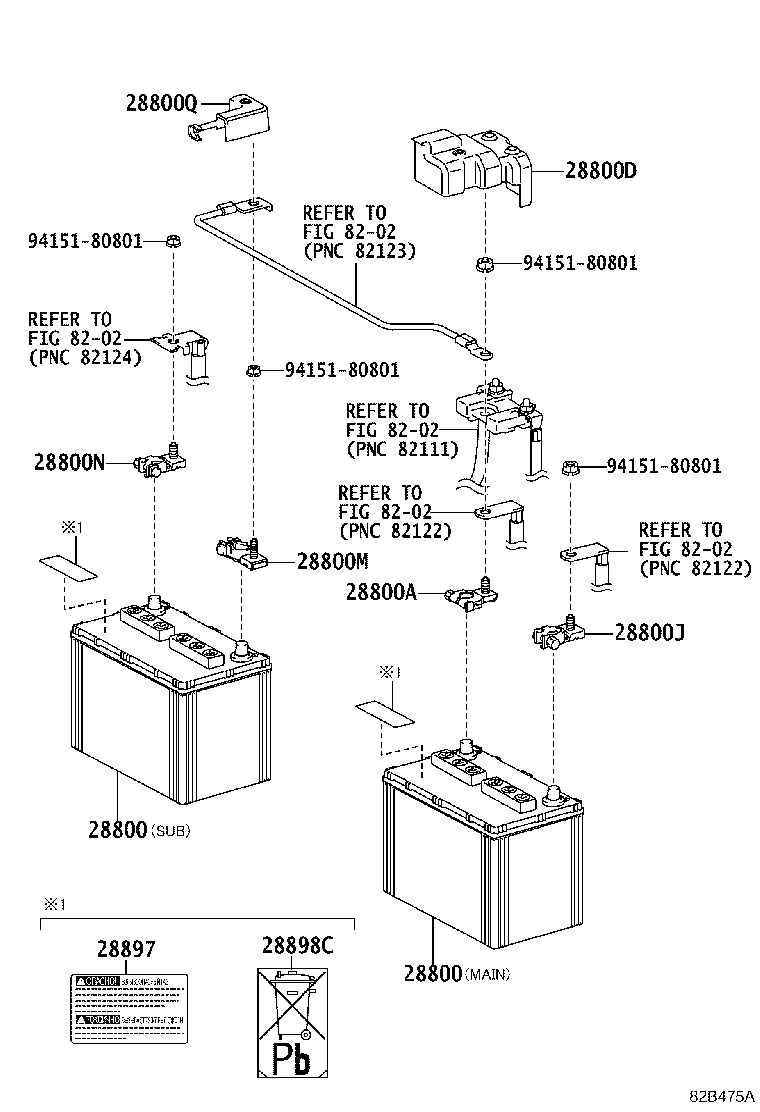

2-BATTERY

diagram 28800 28800 28800A 28800D 28800J 28800M 28800N 28800Q 28897 28898C 8202 8202 8202 8202 8202 9415180801 9415180801 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-54020

1GRFE,2TRFE..GRJ150,TRJ150

80D26L

 1
28800 - BATTERY
28800-54020

1GRFE,2TRFE..GRJ150,TRJ150

80D26L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05069

1G#,1KDFTV,2TRFE..GDJ15#,GRJ150,KDJ150,TRJ150

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82621-60070

1G#,2TRFE..GDJ15#,GRJ150,TRJ150

 1
82621-60041

1G#,2TRFE..GDJ15#,GRJ150,TRJ150

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06059

1GDFTV..GDJ150..RUS;1GRFE,2TRFE..GRJ150,TRJ150;1GDFTV,1KDFTV..GDJ15#,KDJ150..5FC,6F

 1
28897 - PLATE, BATTERY CAUTION
28897-31040

1GRFE,2TRFE..GRJ150,TRJ150..RUS

 1
28897-38070

1GRFE,2TRFE..GRJ150,TRJ150..RUS

 1
Common parts
94151-80801
Linked diagrams
8202
