TRJ150L-GKTEKX (2017)
Toyota Land Cruiser
Production
Aug 2017
-
Sep 9999
Engine
2TRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1708- )

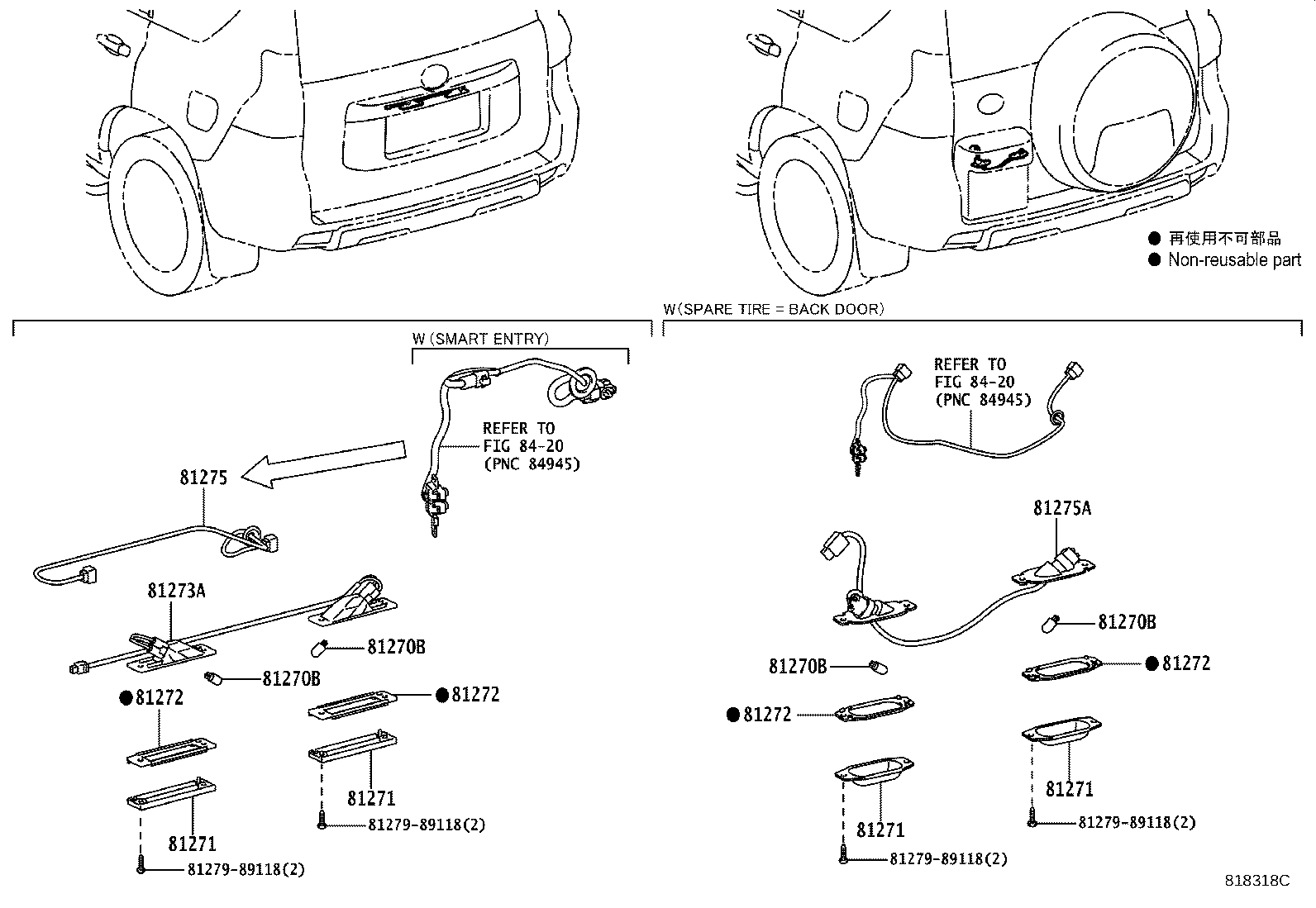

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
GDJ15#,GRJ150,KDJ150,TRJ150 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
GDJ15#,GRJ150,KDJ150,TRJ150 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
GDJ15#,GRJ150,KDJ150,TRJ150 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
GDJ15#,GRJ150,KDJ150,TRJ150 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-21110 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-21110 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-21110 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-21110 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-95J07 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-95J07 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-95J07 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-95J07 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 81273A - BODY, LICENSE PLATE LAMP | ||||
| 81273-33060 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 81275-33060 |
TRJ150 |
1 | ||
| Common parts | ||||
| 81279-89118 | ||||
| Linked diagrams | ||||
| 8420 | ||||
