TRJ150L-GKTEKX (2017)
Toyota Land Cruiser
ILLUST NO. 1 OF 3(1708- )TRJ150

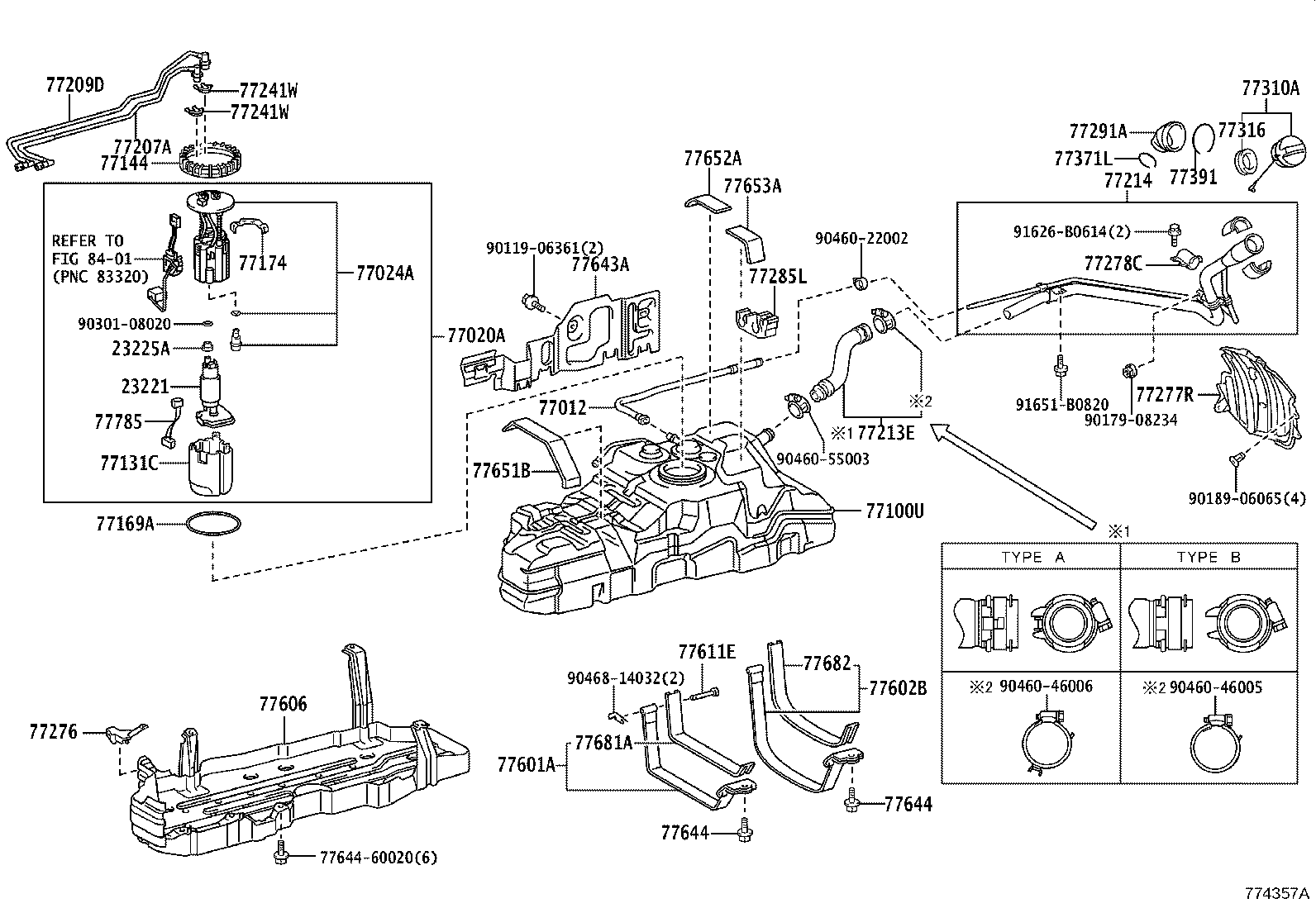

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-75171 |
2TRFE..TRJ150 |
1 | ||
| 23220-75210 |
2TRFE..TRJ150 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2TRFE..TRJ150 |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-60201 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-60640 |
TRJ150 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-60440 |
TRJ150 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-35A31 |
GRJ150,TRJ150 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-60190 |
GRJ150,TRJ150 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-35010 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
GRJ150,TRJ150 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-60030 |
TRJ150 |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-60100 |
GRJ150,TRJ150 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60530 |
GRJ150,TRJ150 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-60390 |
GDJ150,GRJ150,KDJ150,TRJ150 TYPE B:REFER ILLUST. |
1 | ||
| 77213-60360 |
GDJ150,GRJ150,KDJ150,TRJ150 TYPE A:REFER ILLUST. |
1 | ||
| 77214 - PIPE, FUEL TANK FILLER | ||||
| 77210-60440 |
GRJ150,TRJ150 |
1 | ||
| 77210-60100 |
GRJ150,TRJ150 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GRJ150,TRJ150 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GRJ150,TRJ150 |
2 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-35040 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60150 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77277-60190 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35770 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-60130 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
GRJ150,TRJ150 |
1 | ||
| 77300-52030 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 77371L - RING, FUEL TANK FILLER PIPE SHIELD | ||||
| 77371-35010 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12060 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-60400 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-60150 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60190 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-35040 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
2 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-35040 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-35070 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-35060 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-35050 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-60210 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-35041 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-60060 |
TRJ150 |
1 | ||
| Common parts | ||||
| 77644-60020 | ||||
| 90119-06361 | ||||
| 90179-08234 | ||||
| 90189-06065 | ||||
| 90301-08020 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-46006 | ||||
| 90460-55003 | ||||
| 90468-14032 | ||||
| 91626-B0614 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1708- )GRJ150,TRJ150

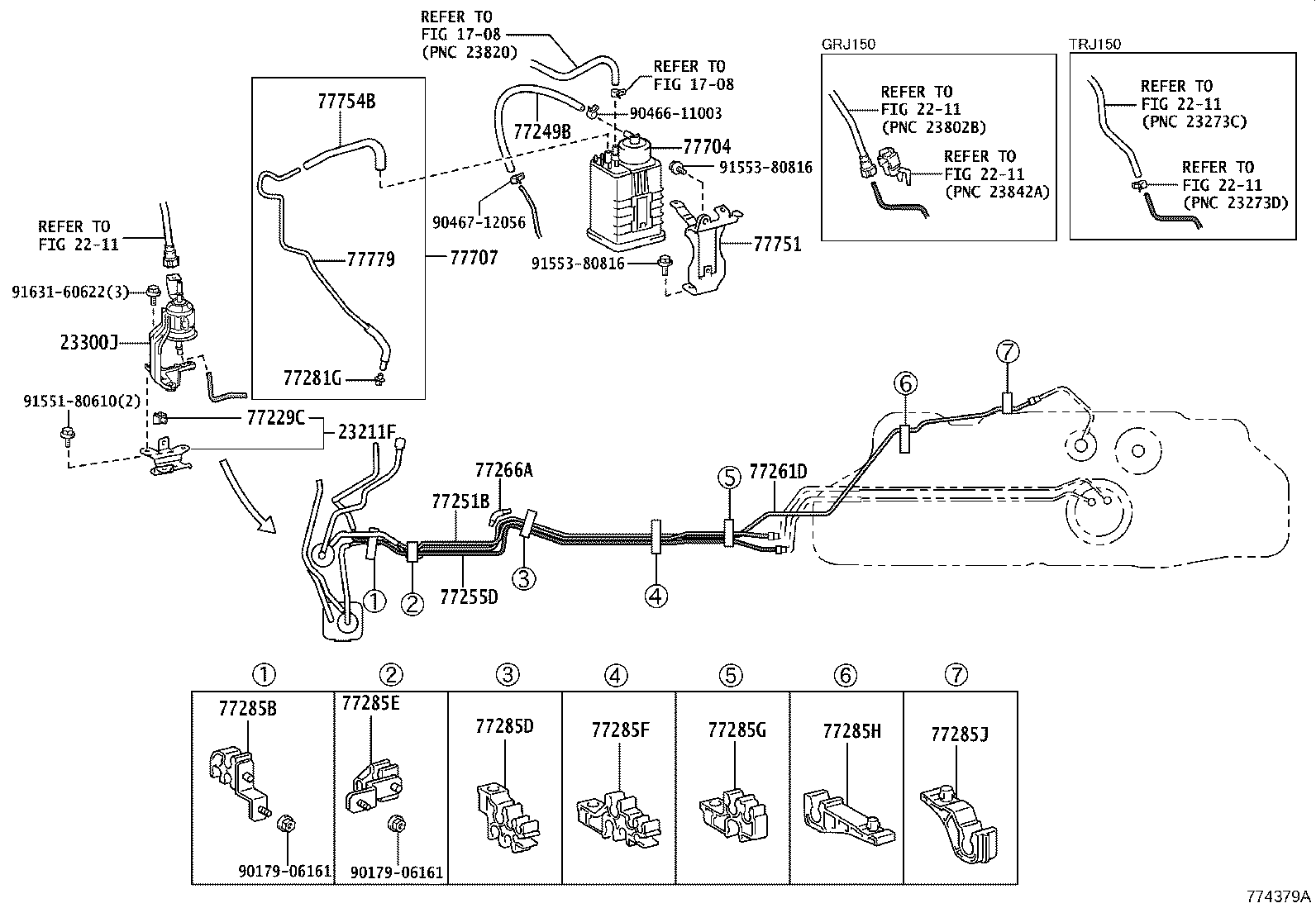

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23211F - BRACKET | ||||
| 23264-31011 |
1GRFE,2TRFE..GRJ150,TRJ150 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-31160 |
1GRFE,2TRFE..GRJ150,TRJ150..RUS |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-33090 |
GRJ150,TRJ150 |
1 | ||
| 77249B - HOSE, FUEL | ||||
| 95333-06040 |
GRJ150,TRJ150 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-6A340 |
GRJ150,TRJ150 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60C00 |
TRJ150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-60460 |
TRJ150 |
1 | ||
| 77261-60540 |
TRJ150 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60160 |
GRJ150,TRJ150 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60430 |
GRJ150,TRJ150 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35631 |
GRJ150,TRJ150 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35670 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35641 |
GRJ150,TRJ150 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35680 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35690 |
KDJ150..RHD;GRJ150,TRJ150 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35700 |
GDJ155,GRJ150,TRJ150 |
1 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35710 |
GRJ150,TRJ150 |
1 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-63010 |
GRJ150,TRJ150 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-60051 |
GRJ150,TRJ150 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60290 |
GRJ150,TRJ150 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-60380 |
GRJ150,TRJ150 |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-60071 |
GRJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90466-11003 | ||||
| 90467-12056 | ||||
| 91551-80610 | ||||
| 91553-80816 | ||||
| 91631-60622 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1708- )

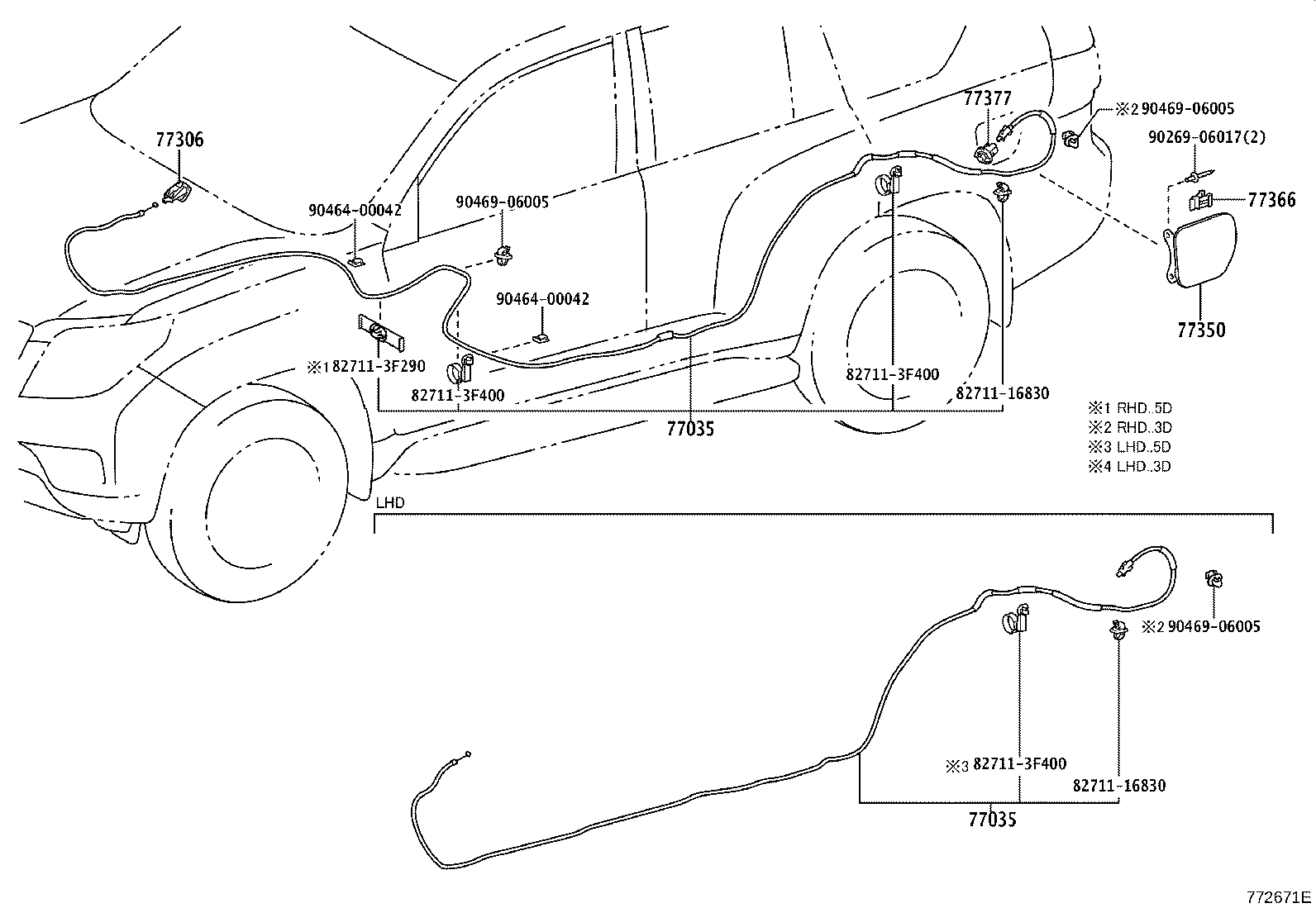

FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-60171 |
GDJ150,GRJ150,TRJ150..LHD |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-60171 |
GDJ150,GRJ150,TRJ150..LHD |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-58020C0 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 BLACK |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-60100 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30070 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 82711-3F290 | ||||
| 82711-3F400 | ||||
| 90269-06017 | ||||
| 90464-00042 | ||||
| 90469-06005 | ||||
