TRJ150L-GKTEKX (2017)
Toyota Land Cruiser
ILLUST NO. 2 OF 2(1708- )GDJ150,GRJ150,KDJ150,TRJ150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75805-60050A0 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS SUPER WHITE 2,040 |
1 | ||
| 75805-60050B1 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS GRAY ME.,1G3 |
1 | ||
| 75805-60050A1 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS WHITE PEARL CS.,070 |
1 | ||
| 75805-60050B0 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS SILVER ME.,1F7 |
1 | ||
| 75805-60050C0 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS BLACK,202 |
1 | ||
| 75805-60050D1 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS RED M.M.,3R3 |
1 | ||
| 75805-60050E2 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 75805-60050C2 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS BLACKISH AGEHA GF.,221 |
1 | ||
| 75805-60050C1 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS ATTITUDE BLACK MC.,218 |
1 | ||
| 75805-60050E3 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75806-60050A1 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS WHITE PEARL CS.,070 |
1 | ||
| 75806-60050A0 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS SUPER WHITE 2,040 |
1 | ||
| 75806-60050C0 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS BLACK,202 |
1 | ||
| 75806-60050C1 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS ATTITUDE BLACK MC.,218 |
1 | ||
| 75806-60050E2 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 75806-60050D1 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS RED M.M.,3R3 |
1 | ||
| 75806-60050E3 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 75806-60050B0 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS SILVER ME.,1F7 |
1 | ||
| 75806-60050B1 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS GRAY ME.,1G3 |
1 | ||
| 75806-60050C2 |
GRJ150;KDJ150..RHD;GDJ150,TRJ150..RUS BLACKISH AGEHA GF.,221 |
1 | ||
| 75865B - RETAINER, ROCKER PANEL MOULDING, NO.2 | ||||
| 75865-60010 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 75866A - RETAINER, ROCKER PANEL MOULDING | ||||
| 75866-60020 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-12040 |
GDJ150,GRJ150,KDJ150,TRJ150 |
14 | ||
| 76924G - RETAINER, ROCKER PANEL MOULDING | ||||
| 76924-13020 |
GDJ150,GRJ150,KDJ150,TRJ150 |
14 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90159-60603 | ||||
| 90162-40035 | ||||
| 90189-04059 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 7652 | ||||

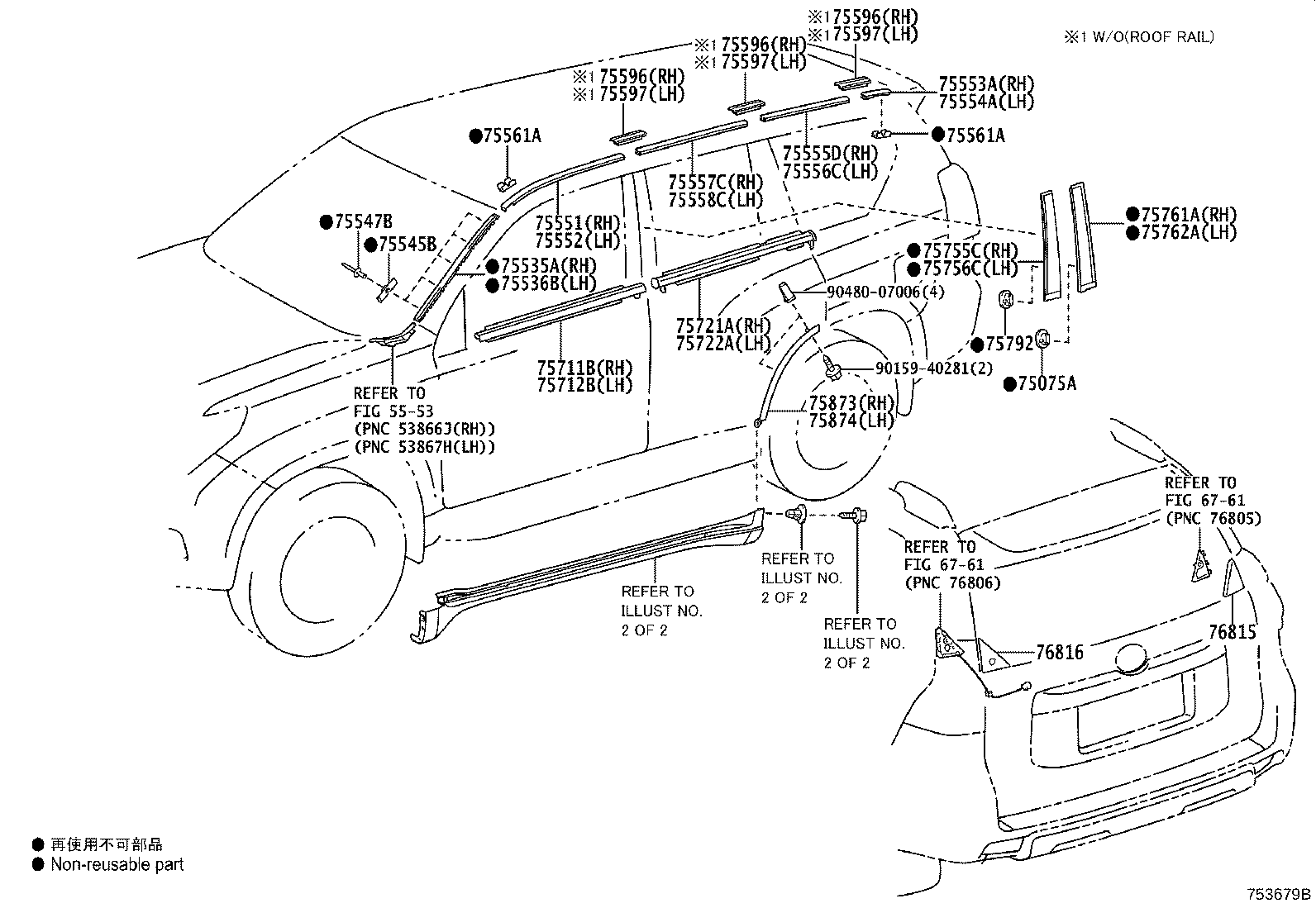

ILLUST NO. 1 OF 2(1708- )GDJ150,GRJ150,KDJ150,TRJ150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75075A - CLIP(FOR REAR DOOR OUTSIDE MOULDING) | ||||
| 75792-47010 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
2 | ||
| 75535A - MOULDING, WINDSHIELD, OUTSIDE LOWER | ||||
| 75535-60020 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 75536B - MOULDING, WINDSHIELD, OUTSIDE LOWER LH | ||||
| 75536-60010 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1 | ||||
| 75545-53011 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
10 | ||
| 75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 | ||||
| 75547-51021 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
10 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-60120 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75551-60120 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH | ||||
| 75553-60050 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH | ||||
| 75554-60050 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH | ||||
| 75555-60030 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH | ||||
| 75555-60030 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 75557C - MOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH | ||||
| 75557-60050 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 75558C - MOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH | ||||
| 75557-60050 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
4 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
4 | ||
| 75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH | ||||
| 75596-35030 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
3 | ||
| 75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH | ||||
| 75596-35030 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
3 | ||
| 75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH | ||||
| 75596-35030 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
3 | ||
| 75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH | ||||
| 75596-35030 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
3 | ||
| 75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH | ||||
| 75596-35030 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
3 | ||
| 75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH | ||||
| 75596-35030 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
3 | ||
| 75711B - MOULDING, FRONT DOOR BELT, RH | ||||
| 75711-60071 |
GDJ150,GRJ150,TRJ150..6FC..RUS VX PACKAGE&BLACK EDITION*(C) |
1 | ||
| 75711-60090 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC VX PACKAGE |
1 | ||
| 75711-60091 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC VX PACKAGE |
1 | ||
| 75711-60071 |
GRJ150..RUS;GDJ150,TRJ150..6FC VX PACKAGE&BLACK EDITION(EXTERIOR ONLY) |
1 | ||
| 75711-60071 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 75712B - MOULDING, FRONT DOOR BELT, LH | ||||
| 75712-60071 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 75712-60090 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC VX PACKAGE |
1 | ||
| 75712-60091 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC VX PACKAGE |
1 | ||
| 75712-60071 |
GDJ150,GRJ150,TRJ150..6FC..RUS VX PACKAGE&BLACK EDITION*(C) |
1 | ||
| 75712-60071 |
GRJ150..RUS;GDJ150,TRJ150..6FC VX PACKAGE&BLACK EDITION(EXTERIOR ONLY) |
1 | ||
| 75721A - MOULDING, REAR DOOR BELT, RH | ||||
| 75721-60071 |
GRJ150..RUS;GDJ150,TRJ150..6FC VX PACKAGE&BLACK EDITION(EXTERIOR ONLY) |
1 | ||
| 75721-60071 |
GDJ150,GRJ150,TRJ150..6FC..RUS VX PACKAGE&BLACK EDITION*(C) |
1 | ||
| 75721-60071 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 75721-60110 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC VX PACKAGE |
1 | ||
| 75721-60111 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC VX PACKAGE |
1 | ||
| 75722A - MOULDING, REAR DOOR BELT, LH | ||||
| 75722-60071 |
GDJ150,GRJ150,TRJ150..6FC..RUS VX PACKAGE&BLACK EDITION*(C) |
1 | ||
| 75722-60071 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 75722-60110 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC VX PACKAGE |
1 | ||
| 75722-60071 |
GRJ150..RUS;GDJ150,TRJ150..6FC VX PACKAGE&BLACK EDITION(EXTERIOR ONLY) |
1 | ||
| 75722-60111 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC VX PACKAGE |
1 | ||
| 75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH | ||||
| 75755-60050 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH | ||||
| 75756-60050 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 75761A - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH | ||||
| 75761-60050 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 75762A - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH | ||||
| 75762-60050 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-47010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH | ||||
| 75873-60030 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH | ||||
| 75874-60030 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 76815 - MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER RH | ||||
| 76813-60030 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 76816 - MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER LH | ||||
| 76814-60020 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 90159-40281 | ||||
| 90480-07006 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 6761 | ||||
