TRJ150L-GKTEKX (2017)
Toyota Land Cruiser
ILLUST NO. 1 OF 3(1708- )
ARMREST & VISOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-60630C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-60630C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-60600C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD BLACK |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-60600C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD BLACK |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-60240C0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74271-60240C0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74271-60240C0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74271-60240C0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74271-60240C0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74271-60240C0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74271-60240C0 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74271-60240C0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK |
1 | ||
| 74271-60240C0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK |
1 | ||
| 74271-60240C0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK |
1 | ||
| 74271-60230C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-60240C0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74272-60240C0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74272-60240C0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74272-60240C0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74272-60240C0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74272-60240C0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74272-60240C0 |
TRJ150..6FC VX PACKAGE&VX PACKAGE OR TX-L PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK |
1 | ||
| 74272-60240C0 |
TRJ150..6FC VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK |
1 | ||
| 74272-60240C0 |
TRJ150..6FC VX PACKAGE&*LES & WITHOUT(AVS)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK |
1 | ||
| 74272-60240C0 |
TRJ150..6FC VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER,BLACK |
1 | ||
| 74272-60230C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-60J20B0 |
GDJ150,GRJ150,TRJ150..RUS LT.GRAY,TRIM2# |
1 | ||
| 74310-60F00E0 |
GDJ150,GRJ150,TRJ150..6FC..RUS VX PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74310-60J20E0 |
GDJ150,GRJ150,TRJ150..RUS NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74310-60P80E0 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&VIETNAM SPEC&VX PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74310-60P70B0 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&VIETNAM SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-60P70E0 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&VIETNAM SPEC,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74310-60P80B0 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&VIETNAM SPEC&VX PACKAGE,LT.GRAY,TRIM2# |
1 | ||
| 74310-60F00B1 |
GDJ150,GRJ150,TRJ150..6FC..RUS VX PACKAGE,LT.GRAY,TRIM2# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-60020B1 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 74317-60020E2 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-60020E2 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74317-60020B1 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-60C60B1 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD LT.GRAY,TRIM2# |
1 | ||
| 74320-60C80E0 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&VIETNAM SPEC&VX PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74320-60C81B1 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&VIETNAM SPEC&VX PACKAGE,TRIM2# |
1 | ||
| 74320-60C60E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74320-60C80E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74320-60C81B1 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE,TRIM2# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74348-33040E3 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| Common parts | ||||
| 93229-15020 | ||||
ILLUST NO. 3 OF 3(1708- )
ASSIST GRIP(DOOR & SIDE TRIM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74603C - GRIP SUB-ASSY, ASSIST | ||||
| 74603-35010C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,BLACK,TRIM2# |
2 | ||
| 74603-35010C0 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 74603-35010C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
2 | ||
| 74603-35010C0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 74603-35010E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74603-35010E1 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74603-35010C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 74603-35010E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
2 | ||
| 74603-35010E1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74603-35010E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74603-35010E1 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74603-35010C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
2 | ||
| 74611C - COVER, ASSIST GRIP, LH | ||||
| 74222-60180 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 |
2 | ||
| 74222-60181 |
GDJ150,GRJ150,TRJ150 |
2 | ||
| 74611F - GRIP, ASSIST, NO.1 | ||||
| 74680-60010B0 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74680-60010E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74611G - GRIP, ASSIST, NO.2 | ||||
| 74680-60020B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74680-60020E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74612C - COVER, ASSIST GRIP, RH | ||||
| 74221-60190 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 |
2 | ||
| 74221-60191 |
GDJ150,GRJ150,TRJ150 |
2 | ||
| 74615E - PLUG, FRONT ASSIST GRIP, NO.1 RH | ||||
| 74615-60040B0 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74615-60040E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74615E - PLUG, FRONT ASSIST GRIP, NO.1 RH | ||||
| 74615-60040B0 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74615-60040E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH | ||||
| 74616-60040E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74616-60040B0 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH | ||||
| 74616-60040E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74616-60040B0 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-35010C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
4 | ||
| 74617-35010E1 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74617-35010E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74617-35010E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74617-35010E1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74617-35010E1 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-35010C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010C0 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2# |
4 | ||
| 74617-35010E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRALBEIGE,TRIM4# |
4 | ||
| 74617-35010E1 |
TRJ150 TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74617-35010E1 |
TRJ150 AIR CONDITIONER-DUAL(MANUAL)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74617-35010E1 |
GRJ150..RUS;GDJ150,TRJ150..LHD..(6F,6FC) TONNEAU COVER-WITH&AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLEFLAT POWER,NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74617-35010E1 |
TRJ150 REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74617-35010E1 |
TRJ150 TONNEAU COVER-WITH&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL,NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74637 - PLUG, ASSIST GRIP, NO.2 RH | ||||
| 74637-60040B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74637-60040E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74637 - PLUG, ASSIST GRIP, NO.2 RH | ||||
| 74637-60040B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74637-60040E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74638 - PLUG, ASSIST GRIP, NO.2 LH | ||||
| 74638-60040E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74638-60040B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74638 - PLUG, ASSIST GRIP, NO.2 LH | ||||
| 74638-60040E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74638-60040B0 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| Common parts | ||||
| 91631-60622 | ||||
| 93381-16028 | ||||

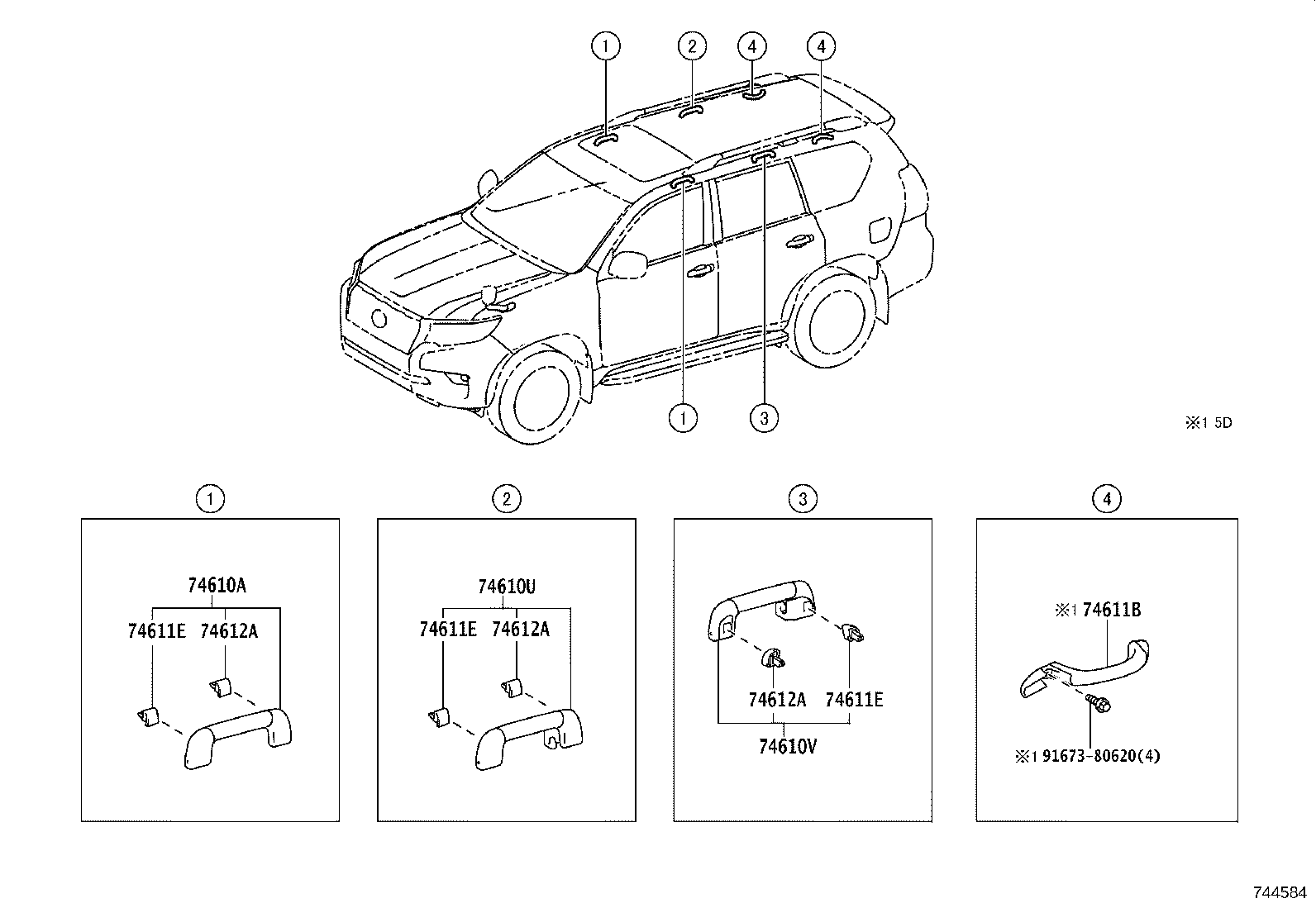

ILLUST NO. 2 OF 3(1708- )
ASSIST GRIP(ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30240E2 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74610-30240B0 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74610-30320B2 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 74610-30320E2 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74610V - GRIP ASSY, ASSIST | ||||
| 74610-30330E2 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74610-30330B2 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
1 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-48010E1 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
2 | ||
| 74611-48010B2 |
GDJ150,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
2 | ||
| 74611E - COVER, ASSIST GRIP, LH | ||||
| 74611-60050B0 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
4 | ||
| 74611-60050E2 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74611E - COVER, ASSIST GRIP, LH | ||||
| 74611-60050B0 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
4 | ||
| 74611-60050E2 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74611E - COVER, ASSIST GRIP, LH | ||||
| 74611-60050B0 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
4 | ||
| 74611-60050E2 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74612A - COVER, ASSIST GRIP, RH | ||||
| 74612-60100E2 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74612-60100B0 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
4 | ||
| 74612A - COVER, ASSIST GRIP, RH | ||||
| 74612-60100E2 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74612-60100B0 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
4 | ||
| 74612A - COVER, ASSIST GRIP, RH | ||||
| 74612-60100E2 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
4 | ||
| 74612-60100B0 |
GDJ15#,GRJ150,KDJ150,TRJ150 LT.GRAY,TRIM2# |
4 | ||
| Common parts | ||||
| 91673-80620 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
