Toyota Land cruiser TRJ150 BACK DOOR LOCK & HINGE

TRJ150L-GKTEKX (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999

Engine 2TRFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1708- )

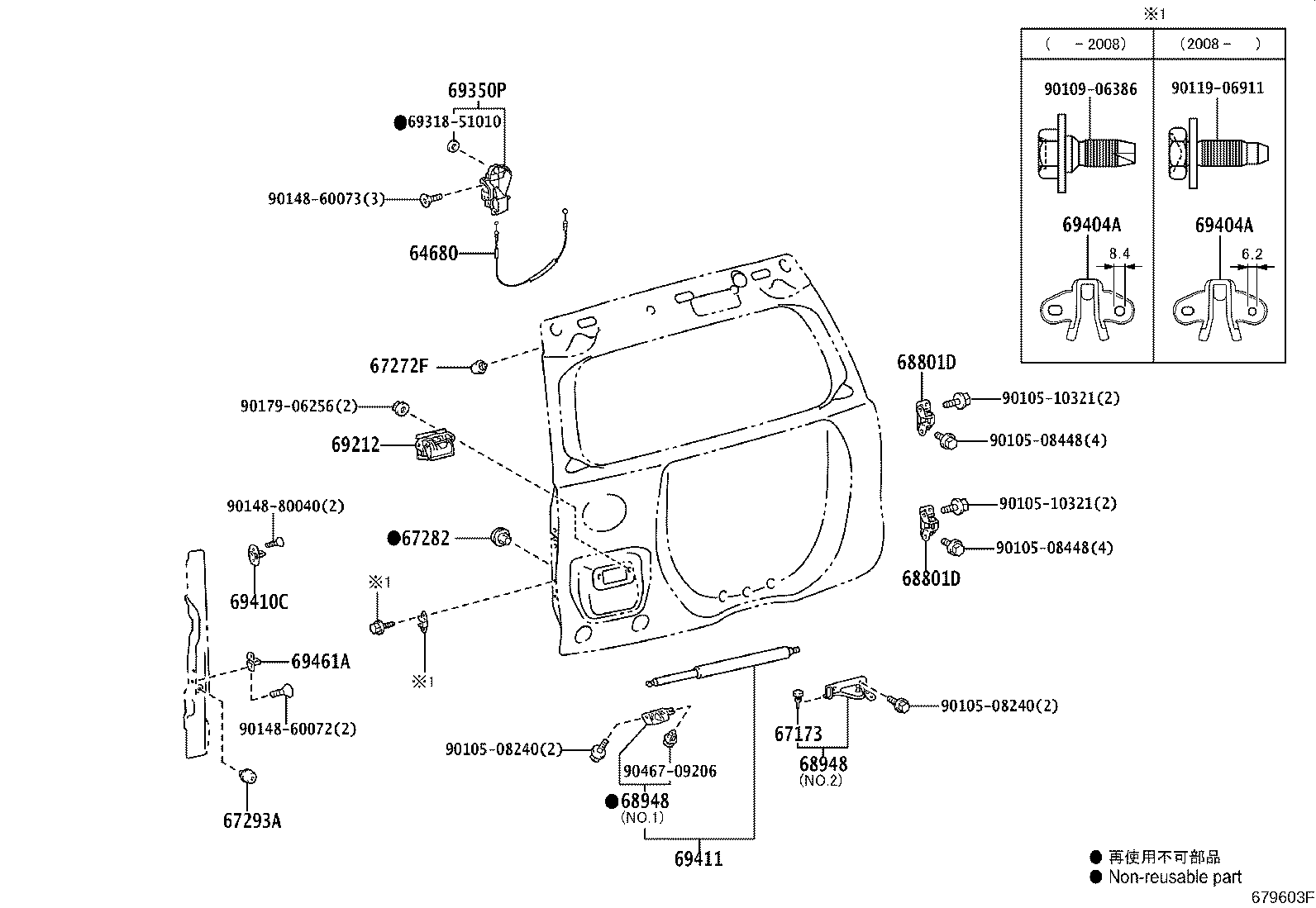

Click highlighted areas on diagram

W(SPARE TIRE=BACK DOOR)

Part #	Description	Period	Qty
64680 - CABLE ASSY, BACK DOOR LOCK CONTROL
64680-60010	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
67173 - CUSHION, BACK DOOR
90541-03005	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
67272F - CUSHION, BACK DOOR STOPPER, NO.2
67272-60050	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
67282 - STOPPER, BACK DOOR, NO.1
67282-46010	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
67293A - CUSHION, BACK DOOR STOPPER
67293-60040	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
68801D - HINGE SUB-ASSY, BACK DOOR, RH
68801-60052	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	2
68801D - HINGE SUB-ASSY, BACK DOOR, RH
68801-60052	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	2
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-60020	KDJ150..RHD;GDJ15#,GRJ150,TRJ150 NO.2:REFER ILLUST.	08/2017 - 12/2999	1
68948-60010	KDJ150..RHD;GDJ15#,GRJ150,TRJ150 NO.1:REFER ILLUST.	08/2017 - 12/2999	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-60020	KDJ150..RHD;GDJ15#,GRJ150,TRJ150 NO.2:REFER ILLUST.	08/2017 - 12/2999	1
68948-60010	KDJ150..RHD;GDJ15#,GRJ150,TRJ150 NO.1:REFER ILLUST.	08/2017 - 12/2999	1
69212 - HANDLE, BACK DOOR OUTSIDE, LH
69190-60012	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69110-60233	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69403-60021	GDJ15#,GRJ150,TRJ150 REFER ILLUST.	08/2020 - 12/2999	1
69403-60020	GDJ15#,GRJ150,KDJ150,TRJ150 REFER ILLUST.	08/2017 - 08/2020	1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69403-60021	GDJ15#,GRJ150,TRJ150 REFER ILLUST.	08/2020 - 12/2999	1
69403-60020	GDJ15#,GRJ150,KDJ150,TRJ150 REFER ILLUST.	08/2017 - 08/2020	1
69410C - PLATE ASSY, BACK DOOR LOCK STRIKER
69410-60020	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
69411 - CHECK, BACK DOOR
68650-09010	GDJ150,GRJ150,TRJ150..RUS	08/2017 - 12/2999	1
69461A - STOPPER, BACK DOOR SIDE MALE
69461-60010	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
Common parts
69318-51010
90105-08240
90105-08448
90105-10321
90109-06386
90119-06911
90148-60072
90148-60073
90148-80040
90179-06256
90467-09206

(1708- )

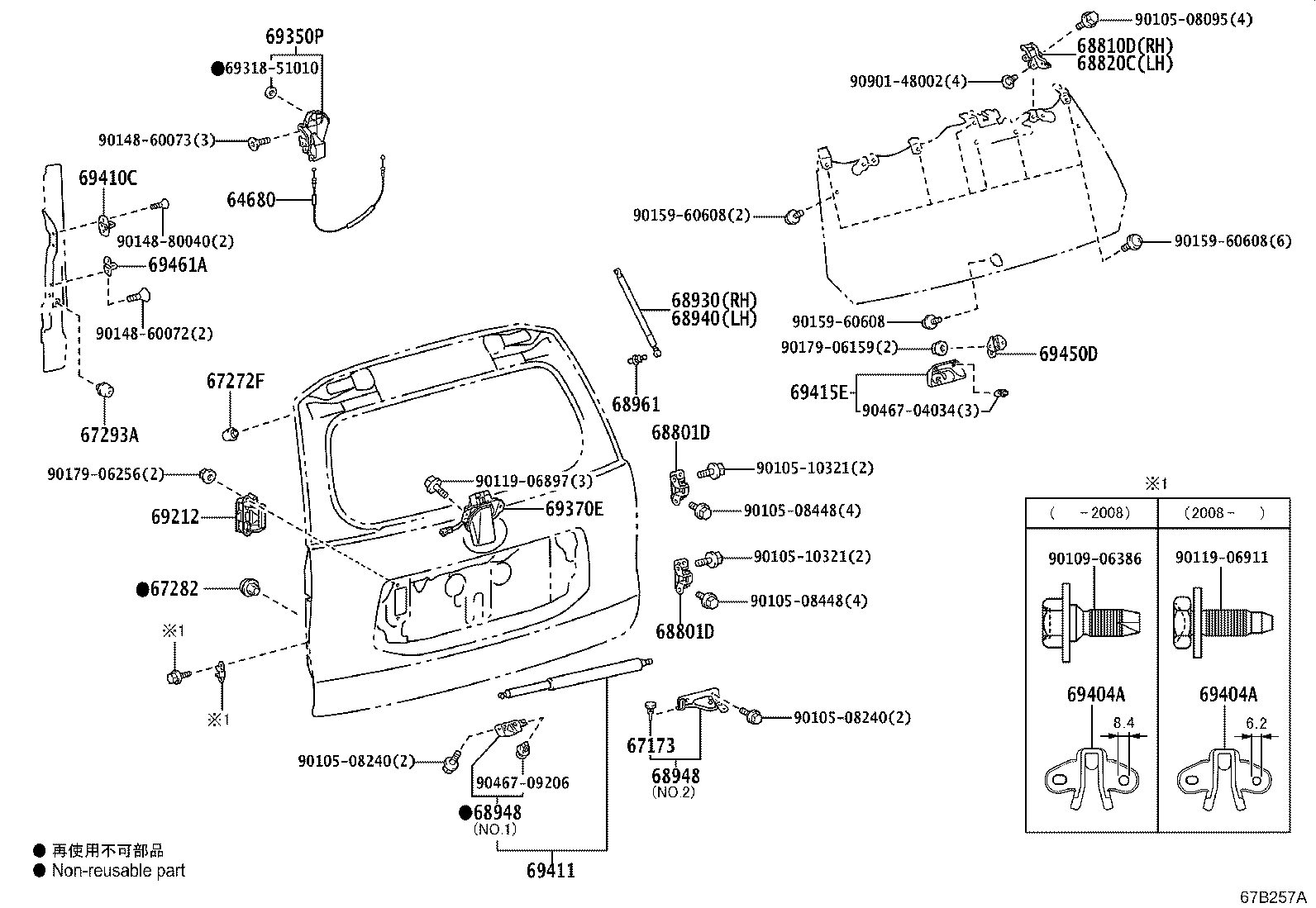

Click highlighted areas on diagram

W/O(SPARE TIRE=BACK DOOR)

Part #	Description	Period	Qty
64680 - CABLE ASSY, BACK DOOR LOCK CONTROL
64680-60010	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
67173 - CUSHION, BACK DOOR
90541-03005	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
67272F - CUSHION, BACK DOOR STOPPER, NO.2
67272-60050	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
67282 - STOPPER, BACK DOOR, NO.1
67282-46010	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
67293A - CUSHION, BACK DOOR STOPPER
67293-60040	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
68801D - HINGE SUB-ASSY, BACK DOOR, RH
68801-60052	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	2
68801D - HINGE SUB-ASSY, BACK DOOR, RH
68801-60052	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	2
68810D - HINGE ASSY, BACK DOOR, RH
68810-60051	KDJ150..RHD;GDJ150,GRJ150,TRJ150	08/2017 - 12/2999	1
68820C - HINGE ASSY, BACK DOOR, LH
68820-60011	KDJ150..RHD;GDJ150,GRJ150,TRJ150	08/2017 - 12/2999	1
68930 - STAY ASSY, BACK WINDOW, RH
68930-0W010	TRJ150..6FC VIETNAM SPEC	08/2020 - 06/2021	1
68930-0W020	KDJ150..RHD;GDJ150,GRJ150,TRJ150	08/2017 - 12/2999	1
68940 - STAY ASSY, BACK WINDOW, LH
68940-0W010	TRJ150..6FC VIETNAM SPEC	08/2020 - 06/2021	1
68940-0W020	KDJ150..RHD;GDJ150,GRJ150,TRJ150	08/2017 - 12/2999	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-60020	KDJ150..RHD;GDJ15#,GRJ150,TRJ150 NO.2:REFER ILLUST.	08/2017 - 12/2999	1
68948-60010	KDJ150..RHD;GDJ15#,GRJ150,TRJ150 NO.1:REFER ILLUST.	08/2017 - 12/2999	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-60020	KDJ150..RHD;GDJ15#,GRJ150,TRJ150 NO.2:REFER ILLUST.	08/2017 - 12/2999	1
68948-60010	KDJ150..RHD;GDJ15#,GRJ150,TRJ150 NO.1:REFER ILLUST.	08/2017 - 12/2999	1
68961 - BOLT, BACK DOOR STAY
68961-20140	KDJ150..RHD;GDJ150,GRJ150,TRJ150	08/2017 - 12/2999	2
69212 - HANDLE, BACK DOOR OUTSIDE, LH
69190-60012	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69110-60233	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
69370E - LOCK ASSY, BACK WINDOW
69370-60020	KDJ150..RHD;GDJ150,GRJ150,TRJ150	08/2017 - 12/2999	1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69403-60021	GDJ15#,GRJ150,TRJ150 REFER ILLUST.	08/2020 - 12/2999	1
69403-60020	GDJ15#,GRJ150,KDJ150,TRJ150 REFER ILLUST.	08/2017 - 08/2020	1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69403-60021	GDJ15#,GRJ150,TRJ150 REFER ILLUST.	08/2020 - 12/2999	1
69403-60020	GDJ15#,GRJ150,KDJ150,TRJ150 REFER ILLUST.	08/2017 - 08/2020	1
69410C - PLATE ASSY, BACK DOOR LOCK STRIKER
69410-60020	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
69411 - CHECK, BACK DOOR
68650-09010	GDJ150,GRJ150,TRJ150..RUS	08/2017 - 12/2999	1
69415E - COVER, BACK DOOR LOCK STRIKER
69415-60010	KDJ150..RHD;GDJ150,GRJ150,TRJ150	08/2017 - 12/2999	1
69450D - STRIKER ASSY, BACK WINDOW LOCK
69450-60050	KDJ150..RHD;GDJ150,GRJ150,TRJ150	08/2017 - 12/2999	1
69461A - STOPPER, BACK DOOR SIDE MALE
69461-60010	KDJ150..RHD;GDJ15#,GRJ150,TRJ150	08/2017 - 12/2999	1
Common parts
69318-51010
90105-08095
90105-08240
90105-08448
90105-10321
90109-06386
90119-06897
90119-06911
90148-60072
90148-60073
90148-80040
90159-60608
90179-06159
90179-06256
90467-04034
90467-09206
90901-48002

TRJ150L-GKTEKX (2017)
