TRJ150L-GKTEKX (2017)
Toyota Land Cruiser

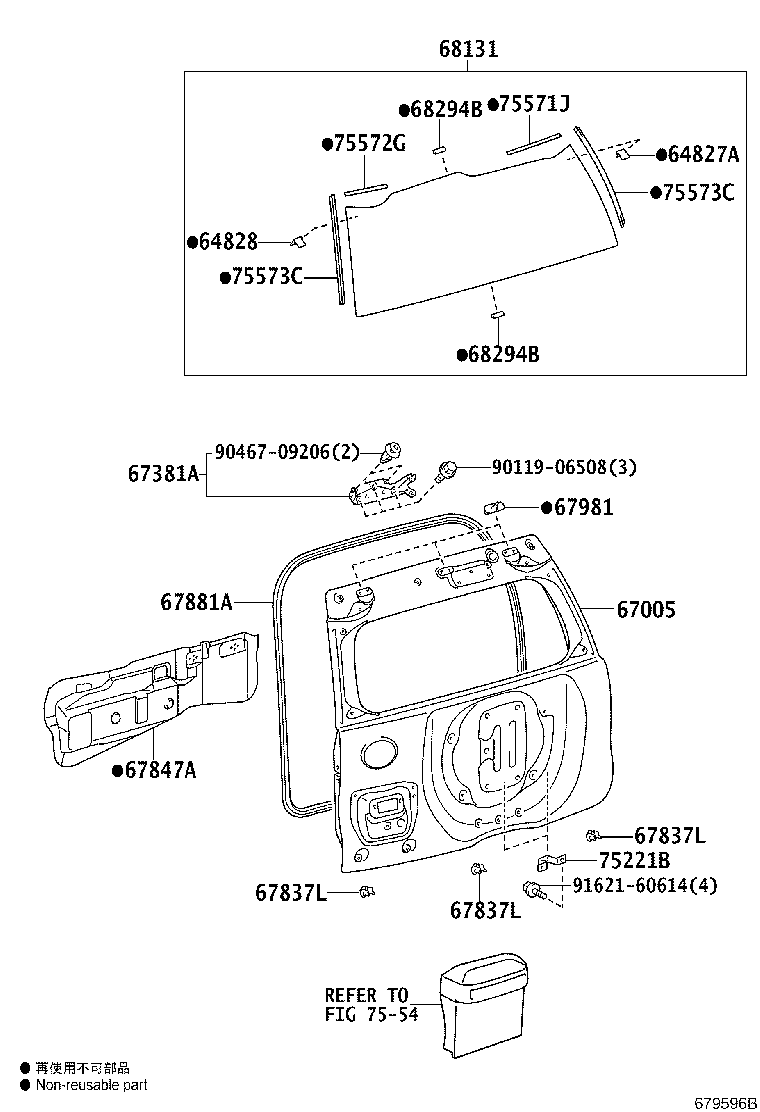

ILLUST NO. 1 OF 2(1708- )
PANEL,W(SPARE TIRE=BACK DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-60L30 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60070 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
3 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60070 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
3 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60070 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
3 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-60090 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-60141 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-60190 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 68105-60210 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,TRJ150..6FC..RUS VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY) |
1 | ||
| 75221B - BRACKET, TOOL BOX | ||||
| 75221-60010 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-60110 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-60110 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 90119-06508 | ||||
| 90467-09206 | ||||
| 91621-60614 | ||||
| Linked diagrams | ||||
| 7554 | ||||

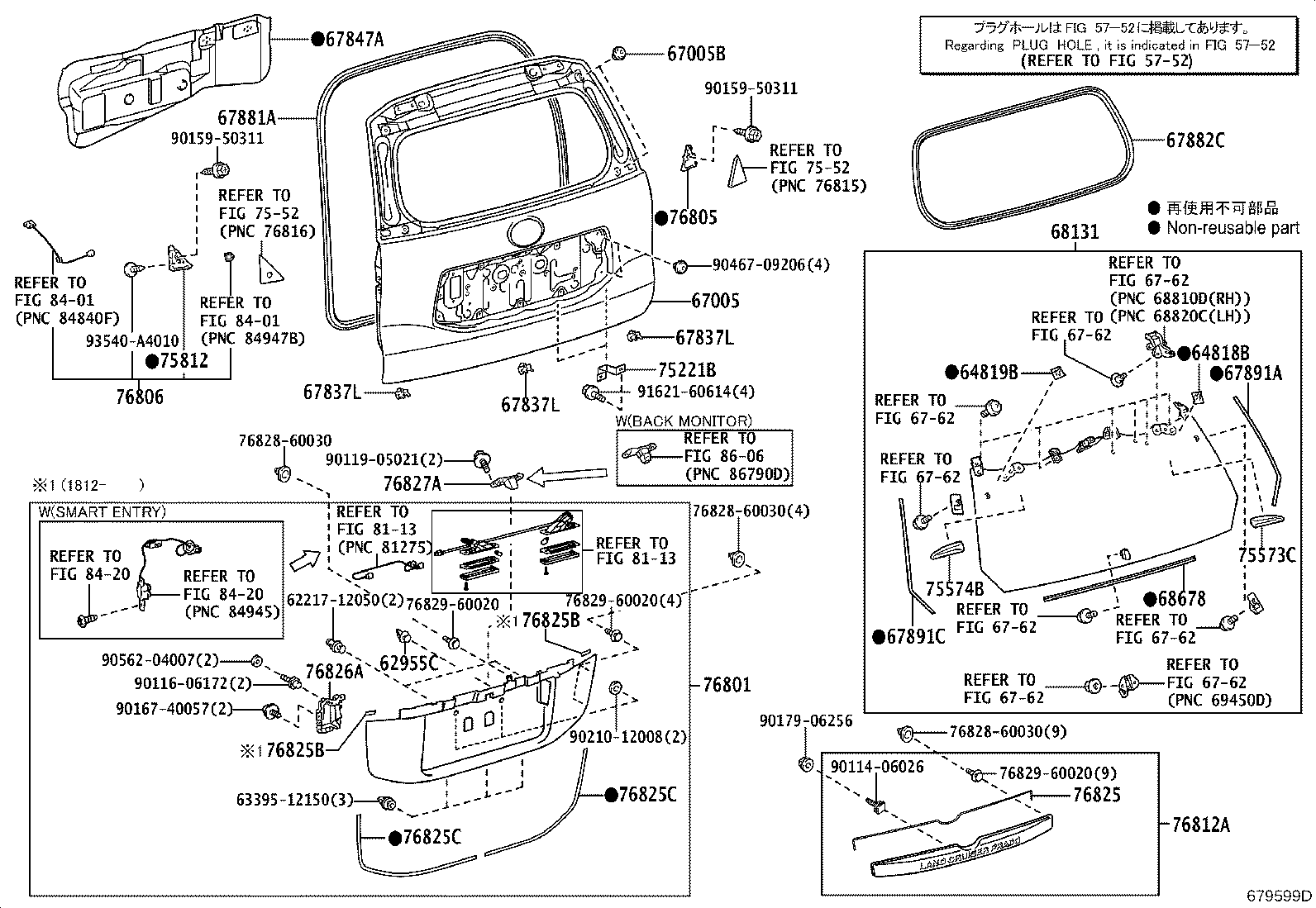

ILLUST NO. 1 OF 2(1708- )
PANEL,W/O(SPARE TIRE=BACK DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62955C - RETAINER, BACK DOOR MOULDING | ||||
| 62955-60050 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-60050 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-60050 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-60L30 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-12012 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
4 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60070 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
3 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60070 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
3 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-60070 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
3 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-60090 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-60141 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 67882C - WEATHERSTRIP, BACK DOOR, NO.2 | ||||
| 67882-60090 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 67891A - SEAL, BACK DOOR | ||||
| 67891-60020 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 67891C - SEAL, BACK DOOR | ||||
| 67892-60020 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-60190 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 68105-60210 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,TRJ150..6FC..RUS VX PACKAGE&REAR QUARTER GLASS-PRIVACY(DARK GRAY) |
1 | ||
| 68678 - PROTECTOR, BACK DOOR WINDOW | ||||
| 68678-60010 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 75221B - BRACKET, TOOL BOX | ||||
| 75221-60010 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-60110 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 75574B - MOULDING, BACK WINDOW, OUTSIDE LH | ||||
| 75574-60040 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 75812 - MOULDING, BACK DOOR, OUTSIDE UPPER RH | ||||
| 76816-60011 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-60461B0 |
TRJ150 SILVER ME.,1F7 |
1 | ||
| 76801-60461C1 |
TRJ150 ATTITUDE BLACK MC.,218 |
1 | ||
| 76801-60461B1 |
TRJ150 GRAY ME.,1G3 |
1 | ||
| 76801-60461A0 |
TRJ150 SUPER WHITE 2,040 |
1 | ||
| 76801-60461E0 |
TRJ150 AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 76801-60461C0 |
TRJ150 BLACK,202 |
1 | ||
| 76801-60461E1 |
TRJ150 VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 76801-60461A1 |
TRJ150 WHITE PEARL CS.,070 |
1 | ||
| 76801-60461D0 |
TRJ150 RED M.M.,3R3 |
1 | ||
| 76801-60461C2 |
TRJ150 BLACKISH AGEHA GF.,221 |
1 | ||
| 76801-60460C2 |
TRJ150 BLACKISH AGEHA GF.,221 |
1 | ||
| 76801-60460A0 |
TRJ150 SUPER WHITE 2,040 |
1 | ||
| 76801-60460C1 |
TRJ150 ATTITUDE BLACK MC.,218 |
1 | ||
| 76801-60460C0 |
TRJ150 BLACK,202 |
1 | ||
| 76801-60460E1 |
TRJ150 VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 76801-60460B1 |
TRJ150 GRAY ME.,1G3 |
1 | ||
| 76801-60460D0 |
TRJ150 RED M.M.,3R3 |
1 | ||
| 76801-60460E0 |
TRJ150 AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 76801-60460A1 |
TRJ150 WHITE PEARL CS.,070 |
1 | ||
| 76801-60460B0 |
TRJ150 SILVER ME.,1F7 |
1 | ||
| 76805 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER RH | ||||
| 76815-60011 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 76806 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER LH | ||||
| 76806-60011 |
KDJ150..RHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 76812A - GARNISH, BACK DOOR, OUTSIDE NO.2 | ||||
| 76810-60130 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| 76810-60150 |
GDJ150,GRJ150,TRJ150..6FC..RUS UKRAINE SPEC&VX PACKAGE |
1 | ||
| 76810-60170 |
GDJ150,GRJ150,TRJ150..6FC..RUS VX PACKAGE |
1 | ||
| 76810-60151 |
GDJ150,GRJ150,TRJ150..6FC..RUS UKRAINE SPEC&VX PACKAGE |
1 | ||
| 76810-60070 |
GDJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION*(C) |
1 | ||
| 76810-60171 |
GDJ150,GRJ150,TRJ150..6FC..RUS VX PACKAGE |
1 | ||
| 76810-60070 |
GDJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS)&BLACK EDITION*(C) |
1 | ||
| 76810-60070 |
GDJ150,TRJ150..6FC..RUS UKRAINE SPEC&*LES(COLOR) & WITHOUT(AVS)&BLACK EDITION(EXTERIOR ONLY) |
1 | ||
| 76810-60070 |
GDJ150,TRJ150..6FC..RUS *LES(COLOR) & WITHOUT(AVS)&BLACK EDITION(EXTERIOR ONLY) |
1 | ||
| 76810-60070 |
GDJ150,TRJ150..6FC..RUS UKRAINE SPEC&*LES & WITHOUT(AVS)&BLACK EDITION*(C) |
1 | ||
| 76810-60151 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&*LES(COLOR) & WITHOUT(AVS) |
1 | ||
| 76810-60151 |
GDJ150,TRJ150..6FC..RUS UKRAINE SPEC&*LES(COLOR) & WITHOUT(AVS) |
1 | ||
| 76810-60131 |
GDJ150,GRJ150,TRJ150..RUS |
1 | ||
| 76810-60171 |
GDJ150,TRJ150..6FC..RUS *LES(COLOR) & WITHOUT(AVS) |
1 | ||
| 76810-60151 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&*LES & WITHOUT(AVS) |
1 | ||
| 76810-60151 |
TRJ150..6FC WITHOUT(DESTINATION PACKAGE(EUROPE))&*FAS & *IP(ORNAMENT = WOOD-GRAIN) |
1 | ||
| 76810-60070 |
GDJ150,TRJ150..6FC..RUS *LES & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION(EXTERIOR ONLY) |
1 | ||
| 76810-60070 |
GDJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS)&BLACK EDITION(EXTERIOR ONLY) |
1 | ||
| 76810-60070 |
GDJ150,TRJ150..6FC..RUS UKRAINE SPEC&*LES & WITHOUT(AVS)&BLACK EDITION(EXTERIOR ONLY) |
1 | ||
| 76810-60070 |
GDJ150,TRJ150..6FC..RUS *FAS & *IP(ORNAMENT = WOOD-GRAIN)&BLACK EDITION(EXTERIOR ONLY) |
1 | ||
| 76810-60070 |
GDJ150,TRJ150..6FC..RUS UKRAINE SPEC&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&BLACK EDITION(EXTERIOR ONLY) |
1 | ||
| 76810-60070 |
GDJ150,TRJ150..6FC..RUS *FAS & *IP(ORNAMENT = BLACK PAINT)&BLACK EDITION(EXTERIOR ONLY) |
1 | ||
| 76810-60171 |
GDJ150,TRJ150..6FC..RUS *LES & WITHOUT(AVS) |
1 | ||
| 76810-60151 |
GDJ150,TRJ150..6FC..RUS UKRAINE SPEC&*FAS & *IP(ORNAMENT = WOOD-GRAIN) |
1 | ||
| 76810-60151 |
GDJ150,TRJ150..6FC..RUS UKRAINE SPEC&*LES & WITHOUT(AVS) |
1 | ||
| 76810-60171 |
GDJ150,TRJ150..6FC..RUS *FAS & *IP(ORNAMENT = WOOD-GRAIN) |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-60210 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 76825-60211 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 76825B - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-60230 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 76825B - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-60230 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-60250 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-60250 |
GDJ150,GRJ150,KDJ150,TRJ150 |
2 | ||
| 76826A - RETAINER, BACK DOOR GARNISH, NO.1 | ||||
| 76826-60110 |
GDJ150,GRJ150,KDJ150,TRJ150 |
1 | ||
| 76827A - RETAINER, BACK DOOR GARNISH, NO.2 | ||||
| 76827-60040 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 |
1 | ||
| 76827-60040 |
GDJ150..LHD..6F;GDJ150,GRJ150,TRJ150..6FC BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 76827-60040 |
GDJ150,GRJ150,TRJ150..6F,6FC BACK MONITOR-WITH |
1 | ||
| 76827-60040 |
GDJ150,GRJ150,TRJ150..6FC..RUS BACK MONITOR-WITH(FOR RADIO LESS) |
1 | ||
| Common parts | ||||
| 62217-12050 | ||||
| 63395-12150 | ||||
| 76828-60030 | ||||
| 76829-60020 | ||||
| 90114-06026 | ||||
| 90116-06172 | ||||
| 90119-05021 | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90179-06256 | ||||
| 90210-12008 | ||||
| 90467-09206 | ||||
| 90562-04007 | ||||
| 91621-60614 | ||||
| 93540-A4010 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 6762 | ||||
| 7552 | ||||
| 8113 | ||||
| 8401 | ||||
| 8420 | ||||
| 8606 | ||||

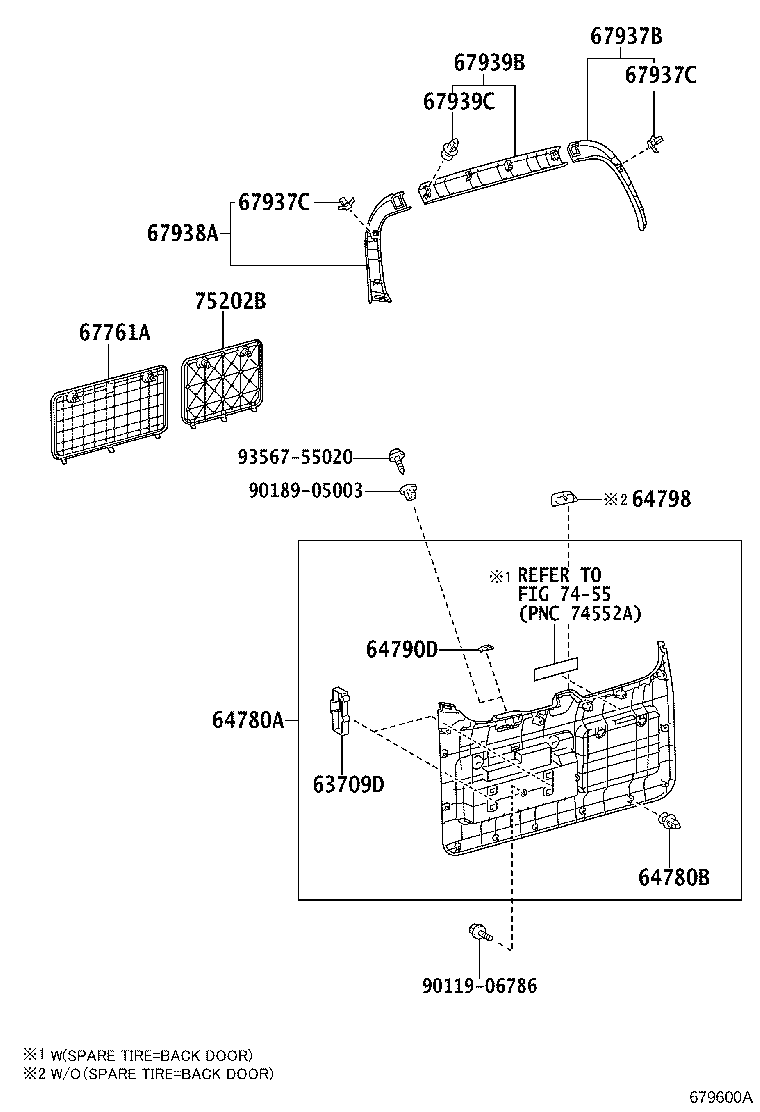

ILLUST NO. 2 OF 2(1708- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63709D - BAND SUB-ASSY, ROOM RACK | ||||
| 64279-60021 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-60370E0 |
GRJ150..RUS;GDJ150,KDJ150,TRJ150..LHD DUST PROOF SPEC,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64780-60340C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 64780-60370C0 |
GRJ150..RUS;GDJ150,KDJ150,TRJ150..LHD DUST PROOF SPEC,BLACK,TRIM2# |
1 | ||
| 64780-60340E1 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-09206 |
GDJ150,GRJ150,KDJ150,TRJ150 |
15 | ||
| 64790D - CAP, BACK DOOR TRIM PANEL | ||||
| 74223-60050E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 74223-60050C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 64798 - COVER, BACK DOOR LOCK | ||||
| 64798-60010C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK |
1 | ||
| 67761A - COVER, BACK DOOR TRIM | ||||
| 67761-60050C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2#,*266 |
1 | ||
| 67761-60050C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 67761-60050E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4#,*266 |
1 | ||
| 67761-60060E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4#,*504 |
1 | ||
| 67761-60050E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67761-60060C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2#,*504 |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-60171E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67937-60171C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
4 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
4 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-60121C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 67938-60121E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-60111E0 |
GDJ150,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67939-60111C0 |
GDJ150,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-09206 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
4 | ||
| 75202B - PANEL SUB-ASSY, TOOL BOX, UPPER | ||||
| 75202-60100E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 75202-60100C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| 90189-05003 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
