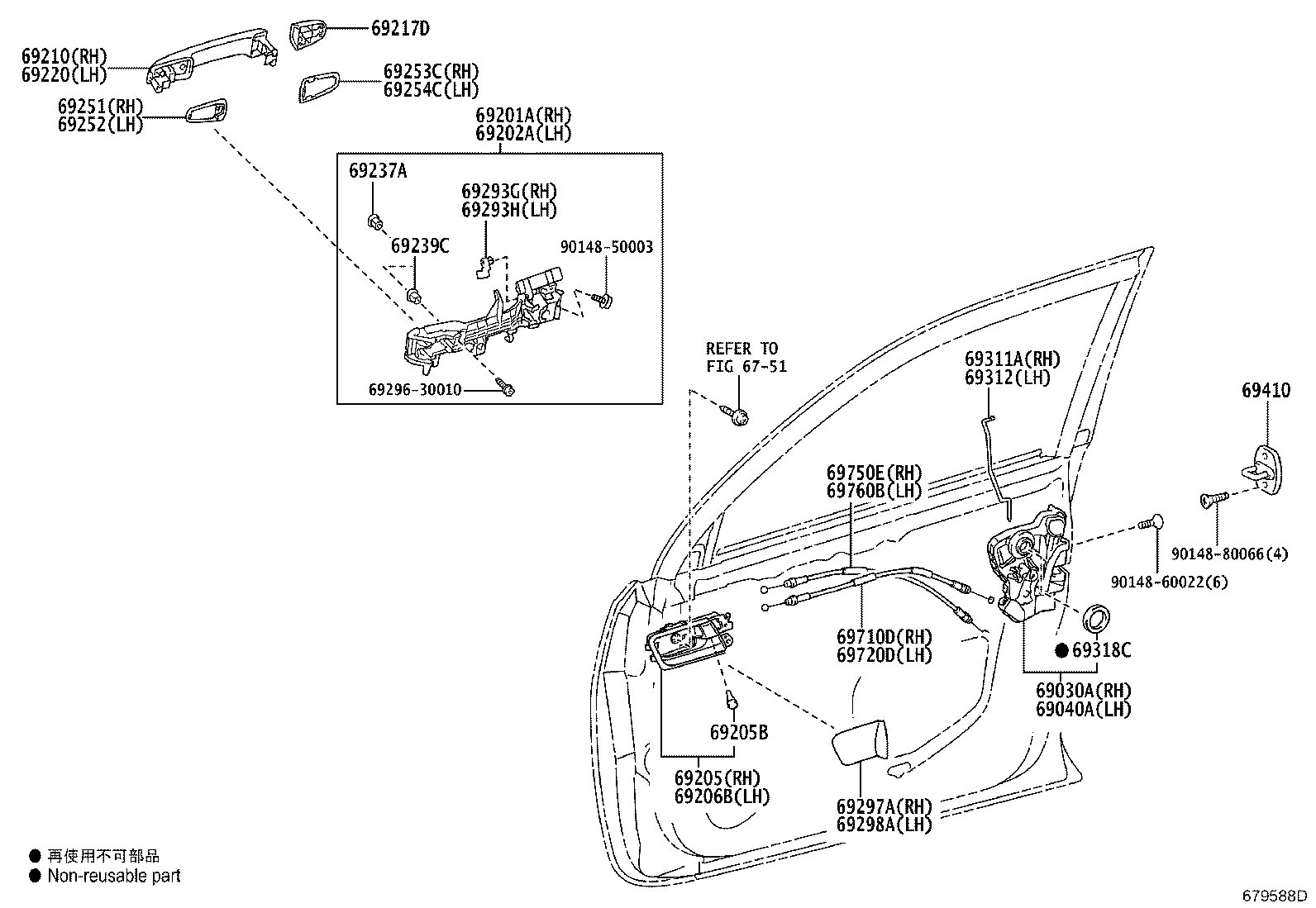

TRJ150L-GKTEKX (2017)
Toyota Land Cruiser
(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-60250 |
GDJ15#,GRJ150,TRJ150..LHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 69030-60240 |
GDJ15#,GRJ150,TRJ150..LHD |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-42241 |
GDJ15#,GRJ150,TRJ150..LHD |
1 | ||
| 69040-53100 |
GDJ15#,GRJ150,TRJ150..LHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-60111 |
GDJ15#..6F;GDJ15#,GRJ150,TRJ150..LHD..(5F,6FC) |
1 | ||
| 69201-60110 |
GDJ15#..6F;GDJ15#..LHD..6FC;GRJ150,KDJ150,TRJ150 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-60051 |
GDJ15#,GRJ150,TRJ150 |
1 | ||
| 69202-60050 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 67605-60100E0 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,ORCHID BROWN,TRIM4# |
1 | ||
| 67605-60100C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 67605-60040E3 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 67605-60100C0 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,BLACK,TRIM2# |
1 | ||
| 67605-60040C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 67605-60100C0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 67605-60100C0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2# |
1 | ||
| 67605-60100E0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 67605-60100E0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4# |
1 | ||
| 67605-60100E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 67606-60090E0 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,ORCHID BROWN,TRIM4# |
1 | ||
| 67606-60090C0 |
GDJ150,TRJ150..6FC..RUS VX PACKAGE OR TX-L PACKAGE,BLACK,TRIM2# |
1 | ||
| 67606-60040C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 67606-60090C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 67606-60090E0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC *LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 67606-60090C0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),BLACK,TRIM2# |
1 | ||
| 67606-60090C0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2# |
1 | ||
| 67606-60090E0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4# |
1 | ||
| 67606-60090E0 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) *LES & WITHOUT(AVS),ORCHID BROWN,TRIM4# |
1 | ||
| 67606-60040E3 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-60070A1 |
TRJ150 TX-L PACKAGE,WHITE PEARL CS.,070 |
1 | ||
| 69211-60070A1 |
TRJ150..6FC VX PACKAGE,WHITE PEARL CS.,070 |
1 | ||
| 69211-60070C2 |
TRJ150 TX-L PACKAGE,BLACKISH AGEHA GF.,221 |
1 | ||
| 69211-60070A0 |
TRJ150..6FC VX PACKAGE,SUPER WHITE 2,040 |
1 | ||
| 69211-60070B1 |
TRJ150..6FC VX PACKAGE,GRAY ME.,1G3 |
1 | ||
| 69211-60070B1 |
TRJ150 TX-L PACKAGE,GRAY ME.,1G3 |
1 | ||
| 69211-60070C0 |
TRJ150..6FC VX PACKAGE,BLACK,202 |
1 | ||
| 69211-60070C2 |
TRJ150..6FC VX PACKAGE,BLACKISH AGEHA GF.,221 |
1 | ||
| 69211-60070C1 |
TRJ150..6FC VX PACKAGE,ATTITUDE BLACK MC.,218 |
1 | ||
| 69211-60070A0 |
TRJ150 TX-L PACKAGE,SUPER WHITE 2,040 |
1 | ||
| 69211-60070B0 |
TRJ150..6FC VX PACKAGE,SILVER ME.,1F7 |
1 | ||
| 69211-60070D3 |
TRJ150 TX-L PACKAGE,RED M.M.,3R3 |
1 | ||
| 69211-60070E9 |
TRJ150..6FC VX PACKAGE,AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69211-60070D3 |
TRJ150..6FC VX PACKAGE,RED M.M.,3R3 |
1 | ||
| 69211-60070C0 |
TRJ150 TX-L PACKAGE,BLACK,202 |
1 | ||
| 69211-60070E8 |
TRJ150..6FC VX PACKAGE,VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69211-60080 |
TRJ150 NO PAINT REQ. |
1 | ||
| 69211-60070E8 |
TRJ150 TX-L PACKAGE,VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69211-60070C1 |
TRJ150 TX-L PACKAGE,ATTITUDE BLACK MC.,218 |
1 | ||
| 69211-60070B0 |
TRJ150 TX-L PACKAGE,SILVER ME.,1F7 |
1 | ||
| 69211-60070E9 |
TRJ150 TX-L PACKAGE,AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-60150A1 |
TRJ150 TX-L PACKAGE,WHITE PEARL CS.,070,DRIVER SIDE |
1 | ||
| 69217-60150A1 |
TRJ150..6FC VX PACKAGE,WHITE PEARL CS.,070,DRIVER SIDE |
1 | ||
| 69217-60150A0 |
TRJ150 TX-L PACKAGE,SUPER WHITE 2,040,DRIVER SIDE |
1 | ||
| 69217-60150B1 |
TRJ150 TX-L PACKAGE,GRAY ME.,1G3,DRIVER SIDE |
1 | ||
| 69217-60150C0 |
TRJ150..6FC VX PACKAGE,BLACK,202,DRIVER SIDE |
1 | ||
| 69217-60150B0 |
TRJ150..6FC VX PACKAGE,SILVER ME.,1F7,DRIVER SIDE |
1 | ||
| 69217-60150C2 |
TRJ150 TX-L PACKAGE,ATTITUDE BLACK MC.,218,DRIVER SIDE |
1 | ||
| 69217-60150D2 |
TRJ150 TX-L PACKAGE,RED M.M.,3R3,DRIVER SIDE |
1 | ||
| 69217-60150B1 |
TRJ150..6FC VX PACKAGE,GRAY ME.,1G3,DRIVER SIDE |
1 | ||
| 69217-60150B0 |
TRJ150 TX-L PACKAGE,SILVER ME.,1F7,DRIVER SIDE |
1 | ||
| 69217-60150C3 |
TRJ150 TX-L PACKAGE,BLACKISH AGEHA GF.,221,DRIVER SIDE |
1 | ||
| 69217-60150E6 |
TRJ150..6FC VX PACKAGE,VINTAGE BROWN PEARL CS.,4X4,DRIVER SIDE |
1 | ||
| 69217-60150A0 |
TRJ150..6FC VX PACKAGE,SUPER WHITE 2,040,DRIVER SIDE |
1 | ||
| 69217-60150C0 |
TRJ150 TX-L PACKAGE,BLACK,202,DRIVER SIDE |
1 | ||
| 69217-60150C3 |
TRJ150..6FC VX PACKAGE,BLACKISH AGEHA GF.,221,DRIVER SIDE |
1 | ||
| 69217-60150E6 |
TRJ150 TX-L PACKAGE,VINTAGE BROWN PEARL CS.,4X4,DRIVER SIDE |
1 | ||
| 69217-60150C2 |
TRJ150..6FC VX PACKAGE,ATTITUDE BLACK MC.,218,DRIVER SIDE |
1 | ||
| 69217-60170 |
TRJ150 BLACK MATERIAL,DRIVER SIDE |
1 | ||
| 69217-60150D2 |
TRJ150..6FC VX PACKAGE,RED M.M.,3R3,DRIVER SIDE |
1 | ||
| 69250-60030A1 |
TRJ150..6FC VX PACKAGE,WHITE PEARL CS.,070,PASSENGER SIDE |
1 | ||
| 69250-60030A0 |
TRJ150..6FC VX PACKAGE,SUPER WHITE 2,040,PASSENGER SIDE |
1 | ||
| 69250-60030A1 |
TRJ150 TX-L PACKAGE,WHITE PEARL CS.,070,PASSENGER SIDE |
1 | ||
| 69250-60030A0 |
TRJ150 TX-L PACKAGE,SUPER WHITE 2,040,PASSENGER SIDE |
1 | ||
| 69217-60150E7 |
TRJ150..6FC VX PACKAGE,AVANT-GARDE BRONZE ME.,4V8,DRIVER SIDE |
1 | ||
| 69250-60030C0 |
TRJ150..6FC VX PACKAGE,BLACK,202,PASSENGER SIDE |
1 | ||
| 69250-60030C0 |
TRJ150 TX-L PACKAGE,BLACK,202,PASSENGER SIDE |
1 | ||
| 69250-60030B1 |
TRJ150 TX-L PACKAGE,GRAY ME.,1G3,PASSENGER SIDE |
1 | ||
| 69250-60030B0 |
TRJ150 TX-L PACKAGE,SILVER ME.,1F7,PASSENGER SIDE |
1 | ||
| 69217-60150E7 |
TRJ150 TX-L PACKAGE,AVANT-GARDE BRONZE ME.,4V8,DRIVER SIDE |
1 | ||
| 69250-60030C2 |
TRJ150 TX-L PACKAGE,ATTITUDE BLACK MC.,218,PASSENGER SIDE |
1 | ||
| 69250-60030B1 |
TRJ150..6FC VX PACKAGE,GRAY ME.,1G3,PASSENGER SIDE |
1 | ||
| 69250-60030C3 |
TRJ150 TX-L PACKAGE,BLACKISH AGEHA GF.,221,PASSENGER SIDE |
1 | ||
| 69250-60030D2 |
TRJ150..6FC VX PACKAGE,RED M.M.,3R3,PASSENGER SIDE |
1 | ||
| 69250-60030B0 |
TRJ150..6FC VX PACKAGE,SILVER ME.,1F7,PASSENGER SIDE |
1 | ||
| 69250-60030C3 |
TRJ150..6FC VX PACKAGE,BLACKISH AGEHA GF.,221,PASSENGER SIDE |
1 | ||
| 69250-60030E6 |
TRJ150..6FC VX PACKAGE,VINTAGE BROWN PEARL CS.,4X4,PASSENGER SIDE |
1 | ||
| 69250-60030E6 |
TRJ150 TX-L PACKAGE,VINTAGE BROWN PEARL CS.,4X4,PASSENGER SIDE |
1 | ||
| 69250-60030D2 |
TRJ150 TX-L PACKAGE,RED M.M.,3R3,PASSENGER SIDE |
1 | ||
| 69250-60030E7 |
TRJ150 TX-L PACKAGE,AVANT-GARDE BRONZE ME.,4V8,PASSENGER SIDE |
1 | ||
| 69250-60030C2 |
TRJ150..6FC VX PACKAGE,ATTITUDE BLACK MC.,218,PASSENGER SIDE |
1 | ||
| 69250-60030E7 |
TRJ150..6FC VX PACKAGE,AVANT-GARDE BRONZE ME.,4V8,PASSENGER SIDE |
1 | ||
| 69250-60040 |
TRJ150 BLACK MATERIAL,PASSENGER SIDE |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-60070A0 |
TRJ150 TX-L PACKAGE,SUPER WHITE 2,040 |
1 | ||
| 69211-60070B0 |
TRJ150..6FC VX PACKAGE,SILVER ME.,1F7 |
1 | ||
| 69211-60070C0 |
TRJ150..6FC VX PACKAGE,BLACK,202 |
1 | ||
| 69211-60070A1 |
TRJ150 TX-L PACKAGE,WHITE PEARL CS.,070 |
1 | ||
| 69211-60070C2 |
TRJ150..6FC VX PACKAGE,BLACKISH AGEHA GF.,221 |
1 | ||
| 69211-60070C2 |
TRJ150 TX-L PACKAGE,BLACKISH AGEHA GF.,221 |
1 | ||
| 69211-60070B1 |
TRJ150 TX-L PACKAGE,GRAY ME.,1G3 |
1 | ||
| 69211-60070C1 |
TRJ150 TX-L PACKAGE,ATTITUDE BLACK MC.,218 |
1 | ||
| 69211-60070E8 |
TRJ150..6FC VX PACKAGE,VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69211-60070A1 |
TRJ150..6FC VX PACKAGE,WHITE PEARL CS.,070 |
1 | ||
| 69211-60070D3 |
TRJ150 TX-L PACKAGE,RED M.M.,3R3 |
1 | ||
| 69211-60070C1 |
TRJ150..6FC VX PACKAGE,ATTITUDE BLACK MC.,218 |
1 | ||
| 69211-60070C0 |
TRJ150 TX-L PACKAGE,BLACK,202 |
1 | ||
| 69211-60070D3 |
TRJ150..6FC VX PACKAGE,RED M.M.,3R3 |
1 | ||
| 69211-60070E8 |
TRJ150 TX-L PACKAGE,VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 69211-60070E9 |
TRJ150..6FC VX PACKAGE,AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69211-60070B0 |
TRJ150 TX-L PACKAGE,SILVER ME.,1F7 |
1 | ||
| 69211-60070A0 |
TRJ150..6FC VX PACKAGE,SUPER WHITE 2,040 |
1 | ||
| 69211-60080 |
TRJ150 NO PAINT REQ. |
1 | ||
| 69211-60070E9 |
TRJ150 TX-L PACKAGE,AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 69211-60070B1 |
TRJ150..6FC VX PACKAGE,GRAY ME.,1G3 |
1 | ||
| 69237A - NUT, FRONT DOOR HANDLE | ||||
| 69237-62010 |
GDJ15#..6F;GDJ15#..LHD..6FC;GRJ150,KDJ150,TRJ150 |
2 | ||
| 69239C - BUSH, FRONT DOOR HANDLE | ||||
| 69239-62010 |
GDJ15#..6F;GDJ15#..LHD..6FC;GRJ150,KDJ150,TRJ150 |
2 | ||
| 69251 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH | ||||
| 69241-60030 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 69252 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH | ||||
| 69241-60030 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 69253C - PAD, FRONT DOOR OUTSIDE HANDLE, REAR RH | ||||
| 69242-60040 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 69254C - PAD, FRONT DOOR OUTSIDE HANDLE, REAR LH | ||||
| 69242-60040 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 69297A - BEZEL, DOOR INSIDE HANDLE, NO.2 RH | ||||
| 69297-60020C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 69297-60020E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 69298A - BEZEL, DOOR INSIDE HANDLE, NO.2 LH | ||||
| 69298-60020E1 |
GDJ15#,GRJ150,KDJ150,TRJ150 ORCHID BROWN,TRIM4# |
1 | ||
| 69298-60020C0 |
GDJ15#,GRJ150,KDJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-60060 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-60060 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
2 | ||
| 69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE | ||||
| 69710-60030 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE | ||||
| 69710-60030 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK | ||||
| 69750-60040 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK | ||||
| 69750-60040 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| Linked diagrams | ||||
| 6751 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
